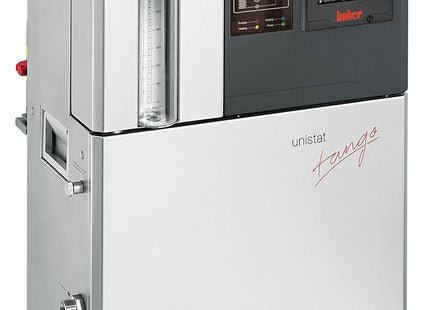

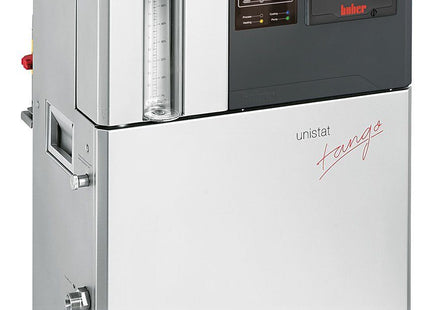

Huber Unistat Tango with Pilot ONE

Description

Huber Unistat Tango with Pilot ONE

(Please Note: There is  2-3  weeks Shipping  lead time)
         Unistats are predestined for applications in process and chemical engineering, such as temperature control of reactors, autoclaves, Miniplant/Pilot systems, reactor blocks and calorimeters. Unistat temperature control systems with their unique thermodynamics provide highly accurate and reproducible results, guaranteeing the shortest heating and cooling times and a wide temperature range without fluid change. Environmentally and economically Unistats stand out, offering natural refrigerants and an efficient energy management system for reduced operating costs.

.

  • Precise and reproducible temperature control results
  • Fastest heating and cooling rates
  • Wide temperature ranges with no fluid change

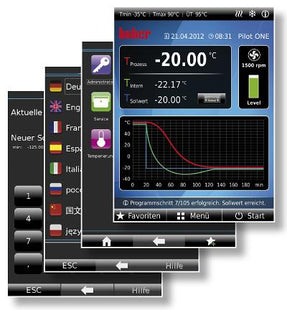

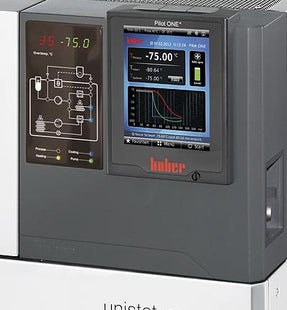

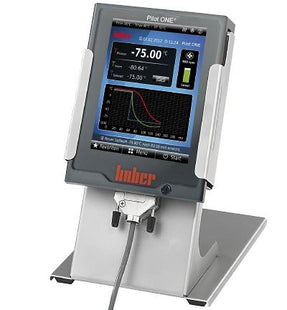

  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Adaptive temperature control, self-optimising
  • Efficient circulation pump
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included








General Information & Temperature Controller Unistat Tango Unistat Tango w Unistat Tango wl
Temperature range -45...250 °C -45...250 °C -45...250 °C
Temperature stability ±0.01 °C ±0.01 ±0.01 °C
Temperature control TAC, self-optimizing (True Adaptive Control) TAC, self-optimizing (True Adaptive Control) TAC, self-optimizing (True Adaptive Control)
Display resolution 0.01 °C 0.01 °C 0.01 °C
Alarm message optical, acoustical optical, acoustical optical, acoustical
Controller Pilot ONE (E-grade "Professional") Pilot ONE (E-grade "Professional") Pilot ONE (E-grade "Professional")
Safety class III / FL III / FL III / FL
Protection class IP20 IP20 IP20
Dimensions (W x D x H) 16.77 x 12.87 x 24.84 inches 16.77 x 12.87 x 24.84 inches 16.77 x 12.87 x 24.84 inches
Weight 141.12 pounds 119.07 pounds 132.3 pounds
Heating / Cooling Capacity
Heating capacity 3 kW 3 kW 3 kW
Cooling capacity 250 200 100 0 -20 -40 °C
0,7 0,7 0,7 0,7 0,4 0,06 kW		 250 200 100 0 -20 -40 °C
0,7 0,7 0,7 0,7 0,4 0,06 kW		 250 200 100 0 -20 -40 °C
0,7 0,7 0,7 0,7 0,4 0,06 kW
Cooling machine air-cooled water-cooled air- and water-cooled
Refrigerant R1270 (0,15 kg) R1270 (0,09 kg R1270 (0,15 kg)
Circulation Pump
Pressure pump max. 55 lpm ; 0.9 bar | 14.53 gpm ; 13.05 psi 55 lpm ; 0.9 bar | 14.53 gpm ; 130.5 psi 55 lpm ; 0.9 bar | 14.53 gpm ; 130.5 psi
Pump connection M24x1,5 AG male M24x1,5 AG male M24x1,5 AG male
Permissible viscosity 50 mm²/s 50 mm²/s
Connections
Pt100 connection Pt100 Pt100 Pt100
Analogue input via optional Com.G@te via optional Com.G@te via optional Com.G@te
Analogue outpu via optional Com.G@te via optional Com.G@te via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host RS232, Ethernet, USB Device, USB Host RS232, Ethernet, USB Device, USB Host
Operating Data
Permissible ambient temp. 5 to 40 °C 5 to 40 °C 5 to 40 °C
Noise level 62 dB(A) - 62 dB(A)
Filling volume min. 1.5 Liters | 0.4 gal 1.5 Liters | 0.4 gal 1.5 Liters | 0.4 gal

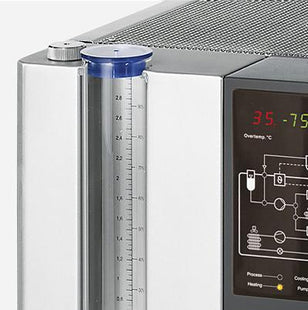

Volume of expansion 2.8 Liters | 0.74 gal 2.8 Liters | 0.74 gal 2.8 Liters | 0.74 gal
Cooling water connection - G1/2 AG G1/2 AG
Cooling water consumption - 24 l/h 30 l/h
Cooling water differential pressure min. - 0,5 bar | 72.5 psi 0,5 bar | 72.5 psi
Cooling water pressure max. - 6 bar | 87 psi 6 bar | 87 psi
Power supply 208V 2~ 60Hz 208V 2~ 60Hz 208V 2~ 60Hz
Current max 18 A 16,5 A 17,5 A
Fusing 20 A 2x20 A 2x20 A

Huber Unistat Tango with Pilot ONE

Product form

SKU: 1000.0041.01

$28,900.00

    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time.

    Description

    Huber Unistat Tango with Pilot ONE

    (Please Note: There is  2-3  weeks Shipping  lead time)
             Unistats are predestined for applications in process and chemical engineering, such as temperature control of reactors, autoclaves, Miniplant/Pilot systems, reactor blocks and calorimeters. Unistat temperature control systems with their unique thermodynamics provide highly accurate and reproducible results, guaranteeing the shortest heating and cooling times and a wide temperature range without fluid change. Environmentally and economically Unistats stand out, offering natural refrigerants and an efficient energy management system for reduced operating costs.

    .

    • Precise and reproducible temperature control results
    • Fastest heating and cooling rates
    • Wide temperature ranges with no fluid change
    • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
    • Adaptive temperature control, self-optimising
    • Efficient circulation pump
    • 2 x USB (Host and Device), Ethernet and RS232 interfaces
    • Efficient operation saves working time and operating costs
    • Proven functionality for the process industry
    • E-grade "Professional" included








    General Information & Temperature Controller Unistat Tango Unistat Tango w Unistat Tango wl
    Temperature range -45...250 °C -45...250 °C -45...250 °C
    Temperature stability ±0.01 °C ±0.01 ±0.01 °C
    Temperature control TAC, self-optimizing (True Adaptive Control) TAC, self-optimizing (True Adaptive Control) TAC, self-optimizing (True Adaptive Control)
    Display resolution 0.01 °C 0.01 °C 0.01 °C
    Alarm message optical, acoustical optical, acoustical optical, acoustical
    Controller Pilot ONE (E-grade "Professional") Pilot ONE (E-grade "Professional") Pilot ONE (E-grade "Professional")
    Safety class III / FL III / FL III / FL
    Protection class IP20 IP20 IP20
    Dimensions (W x D x H) 16.77 x 12.87 x 24.84 inches 16.77 x 12.87 x 24.84 inches 16.77 x 12.87 x 24.84 inches
    Weight 141.12 pounds 119.07 pounds 132.3 pounds
    Heating / Cooling Capacity
    Heating capacity 3 kW 3 kW 3 kW
    Cooling capacity 250 200 100 0 -20 -40 °C
    0,7 0,7 0,7 0,7 0,4 0,06 kW    		 250 200 100 0 -20 -40 °C
    0,7 0,7 0,7 0,7 0,4 0,06 kW    		 250 200 100 0 -20 -40 °C
    0,7 0,7 0,7 0,7 0,4 0,06 kW
    Cooling machine air-cooled water-cooled air- and water-cooled
    Refrigerant R1270 (0,15 kg) R1270 (0,09 kg R1270 (0,15 kg)
    Circulation Pump
    Pressure pump max. 55 lpm ; 0.9 bar | 14.53 gpm ; 13.05 psi 55 lpm ; 0.9 bar | 14.53 gpm ; 130.5 psi 55 lpm ; 0.9 bar | 14.53 gpm ; 130.5 psi
    Pump connection M24x1,5 AG male M24x1,5 AG male M24x1,5 AG male
    Permissible viscosity 50 mm²/s 50 mm²/s
    Connections
    Pt100 connection Pt100 Pt100 Pt100
    Analogue input via optional Com.G@te via optional Com.G@te via optional Com.G@te
    Analogue outpu via optional Com.G@te via optional Com.G@te via optional Com.G@te
    Digital interface RS232, Ethernet, USB Device, USB Host RS232, Ethernet, USB Device, USB Host RS232, Ethernet, USB Device, USB Host
    Operating Data
    Permissible ambient temp. 5 to 40 °C 5 to 40 °C 5 to 40 °C
    Noise level 62 dB(A) - 62 dB(A)
    Filling volume min. 1.5 Liters | 0.4 gal 1.5 Liters | 0.4 gal 1.5 Liters | 0.4 gal
    Volume of expansion 2.8 Liters | 0.74 gal 2.8 Liters | 0.74 gal 2.8 Liters | 0.74 gal
    Cooling water connection - G1/2 AG G1/2 AG
    Cooling water consumption - 24 l/h 30 l/h
    Cooling water differential pressure min. - 0,5 bar | 72.5 psi 0,5 bar | 72.5 psi
    Cooling water pressure max. - 6 bar | 87 psi 6 bar | 87 psi
    Power supply 208V 2~ 60Hz 208V 2~ 60Hz 208V 2~ 60Hz
    Current max 18 A 16,5 A 17,5 A
    Fusing 20 A 2x20 A 2x20 A
