Manufacturer: Huber

Huber Unistat 950w with Pilot ONE

SKU: 1065.0004.01
$492,600.00

Free Ground Shipping over $420


Flat Rate Shipping On Orders Under $420!


Some exclusions may apply.
The following are excluded from this offer:
  • Item(s) that are marked "Ships Separately" on the listing.
  • Hazardous Materials (Alcohols, Lab Chemicals, Butane/Propane, and Cleaning Solvents)
  • Item(s) that BVV™️️️️ recommends ship via Freight (LTL or FTL) due to size/fragility.
  • Large orders and/or combined order weight over 100lbs ship via Freight (LTL or FTL)
  • Free ground shipping only applies to the lower 48 states

Ships Separately

You will earn 0 points for this purchase.


Price Match

Huber Unistat 950w with Pilot ONE

(Please Note: There is up to 2-3 weeks Shipping lead time)



he Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7“ touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature.

Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

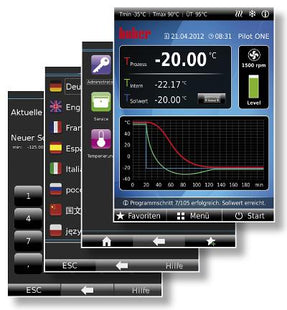

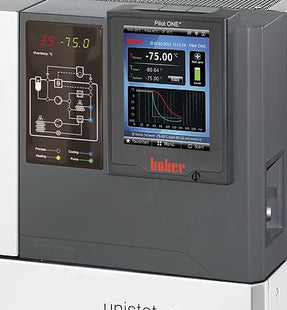

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.



FEATURES

  • Precise and reproducible temperature control results
  • Fastest heating and cooling rates
  • Wide temperature ranges with no fluid change
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Adaptive temperature control, self-optimising
  • Efficient circulation pump
  • Data communication via LAN, internet, USB, RS232 and RS485
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included





General information & temperature controller
Temperature range -90...200 °C
Temperature stability ±0.01 °C
Temperature control TAC, self-optimizing (True Adaptive Control)
Display resolution 0.01 °C
Alarm message optical, acoustical
Controller Pilot ONE (E-grade "Professional")
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 103.54 x 51.18 x 77.95 inches
Weight 4,882.0 pounds
Heating / cooling capacity
Heating capacity 36 kW
Cooling capacity 200   100  20   0   -20  -40  -60  -80

36      36   36   36   36   36   25  10   kW
Cooling machine water-cooled
Refrigerant 1. stage (ASHRAE, GHS) R452A (A1, H280)
Refrigerant 2. stage (ASHRAE, GHS) R23 (A1, H280) (7 kg)
Circulation pump
Pressure pump max. 240 lpm ; 4 bar | 63.41 gpm ; 58 psi
Pump connection Flansch DN40 PN10/40 EN1092-1
Permissible viscosity 100 mm²/s
Connections
Pt100 connection Pt100
Analogue input via optional Com.G@te
Analogue output via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp. 5...40 °C
Filling volume min. 30 Liters | 7.93 gal
Volume of expansion 90 Liters | 23.78 gal
Cooling water connection G1 1/4 AG
Cooling water differential pressure min. 3 bar | 43.5 psi
Cooling water pressure max. 6 bar | 87 psi
Power supply 460V 3~ 60Hz



Miscellaneous

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

This equipment is compliant to US-SNAP and all applicable EU laws. The US-SNAP end-use for this equipment is the industrial process refrigeration. Certification by a Notified Body upon request.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
