Name: Huber Unistat 915w with Pilot ONE
Brand: Huber
SKU: 1080.0003.01
Price: 152800.0 USD
Availability: InStock

Huber Unistat 915w with Pilot ONE

Description

Huber Unistat 915w with Pilot ONE

(Please Note: There is a 2 - 3 weeks lead time)

Unistat Circulators are an ideal solution for fast and precise thermal control of externally connected applications. These systems offer rapid temperature change and a wide temperature range without having to change fluid. The new Pilot ONE controller features a navigation system with easily remembered icons and menus which are sorted by color to make routine work simpler. An amazing software guides you through your set up ensuring all the necessary settings are correct.

Precise and reproducible temperature control results
Fastest heating and cooling rate
Wide temperature ranges with no fluid change

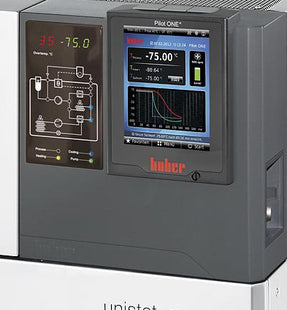

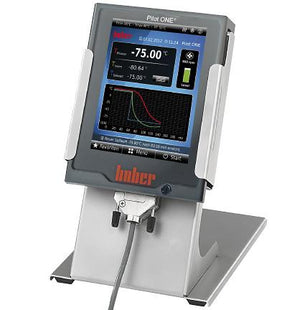

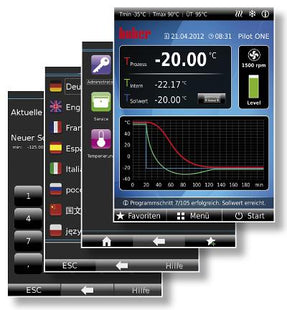

Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
Adaptive temperature control, self-optimising
Efficient circulation pump

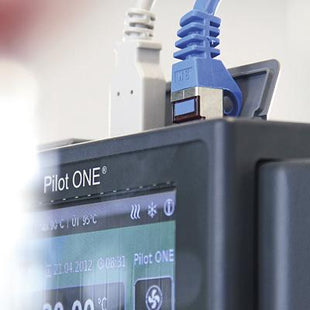

Data communication via LAN, internet, USB, RS232 and RS485
Efficient operation saves working time and operating costs
Proven functionality for the process industry
E-grade "Professional" included

General information & Temperature Controller
Temperature range	-90...250 °C
Temperature stability ±0.02 °C	±0.01 °C
Temperature control	TAC, self-optimizing (True Adaptive Control)
Display resolution	0.01 °C
Alarm message	optical, acoustical
Controller	Pilot ONE (E-grade "Professional")
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	630 x 704 x 1565 mm \| 24.8 x 27.72 x 61.61 inches
Weight	364 kg \| 802.62 pounds
Heating / Cooling Capacity
Heating capacity	6 kW
Cooling capacity	250 200 100 0 -20 -40 -60 -80 -90 °C 6,5 7,5 9 11 11 11 8,2 4,2 1,3 0,6 kW
Cooling machine	water-cooled
Refrigerant 1. stage	R507 (A1, H280) (2,9 kg)
Refrigerant 2. stage	R23 (A1, H280) (1,23 kg)
Circulation Pump
Pressure pump max.	110 lpm ; 1.5 bar \| 29.06 gpm ; 21.75 psi
Pump Connection	M30x1,5 AG male
Permissible viscosity	50 mm²/s
Connections
Pt100 connection	Pt100
Analogue input	via optional Com.G@te
Analogue output	via optional Com.G@te
Digital interface	RS232, Ethernet, USB Device, USB Host
Operating Data
Old sku	1055.0011.01
Permissible ambient temp.	5...40 °C
Noise level	64 dB(A)
Filling volume min.	3.9 Liters \| 1.03 gal
Volume of expansion	6.5 Liters \| 1.72 gal
Cooling water connection	G3/4 AG
Cooling water differential pressure min.	1 bar \| 14.5 psi
Cooling water pressure max.	6 bar \| 87 psi
Power supply	460V 3~ 60Hz
Current max.	29 A

Huber Unistat 915w with Pilot ONE

Product form

UL Listed

No
Yes

SKU: 1080.0003.01

$152,800.00

Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154

Financing Available

Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

Description

Huber Unistat 915w with Pilot ONE

(Please Note: There is a 2 - 3 weeks lead time)

Unistat Circulators are an ideal solution for fast and precise thermal control of externally connected applications. These systems offer rapid temperature change and a wide temperature range without having to change fluid. The new Pilot ONE controller features a navigation system with easily remembered icons and menus which are sorted by color to make routine work simpler. An amazing software guides you through your set up ensuring all the necessary settings are correct.

Precise and reproducible temperature control results
Fastest heating and cooling rate
Wide temperature ranges with no fluid change
Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
Adaptive temperature control, self-optimising
Efficient circulation pump
Data communication via LAN, internet, USB, RS232 and RS485
Efficient operation saves working time and operating costs
Proven functionality for the process industry
E-grade "Professional" included

General information & Temperature Controller
Temperature range	-90...250 °C
Temperature stability ±0.02 °C	±0.01 °C
Temperature control	TAC, self-optimizing (True Adaptive Control)
Display resolution	0.01 °C
Alarm message	optical, acoustical
Controller	Pilot ONE (E-grade "Professional")
Safety class	III / FL
Protection class	IP20
Dimensions (W x D x H)	630 x 704 x 1565 mm \| 24.8 x 27.72 x 61.61 inches
Weight	364 kg \| 802.62 pounds
Heating / Cooling Capacity
Heating capacity	6 kW
Cooling capacity	250 200 100 0 -20 -40 -60 -80 -90 °C 6,5 7,5 9 11 11 11 8,2 4,2 1,3 0,6 kW
Cooling machine	water-cooled
Refrigerant 1. stage	R507 (A1, H280) (2,9 kg)
Refrigerant 2. stage	R23 (A1, H280) (1,23 kg)
Circulation Pump
Pressure pump max.	110 lpm ; 1.5 bar \| 29.06 gpm ; 21.75 psi
Pump Connection	M30x1,5 AG male
Permissible viscosity	50 mm²/s
Connections
Pt100 connection	Pt100
Analogue input	via optional Com.G@te
Analogue output	via optional Com.G@te
Digital interface	RS232, Ethernet, USB Device, USB Host
Operating Data
Old sku	1055.0011.01
Permissible ambient temp.	5...40 °C
Noise level	64 dB(A)
Filling volume min.	3.9 Liters \| 1.03 gal
Volume of expansion	6.5 Liters \| 1.72 gal
Cooling water connection	G3/4 AG
Cooling water differential pressure min.	1 bar \| 14.5 psi
Cooling water pressure max.	6 bar \| 87 psi
Power supply	460V 3~ 60Hz
Current max.	29 A
