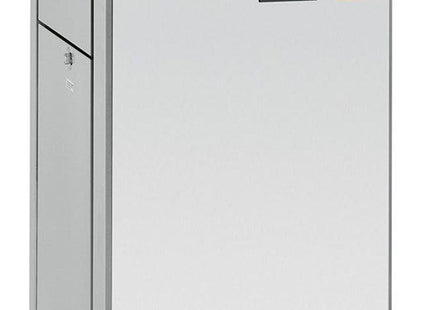

Huber Unistat 520w with Pilot ONE

(Please Note: There is a shipping lead time of 2 - 3 weeks)



he Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative Pilot ONE controller with a 5.7“ touchscreen colour display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time. Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management. Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

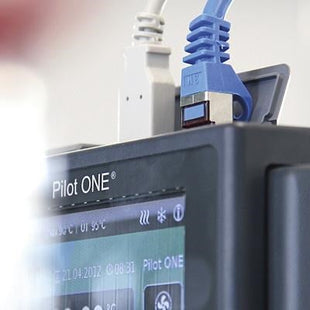

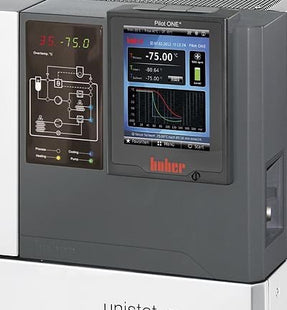

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.



Data Sheet

3 Years Warranty Extension

Operating manuals


General information & temperature controller
Temperature range -55...250 °C
Temperature stability ±0.01 °C
Temperature control TAC, self-optimizing (True Adaptive Control)
Display resolution 0.01 °C
Alarm message optical, acoustical
Controller Pilot ONE (E-grade "professional")
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 540 x 604 x 1332 mm | 21.26 x 23.78 x 52.44 inches
Weight 212 kg | 467.46 pounds
Heating / cooling capacity
Heating capacity 9 kW
Cooling capacity 250       200    100    20   0   -20   -40   -50   °C
           6          6       6        6     6         1,2       0,65    kW
250 200
Cooling machine water-cooled
Refrigerant (ASHRAE, GHS) R452A (A1, H280) (1,44 kg)
Circulation pump
Pressure pump max. 79 lpm ; 1.5 bar | 20.87 gpm ; 21.75 psi
Pump connection M30x1,5 AG male
Permissible viscosity 50 mm²/s
Connections
Pt100 connection Pt100
Analogue input via optional Com.G@te
Analogue output via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp. 5...40 °C
Noise level 61 dB(A)
Filling volume min. 4.9 Liters | 1.29 gal
Volume of expansion 16 Liters | 4.23 gal
Cooling water connection G1/2 AG
Cooling water differential pressure min. 1 bar | 14.5 psi
Cooling water pressure max. 6 bar | 87 psi
Power supply 460V 3~ 60Hz
Current max. 13 A
