Huber Unistat 510 with Pilot ONE 460V 3~ 60Hz
- VendorHuber
Description

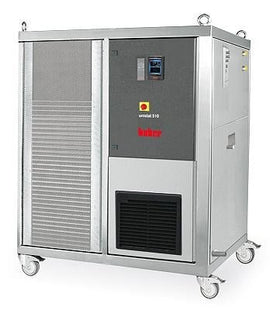

Huber Unistat 510 with Pilot ONE
The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change.

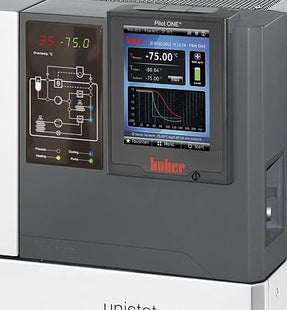

All Unistats are fitted with the innovative Pilot ONE controller with a 5.7“ touchscreen color display and easy menu navigation. All important parameters can be seen at a glance and temperature curves are displayed in graphic real time.
Unistats are equipped with the most up-to-date pump technology for optimal heat transfer. The pump self regulates to ensure the best possible circulation and flow and delicate glass reactors are protected from breakage by the pumps soft start-up feature. Unistat technology impresses as a result of economic operation with reduced operating costs and efficient energy management.
Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.

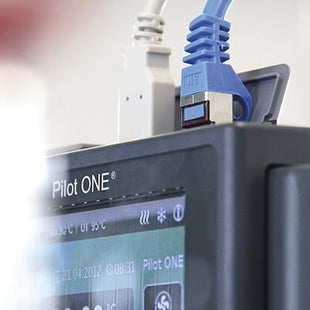

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorite menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
FEATURES:
- Precise and reproducible temperature control results
- Fastest heating and cooling rates
- Wide temperature ranges with no fluid change
- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- Adaptive temperature control, self-optimizing
- Efficient circulation pump
- 2 x USB (Host and Device), Ethernet and RS232 interfaces
- Efficient operation saves working time and operating costs
- Proven functionality for the process industry
- E-grade "Professional" include
| General information & temperature controller | |
|---|---|
| Temperature range | -50...250 °C |
| Temperature stability | ±0.01 °C |
| Temperature stability | TAC, self-optimizing (True Adaptive Control) |
| Display resolution | 0.01 °C |
| Alarm message | optical, acoustical |
| Controller | Pilot ONE (E-grade "Professional") |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 560 x 754 x 1457 mm | 22.05 x 29.68 x 57.36 inches |
| Weight | 233 kg | 513.76 pounds |
| Heating / cooling capacity | |
| Heating capacity | 6 kW |
| Cooling capacity | 250 200 100 0 -20 -40 -50 C 5,3 5,3 5,3 5,3 2,8 0,9 0,25 kW |
| Cooling machine | air-cooled |
| Refrigerant (ASHRAE, GHS) | R452A (A1, H280) (2,8 kg) |
| Circulation pump | |
| Pressure pump max. | 112 lpm ; 1.5 bar | 29.59 gpm ; 21.75 psi |
| Pump connection | M30x1,5 AG male |
| Permissible viscosity | 50 mm²/s |
| Connections | |
| Pt100 connection | Pt100 |
| Analogue input | via optional Com.G@te |
| Analogue output | via optional Com.G@te |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
| Operating data | |
| Permissible ambient temp. | 5...40 °C |
| Filling volume min. | 4.1 Liters | 1.08 gal |
| Volume of expansion | 5.5 Liters | 1.45 gal |
| Power supply | 460V 3~ 60Hz |
| Current max. | 16 A |
