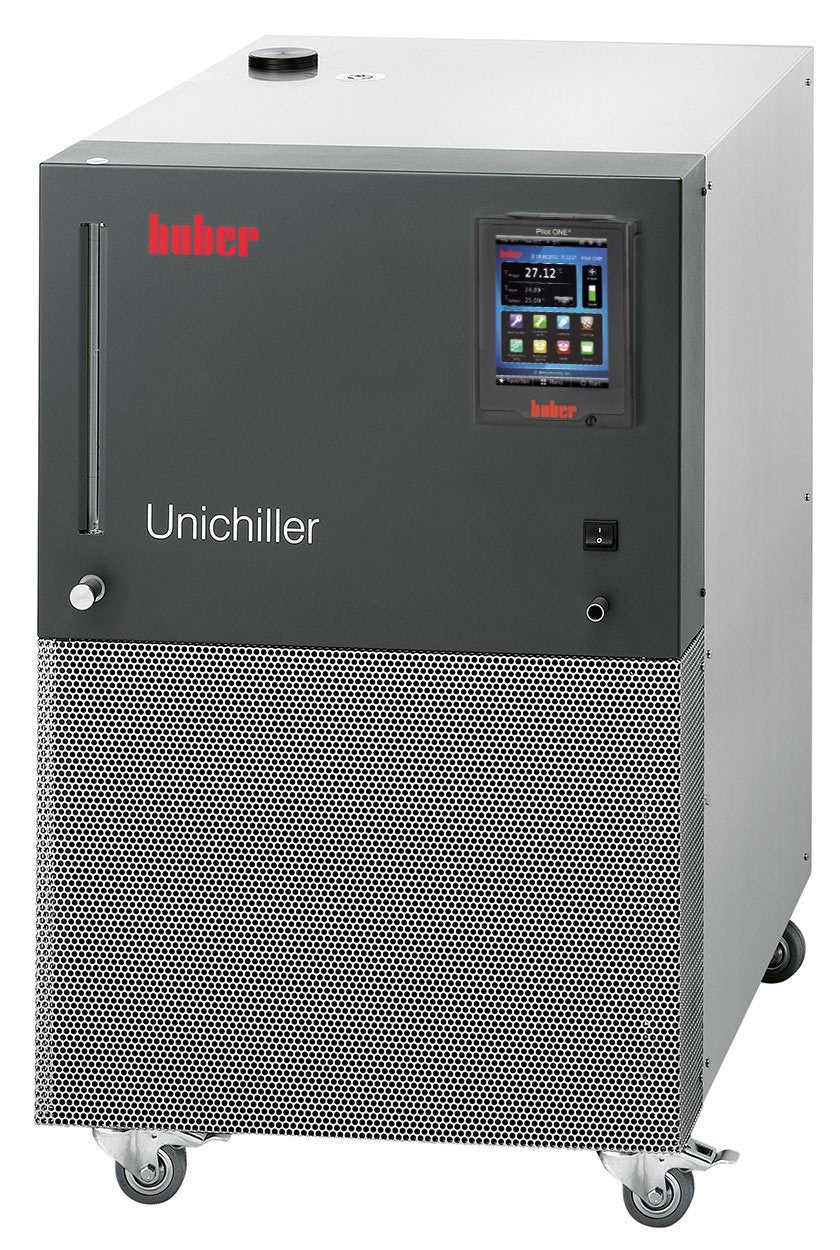

Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling. Chillers also reduce water consumption and help conserve the environment whilst lowering operating costs. Unichillers are suitable for the removal of heat from chemical processes, cooling technical plants or as a central cooling water supply for laboratories. All Unichillers are designed for continual operation at ambient temperatures up to +40°C. Installation in an outside areas is possible with optional weather protection and winter operation packages. Pumps are available with an extended pressure and flow rate for applications with a high pressure drops.

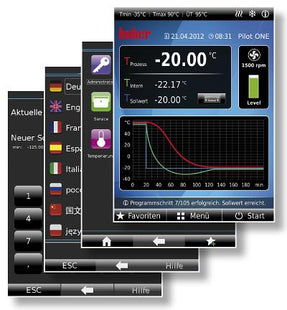

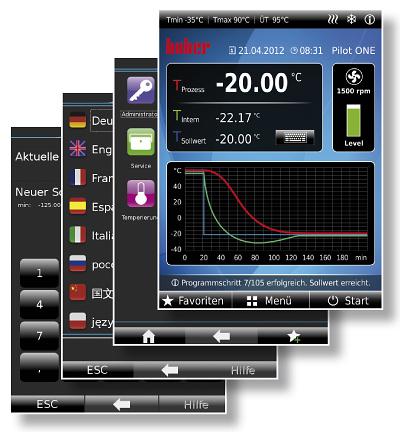

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen.
Reliable continuously operation with warning functions
Easy to fill and empty
Adjustable bypass, level indicator with sight glass and digital manometer

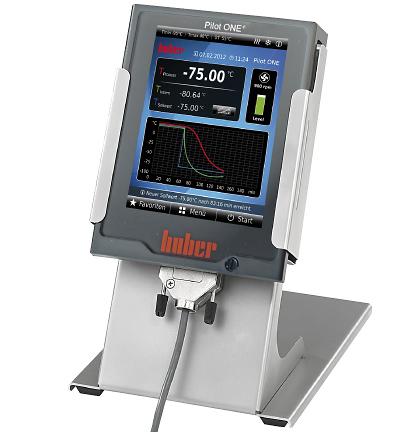

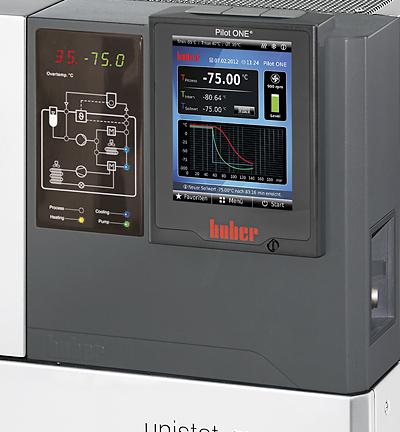

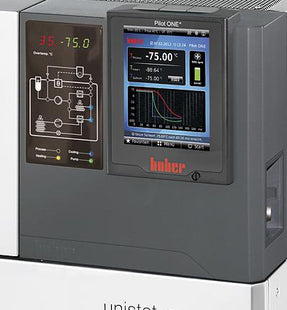

Pilot ONE controller with 5.7" touchscreen

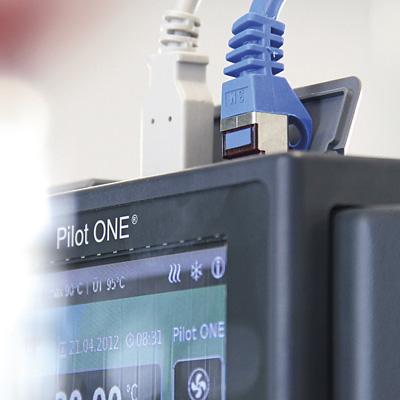

2 x USB (Host and Device), Ethernet and RS232 interfaces
General information & temperature controller
Temperature range
-10...40 °C
Temperature stability
±0.5 °C
Temperature Control
TAC, self-optimizing (True Adaptive Control)
Display resolution
0.01 °C
Alarm message
optical, acoustical
Controller
Pilot ONE (E-grade "Professional")
Safety class
I / NFL
Protection class
IP20
Dimensions (W x D x H)
18.11 x 23.23 x 29.25 inches
Weight
176.4 pounds
Heating / cooling capacity
Cooling capacity
15 0 -10 C
2,2 1,6 1 kW
Cooling machine
air-cooled
Refrigerant (ASHRAE, GHS)
R507 (A1, H280) (0,64 kg)
Circulation pump
Pressure pump max.
25 lmp ; 2.5 bar / 6.6 gpm ; 36.25 psi
Pump connection
G3/4 AG male
Connections
Pt100 connection
Pt100
Digital interface
RS232, Ethernet, USB Device, USB Host
Operating data
Permissible ambient temp.
5...40 °C
Filling volume min.
3.8 Liters / 1 gal
Volume of expansion
1.7 Liters / 0.45 gal
Power supply
208V 2~ 60Hz
Current max.
10 A
Miscellaneous
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products. The following voltage and frequency tolerances apply based on EN60034-1: Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%.
Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
This equipment is compliant to US-SNAP and all applicable EU laws. The US-SNAP end-use for this equipment is the industrial process refrigeration. Certification by a Notified Body upon request.
We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
