HUBER KISS 202C Heating Circulation
- VendorHuber
Description

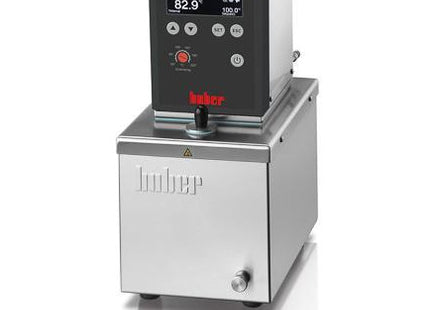

HUBER KISS 202C Heating Circulation
(Please Note: There is a 6 weeks lead time)
Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an overtemperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.
The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).
- KISS temperature controller
- Bright, large OLED display
- Simple operation with menu navigation
- Simultaneous display of setpoint, Tmin, Tmax and actual temperature
- Status displays for pump, cooling and heating
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)

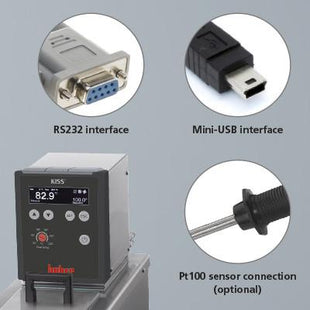

- USB and RS232 interfaces
- Autostart function for power failure

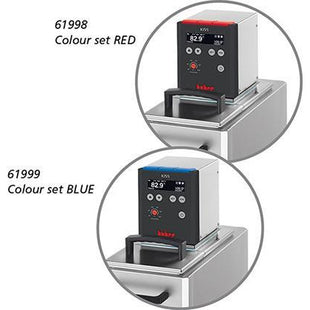

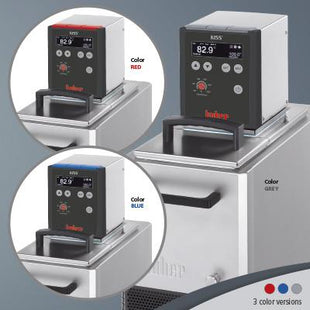

- 3 colour versions available: grey (standard), blue, red
- Download Data Sheet
- Click Here 3 Year Warranty Register
- Please observe the notes on installation and/or the space requirements of our products.
| General Information & Temperature Controller | |
|---|---|
| Temperature range | (-30) 45...200 °C |
| Temperature stability | ±0,05 °C |
| Temperature display | OLED Display |
| Alarm message | optical, acoustical |
| Controller | KISS |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 178 x 260 x 355 mm | 7.01 x 10.24 x 13.98 inches |
| Weight | 8 kg | 17.64 pounds |
| Heating / Cooling Capacity | |
| Heating capacity | 1 - 1,5 kW |
| Circulation Pump | |
| Pressure pump max. | 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi |
| Suction pump max. | 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi |
| Pump connection | M16x1 AG male |
| Connections | |
| Digital interface | USB, RS232 |
| Operating Data | |
| Old Sku | 2039.0010.98 |
| Permissible ambient temp. | 5 to 40 °C |
| Bath opening WxD/BD | Ø = 25 / 150 mm | Ø = 0.98 / 5.91 inches |
| Bath volume | 2 Liters | 0.53 gal |
| Power supply | 100-115V 1~ 50/60Hz |
| Current max | 15 A |
| Fusing | 15 A |
HUBER KISS 202C Heating Circulation
- VendorHuber
SKU: 2003.0006.98
$3,330.00
You will earn 3,330 points for this purchase.- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
