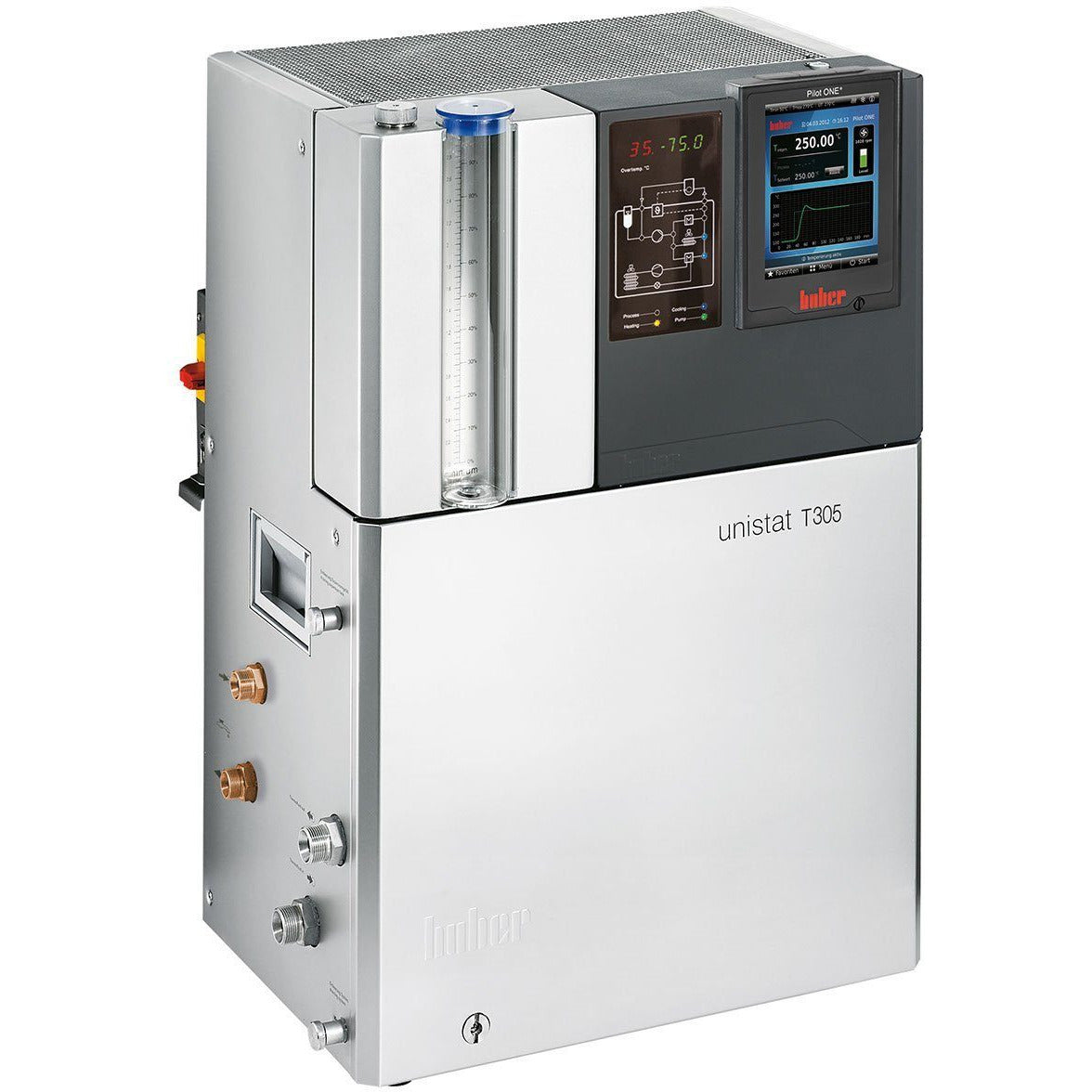

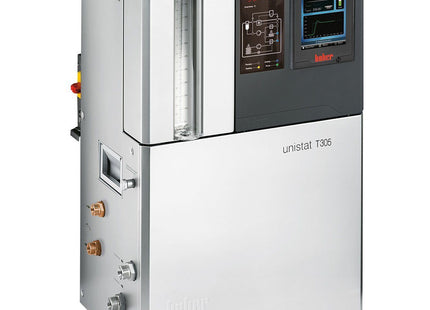

HUBER Unistat T305 with Pilot ONE
(Please Note: There is a 2 - 3 weeks lead time)
The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative
Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.
| General Information & Temperature Controller |
| Temperature range |
65...300 °C |
| Temperature stability |
±0,02 °C |
| Temperature control |
TAC, self-optimizing (True Adaptive Control) |
| Controller |

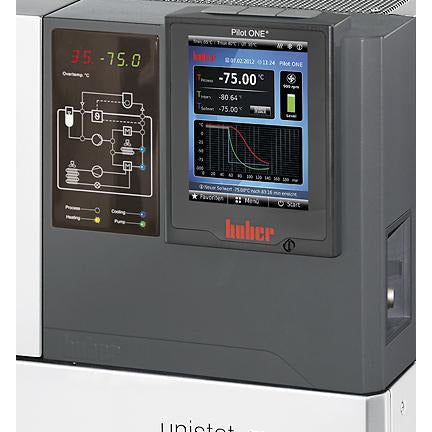

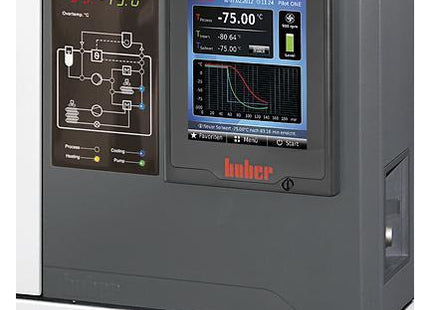

Pilot ONE (E-grade "Basic") |
| Safety class |
III / FL |
| Protection class |
IP20 |
| Dimensions (W x D x H) |
425 x 250 x 631 mm | 16.73 x 9.84 x 24.84 inches |
| Weight |
37 kg | 81.59 pounds |
| Heating / Cooling Capacity |
| Heating capacity |
4,8 kW |
| Circulation Pump |
| Pressure pump max. |
45 lpm ; 0.9 bar | 11.89 gpm ; 13.05 psi |
| Pump connection |
M24x1,5 AG male |
| Permissible viscosity |
50 mm²/s |
| Connections |
| Pt100 connection |
Pt100 |
| Analogue input |
via optional Com.G@te |
| Analogue output |
via optional Com.G@te |
| Digital interface |

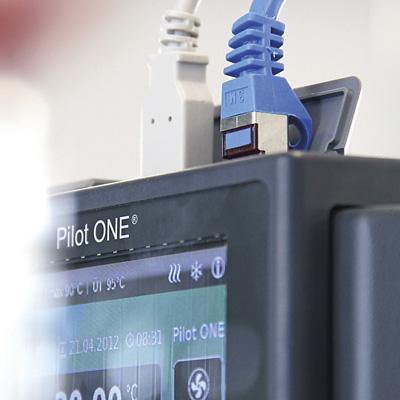

RS232, Ethernet, USB Device, USB Host |
| Operating Data |
| Old sku |
1003.0022.01 |
| Permissible ambient temp. |
5 to 40 °C |
| Filling volume min. |
1.45 Liters | 0.38 gal |
| Volume of expansion |
2.8 Liters | 0.74 gal |
| Power supply |
208V 3~ 60Hz |
| Current max. |
15 A |
| Fusing |
15,5 A |
