Temperature range |
-90 to 250 °C |
-90 to 250 °C |
Temperature stability |
±0.01 °C |
±0.01 |
Temperature control |
TAC, self-optimizing (True Adaptive Control) |
TAC, self-optimizing (True Adaptive Control) |
Display resolution |
0.01 °C |
0.01 °C |
Alarm message |
optical, acoustical |
optical, acoustical |

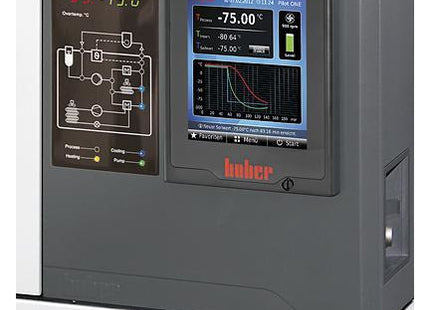

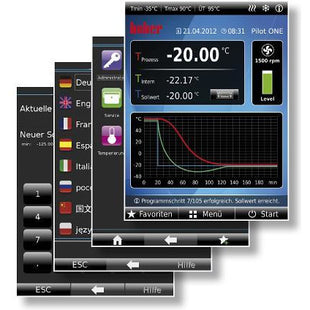

Controller |
Pilot ONE (E-grade "Professional") |
Pilot ONE (E-grade "Professional") |
Safety class |
III / FL |
III / FL |
Protection class |
IP20 |
IP20 |
Dimensions (W x D x H) |
540 x 654 x 1738 mm | 21.26 x 25.75 x 68.43 inches |
540 x 654 x 1500 mm | 21.26 x 25.75 x 59.06 inches |
Weight |
396 kg | 873.18 pounds |
275 kg | 606.38 pounds |
Heating / Cooling Capacity |
Heating capacity |
6 kW |
6 kW |
Cooling machine |
air-cooled |
air-cooled |
Refrigerant 1. stage |
R452A (A1, H280) (2,5 kg) |
R452A (A1, H280) (2,5 kg) |
Refrigerant 2. stage |
R23 (A1, H280) (0,75 kg) |
R23 |
Circulation Pump |
Pressure pump max. |
48 lpm ; 0.9 bar | 12.68 gpm ; 13.05 psi |
10.57 gpm ; 13.05 psi |
Pump connection |
M30x1,5 AG male |
M30x1,5 AG male |
Permissible viscosity |
50 mm²/s |
50 mm²/s |
Connections |
Pt100 connection |
Pt100 |
Pt100 |
Analogue input |
via optional Com.G@te |
via optional Com.G@te |
Analogue output |
via optional Com.G@te |
via optional Com.G@te |
Digital interface |
RS232, Ethernet, USB Device, USB Host |
RS232, Ethernet, USB Device, USB Host |
Operating Data |
Old sku |
1035.0013.01 |
1035.0014.01 |
Permissible ambient temp. |
5...35 °C |
5...35 °C |
Filling volume min. |
3.2 Liters | 0.85 gal |
3.2 Liters | 0.85 gal |

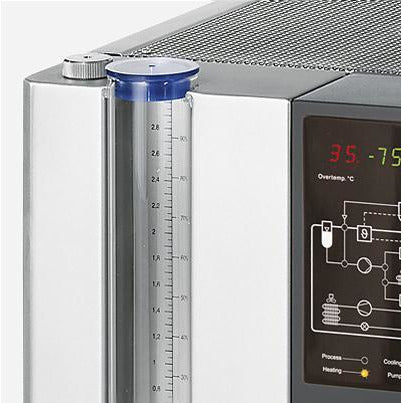

Volume of expansion |
5.3 Liters | 1.4 gal |
5.3 Liters | 1.4 gal |
Power supply |
208V 3~ 60Hz |
460V 3~ 60Hz |
Current max |
40 A |
23,5 A |
