Home › All products › Stainless Steel (316) Ball Valve - 1 Piece Standard Port, 1,000 PSI (WOG)

Stainless Steel (316) Ball Valve - 1 Piece Standard Port, 1,000 PSI (WOG) Shop All Categories DuraChoice

Manufacturer: DuraChoice

Stainless Steel (316) Ball Valve - 1 Piece Standard Port, 1,000 PSI (WOG)

Name: Stainless Steel (316) Ball Valve - 1 Piece Standard Port, 1,000 PSI (W
Brand: DuraChoice
SKU: VBS01-025
Price: 25.0 USD
Availability: InStock

SKU: VBS01-025

$25.00

✔ 30 Day Limited Warranty

✔ Free Ground Shipping over $420

✔ Flat Rate Shipping On Orders Under $420!

Ships Separately

You will earn 0 points for this purchase.

QTY

Price Match

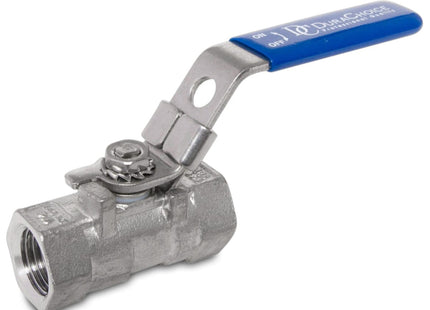

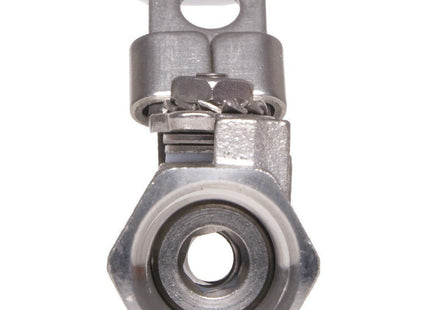

DuraChoice 316 Stainless Steel Ball Valve - 1000WOG

Stainless Steel (316) Ball The standard port VBS01 line is ready for action, with a 1000 psi rating, pure Teflon seats and seals, and a locking handle for added safety. Works with a wide variety of liquids and gasses. - 1pc Standard Port, 1,000 psi (WOG)

SS316 Investment casting body
Working Pressure 1000 psi (WOG)
Pure teflon seals and seats
Suitable for full range of liquids and gas
Temperature range: -60 to 450 degree Fahrenheit
Low operation torque
100% individually tested
Blowout-proof stem
FxF NPT Threaded ends to ANSI B1.20.1
Heavy duty locking handles with blue vinyl insulator

Description - Material
Body - SS316 (CF8M)
Ball - SS316 (CF8M)
Cap - SS316 (CF8M)
Ball Seat - RPTFE
Thrust Washer - PTFE
Stem Packing - PTFE
Stem - SS 304
Packing Ring - SS 304
Spring Washer - SS 304
Stem Nut - SS 304
Handle - SS 304
Handle Lock - SS 304
Handle Cover - Plastic

Please Note: Brass components in this product contain lead, known to the State of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers.
