DigiVac SNAP Vacuum Controller | Simple, Nimble, Automatic Process Control | Up to 8 Recipes

Description

SNAP Vacuum Controller | Simple, Nimble, Automatic Process Controller with up to 8 Recipes

SNAP: Automatic Vacuum Process Controller | Vacuum control and venting with the touch of a button or twist of a dial

• Vent your vacuum chamber or equalize your system with the touch of a button instead of pulling hoses or turning valves
• Treat material in chamber more gently by implementing kinder ramp rate controls which is ideal for freeze drying, vacuum drying or lyophilization applications
• Vacuum Controller with onboard ramp rate recipe control. Set up to 8 recipes based on time and pressure setpoints.
• Dashboard pushbutton control for START, STOP functionality for each channel allows you to automatically vent or isolate your system with a push of a button

Ideal for automating and simplifying vacuum chamber pressure control.

SIMPLE – SIMPLIFY YOUR LAB & CONTROL MORE WITH LESS

• Applications: vacuum chamber (from 1 liter to 1000 liters) research, vacuum ovens/vacuum drying, vacuum furnaces, large scale food processing, microwave drying, composites, rotary evaporators, falling film systems
• Fine control of target vacuum pressure for more precise processing and research
• Enables using reliable and long lasting rotary vane pumps & dry scroll pumps in applications where diaphragm
  pumps were previously required
• Keeps vacuum pumps near their base pressure resulting in greater longevity

NIMBLE – MAXIMIZES THROUGHPUT & PUMPDOWN SPEED

• Largest flow paths available to insure maximum flow for faster evaporation

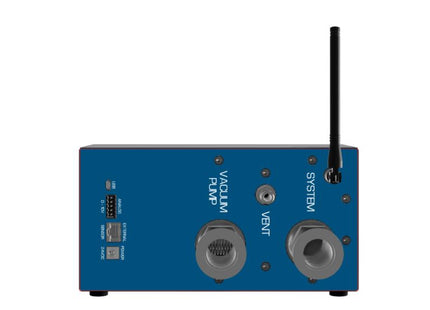

• Maximize throughput and pump down speed with a 20 mm vacuum path (almost full KF25 orifice)

AUTOMATIC PROCESS – PRECISION CONTROL & INTUITIVE DESIGN

• Automatic Vacuum Process Controller | precise automated control with programmable recipes and graphing of vacuum levels
• Innovative valve control performs both proportional throttle and bleed vacuum control (vent to atmosphere)
• The integrated bleed design allows you to quickly vent to atmosphere to stop bumping during processing

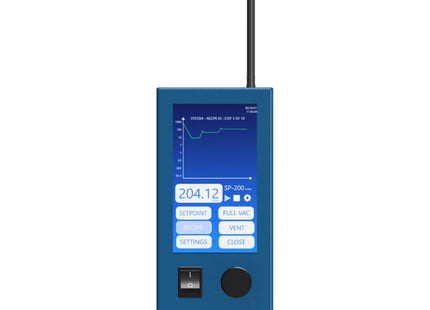

• Numerical readings right on the LCD screen and one touch buttons: VENT, CLOSE (isolate, close all valves) and FULL VAC (fully opens the valve for vacuum pump and closes the vent valve)

SNAP Vacuum Controller Wetted Material Options

• Aluminum (6061) wetted surfaces
• Stainless steel (304) wetted surfaces
• Measurement and Control Range: 1 Torr to 775 Torr (standard)
• Need millitorr range?: SNAP has a RJ45 Port for adding an additional sensor to extend the measurement range. We recommend the addition of the DCP Quantum to be able to monitor and control from 0.01 Torr to 1000 Torr.
