Digital Vacuum Chamber Gauge Upgrade *Wireless

Description

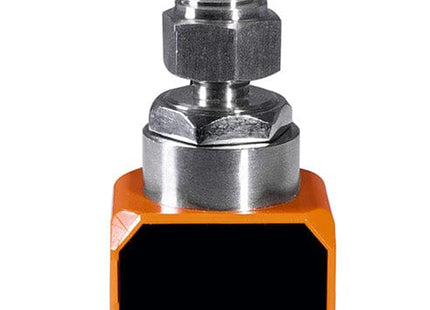

Digital Vacuum Chamber Gauge Upgrade *Wireless

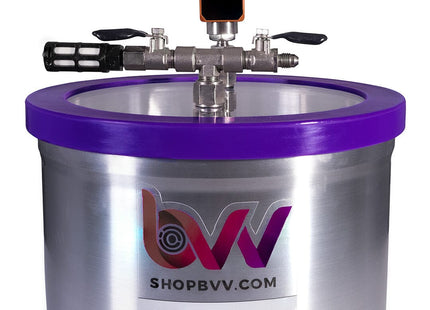

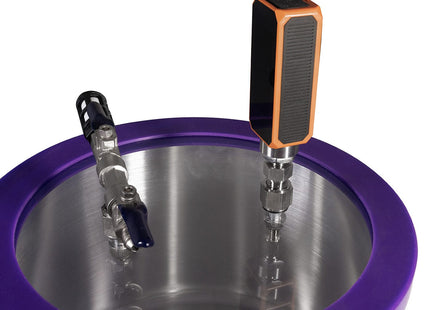

After many requests, we have combined our infamous vacuum tight bulkhead with the power of a wireless vacuum gauge that can be a simple upgrade to ANY of our vacuum chamber products or resin traps.  For those seeking truly accurate readings at any altitude and wireless monitoring this is the ultimate gauge for any vacuum system!.

*To install: All that is required is a 1/2" wrench to remove the original and replace the digital one.

The VGW-mini Wireless micron vacuum gauge measures vacuum via just one service port and with no loss of refrigerant. Its compact, robust and smart design support HVAC technicians with numerous intelligent features like the graphic display of measurement data in the Elitech Tools App. Its smart Bluetooth integration allows for data to be stored and evaluated reliably and efficiently, thus saving precious time and resources.

Product Features

High Accuracy The digital vacuum gauge achieves precise deep vacuum measurements down to single digit resolutions and provides notifications when the evacuation target is met.

Smart APP Control Control your micron tester remotely and navigate through all measurement data via Smartphone or Tablet. Quickly and conveniently document your job, finalize your report and export - directly from the job site.

Intelligent Judgement of H2O Status The vacuum meter automatically judges physical state of H2O by comparing ambient temperature and water saturation temperature corresponding to the vacuum in the system.

Large, Easy-to-Read Display Continual digital readout of evacuation process can be viewed easily on the large, full-view LCD screen.

Rechargeable Lithium Battery Built-in rechargeable lithium battery can work up to 20 hours per single full charge, saving troubles of frequent battery change.





Product Specifications

Measuring Range: 0-19000 micron
Operating Temperature: -4℉~140℉ (-20°C~60°C)
Interface: 1/4 SAE
Accuracy: 1~10,000 microns: ±10% of readings ±10 microns
10,000~19,000 microns: ±20% of readings
Resolution: 0-400 1 Micron
400-3000 10 Micron
3000-10000 100 Micron
10000-19000 250 Micron
Vacuum Units microns, mTorr, in/hg, Pa, Torr, KPa, mbar and psia
Battery rechargeable lithium battery (1,000mAh)
Overload 27.5 bar
Certification CE

Digital Vacuum Chamber Gauge Upgrade *Wireless

Product form

SKU: VC-VGW

$178.00 You will earn 178 points for this purchase.
