Manufacturer: BVV

3" Tri-Clamp Dewaxer Columns

SKU: 300X6DWP
$120.00

1 Year Limited Warranty

Free Ground Shipping over $420


Flat Rate Shipping On Orders Under $420!


Some exclusions may apply.
The following are excluded from this offer:
  • Item(s) that are marked "Ships Separately" on the listing.
  • Hazardous Materials (Alcohols, Lab Chemicals, Butane/Propane, and Cleaning Solvents)
  • Item(s) that BVV™️️️️ recommends ship via Freight (LTL or FTL) due to size/fragility.
  • Large orders and/or combined order weight over 100lbs ship via Freight (LTL or FTL)
  • Free ground shipping only applies to the lower 48 states

You will earn 0 points for this purchase.


Price Match

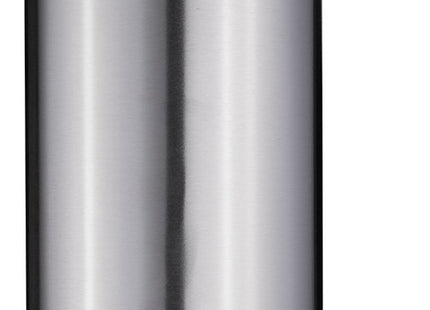

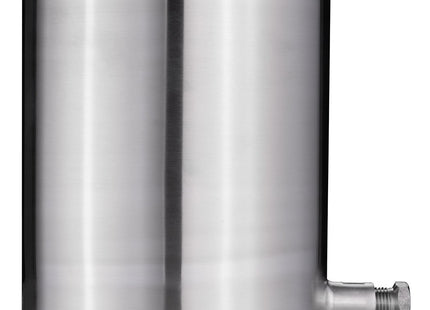

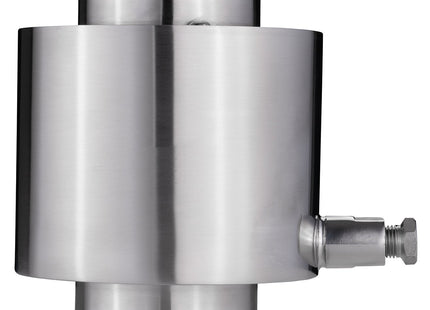

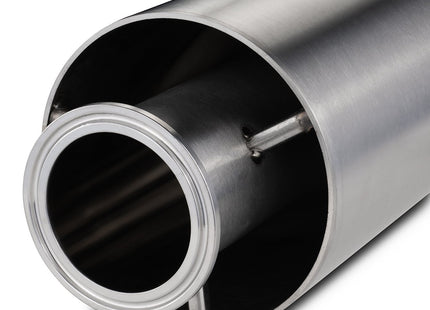

3" Tri-Clamp/ Tri Clover Dewaxing Columns





This is a 3" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.


**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD





Sizes Available:



    • 3" x 6" Tri-Clamp Dewaxer Column

    • 3" x 8" Tri-Clamp Dewaxer Column

    • 3" x 12" Tri-Clamp Dewaxer Column

    • 3" x 18" Tri-Clamp Dewaxer Column

    • 3" x 24" Tri-Clamp Dewaxer Column

    • 3" x 36" Tri-Clamp Dewaxer Column


Specifications:









































Tri-Clamp Size 3"
Material 304 Stainless Steel
Standard 3A High Polish
Sleeve OD 5.000"
Spool ID 2.870"
Spool OD 3.000"
Flange OD 3.579"
Bead Center 3.281"

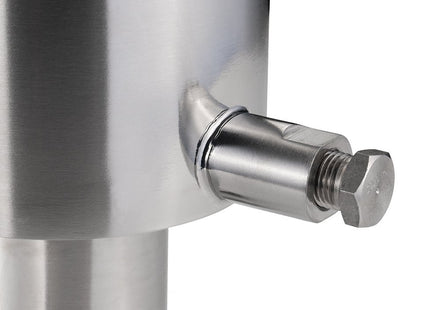

Drain Port 1/4"-18 FNPT (Drain Plug Included)



    • OD = Outer Dimension

    • ID = Inner Dimension


Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
