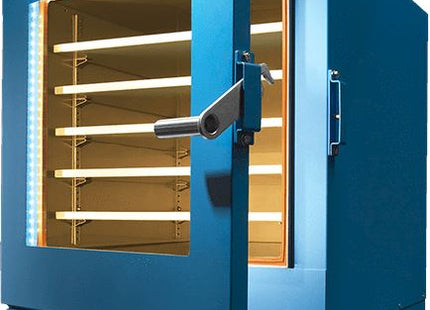

Cascade CVO-5 Vacuum Oven

Description

Cascade CVO-5 Vacuum Oven

(Oven Only)

This item carries up to a 1-2 week lead time.


Cascade’s Model  CVO-5 offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven liberates solvents, water, and other unwanted compounds. It’s ideal for small batch, R&D and laboratory environments.




Processing Temperature Sensitive Material? The CVO-5 comes in both low temp & high temp versions.

Be sure to get the low temp CVO-5 version that has excellent temperature uniformity for products such as pharmaceuticals, slurries or any product that can be damaged or destroyed by temperature fluctuations.





Low & High Temp Specifications
Low Temp Specs Temperature Processing Range 26°F to 250°F (121°C)
Temperature Uniformity +/- 1.5°F @ 105°F (40.5°C)
Temperature Stability +/- 0.4°F @ 105°F(40.5°C)
High Temp Specs Temperature Processing Range Up to 428°F / 220°C
Temperature Uniformity +/- 6.5% of setpoint





At time of order we will verify the high / low temp version best suited to your requirements.

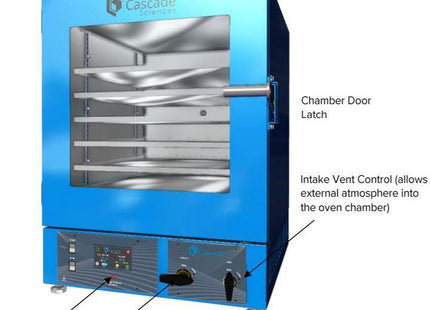

CVO-5 Vacuum Oven Features



  • NRTL Certified by TUV



  • 5 each adjustable shelves



  • Stable temperature control. Digital temperature readout with temp sensor INSIDE the oven



  • Solvent resistant BUNA door gasket



  • Bright LED lights in window for visibility of sensitive material



  • Touchscreen LED Control Panel with adjustable settings



  • Smooth, quarter-turn vacuum and vent valves



  • Energize vacuum pump from control panel



  • Rear KF-25 port allows for rapid MAX EVAP purging or running feedthroughs inside oven for monitoring



  • 120V or 220V power options are available



  • Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007  156CFR/201 11  SGCC -2577 ½ UA



  • Adjustable leveling feet insure your unit sits solid and level in the workspace





The Cascade Difference

Vacuum ovens have been around for decades. Basic vacuum ovens are mass-produced and sold by many large laboratory equipment distributors. But there are key differences between Cascade and other less costly, often imported vacuum ovens.



Exceptional Temperature Control & Stability


The Cascade CVO-5 uses a unique control logic not found in most lab grade vacuum ovens. The temperature probe is INSIDE the oven, which minimizes temperature overshoot and delivers best-in-class temperature stability and uniformity particularly in the low temperature ranges. Accurate, stable temps throughout the CVO-5 eliminate hot and cold spots, making accurate use of every inch of shelf space.

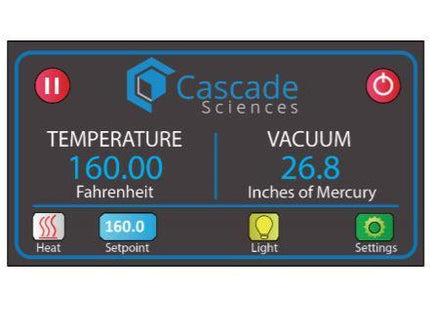

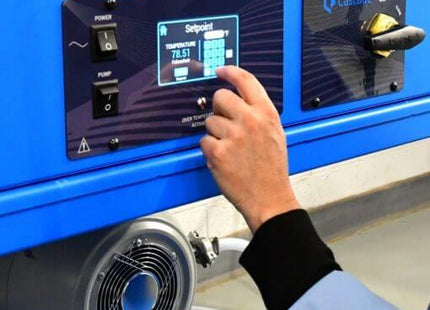

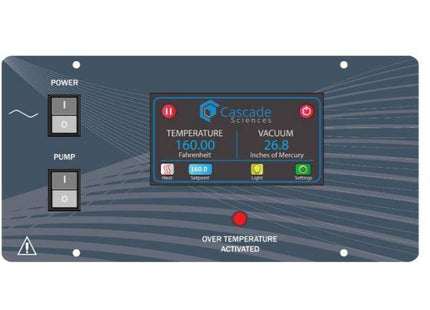

Touchscreen LED Smart Controller


The CVO-5 controller is a flat panel touch screen with built-in, controls that minimze temperature overshoot. When the oven door is open, the controller will wait and not agressively call for heat to attempt to keep the oven interior stable.  When the oven is being vented, the controller will pause as to not over-react and overshoot temperature during this temporary event.



  • Read Temperature in degrees Celcius or Fahrenheit



  • Read Vacuum in Torr or Inches of Mercury

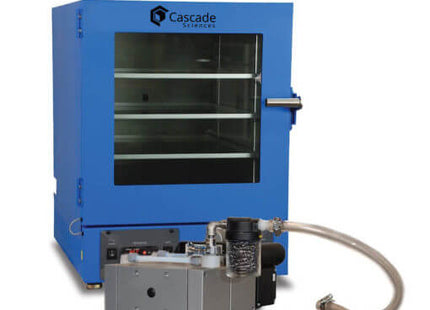

Energize Vacuum Pump From Oven Control Panel


Turn the vacuum pump off and on from the oven control panel.  No more reaching around, behind, beside to turn the vacuum pump off an on.  Vacuum pump plugs directly into the back of the oven’s auxillary outlet.





Independent Overtemp Failsafe Protection


The Cascade Sciences TVO-5 is equipped with a heating cutoff system that will automatically stop power to the heaters when the oven shelf temps exceed 392°F or 200°C. This protection system will provide peace of mind for overnight processing or unattended vacuum bake outs.





Log Temperature & Vacuum With Data Port


The TVO-5 features a rear mounted data port which outputs a digital log line once per minute. Viewing/logging this data requires terminal emulator software such as the open source (BSD License) emulator Tera Term.





NRTL Certification #U8 170464972 077. No Extra cost.


The TVO-5 Vacuum Oven comes certified by the Nationally Recognized Test Lab, TUV. This certification is a requirement by many municipalities and is often an extra charge on low cost ovens.



  • CAN/CSA-C22.2 No. 61010-1:2012



  • +UPD No. 1:2015-07 + UPD No. 2:2016-04



  • CAN/CSA-C22.2 No. 61010-2-010:2015



  • UL 61010-1:2012/R:2016-04



  • UL 61010-2-010:2015



  • EN 61010-1:2010



  • EN 61010-2-010:2014





Rigorous Quality Assurance in an ISO Certified, USA Manufacturing Facility


Cascade Sciences manufactures our ovens in Oregon, USA. We are proud of our ISO 9001 Certification/Accreditation. Each oven completes a series of quality assurance procedures before shipment.



  • Chambers are vacuum tested after welding for vacuum integrity



  • Electrical & mechanical safety is thoroughly tested in compliance with TUV requirements



  • Functional testing verifies user settable items consistent with most lab protocols/usage models



  • Temperature verification includes calibration & temp chamber uniformity following ASTM standards



  • Units are cleaned and packed in ISTA tested, certified packaging materials



Equipped for Inert Gas Backfill. Built-In Safety Relief


Introduce inert gasses such as nitrogen, argon, helium, etc. as part of your process via the ¼” rear vent barb. The maximum backfill pressure is 15PSI. In an overpressure situation, a simple, built-in safety relief allows gasses to escape via a spring loaded tempered window.



Flexible Pumping / Feedthru Connection Ports

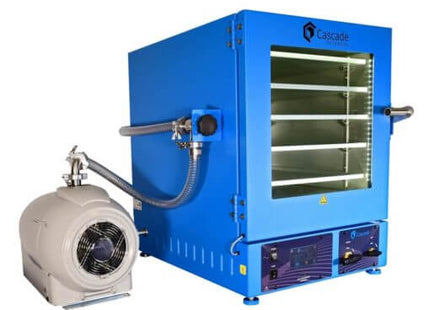

The TVO-5 ovens offer two different vacuum oven connection points. The standard connection is a 3/8th dia barb located at the rear of the oven. It is connected to the vacuum valve level on the front control panel.  For even faster evaporation, purging or drying consider upgrading to the MAX EVAP connection kit. The MAX EVAP connection kit secures to the oven’s rear 1” dia KF-25 port located on the back center of the chamber. The MAX EVAP connection never reduces flow by continuing with 1” diameter vacuum rated clear lines, a 1” dia KF-25 side mounted vacuum valve and KF-25 fittings and hardware. This KF-25 port can also be used to run temperature feedthrus, or monitoring sensors inside the vacuum chamber during processing.

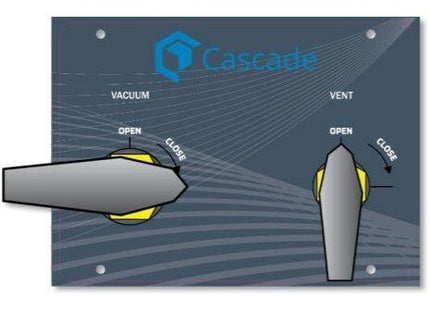

Ergonomically Designed, Easy Quarter-Turn Valves


For anyone that has struggled with consistently turning the small, round, low-quality vacuum/vent valves, relief is in sight. You will love our large, quarter-turn vacuum/vent valves. Your wrists will thank you!





ANSI Rated Tempered Glass + USA Made Steel


Cascade ovens are made in Oregon, USA with high quality materials. Our glass is NGI-USA Tempered and certified to ANSI Z97.1.2007  16CFR / 201 11. Our door handles are rugged brushed steel, not plastic. Our vacuum vessels are constructed with American made steel. We’ve tried lower cost, imported steel. But over time, vacuum chambers made of lesser quality/lower tolerance material cannot withstand the flex and pressure changes of vacuum pumping/venting/purging. This can deteriorate vacuum integrity and the oven will lose its ability to hold vacuum.





Model CVO-5 Vacuum Oven Specifications:



Capacity
Volume 4.5 Cubic Ft.
Interior 18”W x 24”D x 18”H
457mm x 609mm x 457mm
Exterior 26.5” W x 34.5” D x 32.3”H
673mm x 876mm x 819mm



Temperature Range
Low-Temp Processing Range 26°F to 250°F (121°C)
Temperature Uniformity +/- 1.5°F @ 105°F (40.5°C)
Temperature Stability +/- 0.4°F @ 105°F(40.5°C)
Heat Up / Stabilization Time to 250°F: 120 minutes (to minimize overshoot)
High-Temp Processing Range 428°F / 220°C available
Temperature Uniformity +/- 6.5% of setpoint





*Note that ambient laboratory conditions can affect temp performance.

The TVO-5 (CVO-5) comes in both low temp and high temp versions. The low temp version has excellent temperature uniformity for temperature sensitive material. The higher temp version, 220°C has a uniformity about 6.5% of setpoint.

At time of order we will verify the high / low temp version you require.



INTERIOR LIGHTING - LED Strips (Rated to 150C)




GLASS WINDOW - Tempered NGI-US to ANSI Z97.1.2007



Temperature Controller
Touch Screen
Accurate Within 1°F
Independent Overtemp Failsafe

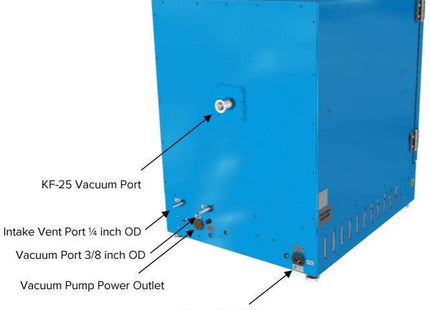

Rear Ports
Vacuum 3/8th Barb
Vent ¼” Barb
Auxiliary KF-25 Port
Data: Log temp & vacuum levels




INERT GAS INTRODUCTION - Yes. Via ¼” Vent Barb. 15 psi max inlet pressure



Power Options
110V – 120V / 1ph / 14A 50/60Hz
Cord Included
NEMA 5-15 Power Outlet
1105 BTU/hr
Rating at max power
220V – 240V / 1ph / 7A 50/60Hz
Cord Included
NEMA 6-15R Power Outlet
1228 BTU/hr
Rating at max power

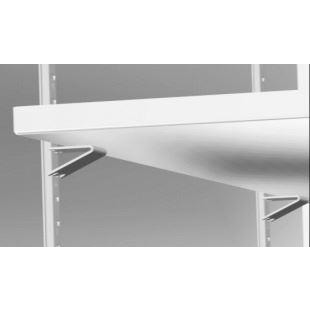

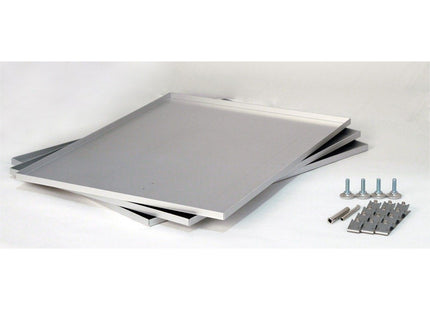

Included Accessories
5 Shelves
20 Clips
4 Leveling Feet
Power Cord



Door Gasket
18” x 18”
Comes with Solvent Resistant BUNA Standard rated to
221°F to 105°C
Compatible With:
High Temp Silicone rated to 446°F to 230°C
Viton rated to 401°F to 205°C



Weights & Shipping Weight
360 lbs / 163.3 Kg
Shipping Weight: 449 lbs / 207.3 Kg
41”L x 41”W x 45”H
Class 85





Certifications

ISO 9001

NRTL TUV #U8 170464972 077

CAN/CSA-C22.2 No. 61010-1:2012

+ UPD No. 1:2015-07 + UPD No. 2:2016-04

CAN/CSA-C22.2 No. 61010-2-010:2015

UL 61010-1:2012/R:2016-04

UL 61010-2-010:2015

EN 61010-1:2010

EN 61010-2-010:2014



Warrenty



1 Year (gaskets not included)



Package Specs

CVO-5 Manual

CVO-Dimentions

CVO-5 Calibration Procedure

NRTL Certification

Vacuum Pressure Chart
