Cryogenic 45L Centrifuge Extractor Kit
EXPECT 3-WEEK LEADTIME

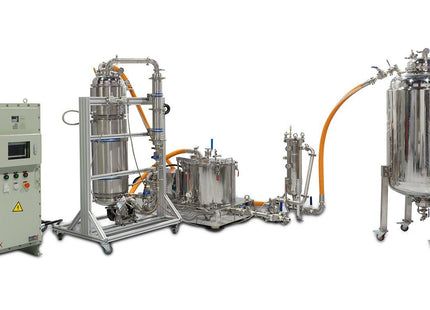

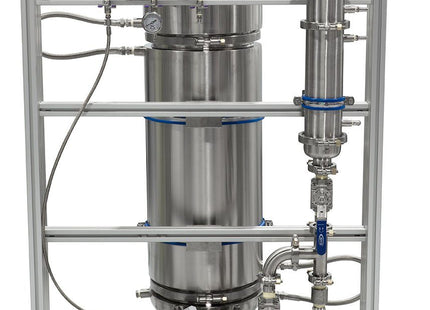

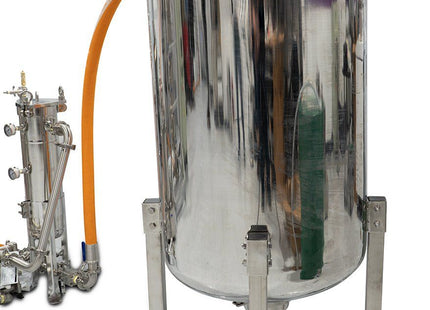

Cryogenic 45L Centrifuge Extractor Kit Overview:

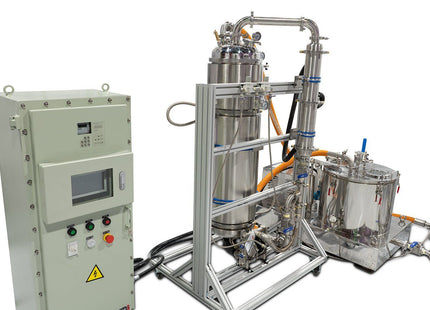

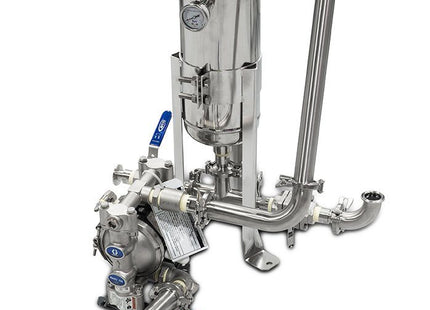

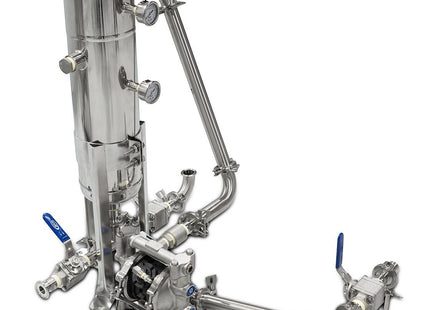

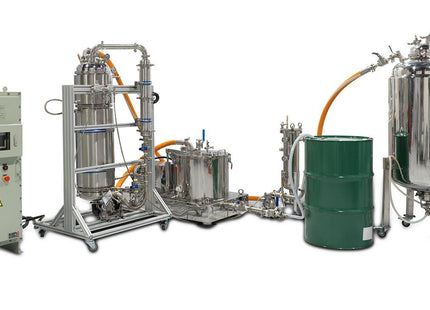

The BVV Cryogenic 45L Centrifuge Extractor Kit is a modular closed loop alcohol extraction system with low temperature extraction in mind. It features low temperature rated (-60°C) components including PTFE envelope gaskets, pneumatic diaphragm pumps and cryogenic rated ball valves for longevity. The centrifuge controller and motor are EX rated and come with supporting documents making it easier to get approved for operation.
Load centrifuge bags with 8-15lb (10lb avg.) biomass and line them up for an efficient extraction process. This system makes repeatability easier by letting the operator control extraction parameters including soak/agitation time, spin dry time, target alcohol temperature, and different pore material bags and filtration socks in our Pressure Filtration System (PFS). The system also allows operators to re-direct the first wash back to the holding vessel to re-chill if needed and go for a second extraction. This allows full use of alcohol’s extraction ability and minimize time spent recovering solvent in a rotary evaporator or falling film. Users will have to dial in their parameters and washes based on biomass potency.

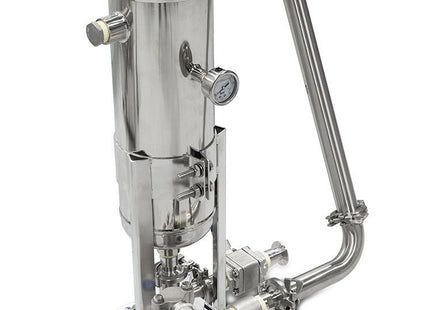

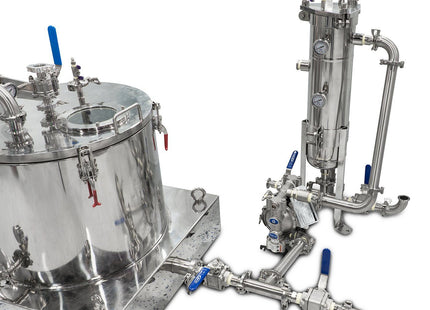

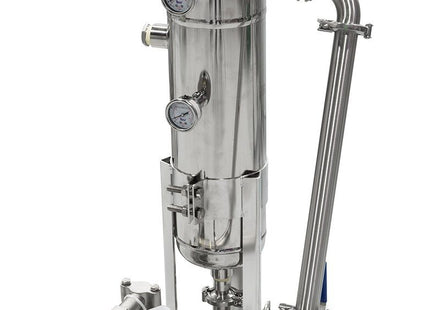

Low temperature extraction leads to less refinement after the extraction process. Inline PFS allows for fine particulate refinement down to 1µm. Higher potency will require further post processing for the removal of unwanted compounds.
NOTE: CHILLER AND AIR COMPRESSOR NOT INCLUDED IN THE KIT. CALL IN FOR RECOMMENDED CHILLER AND AIR COMPRESSOR.

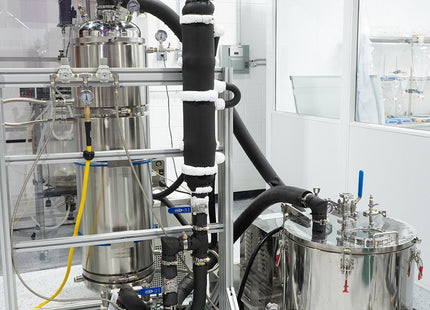

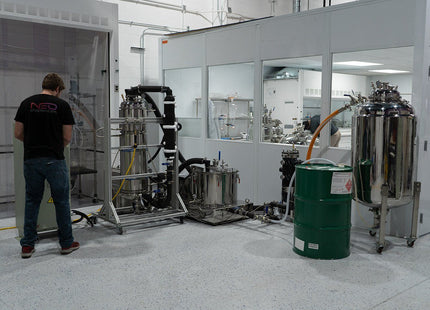

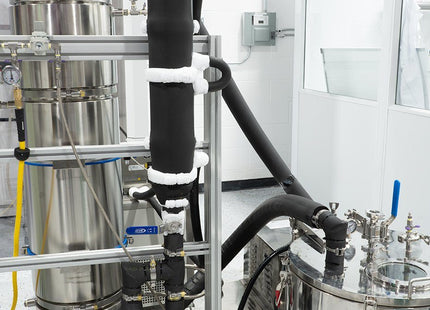

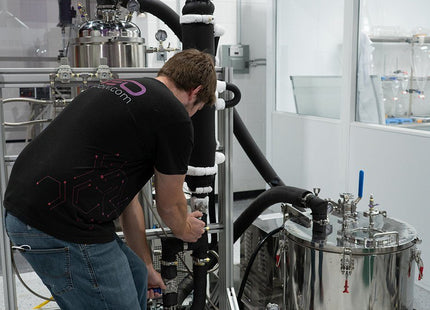

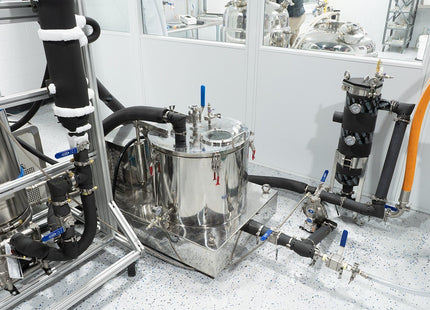

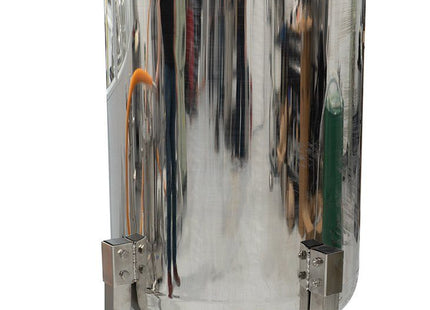

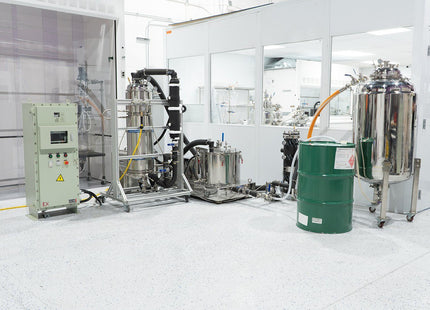

Insulation package is included with the order but does not come installed upon arrival. Insulation included are straight tubing, tees, and elbows. BVV can install insulation as an add on prior to shipping the system out. This will also include color coordinated zip ties that help assembly process. Assembly diagrams will also be included with the system. Installation requires taping seams cutting tubing to length, and zip tying tees and elbows. Holding vessel and centrifuge are vacuum insulated via the jacket.
Supporting documents included:
- Standard Operating Procedure for CF45L-CRYO-01
- Centrifuge Wiring Instructions
- CF45L-CRYO-01 Manual
- CF45L-CRYO-01 Assembly Diagram
- Centrifuge Controller EX Certificate
- Centrifuge Motor EX Certificate
- Pneumatic Pump specification sheet with operating pressure/flow chart
CALL IN TO SCHEDULE A FULL PRESENTATION WITH ONE OF THE CRYOGENIC 45L CENTRIFUGE EXTRACT KIT. QUESTIONS CAN BE ANSWERED BY OUR ENGINEERING TEAM.
|Centrifuge Controller Power Requirements
||220v 1PH 60Hz, 20A Circuit
|Liquid Transfer Pumps
||Pneumatic (Compressor Required)
||17.7" (450mm) Diameter x 11-7/8" (300mm) Deep
|Centrifuge Bags Included
||1 of Ea: 1, 10, 50, 100, 200 Micron
|Max Biomass Capacity
||15lbs (6.8Kg), Recommended 10lbs
|Solvent Capacity per Run
|Overall System Dimensions
||12'6" x 13'8" x 71" (3810mm x 4166mm x 1804mm) **with chiller next to system
|System Temperature Rating
|Material in Contact with Solvent and Extract
||PTFE envelope, Silicone, 304SS, BIIR(butyl) *FDA & USDA compliant
NOTE: CHILLER INCLUDED IN EXTRACTION SPACE WILL NEED TO BE APPROVED FOR USE IN C1D2 SPACE.
AIR COMPRESSOR FOR PNEUMATIC PUMPS NOT INCLUDED IN DIAGRAM.
