Male Elbow

Description

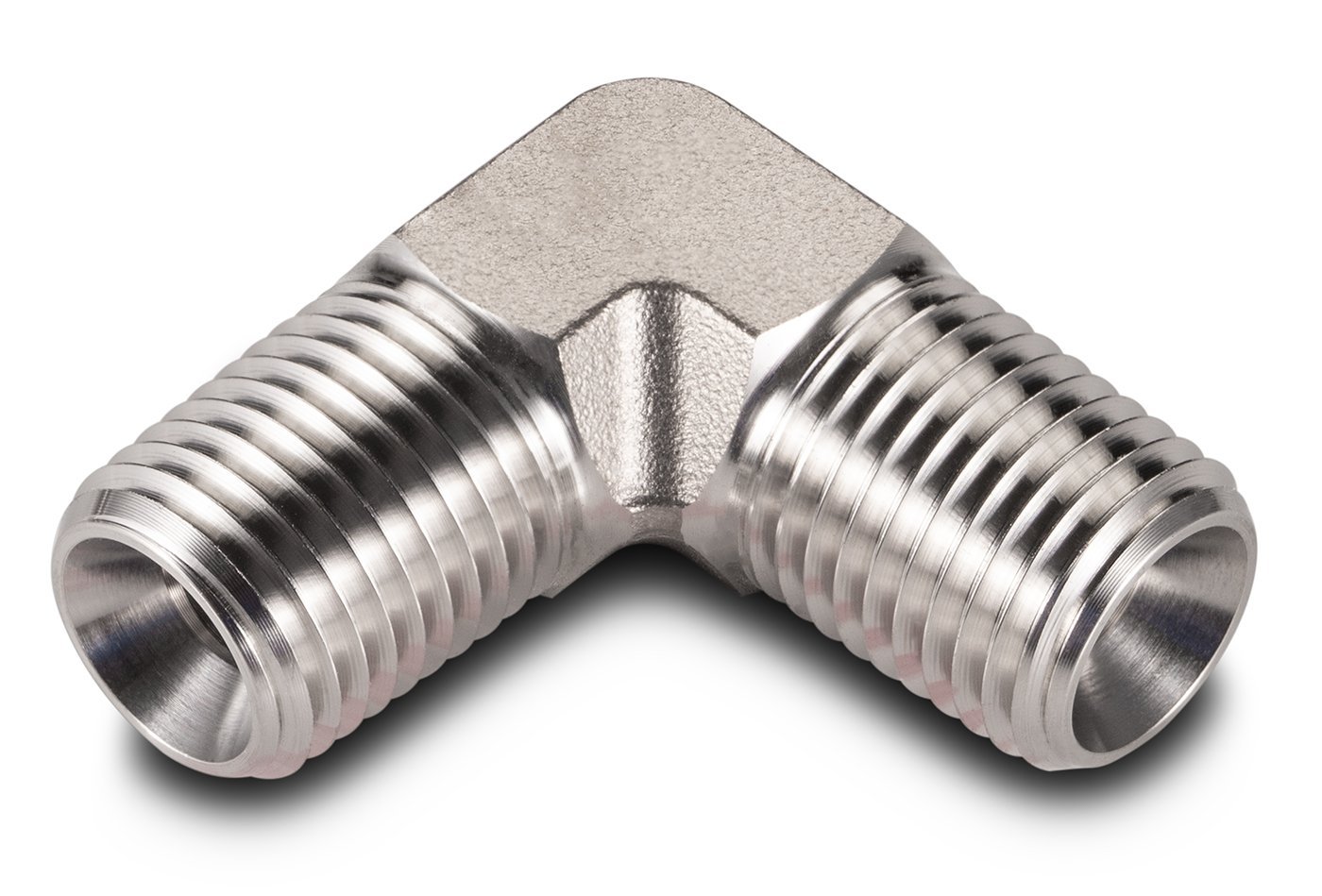

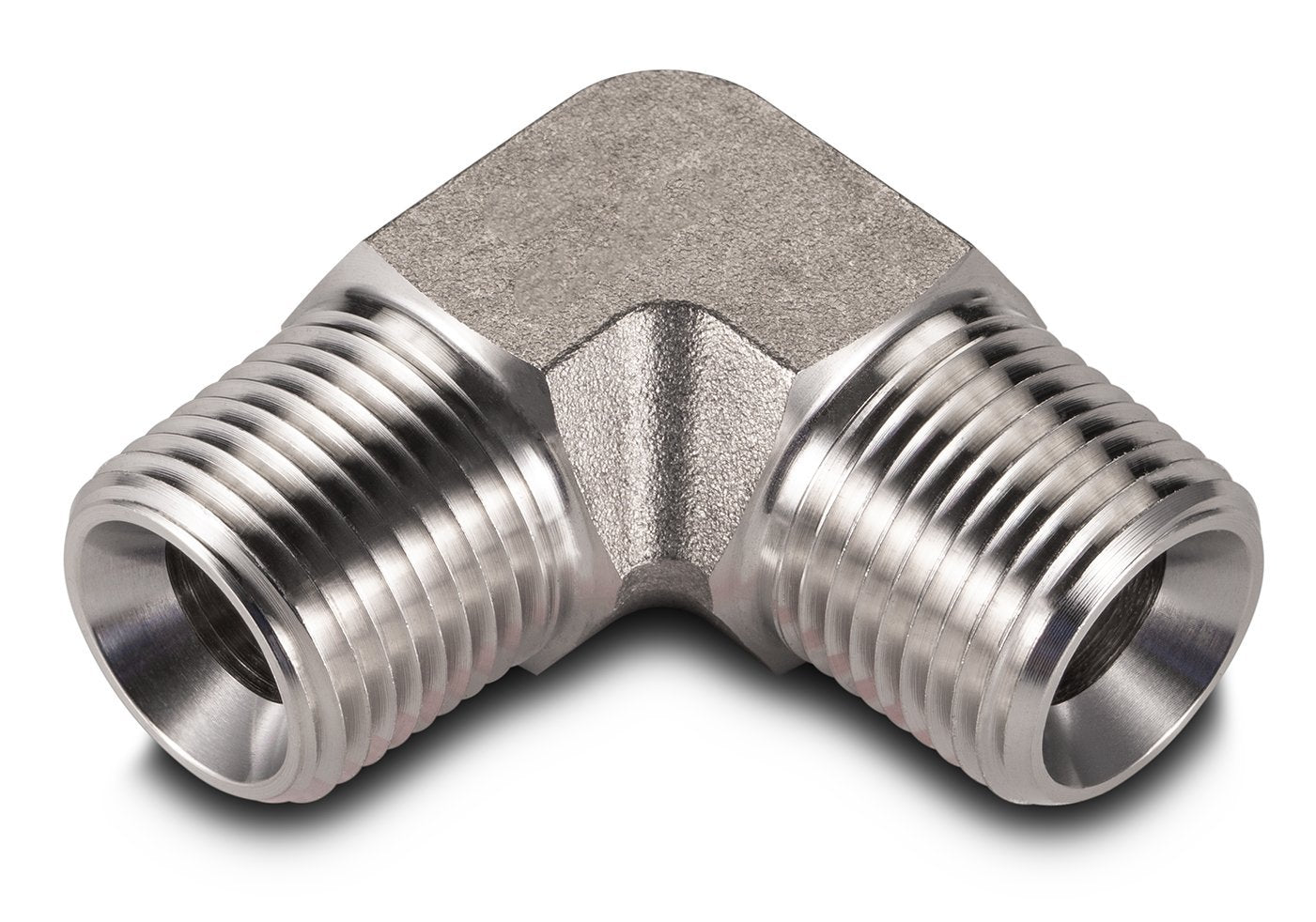

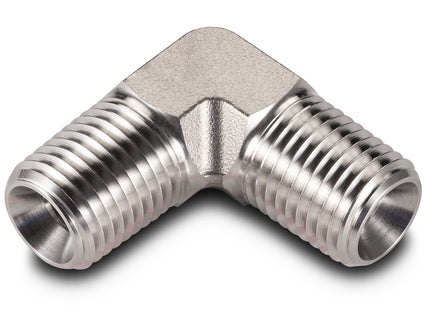

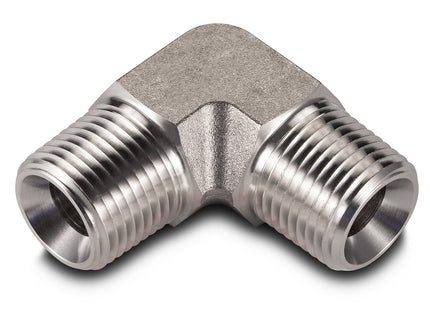

BVV™ Male Elbow


BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using Yellow Gas PTFE Tape because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service.

**NOTE: Pre-Taped option comes from BVV Pre-taped with Yellow UL Listed Gas PTFE Tape on the Male NPT threads ONLY for a +0.50c charge per male npt end. (JIC Threads DO NOT need to be taped.)


MNPT Elbows allow the user to sharply turn the flow of the system by 90 degrees allowing for more clearance or better positioning of the fitting or valve on the extraction system.

BVV™ Male Elbow - Data Sheet295 Pdf Logo Illustrations & Clip Art - iStock































Specifications
Material 304 Stainless Steel
Connection Type(s): 1/4"-18 FNPT
3/8"-18 FNPT
Sizes Available: 1/4"
3/8"

Male Elbow

Product form

SKU: BVV04ME

$6.00 You will earn 6 points for this purchase.

  • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
  • Join Loyalty+ and save 10-15% *Select items
