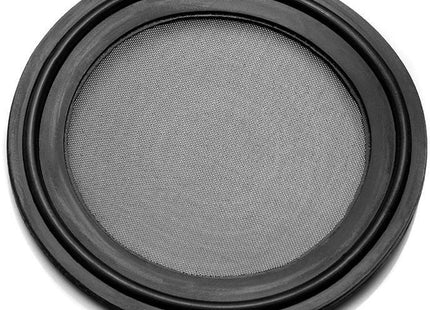

Name: BUNA-N 100 Mesh (150 Micron)
Brand: BVV
SKU: 15G100M
Price: 18.0 USD
Availability: InStock

BUNA-N 100 Mesh (150 Micron)

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

BUNA-N 100 Mesh (150 Micron) Tri-Clamp Gasket

MADE IN THE U.S.A
Mesh / Micron Filter Chart
Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated
Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals

Why BUNA-N over Viton?

Lower Temperature Range
Lower Costs
Better Compressibility and Springiness
Excellent Resistance to Major/Popular Solvents(Butane/Propane)
Better Tear Resistance
Better Abrasion Resistance

Specifications
Materials:	BUNA-N (Nitrile)
	316 Stainless Steel Mesh Overmold
Conformance	FDA Compliant / Meets 3A Standards
Thermal Properties:	Low-Temperature Range: -70°F
	Minimum for Continuous Use(Static): -40°F
	Brittle Point: -70°F
	High-Temperature Range: +210°F to +250°F
	Maximum for Continous Use (Static): +250°F
Gas Permeability:	Excellent
Durometer or Hardness Range:	20-95 Shore A
Tensile Strength Range:	200-3,500 PSI
Elongation Range(%):	350%-650%
Abrasion Resistance:	Excellent
Resilience / Rebound:	Good

Chemical Compatibility
Butane	A - Excellent
Propane	A - Excellent
Alcohols:
Amyl	B - Good
Benzyl	D-Severe Effect
Butyl	C-Fair
Diacetone	D-Severe Effect
Ethyl	C-Fair
Hexyl	A - Excellent
Isobutyl	B - Good
Isopropyl	B - Good
Methyl	A - Excellent
Octyl	B - Good
Propyl	A - Excellent

BUNA-N 100 Mesh (150 Micron)

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Buna-N 100 Mesh Size

1.5-inch
2-inch
3-inch
4-inch
6-inch

SKU: 15G100M

$18.00

Unlock Bulk & Wholesale Pricing. Call 331-281-0154 for special discounts.

Financing Available

Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

Description

BUNA-N 100 Mesh (150 Micron) Tri-Clamp Gasket

MADE IN THE U.S.A
Mesh / Micron Filter Chart
Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated
Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals

Why BUNA-N over Viton?

Lower Temperature Range
Lower Costs
Better Compressibility and Springiness
Excellent Resistance to Major/Popular Solvents(Butane/Propane)
Better Tear Resistance
Better Abrasion Resistance

Specifications
Materials:	BUNA-N (Nitrile)
	316 Stainless Steel Mesh Overmold
Conformance	FDA Compliant / Meets 3A Standards
Thermal Properties:	Low-Temperature Range: -70°F
	Minimum for Continuous Use(Static): -40°F
	Brittle Point: -70°F
	High-Temperature Range: +210°F to +250°F
	Maximum for Continous Use (Static): +250°F
Gas Permeability:	Excellent
Durometer or Hardness Range:	20-95 Shore A
Tensile Strength Range:	200-3,500 PSI
Elongation Range(%):	350%-650%
Abrasion Resistance:	Excellent
Resilience / Rebound:	Good

Chemical Compatibility
Butane	A - Excellent
Propane	A - Excellent
Alcohols:
Amyl	B - Good
Benzyl	D-Severe Effect
Butyl	C-Fair
Diacetone	D-Severe Effect
Ethyl	C-Fair
Hexyl	A - Excellent
Isobutyl	B - Good
Isopropyl	B - Good
Methyl	A - Excellent
Octyl	B - Good
Propyl	A - Excellent
