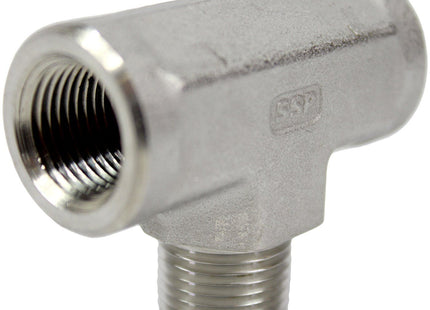

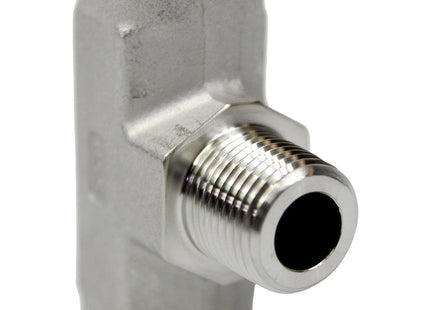

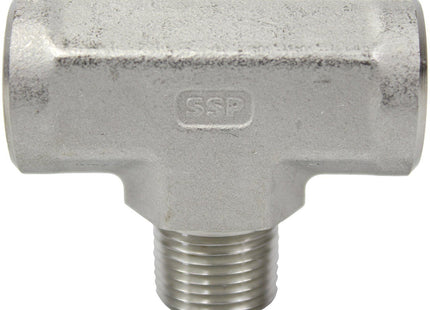

Branch Tee

Description

SSP - Branch Tee


SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967.


***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. BVV recommends GAS PTFE Tape





Specifications
Connection Type 1 Female NPT
Connection Size 1 Specified by User
Material 316 Stainless Steel
ASTM A-276 and A-479 bar stock, A-182 forgings.
Working Pressure (PSIG) 1/4" - 7750
3/8" - 6800
NPT Pressure Rating >10,000PSI
ASME B31.3





SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!



Dimensions
A 1.76 in
E 0.28 in
H 3/4 in
P 1/4 in
L 0.88 in
S 1.09 in

Branch Tee

Product form

SKU: ISST6BT

$30.00

You will earn 30 points for this purchase.

30 Day Limited Warranty
