Ai DigiM 20L 300C 1200 RPM Heating & Stirring Mantle - 220V

Description

Ai DigiM 20L 300C 1200 RPM Heating & Stirring Mantle - 220V

Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

 Model
  DigiM20
 Electrical requirements
 		 220V 50/60Hz 1-Phase, 2900 watts, 13.2 A
 Heating
 		 Ambient to 300°C
 Stirring  Min. speed: 110 rpm, max. speed: 1200 rpm
 Motor power: 40 watts
 Motor type: brushless DC motor

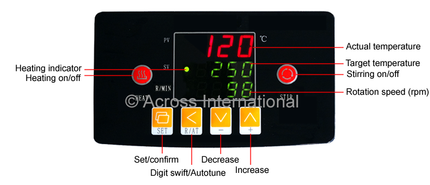

 Controller  PID control with digital temperature and rotation speed display
 External thermocouple
  Type: PT100
 Cable length: 43 inches
 Stainless steel probe length: 15 inches
 Stainless steel probe diameter: 5 mm
 Flask holder  Maximum flask capacity: 20 liters
 Top opening diameter: 14.5 inches
 Depth: 7.5 inches
 Dimensions (WxDxH)  Unit: 20.5 x 20.5 x 13 inches, shipping: 24 x 24 x 18 inches
 Weight  Unit: 40 lbs, shipping: 50 lbs
 Safety  Thermocouple failure protection

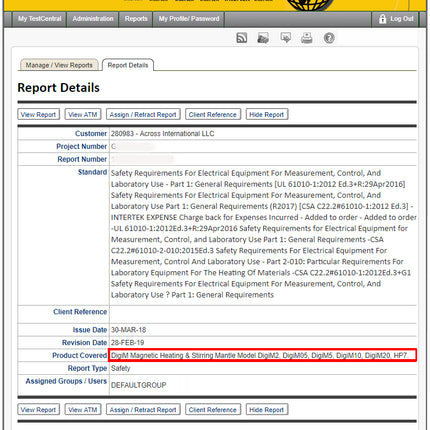

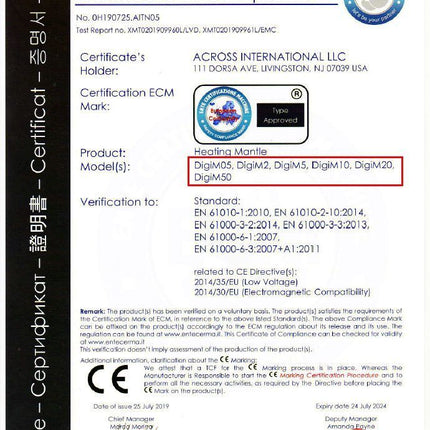

 Certification  ETL tested to UL and CSA standards (optional), CE (standard)
 Warranty  One year



Standard package



 Part description

 Quantity

Part image

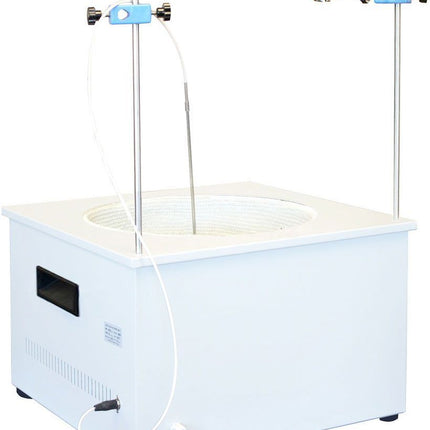

 Ai DigiM 20L digital heating & stirring mantle
 1 pc

DigiM20: Cable Length: 43”, Probe Length: 15” 1 pc
 Internal temperature plug 1 pc
 Boss head DigiM20: 2 pcs
 2 pcs
 Stainless steel support rod DigiM20: 2 pcs
 		2 pcs
 PTFE coated stir bar
 		2 pcs
 PTFE coated magnetic stir bar remover 1 pc
 4 prong stainless steel clamp opens to 3 1/2"
 DigiM20: 2 pcs
 		2 pcs
 User's manual
 1 pc

Ai DigiM 20L 300C 1200 RPM Heating & Stirring Mantle - 220V

Product form

SKU: DigiM20.220

$1,590.00

    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time.

    Description

    Ai DigiM 20L 300C 1200 RPM Heating & Stirring Mantle - 220V

    Across International heating and stirring mantles come standard with digital display for the most accurate control. The large display interface makes it easy to quickly and precisely adjust temperature and rotation speeds.

    The DigiM mantle is equipped with two sets of thermocouples for proper temperature and speed detection. The heating jacket is pre-treated before shipment, which ensures that no smoke or odors (caused by heat) are released into your work environment.

     Model
    		  DigiM20
     Electrical requirements
         		 220V 50/60Hz 1-Phase, 2900 watts, 13.2 A
     Heating
         		 Ambient to 300°C
     Stirring  Min. speed: 110 rpm, max. speed: 1200 rpm
     Motor power: 40 watts
     Motor type: brushless DC motor
     Controller  PID control with digital temperature and rotation speed display
     External thermocouple
    		  Type: PT100
     Cable length: 43 inches
     Stainless steel probe length: 15 inches
     Stainless steel probe diameter: 5 mm
     Flask holder  Maximum flask capacity: 20 liters
     Top opening diameter: 14.5 inches
     Depth: 7.5 inches
     Dimensions (WxDxH)  Unit: 20.5 x 20.5 x 13 inches, shipping: 24 x 24 x 18 inches
     Weight  Unit: 40 lbs, shipping: 50 lbs
     Safety  Thermocouple failure protection
     Certification  ETL tested to UL and CSA standards (optional), CE (standard)
     Warranty  One year



    Standard package



     Part description

     Quantity

    Part image
     Ai DigiM 20L digital heating & stirring mantle
    		 1 pc

    DigiM20: Cable Length: 43”, Probe Length: 15” 1 pc
     Internal temperature plug 1 pc
     Boss head DigiM20: 2 pcs
    		 2 pcs
     Stainless steel support rod DigiM20: 2 pcs
         		2 pcs
     PTFE coated stir bar
         		2 pcs
     PTFE coated magnetic stir bar remover 1 pc
     4 prong stainless steel clamp opens to 3 1/2"
     DigiM20: 2 pcs
         		2 pcs
     User's manual
    		 1 pc
