8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap
Description

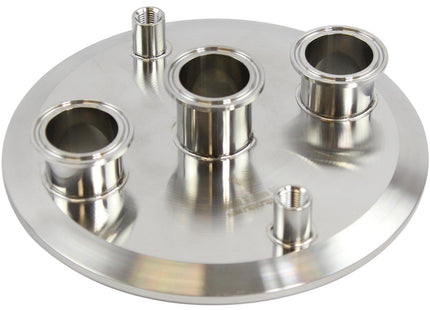

8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Tri Clover Endcap
This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 0.5" Tube Extension on the center 1.5" ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 5 connections are welded on an 8" Tri-Clamp End Cap.
| Specifications | |
|---|---|
| Material: | 304 Stainless Steel |
| Connection Type: | 1.5" Tri-Clamp - 0.5" Tube Extensionon center ferrule Below Lid |
| 8" Tri-Clamp | |
| 1/4" - 18 FNPT | |
| Standard: | 3A |
8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap
SKU: 800EL
$205.00
