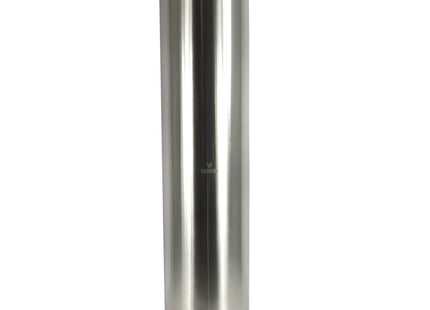

8" Tri-Clamp Dewaxer Column

Description

8" Tri-Clamp/ Tri Clover Dewaxing Columns





This is a 8" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.


**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD


Sizes Available:



    • 8" x 36" Tri-clamp Dewaxer Column


    • 8" x 48" Tri-clamp Dewaxer Column



Specifications:









































Tri-Clamp Size 8"
Material 304 Stainless Steel
Standard 3A High Polish
Sleeve OD 10.000"
Spool ID 7.782"
Spool OD 8.000"
Flange OD 8.570"
Bead Center 8.150"
Drain Port 1/4"-18 FNPT (Drain Plug Included)






    • OD = Outer Dimension


    • ID = Inner Dimension



Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.




8" Tri-Clamp Dewaxer Column

Product form

SKU: 800X36DWP

$450.00

You will earn 450 points for this purchase.

1 Year Limited Warranty
