50L Pre-Built Collection Base
Description

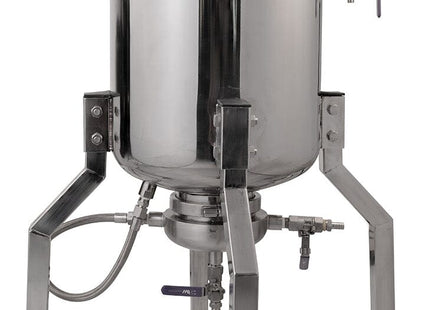

50L Pre-Built Collection Base
Designed with hydrocarbon extraction in mind. This pre-build collection base boasts a 50lb butane capacity at an 80% fill making it the perfect fit for extractors looking to process up to 10 lbs of biomass material at a 5:1 Butane to biomass ratio. Complete with 1/2" JIC drain and recovery ports, a 1/4" JIC accessory port, a -30hg -250 PSI compound gauge, and a 125 PSI ASME Pressure relief this collection base is versatile in use and highly compatible with most systems. A main staple in our Research & Development lab and standard with our 10LB ECO Closed Loop Extractor this 50L Pre-built Collection Base is perfect for anyone looking to expand their processing capabilities. For speedy hydrocarbon solvent recovery rates this reactor pairs well with our 11KW Express Extraction Heater for passive recovery rates past 1lb/min.
Processing Power
- Volume: 50 Liters
- Capacity: 50LB of butane @80% Fill
- Maximum Pressure Rating: 125PSI
- Jacket Capacity: 15 liters
Specifications
- 2X Borosilicate Sight glasses
- 1X 1/2" JIC Drain Port
- 2X 1/2" JIC Lid Ports
- 1X 1/4" JIC Lid Port
- 2X 1/2" Barbed Jacket Connections
- 1X 125 PSI ASME Safety Valve
- 1X -30hg-250PSI Compound Pressure Gauges
50L Pre-Built Collection Base
SKU: 50LCB
$2,000.00
You will earn 2,000 points for this purchase.- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
