Description

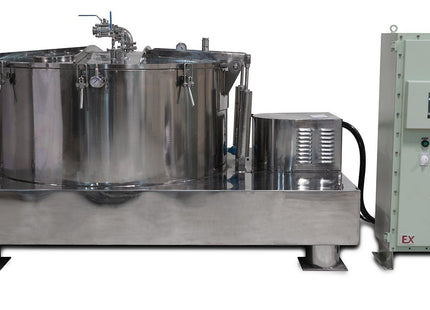

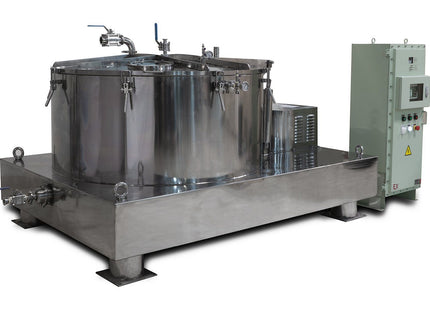

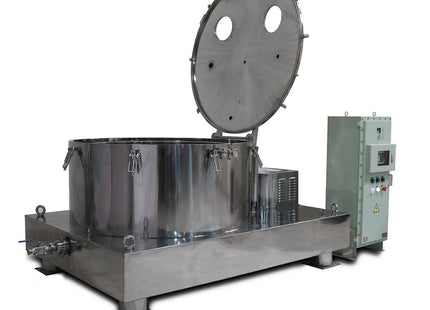

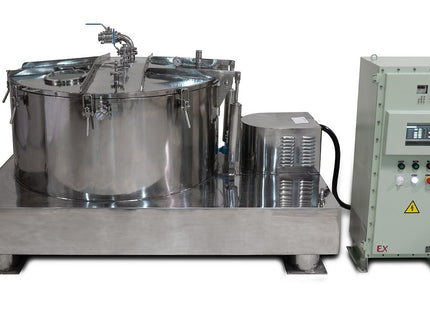

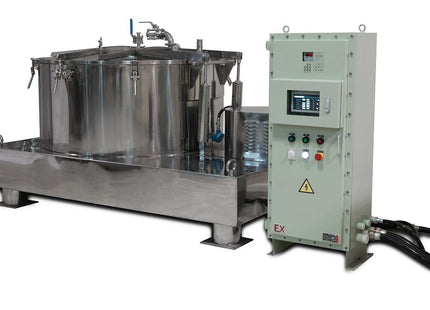

Certified 475L Ethanol Wash/Dry Centrifuge with Explosion Proof Motor and Controller
Notice to Customer: This unit has 4 lift points (one in each corner) and requires a forklift with a 6000lb+ rating to lift it.
Due to the size and weight of this item a custom freight quote will be required. If purchased, BVV will contact the customer to provide shipping options and their price. Confirming logistics will require a 2-3 week lead time.
Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.
Key Features:

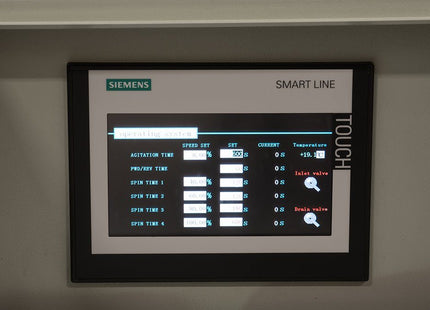

- Siemens Touch Screen Controller

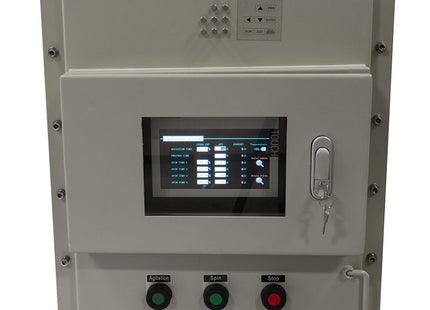

- Explosion Proof Controller Housing and Motor
- Agitation and Spin Dry Modes
- Max 800 RPM with Gradual Speed Stepping
- 430 Separation Factor
- Multiple Connection Ports/Sizes.
- High Polish Stainless Steel Components
- Shock absorbing legs
- Vacuum Jacket with Two 1.5" Tri-Clamp Fittings
- Pre-wired and Tested for Easy Installation
*BVV Centrifuges are now available certified by PRV Engineers. Field visits/verification letters are an additional $4,000 + travel expenses.*
| Specifications |
| Capacity |
475L |

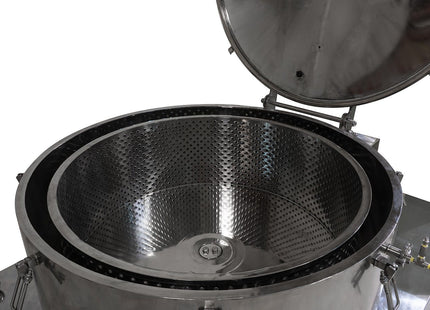

| Drum Dimensions |
47.24" (1200mm) Diameter x 16-3/4" (425mm) Deep |
| Max Capacity |
440lbs (200Kg) |
| Speed |
800 rpm |
| Separation Factor |
430
|
Electrical
|
240V 3Ø
|
| Weight |
5600lbs (2540Kg) |
| Exterior Dimensions |
85" x 65" x 49" (2150mm x 1650mm x 1250mm) |
| Viewport Diameter |
Dual 9" Viewing Ports |

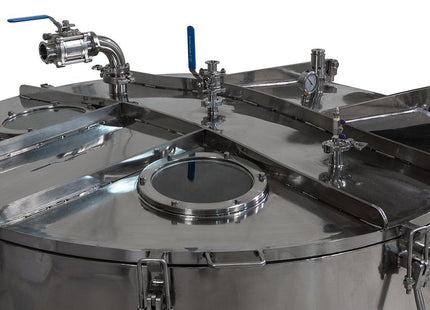

| Connection Size(s): |
4" Tri-Clamp Drain Port |
|
1.5" Tri-clamp Jacket Port x 2 |
|
1.5" / 2.5" Tri-Clamp Top Ports |
|
1/4" FNPT Top Port |
|
KF25 Top Port |
