Description

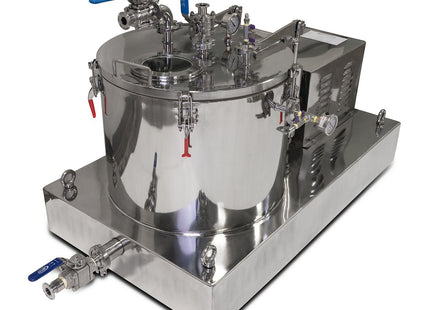

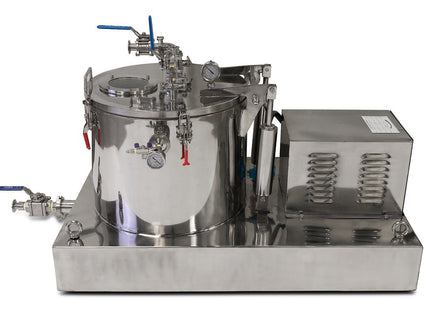

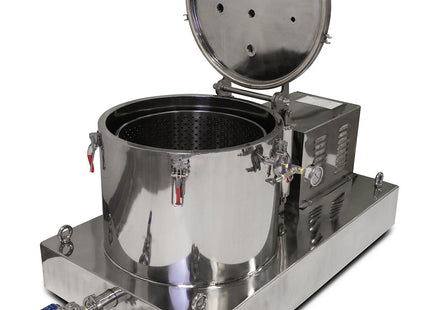

Certified 45L Ethanol Wash/Dry Centrifuge with Explosion Proof Motor and Controller
Notice to Customer: This unit has 4 lift points (one in each corner) and requires a forklift to lift it. It will also ship via freight only.
Industrial Centrifuges are used to separating liquids from solids and this style of centrifuge excels at alcohol extraction by forcefully separating the alcohol from the biomass.
Key Features:

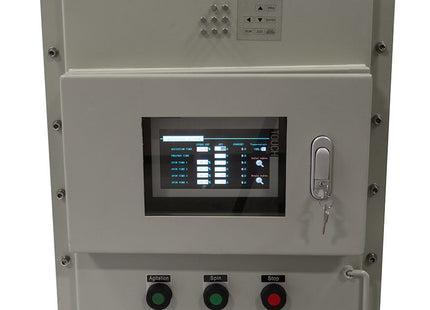

- Siemens Touch Screen Controller

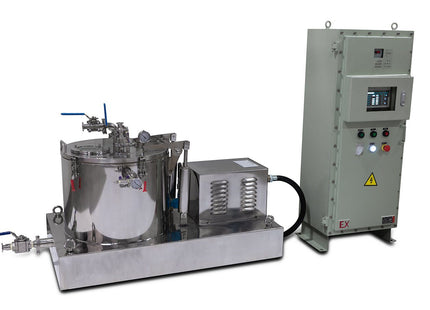

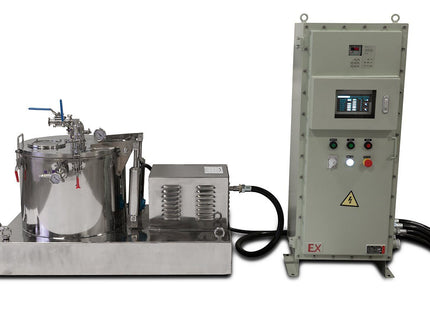

- Explosion Proof Controller Housing and Motor
- Agitation and Spin Dry Modes
- Max 1500 RPM with Gradual Speed Stepping
- 566 Separation Factor
- Multiple Connection Ports/Sizes
- High Polish Stainless Steel Components
- Shock absorbing legs
- Vacuum Jacket with Two 1" Tri-Clamp Fittings
- Pre-wired and Tested for Easy Installation
*BVV Centrifuges are now available certified by PRV Engineers. Field visits/verification letters are an additional $4,000 + travel expenses.*
| Specifications |
| Capacity |
45L |

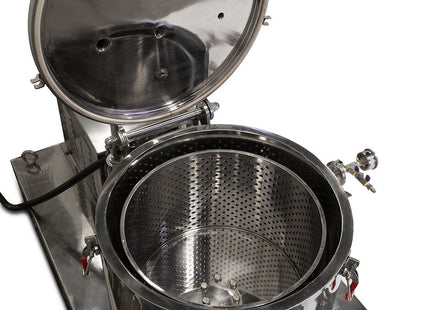

| Drum Dimensions |
17.7" (450mm) Diameter x 11-7/8" (300mm) Deep |
| Max Capacity |
15lbs (6.8Kg) |
| Speed |
1500 rpm |
| Separation Factor |
566 |
Electrical
|
240V 1Ø (10.58A)
|
| Weight |
794lbs (360Kg) |
| Exterior Dimensions |
50" x 27.6" x 28.7" (1280mm x 700mm x 730mm) |
| Viewport Diameter |
5.5" |
| Connection Size(s): |
2" Tri-Clamp Drain Port |
|
1" Tri-clamp Side Port X 2 |
|
1" Tri-Clamp Top Port |
|
1.5" Tri-Clamp Top Port |
|
1/4" FNPT Top Port |
|
KF25 Top Port |
