4" Hybrid Wiped Film Evaporator (WFE) Distillation Turn Key System - USA MADE

Description

4" Hybrid Wiped Film Evaporator

This system has a 2-3 week lead time.

The BVV™ 4" Wiped Film Evaporator (WFE) is a full turnkey distillation kit that will allow anyone to run a molecular distillation. With the magnetically driven wiper and high vacuum seals this system is able to achieve vacuum levels below 10 mtorr. The system has multiple temperature control apparatuses that allow the user to dial in specific settings that works best for their application. The maximum operating temperature of the outer jacket is 200°C with the standard circulators shown below. The maximum feed rate is up to 7LPH. On average, you can expect to flow 500-1000ml per hour. All heated circulators can be tailored to your specific needs, just ask our team of experienced account representatives!

The temperature controlled circulators will need thermal fluid that corresponds with the temperatures needed. Click here to browse fluids.  *Heating and Chilling Fluids are not included*

Duratherm S - 7 Gallons - Bottom heater (wiper body)

Therminol XP Heat Transfer Fluid - 5 Gallons -  Top and middle heater

*Propylene Glycol - 5 Gallons - Fluid for the diffusion pump option chiller.

Ethanol 99% or Isopropyl 99% - 2 Gallons - Cold Trap / Cold Finger.

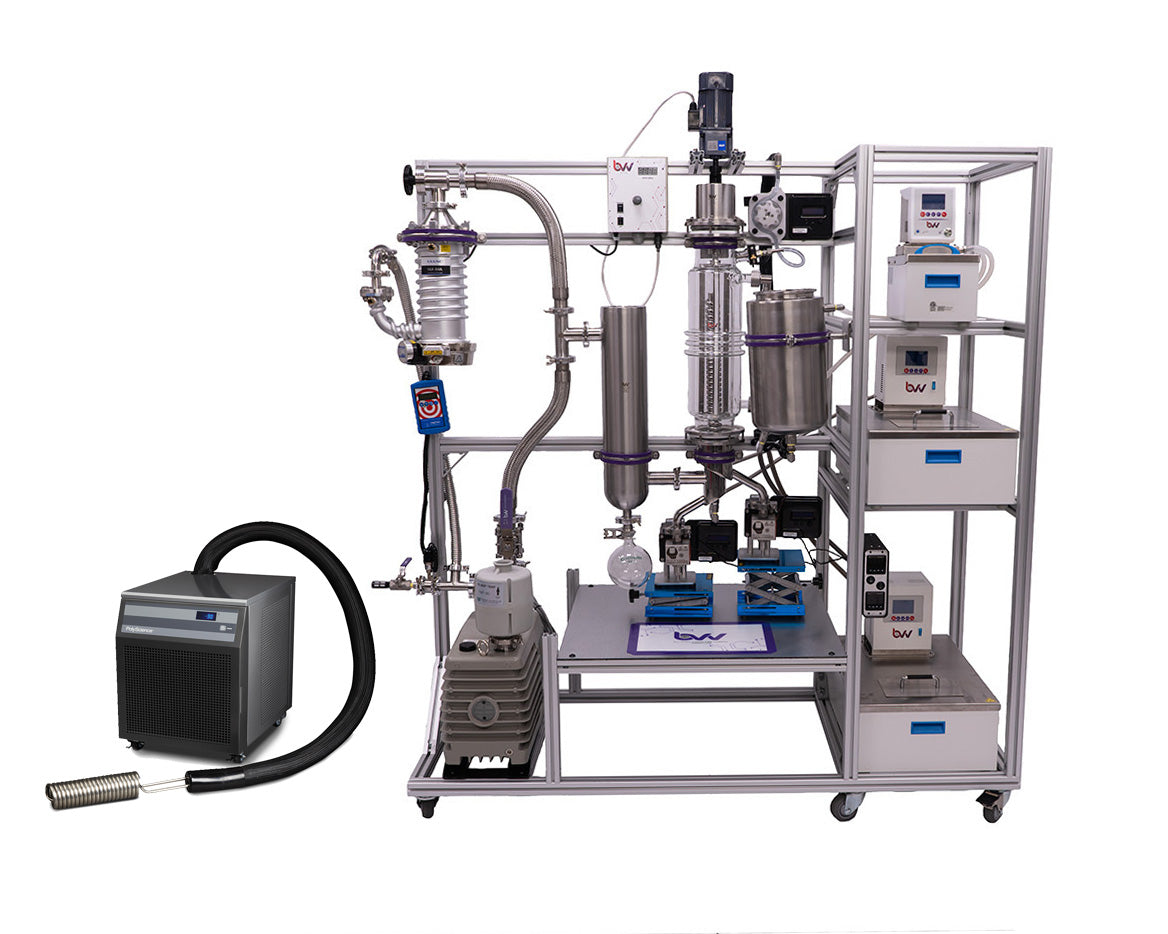

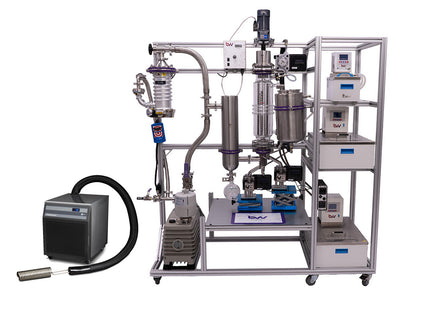

This listing picture reflects the upgraded vacuum/ outlet systems. For a full list of ancillary equipment included in each kit please see the table below:

KIT Part of System Component Electrical Requirements (V / Ph / A)

WFE04HYB-TK-01


-Standard Model

Wiper Assembly BVV™ Stirring motor 120V / 1Φ
Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump


DigiVac Bullseye Precision Vacuum Gauge

220V / 1ΦAA Batteries (4x)
Temperature Controlled Circulators BVV 5 Liter

BVV 19 Liter (2x)

120V / 1Φ / 8.3A



220V / 1Φ / 18.1A

Injection Beaker and Wrench 7LPH Peristaltic

Heated Hose
120V / 1Φ

120V / 1Φ

WFE04HYB-TK-02


-Upgraded Vacuum System


-Upgraded Cold Trap

Wiper Assembly BVV™ Stirring motor 120V / 1Φ
Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump

ULVAC Diffusion Pump (ULK-04A)*

DigiVac Bullseye Precision Vacuum Gauge

220V / 1Φ



180-264V / 1Φ / 10.5



AAA Batteries (4x)

Temperature Controlled Circulators
BVV 5 Liter

BVV 19 Liter (2x)


120V / 1Φ / 8.3A



220V / 1Φ / 18.1A

Injection Beaker and Wrench 7LPH Peristaltic

Heated Hose

120V / 1Φ



120V / 1Φ

Cold Trap Polyscience IP100 120V / 1Φ / 11.5A

WFE04HYB-TK-03
-Upgraded Vacuum System

-Upgraded Cold Trap

-Outlet Pumps

Wiper Assembly BVV™ Stirring motor 120V / 1Φ
Temperature Controlled Circulators
BVV 5 Liter

BVV 19 Liter (2x)


120V / 1Φ / 8.3A



220V / 1Φ / 18.1A

Injection Beaker and Wrench 7LPH Peristaltic

Heated Hose

120V / 1Φ



120V / 1Φ

Cold Trap Polyscience IP100 120V / 1Φ / 11.5A
Outlet Pumps Beaker and Wrench Gear Pump (2x)

Beaker and Wrench Heat Pad PID Controller

120V / 1Φ



120V / 1Φ


Notes:

*The ULVAC diffusion pump must be water cooled, if facility water cooling is not an option an additional chiller may be needed, a Polyscience 1HP Durachill is recommended as a recirculating option. Filtered well water is typically sufficient as a cooling method if available.
