2LB CO2 Spool - 316SS

Description

2LB CO2 Spool - 316SS

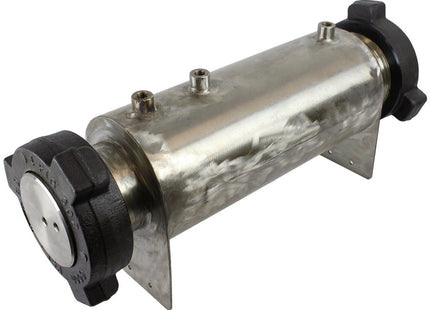

This double wellhead CO2 spool is designed for extreme pressure applications and is made of 316 Stainless Steel. Its maximum working pressure is 6000PSI and comes with a welded on inner jacket to circulate temperature regulating fluid through and maintain a consistent temperature and also a welded on exterior double jacket to create a vacuum and increase temperature stability even further. This spool also has welded brackets to allow the user to attach to a rack system or other mounting surface.


Specifications:



    • Material: 316 Stainless Steel

    • Working Pressure: 6000PSI

    • Connection Type: Hammer Union

    • Gasket Material: NBR

    • Wellhead Diameter: 4"

    • Length: 28"

    • End Cap Ports: 1/4" FNPT

    • Jacketed Ports: 1/2" FNPT




2LB CO2 Spool - 316SS

Product form

SKU: CO2SPOOL-2

$1,500.00$1,000.00 You will earn 1,000 points for this purchase.

  • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
  • Join Loyalty+ and save 10-15% *Select items
