20L Turnkey Reactor Kit

Description

20L Turnkey Reactor Kit

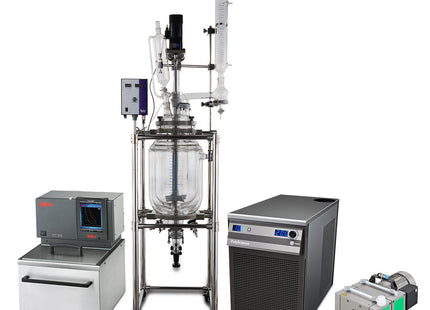

The BVV  20L Double Jacketed Glass Reactor Kit is the ideal solution for small to medium-sized solvent recovery and decarboxylation applications. This kit includes everything to get you up and running including a Single 20L triple-layer Glass Reactor with Condenser, either a BVV 19L Heated circulator capable of heating to 220C or  a UL-listed Huber CC-315B capable of heating up to 300C, a 1HP Polyscience 6160T for chilling the condenser, a Welch BTpro100 for vacuum, 25ft of 3/8" Gum rubber tubing for vacuum connections, 20ft of reinforced PVC hose for the chiller, 1/2" Stainless Steel JIC Hoses for the heater,  5 Gallons of Therminol Heat transfer fluid and 5 Gallons of Propylene glycol.



    20L Double Jacketed Glass Reactor Specifications

    • Glass Material: GG-17 High Borosilicate Glass
    • Internal Volume: 20L
    • 6.75L Jacket Capacity
    • Shelf Material: Aluminum Alloy
    • Homogenizer Power: 110V/60Hz
    • Homogenizer Speed: 0-400 RPM
    • Digital Homogenizer Control
    • Digital temperature probe readout included
    • Double Jacket
    • 3/4" Jacket Connections
    • 1/4" and 3/8" Vacuum Connections
    • Length: 20 in.
    • Width: 30 in.
    • Height: 76 in.

    Polyscience 6100 1 HP Chiller Specifications

    • 6100 Series 1 HP Chiller with Turbine Pump, 100psi; 13.2l/min
    • Display: LED
    • Working Temperature Range C: -10 to 40
    • Temperature Stability: +/-0.1
    • Temperature Calibration Capability: 1-point
    • Pump Type: Turbine
    • Working Temperature Range F: 14 to 104
    • Working Temperature Range C: -10 to 40
    • Reservoir Capacity (gallons): 1.11
    • Reservoir Capacity (liters): 4.2
    • Reservoir Cover: Screw-on cap
    • Cleanable Air Filter: Yes
    • Cleanable Fluid Filter: Yes
    • Temperature Stability F: +/-0.2
    • Temperature Stability C: +/-0.1
    • Display: LED
    • Display Resolution (Read): 0.1
    • Pump Type: Turbine
    • Process Connections: 1/2" FNPT
    • Over-Temperature Protection / Failsafe Heater Control: Yes
    • Reservoir Liquid Level Indicator: Yes
    • Reservoir Drain: Yes
    • Cool Command Refrigeration Technology: Yes
    • WhisperCool Environmental Control Technology: Yes
    • Maximum Ambient Temperature F: 95
    • Maximum Ambient Temperature C: 35
    • Overall Dimensions (LxWxH inches): 27.6 x 14.5 x 22.6
    • Overall Dimensions (LxWxH cm): 70 x 36.8 x 57.5
    • Compressor Size (HP): 1
    • Refrigerant: R134a
    • Shipping Weight (pounds): 199
    • Shipping Weight (kilograms): 90

    Welch BTpro100 Specifications

    Model BTpro100
    Free Air Displacement@60Hz,
    lpm(CFM)
    100(3.5)
    Ultimate Vacuum Pressure, Torr 6
    Maximum Vacuum, in. Hg 29.7
    Horsepower, HP (watts) 0.5(390)
    Built-in adjustable vacuum -
    Gas Ballast Yes
    Head Material PTFE
    Diaphragm PTFE
    Inlet/outlet Connection

    NW16 flange1

    Agency (National Recognized Lab) cUL
    Weight, lbs (kg) 40.3(18.3)
    Overall Dimensions


    LxWxH in.(cm)
    9x15x7


    (23x38x18)
    Shipping Weight, lbs(kg) 48.5 (22)
    Shipping Carton Dimensions


    LxWxH in.(cm)
    18.9x12.6x11.8


    (48x32x30)



     HUBER CC-315B Specifications

    Common Specifications
    Temperature range (-20) 28...300 °C
    Temperature stability ±0.02 °C
    Temperature control TAC, self-optimizing (True Adaptive Control)
    Controller Pilot ONE (E-grade "basic")
    Safety class III / FL
    Protection class IP20
    Dimensions (W x D x H) 13.19 x 15.04 x 17.05 inches
    Weight 48.51 pounds
    Heating / cooling capacity
    Heating capacity 3 - 3,5 kW
    Circulation pump
    Pressure pump max. 25 lpm : 0,7 bar | 6.6 gpm ; 10.15 psi
    Suction pump max. 18.5 lpm : 0,4 bar | bar 4.89 gpm ; 5.8 psi
    Pump connection M16x1 AG male
    Permissible viscosity 50 mm²/s
    Connections
    Pt100 connection Pt100
    Digital interface RS232, Ethernet, USB Device, USB Host
    Operating data
    Old sku 2007.0003.01
    Permissible ambient temp. 5...40 °C
    Bath opening W x D / BD 10.63 x 5.71 / 7.87 inches
    Bath volume 15 Liters | 3.96 gal
    Filling volume min. 11.5 Liters | 3.04 gal
    Power supply 208V 2~ 60Hz
    Current max. 16 A
    Fusing 20 A

    20L Turnkey Reactor Kit

    Product form

    SKU: 20LGRDTK-19L

    $21,000.00
