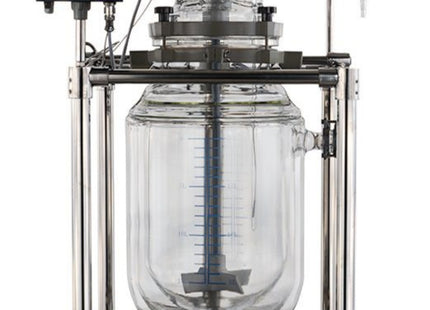

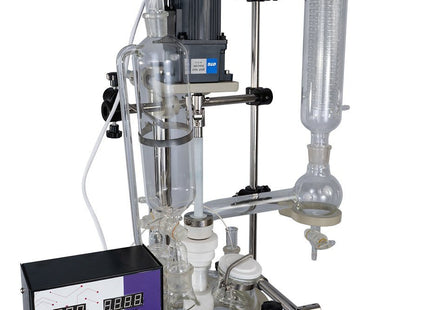

20L BVV™ Double Jacketed Glass Reactor

Description





The BVV™ Double Jacketed Glass Reactors are ideal for reaction applications involving extreme temperatures. They include an inner jacket for cooling or heating and an outer jacket for vacuum insulation. The outer jacket also alleviates moisture buildup so you can always see exactly what's happening inside the system.

Jacketed Reaction vessels are used for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Reaction Vessels can be used as an all in one tool for extraction, refinement, distillation, and homogenization. Consisting of an inner vessel with either one or two jackets, a reactor uses temperature differentials created by a chiller to change it's internal environment. Reaction vessels also operate under vacuum making them ideal for any atmospheric sensitive applications. They can be made out of glass or stainless steel and range in volume from 1L to 100L+.


To run a reaction vessel most efficiently, you will need a chiller capable of bringing the internal temperature of the vessel to an extreme low, a chemical resistant vacuum pump, and a cold trap to catch any vapors that might pass through the condenser during operation. BVV™ Jacketed Reaction vessels are simple, cost-effective, and durable machines that allow you to process material quickly and efficiently.


Specifications:



    • Glass Material: GG-17 High Borosilicate Glass

    • Internal Volume: 20L
    • 6.75L Jacket Capacity

    • Shelf Material: Aluminum Alloy

    • Homogenizer Power: 110V/60Hz

    • Homogenizer Speed: 0-400 RPM

    • Digital Homogenizer Control

    • Digital temperature probe readout included

    • Double Jacket

    • 3/4" Jacket Connections

    • 1/4" and 3/8" Vacuum Connections

    • Length: 20 in.

    • Width: 30 in.

    • Height: 76 in.

Does not include: Chiller, Vacuum System, Cold Trap

Requires Assembly

*Notice to customers: All units are inspected for broken glassware or parts before leaving BVV™. If the unit arrives damaged (this does not include minor imperfections or scuffs in glassware), the customer MUST contact BVV™ within 72 hours from carrier delivery to file a claim. If the customer DOES NOT contact BVV™ within 72 hours from carrier delivery, then BVV™ cannot issue any replacement(s) or compensation for the item; a new purchase will need to be made for a replacement.


***Disclaimer: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in WELL VENTILATED AREAS!***




***Glassware Safety Disclaimer: BVV™ is not responsible for failure of glassware which must be inspected before and after every use because it may eventually develop imperfections or damage through normal usage, mishandling, and stress caused by temperature variations. If an imperfection or damage is noted while inspecting the glassware DO NOT use the glassware because it can fail causing bodily harm or damage to the surrounding area.***

20L BVV™ Double Jacketed Glass Reactor

Product form

SKU: 20LTGR-V3-COND

$4,900.00

You will earn 4,900 points for this purchase.

2 Year Limited Warranty
