Home › All products › 150L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp Port and Locking Casters

150L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp Port and Locking Casters Shop All Categories BVV

Manufacturer: BVV

150L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp Port and Locking Casters

Name: 150L Jacketed Collection & Storage Vessel w/ Tri-Clamp Port
Brand: BVV
SKU: 150LRV2
Price: 3450.0 USD
Availability: InStock

SKU: 150LRV2

$3,450.00

✔ 24 Hour Nitrogen Test

✔ Free Ground Shipping over $420

✔ Flat Rate Shipping On Orders Under $420!

You will earn 0 points for this purchase.

QTY

Price Match

150L 304SS Jacketed Collection and Storage Vessel with 12" Tri-Clamp/ Tri Clover Port and Locking Casters

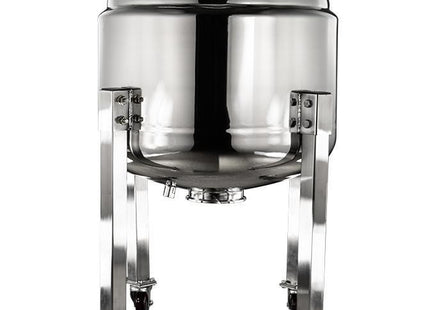

This massive 304 Stainless Steel Jacketed vessel can hold up to 150L of water (~40 gallons) and has a 12" Tri-Clamp port on the top and a 6" Tri-Clamp port on the bottom of the vessel. The outer jacket has 2x 1/2" FNPT ports to allow the circulation of heat transfer fluids and can also be used a vacuum jacket and can hold 21.5L or 5.68 gallons of fluid in the outer jacket. This unit also features 4 stainless steel legs with locking casters to allow the vessel to be moved around easily. (Note: this unit comes bare and does not include any fittings besides the legs with casters.

Specifications
Material	304 Stainless Steel
Pressure Rating	150 PSI MAX
Connection Type(s):	12" Tri-Clamp Top Port
	6" Tri-Clamp Bottom Port
	(2) 1/2" FNPT Ports on the Jacket

***Note: This item will ship via freight ONLY.
