Name: 10" Cold Trap with KF25 Ports
Brand: BVV
SKU: CTRAP10X10-B
Price: 1325.0 USD

10" Cold Trap with KF25 Ports

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

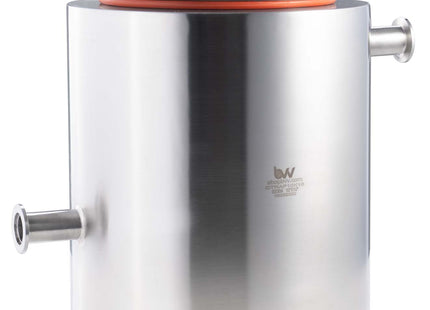

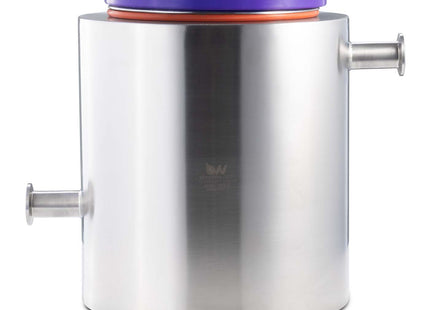

10” X 10” KF25 Cold Trap Kit

Cold traps are used in vacuum applications where contaminating vapors may be present, and a cold trap is required to assure vapors are condensed before reaching the vacuum pump. They can be used with any pump but are mostly used with rotary vane pumps. Protecting your pump will greatly increase the life of all your seals and internal components it will also assure that a full vacuum is pulled based on the pump’s capabilities.

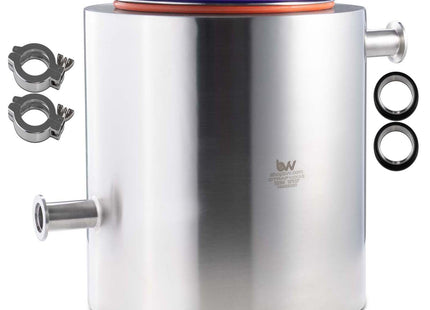

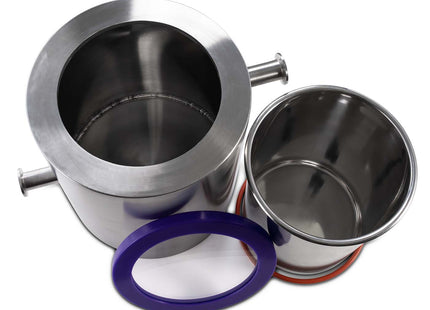

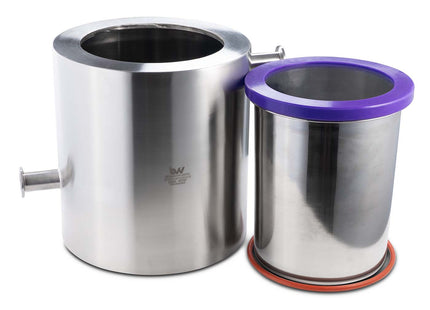

BVV’s 10”X10” KF25 Cold Trap features 2 qty. KF25 ports. The lower port is connected to the system that is under vacuum and the top to the vacuum pump. The KF25 allows for a larger bore and works great for high flow applications. This kit comes with 2 qty. KF25 rings and 2 qty. KF25 clamps ready to be connected in line with your setup. The internal pot is stainless steel and can hold 1.5 gallons which will hold the dry ice slurry or other method of getting cold. A silicone O-ring sits around the 1.5-gallon pot and creates a seal with the top of the 10”X10” base. For more specifications, please view table and diagrams below.

**This cold trap comes pre-tested to pull down to 30 microns**

**This cold trap is rated for applications down to 30 microns. If your application requires a deeper vacuum, please DO NOT USE THIS COLD TRAP**

Specifications
Model	CTRAP10X10-B
Material of Base and Internal Pot	Stainless Steel
Gasket Material	Silicone
Lid Material	Silicone + Glass
Vacuum Rating	30 microns
Weight	29lbs
Overall Height	11.5”
Overall Diameter (Including Ports)	14”
Cold Trap Surface Area	234.45 sq.in
Internal Pot Volume	1.5 gallons
Chemical Compatibility with Glass Lid	Ethanol	Excellent
	Acetone	Good
	Water	Excellent
	Propylene Glycol	Excellent
	Isopropyl Alcohol	Excellent
Chemical Compatibility with Silicone O-Ring and Lid Seal	Ethanol	Good
	Acetone	Good
	Pentane	Good
	Hexane	Good
	Heptane	Good

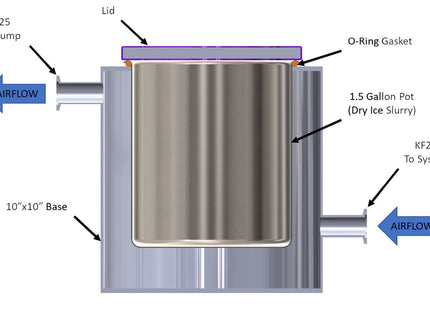

View of 10” x 10” Cold Trap

10" Cold Trap with KF25 Ports

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

SKU: CTRAP10X10-B

$1,325.00

View Technical Data Sheet (TDS)

Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154

Financing Available

Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

Description

10” X 10” KF25 Cold Trap Kit

Cold traps are used in vacuum applications where contaminating vapors may be present, and a cold trap is required to assure vapors are condensed before reaching the vacuum pump. They can be used with any pump but are mostly used with rotary vane pumps. Protecting your pump will greatly increase the life of all your seals and internal components it will also assure that a full vacuum is pulled based on the pump’s capabilities.

BVV’s 10”X10” KF25 Cold Trap features 2 qty. KF25 ports. The lower port is connected to the system that is under vacuum and the top to the vacuum pump. The KF25 allows for a larger bore and works great for high flow applications. This kit comes with 2 qty. KF25 rings and 2 qty. KF25 clamps ready to be connected in line with your setup. The internal pot is stainless steel and can hold 1.5 gallons which will hold the dry ice slurry or other method of getting cold. A silicone O-ring sits around the 1.5-gallon pot and creates a seal with the top of the 10”X10” base. For more specifications, please view table and diagrams below.

**This cold trap comes pre-tested to pull down to 30 microns**

**This cold trap is rated for applications down to 30 microns. If your application requires a deeper vacuum, please DO NOT USE THIS COLD TRAP**

Specifications
Model	CTRAP10X10-B
Material of Base and Internal Pot	Stainless Steel
Gasket Material	Silicone
Lid Material	Silicone + Glass
Vacuum Rating	30 microns
Weight	29lbs
Overall Height	11.5”
Overall Diameter (Including Ports)	14”
Cold Trap Surface Area	234.45 sq.in
Internal Pot Volume	1.5 gallons
Chemical Compatibility with Glass Lid	Ethanol	Excellent
	Acetone	Good
	Water	Excellent
	Propylene Glycol	Excellent
	Isopropyl Alcohol	Excellent
Chemical Compatibility with Silicone O-Ring and Lid Seal	Ethanol	Good
	Acetone	Good
	Pentane	Good
	Hexane	Good
	Heptane	Good

View of 10” x 10” Cold Trap
