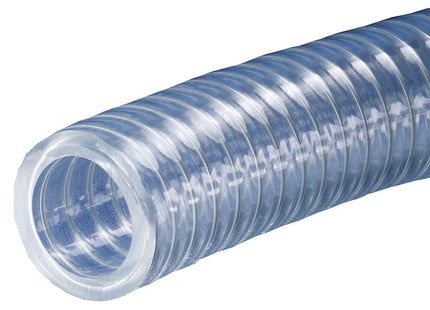

1" ID Heavy Wall Reinforced Clear PVC Vacuum Hose
Crystal clear Phthalate Free PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(18), 3A(01), NSF(13), UL(17), USP(19) and RoHS(16) criteria. Reinforced with helically-wound spring steel wire.
Key Features:
- Vacuum Rated to 29.9" HG @ 70°F
- Spiral wire reinforcement prevents kinking or collapsing and prevent expansion under higher pressure applications
- Crystal clear tubing allows visual confirmation of product flow
- Glass smooth interior prevents build-up of material inside the tubing
- Electrogalvanized helical steel wire can be used for static dissipation. (This product is designed to dissipate static electricity when the metal wire is properly connected to ground through the fitting or other means
- Resistant to wide range of chemicals
Common Applications:
- Food and beverage dispensing
- Air and water supply lines
- Deionized water systems
- Pneumatic parts transfer
- Deionized water systems
Specifications |
Series |
K7130 |
Sized Code |
16 |
Service Temperature Range |
25 to 150°F (-4 to 65°C) |
Nominal ID |
1" (25.4mm) |
Nominal OD |
1.375" (34.9mm) |
Max Working Pressure @ 70°F (20°C) |
100 Psi |
Max Working Pressure @ 122°F (50°C) |
50 Psi |
Standard Length Coils |
100ft |
Approx. Wt. per Pkg. |
44lb |
Brand |
Kuri Tec® |
Packaging |
Coils |
Material |
PVC |
Min. Bend Radius @ 70°F |
1" |
Type |
Reinforced Water Supply and Food Grade Hose |
Reinforcement Material |
Helically-wound spring steel wire |
Color |
Crystal Clear |
Weight per Foot |
0.44lbs/ft |
Performance |
Heavy Wall Clear PVC wire reinforced for vacuum |
