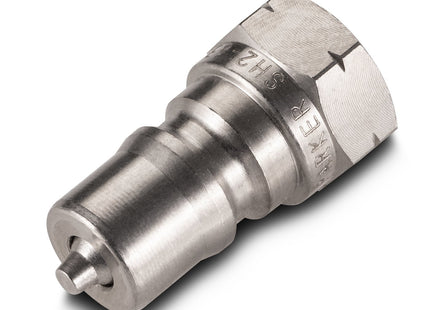

1/4" Female NPT Parker Quick Disconnect - STEM
1/4" Female NPT Parker Quick Disconnect - STEM
- VendorParker
Description
1/4" Female NPT Parker Quick Disconnect - STEM
60 Series Nipples ( hydraulic, fluids, gas, steam up to 5000 PSI, connect with ISO 7241 series B, 60 Series Couplers.
Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disonnects and complying with ISO 7241 series B.
These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, influding high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 PSI.
Technical Characteristics:
- Sizes: 1/8" - 2-1/2"
- Materials: Steel, Brass, 303 Stainless Steel, 316 Stainless Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Flourocarbon, Neoprene
- Coupler Options include: Sleeve Lock, Valve Actuater, Steam Compatibility
Markets:
- Industrial
- Construction
- Chemical Processing
- Commercial Cleaning
- Agriculture
Features/Benefits:
- Globally interchangeable with other manufacturer's couplings complying to ISO 7241 series B
- Multi-purpose coupling, widely used in varied applications
- Steel nipples have a hardened body for strength and durability
- Metal valve stop prevents flow checking to provide steady performance
- Steam version couplers have Ethylene Propylene seals to withstand high temperatures and the 3/8"" has a grip-ring sleeve for easy operation when wearing gloves.
- Metal valve stop prevents flow checking to provide steady performance
- Nipple options include high temperature steam compatibility
Applications:
- Industrial hydraulic lines
- Food and chemical processing
- Water and coolant lines
- High pressure fluid transfer
- High temperature fluid transfer
- Mobile equipment
- Cleaning equipment
- Dry cleaning
- Steam and some gases
| Technical Specifications: | |
|---|---|
| Maximum Working Pressure (PSI) | 5000 |
| Maximum Working Pressure (BAR) | 340 |
| Flow Rate (GPM) | 3 |
| Flow Rate (LPM) | 11 |
| Media | Hydraulic |
| Industry Standards | ISO 7241-1, Series B |
| Coupling Half | Nipple |
| Minimum Working Temperature (F) | -40 |
| Minimum Working Temperature (C) | -40 |
| Maximum Working Temperature (F) | 250 |
| Maximum Working Temperature (C) | 121 |
| Valve Style | Poppet |
| Sleeve Type | Manual Sleeve |
| Locking Mechanism | Locking Balls |
| Vacuum Rating (INCH of HG) | 27.4 |
| Vacuum Rating (BAR) | -0.9 |
| Thread Style | Female |
| Plating | N/A |
| Valve Material | 303 Stainless |
| Ball Material | Stainless steel |
1/4" Female NPT Parker Quick Disconnect - STEM
- VendorParker
SKU: SH2-63
$50.00
You will earn 50 points for this purchase.✔ 30 Day Limited Warranty
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
