Meta Fittings
-
SSP Corporation Branch Tee
SSP - Branch Tee SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967. ***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. BVV recommends GAS PTFE Tape Specifications Connection Type 1 Female NPT Connection Size 1 Specified by User Material 316 Stainless Steel ASTM A-276 and A-479 bar stock, A-182 forgings. Working Pressure (PSIG) 1/4" - 7750 3/8" - 6800 NPT Pressure Rating >10,000PSI ASME B31.3 SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA! Dimensions A 1.76 in E 0.28 in H 3/4 in P 1/4 in L 0.88 in S 1.09 in
$28.00 $15.00
-
ASME-Code Fast-Acting Pressure-Relief Valve for Air, Test Ring, Brass Seal, 1/4 NPT, 3-1/8" High
ASME-Code Fast-Acting Pressure-Relief Valve for Air, Test Ring, Brass Seal, 1/4 NPT, 3-1/8" High Valve Function Pressure Relief For Use With Air, Inert Gas Activation Pressure Driven Inlet Pipe Size 1/4 Connection Type Pipe Pipe Connection Type Threaded Connection NPT Male Location Bottom Maximum Pressure 300 psi Relief Port Connection Type Vent Relief Port Location Side Set Pressure Configuration Nonadjustable Temperature Range -40° to 400° F Valve Shape 90° Elbow Valve Body Shape Straight Overall Height 3 1/8" Material Body Brass Seal Brass Test Mechanism Ring Valve Type Pop Safety Specifications Met ASME BPVC.VIII RoHS RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy REACH REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant DFARS Specialty Metals COTS-Exempt Country of Origin United States USMCA Qualifying No Schedule B 848140.0000 ECCN EAR99 To protect against damage in air lines, air receivers, compressor tanks, and other air-powered equipment, these valves spring fully open at the set pressure and remain open until the system pressure is restored below the set pressure. All meet ASME Code Section VIII for use with air and inert gas pressure vessels. They have a vented relief port to exhaust discharge directly.
$61.00
-

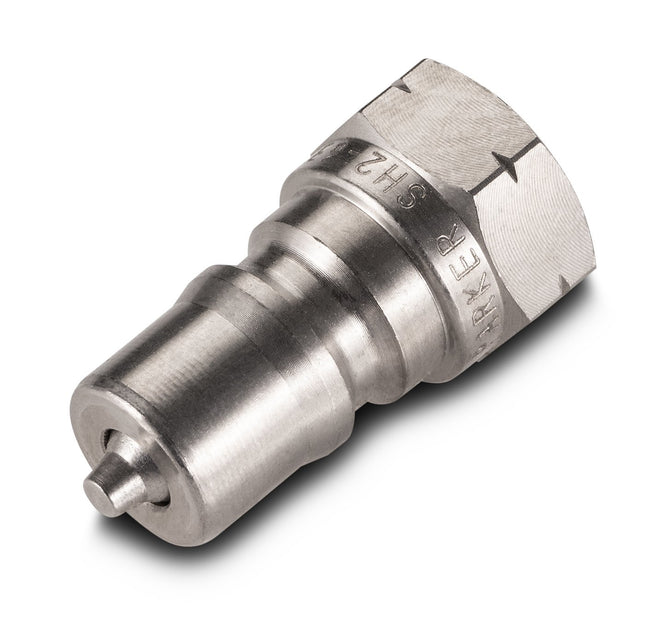

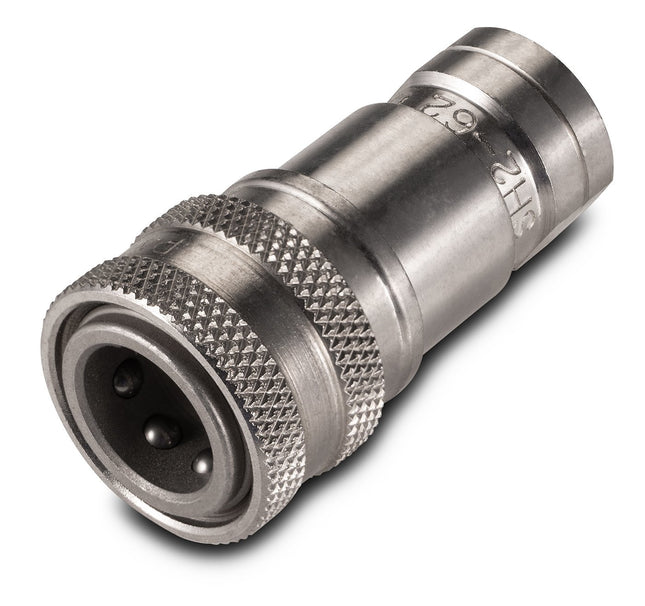

BVV Quick Disconnect Male and Female 1/2" FNPT
BVV Quick Disconnect Male and Female 1/2" FNPT Description [Size]: 1/2" Female NPT; Pressure-proof: 1500 PSI; Flow:12 gpm. [Quality Materials]: The Quick Disconnect is made of high quality 304 stainless steel and The sealing material is made of fluorine rubber which is durable, stable, rust and corrosive resistance and good for long time using. [Precise Design]: Steel balls are used to connect the adapter which makes the sealing better, both ends open-closed. [High Working Temp. & Wide Range of Applications]: The Quick Disconnect provides good sealing and easy to unload. It can be used for connecting two pipes in the double seal system. It is suitable for different media including water, gas, and oil with working at -4°F~392°F.
$140.00
-
Wireless Digital Vacuum Gauge 1~19,000 Microns
VGW-mini Wireless micron vacuum gauge measures vacuum via just one service port and with no loss of refrigerant. Its compact, robust and smart design support HVAC technicians with numerous intelligent features like the graphic display of measurement data in the Elitech Tools App. Its smart Bluetooth integration allows for data to be stored and evaluated reliably and efficiently, thus saving precious time and resources. Product Features High Accuracy The digital vacuum gauge achieves precise deep vacuum measurements down to single digit resolutions and provides notifications when the evacuation target is met. Smart APP Control Control your micron tester remotely and navigate through all measurement data via Smartphone or Tablet. Quickly and conveniently document your job, finalize your report and export - directly from the job site. Intelligent Judgement of H2O Status The vacuum meter automatically judges physical state of H2O by comparing ambient temperature and water saturation temperature corresponding to the vacuum in the system. Large, Easy-to-Read Display Continual digital readout of evacuation process can be viewed easily on the large, full-view LCD screen. Rechargeable Lithium Battery Built-in rechargeable lithium battery can work up to 20 hours per single full charge, saving troubles of frequent battery change. Product Specifications Measuring Range: 0-19000 micron Operating Temperature: -4℉~140℉ (-20°C~60°C) Interface: 1/4 SAE Accuracy: 1~10,000 microns: ±10% of readings ±10 microns10,000~19,000 microns: ±20% of readings Resolution: 0-400 1 Micron400-3000 10 Micron3000-10000 100 Micron10000-19000 250 Micron Vacuum Units microns, mTorr, in/hg, Pa, Torr, KPa, mbar and psia Battery rechargeable lithium battery (1,000mAh) Overload 27.5 bar Certification CE
$175.00
-
SSP Corporation Union Cross
SSP - Union Cross SSP Instrumentation Duolok® tube fittings are designed, manufactured and quality controlled to be totally “interchangeable” with the Swagelok® brand of tube fittings. Component by component examination plainly shows the two brands as completely “componentintermixable.” The precision manufacturing of both products to stringent tolerances under rigid quality control procedures ensures the safety, performance, and reliability of service whenever Duolok® and Swagelok® component parts are mixed and used in accordance with published installation and service recommendations. Specifications Connection Type 1 Duolok Tube Fitting Connection Size 1 Specified by User Material 316 Stainless Steel ASTM A-276 and A-479 bar stock, A-182 forgings. Duolok Pressure Rating = Tubing Rating SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
$35.00 $20.00
-
SSP Corporation 3 Way Ball Valve - Fractional Tube Fitting
SSP - 3 Way Ball Valve - Fractional Tube Fitting SSP Instrumentation Flolok® manually operated three-way ball valves accept media through the bottom port and allow selection of flow through a selected port. Features: Directional handle indicates flow direction Panel Mountable 180-degree actuation Directional flow path Micro-finished ball provides positive seal Free-floating ball design provides compensation for seat wear for repetitive sealing Blow-out proof ball & stem Standard Product Testing - Every ball valve is assembled and tested @ 1000 psi (68.9 bar) with Nitrogen Specifications Body Material 316 Stainless Steel Pressure Rating @ 100F 3000 PSIG @37C 208 BAR @300F 2500 PSIG @148C 172 BAR Connection Type 1 Duolok Tube Fitting Connection Size 1 Specified by User Connection Type 2 Duolok Tube Fitting Connection Size 2 Specified by User Connection Type 3 Duolok Tube Fitting Connection Size 3 Specified by User Handle Type Nylon-Stainless Steel Insert Handle Color Black Packing Material PTFE SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
$80.00 - $120.00
-
SSP Corporation Pipe Cross
SSP - Pipe Cross SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967. ***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. Best Value Vacs recommends GAS PTFE Tape Specifications: Connection Type 1 Female NPT Connection Size 1 Specified by User Material 316 Stainless Steel ASTM A-276 and A-479 bar stock, A-182 forgings. Working Pressure (PSIG) 1/4" - 7750 3/8" - 6800 NPT Pressure Rating >10,000PSI ASME B31.3 SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
$35.00 $15.00
-
KF Connection Braided Stainless Steel Bellow Hose
KF Connection Braided Stainless Steel Bellow Hose This KF or (NW) bellow hose is made out of 304-grade stainless steel with braided exterior which allows a high vacuum to be obtained with a large flow diameter for vapors. These bellow hoses are flexible and allow the user to connect a KF flanged vacuum pump to a KF flanged vacuum oven or any other application using adapters. Sizes Available: KF-16 KF-40 KF-50 Lengths Available: 20" 40"
$60.00 - $165.00
-
Julabo Julabo Adapter M16x1 f to NPT 1/2″
Julabo Adapter M16x1 f to NPT 1/2″ 2 Adapters M16x1 f. to NPT 1/2″ m.
$210.00
-
SSP Corporation Female Elbow
SSP - Female Elbow SSP Instrumentation TruFit® is manufactured from fully-traceable raw material to close tolerances and superior surface finishes. TruFit® provides optimal performance when installed in accordance with SSP’s recommendations and the design parameters appropriate for each type of connection – tapered thread, straight thread, and weld & braze. TruFit® components are cleaned in accordance with SSP documented work instructions using equipment calibrated to NIST standards with environmentally-safe and stable agents, ultrasonics, and heat/ temperature to remove all residual oil, grease, and loose particles. Stainless steel components are passivated to the requirements of MIL QQ-P-35 and ASTM A 967. ***Note: ALL NPT Threads REQUIRE the user to properly install the fitting by using a thread sealant to prevent leaks. BVV recommends GAS PTFE Tape Specifications Connection Type 1 Female NPT Connection Size 1 Specified by User Material 316 Stainless Steel ASTM A-276 and A-479 bar stock, A-182 forgings. Working Pressure (PSIG) 1/4" - 7750 3/8" - 6800 NPT Pressure Rating >10,000PSI ASME B31.3 SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA!
$10.00 - $14.00
-

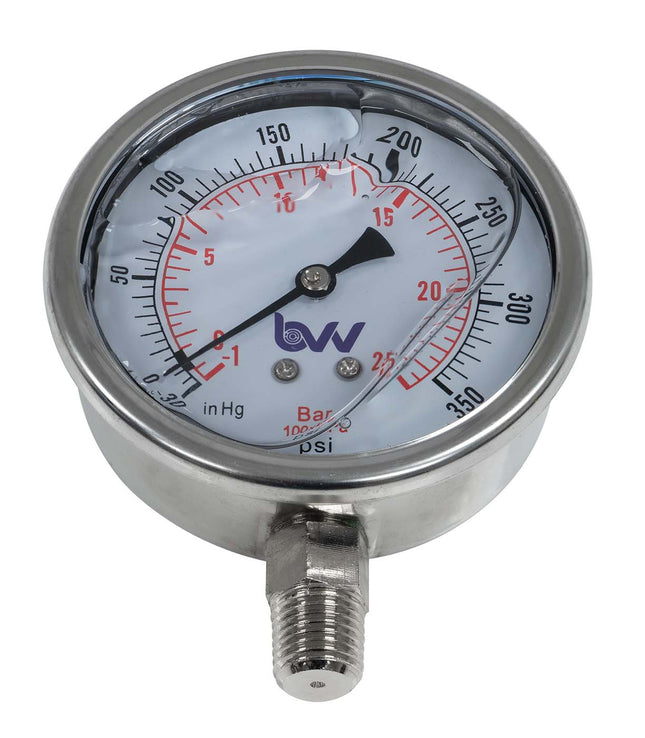

Liquid Filled Vacuum Gauges - NPT Lower Mount
Liquid Filled Vacuum Gauges - NPT Lower Mount 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Lower Mount Connection Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing) Accuracy: +/- 3/2/3% Scale: Dual Scale - PSI/Bar Movement: Copper Alloy* Bourdon Tube: Copper Alloy* Window: Poly-carbonate Case: Stainless Steel case for protection in harsh environments Connection: Copper Alloy Lower Mount*: 1/8" NPT for 1-1/2" dial, 1/4" NPT for 4" dialsNormal Ambient Temp: -4F to +140F (-20C to 60C) 2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Lower Mount Connection, -30HG/30PSI
$28.00
-
Pressure-Relief Valves for Cryogenic Liquids
Pressure-Relief Valves for Cryogenic Liquids Valve Function Pressure Relief For Use With Liquid Carbon Dioxide, Liquid Nitrogen, Liquid Oxygen Activation Pressure Driven Inlet Pipe Size 1/4 Connection Type Pipe Pipe Connection Type Threaded Connection NPT Male Location Bottom Maximum Pressure 600 psi Relief Port Thread Size 3/4"-20 Connection Type Pipe Pipe Connection Type Threaded Connection UNEF Female Location Top Set Pressure Accuracy ±5% Set Pressure Configuration Nonadjustable Temperature Range -320° to 165° F Shape Straight Overall Height 2 5/8" Material Body Brass Valve Type Relief Flow Coefficient (Cv) Not Rated Specifications Met CGA G-4.1 RoHS RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy REACH Not Compliant DFARS Specialty Metals COTS-Exempt Country of Origin United States USMCA Qualifying No Schedule B 848140.0000 ECCN EAR99 Cleaned and bagged to meet CGA G-4.1 for oxygen service and other high purity applications, these valves are built to withstand the extreme cold of liquid carbon dioxide, liquid nitrogen, and liquid oxygen. They begin opening at the set pressure and fully open at about 10% over the set pressure. Valves begin closing as pressure drops and fully close when the system pressure is restored below the set pressure. Set pressure is not adjustable. Valves are not intended for direct contact with cryogenic liquids. Risers (sold separately) are required to convert cryogenic liquids into gases before they contact the valve. 3/8 NPT valve requires a 1/2 NPT × 3/8 NPT bushing when using a riser.
$120.00 - $150.00
-
KF-25 Stainless Steel 90 Degree Manifold
KF-25 Stainless Steel 90 Degree Manifold This 90 degree stainless steel KF-25 manifold has 2 1/4" FNPT ports and measures 10" x 7".
$65.00 $30.00
-
SSP Corporation 1/4" Cap
SSP Instrumentation Duolok® tube fittings are designed, manufactured and quality controlled to be totally “interchangeable” with the Swagelok® brand of tube fittings. Component by component examination plainly shows the two brands as completely “componentintermixable.” The precision manufacturing of both products to stringent tolerances under rigid quality control procedures ensures the safety, performance and reliability of service whenever Duolok® and Swagelok® component parts are mixed and used in accordance with published installation and service recommendations. Specifications Connection Type 1 Duolok Tube Fitting Connection Size 1 Specified by User Material 316 Stainless Steel ASTM A-276 and A-479 bar stock, A-182 forgings. Duolok Pressure Rating = Tubing Rating SSP proudly makes Duolok®, TruFit®, FloLok® and hundreds of other products 100% in the USA! Dimensions A 0.92 in C 0.70 in D 0.60 in G 9/16 in H 1/2 in T 1/4 in B 0.63 in
$5.00 $2.00
-
Male Luer to 1/4 NPT Male Nickle Plated Brass
Male Luer to 1/4 NPT Male, Fitting Material Brass- Nickle Plated.
$20.00
-

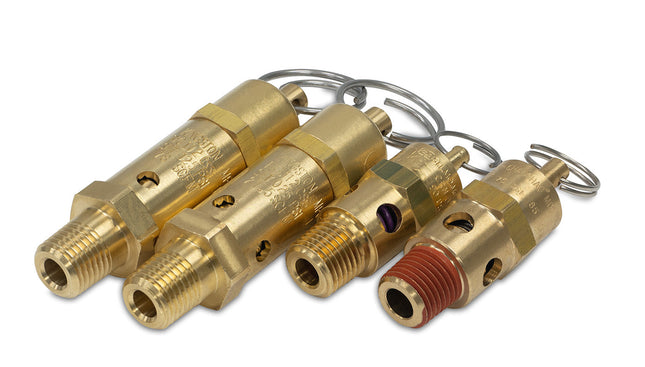

ASME 250 PSI Brass Safety Valve - 1/2" MNPT
ASME 250 PSI Brass Safety Valve - 1/2" MNPT Model “SB” ASME safety valve is a high capacity safety valve. Unique O-ring seal ensures valve is bubble-tight to within 10% of set pressure. Set pressure tolerance is +/-3%. SB50 Outline Drawing SB Flow Charts Specifications Construction: Brass Stainless Steel Springs FKM O-Ring Seal Set Pressure 250 PSI Max Temp. 250ºF
$70.00
-
Tool-Less Adapter Assembly
Tool-Less Adapter Assembly This adapter fits on 30mm OD glass flanges. The other side is 1/2" MNPT to connect to various fittings for attaching hoses and like items.
$85.00
-
SSP - Union Elbow - 1/2" Tube x 3/8"
Stainless Steel SSP -Union Elbow 1/2" x 3/8" Duolok
$55.00
-

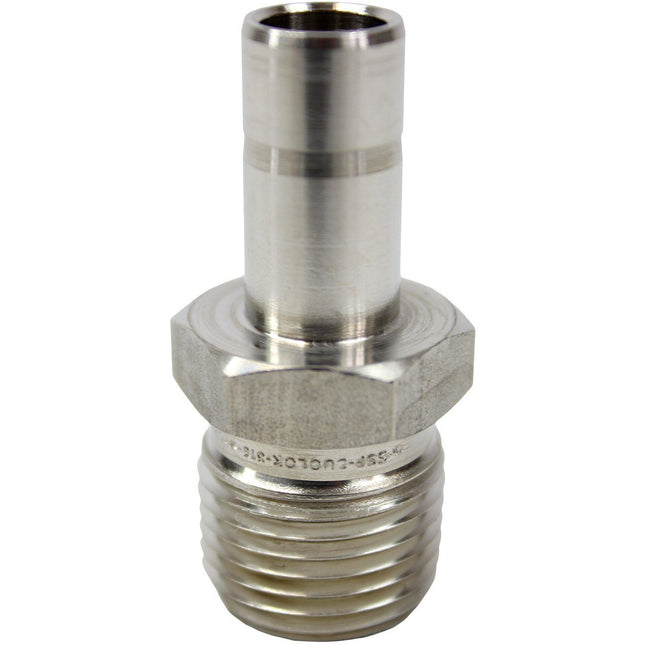

SSP Corporation Tube Stub Adapter
Tube Stub Adapter Duolok Tube Stub Adapter, 3/8 Tube Fitting x 1/2 Tube Stub, 316 SS. Body Material 316 SS Connection 1 - Type Tube Fitting Connection 1 - Size 3/8 in Connection 2 - Type Tube Stub Connection 2 - Size 1/2 in Brand Series Duolok Shape Straight End Connections TF x Tube Stub Production Category 1 Handle Type 0 Handle Color
$30.00
-
Huber Huber adapter M16x1f-1/2"m
Huber adapter M16x1f-1/2"m Adapter M16x1 f - R1/2 m Adapter M16x1 f - R1/2 m M16x1 female thread to R1/2 male thread
$135.00
-
2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/30PSI
2-1/2" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/30PSI 2-1/2" Liquid Filled Pressure Gauges - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing)Accuracy: +/- 3/2/3%Scale: Dual Scale - PSI/BarMovement: Copper Alloy*Bourdon Tube: Copper Alloy*Window: Poly CarbonateCase: Stainless Steel case for protection in harsh environmentsConnection: Copper Alloy Center Back Mount*; 1/8” NPT for 1-1/2” dial, 1/4” NPT for 2 and 2-1/2” dials, and 1/4" NPT, 3/8" NPT, or 1/2” NPT for 4” dialsNormal Ambient Temp: -4°F to 140°F (-20°C to 60°C)Liquid Filling: Glycerin oil filled to enhance reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of the gauge. 2-1/2" Liquid Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/30PSI
$28.00
-
CONRADER Safety Valve, Soft Seat, 1/2In, 250 PSI, SS
Valve Type: Soft Seat (M)NPT Inlet (In.): 1/2 in Preset Setting (PSI): 250 psi Rated CFM @ Set Pressure: 449 cfm Max. Temp. (F): 400 °F Body Material: Stainless Steel Seal: Viton Spring: 17-7 SS Seat: Stainless Steel Standards: ASME Boiler and Pressure Vessel Code Section VIII Division 1; CRN; ISO 9001 Application: Air; Gas UNSPSC: 40141604 Country of Origin: USA
$190.00
You have seen 70 out of 70 products
