Description

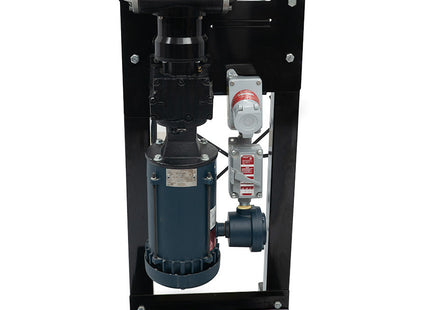

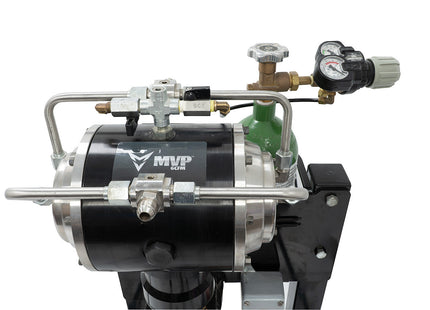

USED-MVP-6CFM 1PH Wired

The Master Vapor Pump Model MVP-6CFM is a certified gas recovery pump designed to operate at 60 PSI. This pump is designed specifically for LP-Gas vapor recovery and is ideal for butane or butane / propane mixtures.

Disclaimer:

This item has been USED for about 400-500 hours of runtime in the BVV R&D lab. It may contain traces of CBD or solvent used in our lab. This specific pump includes a C1D1 receptacle and switch that is already installed. You will need a sealed wire with NEMA 5-20 male plug. For our recommended item click HERE

Engineering Specifications:

• Recover LP-Gas vapor at OVER 6 CFM (cubic feet per minute)
• Recover butane at up to 1 LB/MIN (pounds per minute)
• Recover and recondense butane at OVER 12 GPH (gallons per hour)
• Electric motor: explosion proof for C1D1 hazardous areas; rated Class I Gr C & D, Class II Gr F&G Electric motor: 1 HP, 1800 RPM, 60 HZ
• Pump speed: 190 CPM (cycles per minute) at 60 HZ
• Size: 17.0” x 19.9” base x 46” tall
• Weight: 182.5 lb (82.8 kg)

Downloads

• Product Manual
• Technical Data Sheet
• Features and Benefits Sheet
