Shop Components

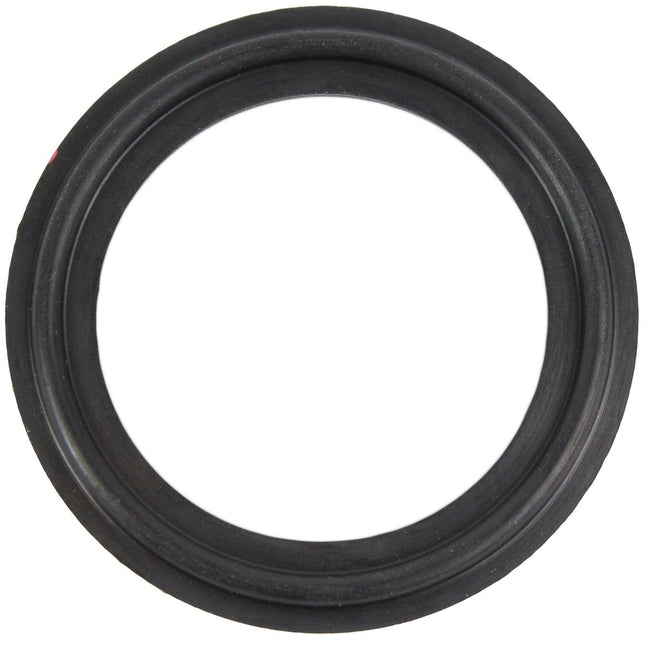

BUNA-N Tri-Clamp Gaskets (Made in USA, FDA Compliant / Meets 3A Standards)
BUNA-N Tri-Clamp Gaskets Buna-N Tri-Clamp gaskets are the preferred choice of material when using a closed loop, closed column, or open blast extraction when butane or propane are used as the extraction solvent. Buna-N Gaskets offer a lower temperature rating and have better physical properties than Viton gaskets; the best part is that they cost less than Viton and provide the same chemical resistance to butane and propane. Note: BUNA-N is not recommended for use with certain alcohols Key Features: Lower temperature range Lower costs Better compressibility and springiness Excellent resistance to butane and propane Better tear resistance Better abrasion resistance. FDA CFR 177.2600 – Rubber and Rubber-Like Material for Repeated Use/Contact with Food. FDA CFR 177.1550 – Fluorocarbon Resins for Repeated Use/Contact With Food, Dairy & Pharmaceutical Products. Sizes Available: 1.5" 2" 3" 4" 6" 8" - easy on flanged 10" - easy on flanged 12" - easy on flanged Technical Specifications: Material BUNA-N (Nitrile) Color Black Connection Type Tri-Clamp Conformance FDA Compliant / Meets 3A Standards Thermal Properties: -Low Temperature Range -70°F -Minimum for Continuous Use (Static) -40°F -Brittle Point -70°F -High Temperature Range +210°F to +250°F -Maximum for Continuous Use (Static) +250°F Gas Permeability Excellent Durometer or Hardness Range 65 Shore A Tensile Strength Range 200-3500PSI Elongation Range (%) 350-650% Abrasion Resistance Excellent Tear Resistance Excellent Resilience / Rebound Good Thread Style Female Chemical Compatibility: Butane A - Excellent Propane (liquified) A - Excellent Alcohols: -Amyl B - Good -Benzyl D - Severe Effect -Butyl C - Fair -Diacetone D - Severe Effect -Ethyl C - Fair -Hexyl A - Excellent -Isobutyl B - Good -Isopropyl B - Good -Isopropyl B - Good -Methyl A - Excellent -Octyl B - Good -Propyl A - Excellent No more than a -40 F operating temperature should be used with BUNA-N. BVV is not responsible if incompatible chemicals, solvents, or operating temperatures are used in the user's system.
$1.40 - $56.50

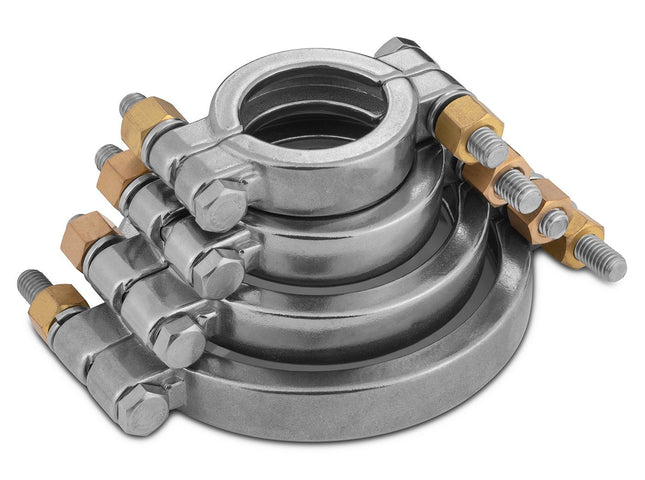

High Pressure Clamps
High Pressure Clamps BVV recommends tightening all High Pressure to their specified Inch-LBS of torque. We do not recommend tightening high-pressure bolts with an impact gun because this may cause threads to jump or be marred which can cause failure of the bolt or seal. For Torque Specification use the link to the data sheet below. Torque Specification Data Sheet Specifications: Mounting Type: Bolted Material: 304 Stainless Steel Bolt Material: 304 Stainless Steel (3/8"-16 Bolt) Nut Material: Brass (5/8 Wrench Size w/ 3/8"-16 Thread Size) Connection Type: Tri-Clamp
$15.54 - $127.13

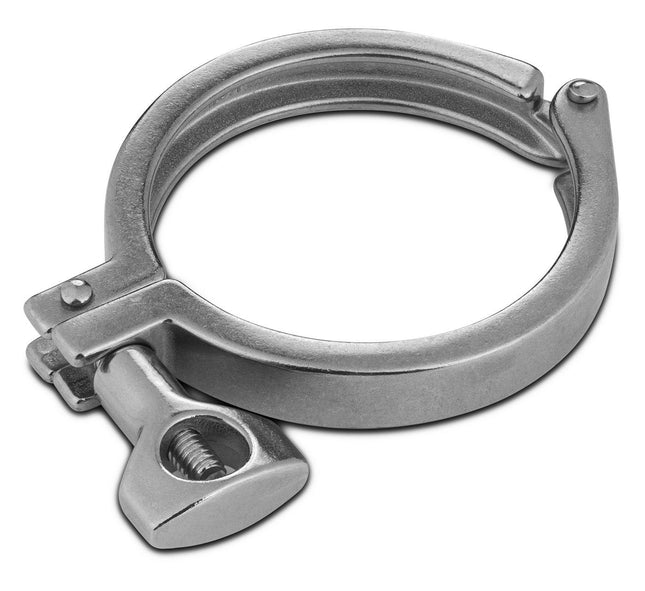

Tri-Clamp Single Hinge Clamp
Tri-clamp/ Tri Clover Single Hinge Clamp BVV™ recommends tightening all Standard Pressure Clamps (Non-High Pressure) to finger tight and then use either a screwdriver or wrench to tighten them approximately 2 full turns to achieve the torque specified on the data sheet. All tightening should be accordance with the data sheet. It is not recommended to overtighten the clamp and bottom it out as this will cause the gasket to be over-compressed and put too much tension on the clamp threads, which could cause it to fail. Overtightening can also cause stretching on the clamp reducing its operational effectiveness. Torque Specification Data Sheet Specifications: Mounting Type: Hinged (The 1.5" Clamp is Double Hinged) Material: 304 Stainless Steel Bolt Material: 304 Stainless Steel (3/8"-16 Bolt) Nut Material: Brass (5/8 Wrench Size w/ 3/8"-16 Thread Size) Connection Type: Tri-Clamp
$11.30 - $110.18

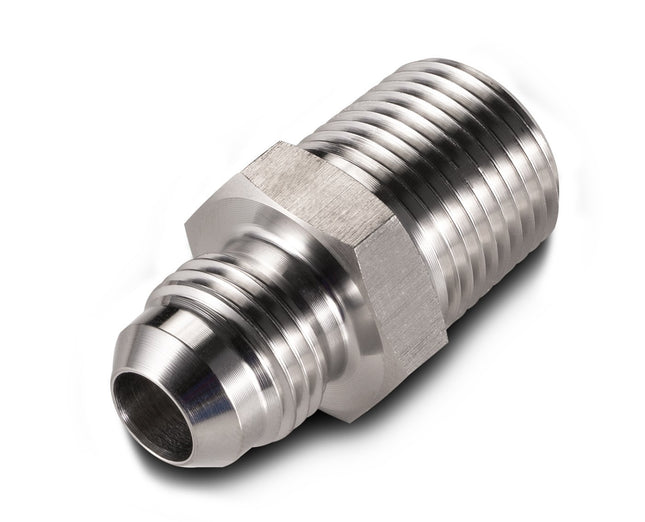

37 Degree MJIC X MNPT
BVV™ 37° MJIC X MNPT BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These stainless steel tube fittings are 37° JIC threads and NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using Yellow Gas PTFE Tape because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service. **NOTE: Pre-Taped option comes from BVV Pre-taped with Yellow UL Listed Gas PTFE Tape on the Male NPT threads ONLY for a +0.50c charge per male npt end. (JIC Threads DO NOT need to be taped.) The 37° JIC connection will create a seal by compressing the flared end against an opposite female/male flared connection. JIC connections do not require thread sealant because they seal off the flared surface of the fitting JIC Fittings are also not the same size as NPT fittings but do have the same size nomenclature. When connecting JIC fittings to one another it is recommended by BVV™ to use 2 wrenches - 1 to tighten the fitting and 1 to hold back against the force applied to create resistance and ensure a better seal. A MJIC X MNPT connector will convert and adapt a Female NPT connection to a Male JIC connection or vise-versa. These MJIC x MNPT stainless steel tube fittings are the industry standard for extraction systems and allow a multitude of configurations on any system. BVV™ MJIC x MNPT - Data Sheet Specifications Material 304 Stainless Steel Connection Type(s): 1/4" 37° MJIC (7/16-20) 3/8" 37° MJIC (9/16-18) 1/2" 37° MJIC (3/4-16) 3/4" 37° MJIC (1-1/16 - 12) 1" 37° MJIC (1-5/16 - 12) 1/4"-18 MNPT 3/8"-18 MNPT 1/2"-14 MNPT 3/4"-14 MNPT 1"-11-1/2 MNPT
$7.06 - $14.83

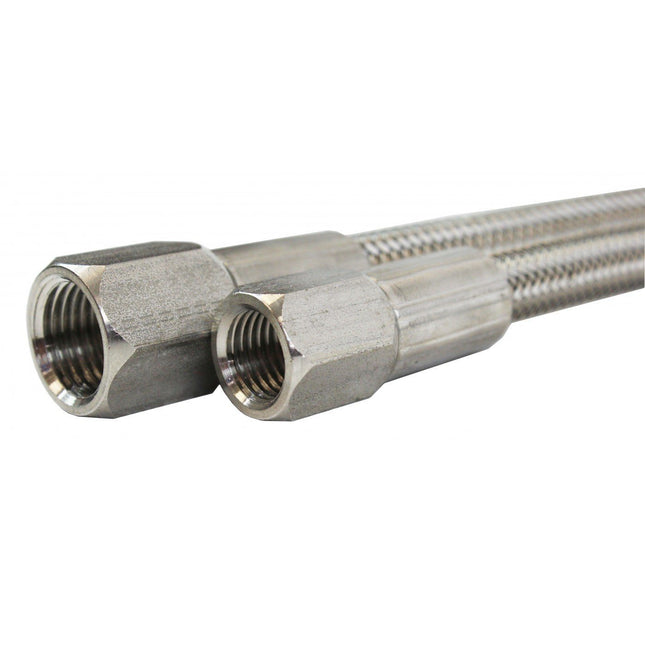

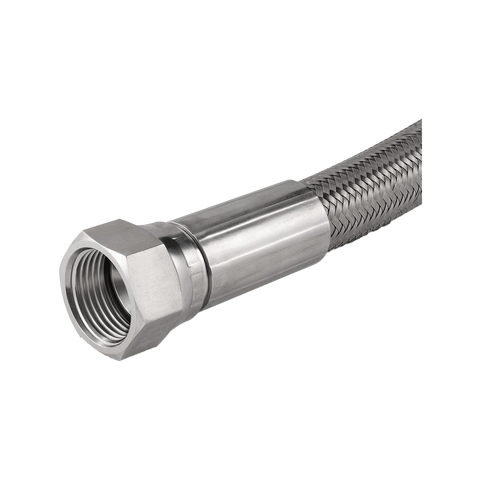

1/4" 37 Degree Female JIC Braided Stainless Steel Hose
1/4" 37° Female JIC Stainless Steel PTFE Hose These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches. ***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used. Stainless Steel Hose Technical Data Sheet Specifications: Connection Type(s): 1/4" 37° Female JIC Swivel (7/16-20 Thread) Liner Material PTFE (Teflon) Braid Material 304 Stainless Steel Swivel Material 304 Stainless Steel Temperature Rating -94°F to 500°F (-70°C - 260°C) Pressure Rating 2100 PSI Chemical Resistance Excellent Max Bend Radius 3"
$48.03 - $138.43

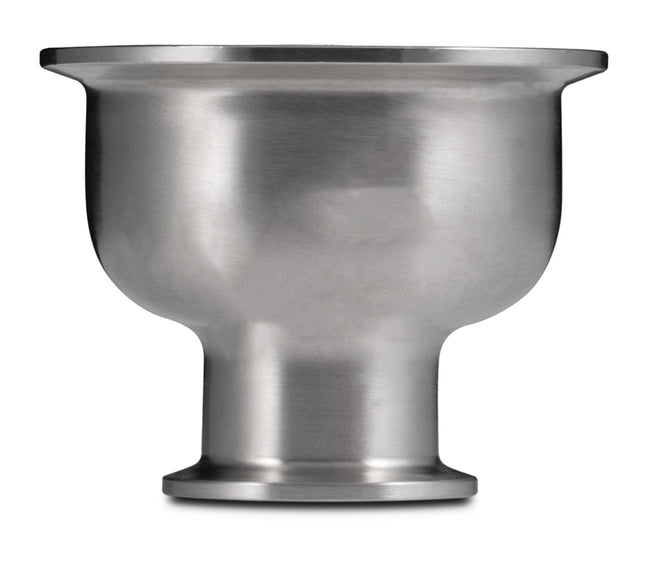

Hemispherical Tri-Clamp Reducers
Hemispherical Tri-Clamp Tri Clover Reducers Hemispherical Tri-Clamp reducers allow the user to connect differently sized Tri-Clamp parts to each other without adding to the overall size of your extraction system. These reducers are offered in Tri-clamp x Tri-Clamp and Tri-Clamp x Female NPT Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Types : Tri-Clamp x Tri-Clamp and Tri-Clamp x FNPT
$46.61 - $261.32

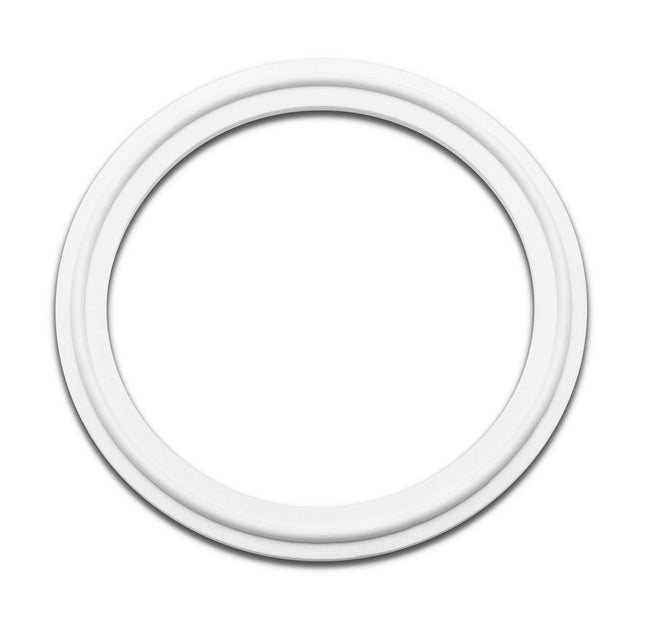

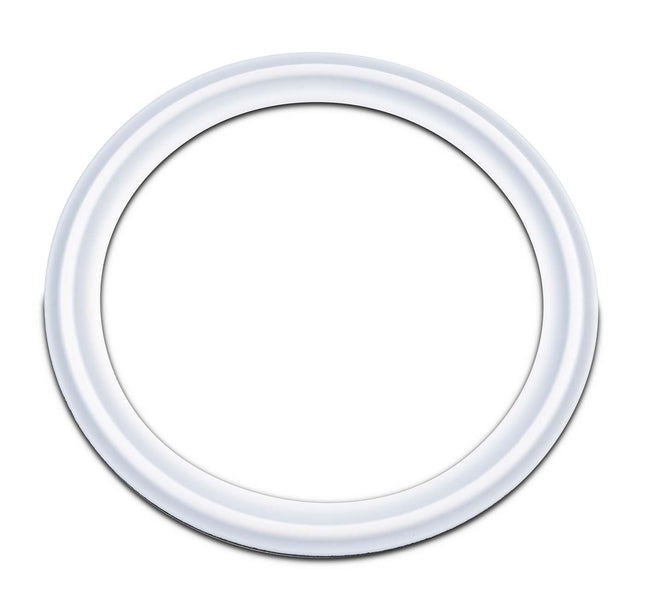

PTFE Envelope Tri-Clamp Gaskets with Viton Filler - USA Made
PTFE Envelope Tri-Clamp/Tri-Clover Gaskets with Viton Filler PTFE Envelope Tri-Clamp Gaskets are the only choice when needing extreme chemical resistance and temperature range. These gaskets are extremely unique in their construction because they have a Viton filler for compressibility surrounded by an 'Envelope' of PTFE which creates a unique combination of chemical resistance while providing an exceptional sealing characteristic. Normal solid PTFE gaskets are very tough to seal on their own and are usually not recommended in vacuum applications due to the gasket being very rigid because PTFE is not very compressible by itself. Tri-Clamp/ Tri-Clover Sanitary Fittings Gaskets create a pressure-tight seam between multiple stationary components, relying on a compression seal to prevent unwanted gas or liquid emissions. ***Note: Best Value Vacs ONLY recommends the use of PTFE Envelope gaskets with High Pressure clamps to ensure a positive seal on the system. Key Features: Excellent resistance to almost all chemicals Excellent Temperature Range Excellent Cleanability due to PTFE (Teflon) Envelope No Chemical Leaching Sizes Available: 1.5" 2" 3" 4" 6" 8" 10" 12" Chemical Compatibility: Material PTFE(Teflon)/Viton Filler(FKM) Color White/Black Connection Type Tri-Clamp Conformance U.S.P. CLASS VI COMPLIANCEPasses USP Class VI Cytotoxicity Testing and is suitable for high purity pharmaceutical grade applications.PTFE is FDA 21, 177,1550 compliant and the FKM(Viton) inner cores are FDA CFR 21, 177.2600 compliant. Thermal Properties: Low Temperature Range -100°F Minimum Continous Use (Static) -65°F Brittle Point -100°F High Temperature Range +400°F Maximum for Continous Use (Static) +400°F Chemical Compatibility: Butane A - Excellent Propane (liquified) A - Excellent Alcohols: Amyl A - Excellent Benzyl A - Excellent Butyl A - Excellent Diacetone A - Excellent Ethyl A - Excellent Hexyl A - Excellent Isobutyl A - Excellent Isopropyl A - Excellent Methyl A - Excellent Octyl A - Excellent Propyl A - Excellent BVV™ PTFE Gasket With Viton Filter - Data Sheet Disclaimer: BVV Recommends no more than a -40F Operating Temperature and is not responsible for the user running their system with incompatible chemicals.
$7.06 - $148.32

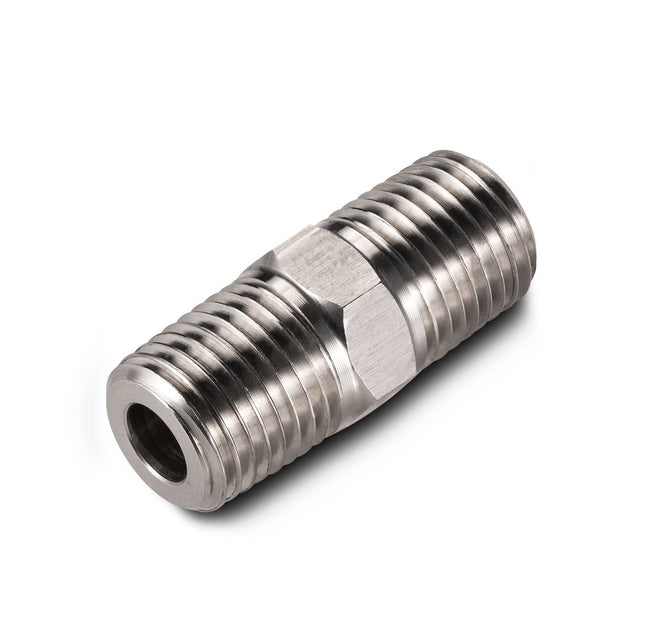

Hex Nipple
BVV™ Hex Nipple Pipe Fitting BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using Yellow Gas PTFE Tape because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service. **NOTE: Pre-Taped option comes from BVV Pre-taped with Yellow UL Listed Gas PTFE Tape on the Male NPT threads ONLY for a +0.50c charge per male npt end. (JIC Threads DO NOT need to be taped.) Hex Nipples allow the user to connect 2 female NPT fittings together and also have the ability to put a wrench on the middle portion of the fitting because of the hex wrench section. BVV™ Hex Nipple - Data Sheet Specifications Material 304 Stainless Steel Connection Type(s): 1/4"-18 MNPT 3/8"-18 MNPT 1/2"-14 MNPT 3/4"-14 MNPT 1"-11-1/2 MNPT
$7.06 - $20.48

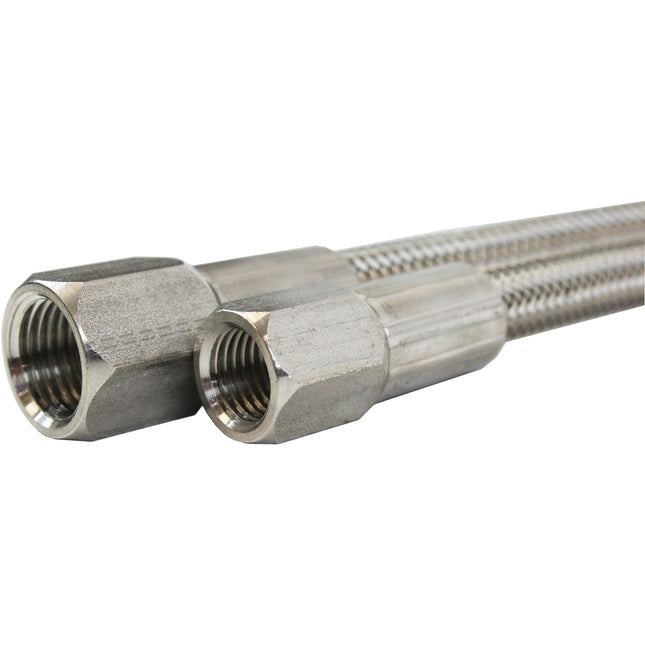

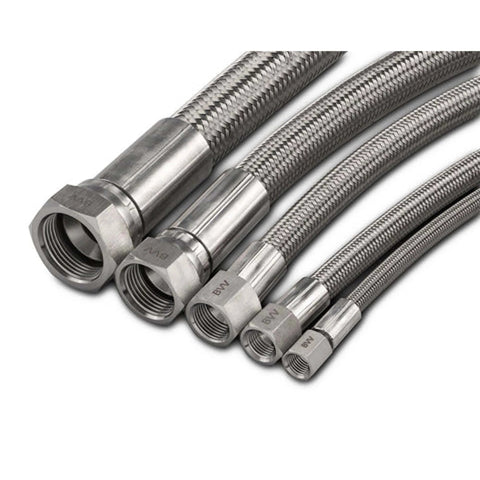

3/8" 37 Degree Female JIC Braided Stainless Steel Hose
3/8" 37° Female JIC Stainless Steel Braided PTFE Hose These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches. ***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used. Specifications: Connection Type(s): 3/8" 37° Female JIC Swivel (9/16-18) Liner Material PTFE (Teflon) Braid Material 304 Stainless Steel Swivel Material 304 Stainless Steel Temperature Rating -65° to 450°F Pressure Rating 1500 PSI Chemical Resistance Excellent Max Bend Radius 4"
$56.50 - $176.57
BUNA-N 150 Mesh (100 Micron)
BUNA-N 150 Mesh (100 Micron) Tri-Clamp/ Tri Clover Gasket MADE IN THE U.S.A Mesh / Micron Filter Chart Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals Why BUNA-N over Viton? Lower Temperature Range Lower Costs Better Compressibility and Springiness Excellent Resistance to Major/Popular Solvents(Butane/Propane) Better Tear Resistance Better Abrasion Resistance Specifications Materials: BUNA-N (Nitrile) 316 Stainless Steel Mesh Overmold Conformance FDA Compliant / Meets 3A Standards Thermal Properties: Low-Temperature Range: -70°F Minimum for Continuous Use(Static): -40°F Brittle Point: -70°F High-Temperature Range: +210°F to +250°F Maximum for Continous Use (Static): +250°F Gas Permeability: Excellent Durometer or Hardness Range: 20-95 Shore A Tensile Strength Range: 200-3,500 PSI Elongation Range(%): 350%-650% Abrasion Resistance: Excellent Resilience / Rebound: Good Chemical Compatibility Butane A - Excellent Propane A - Excellent Alcohols: Amyl B - Good Benzyl D-Severe Effect Butyl C-Fair Diacetone D-Severe Effect Ethyl C-Fair Hexyl A - Excellent Isobutyl B - Good Isopropyl B - Good Methyl A - Excellent Octyl B - Good Propyl A - Excellent
$25.43 - $182.22

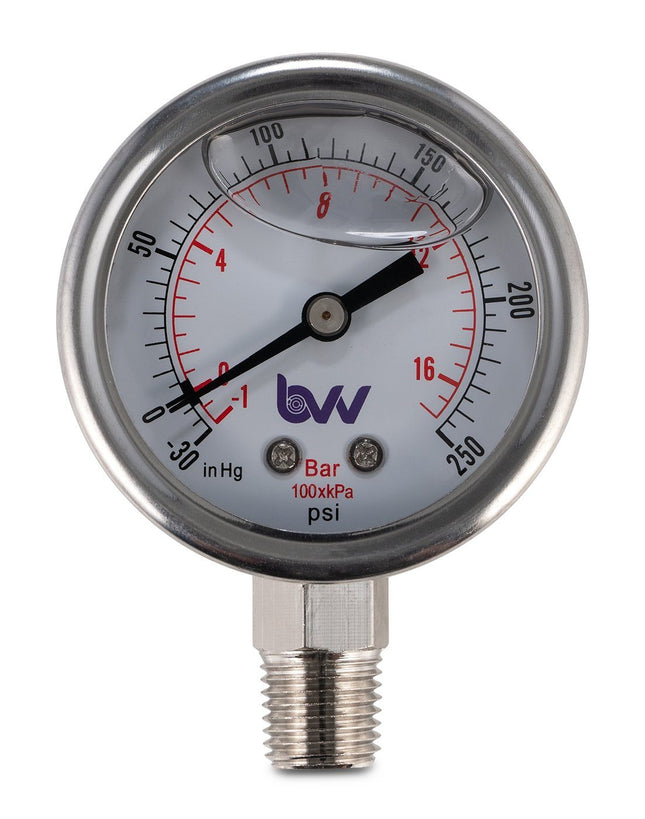

Glycerin Filled Compound Gauge with 1/4" NPT Base - (-30)-250 PSI
Glycerin Filled Compound Gauge with 1/4" NPT Base - (-30)-250 PSI BVV™ Glycerin filled compound gauge has a 1/4" MNPT stainless steel connection with a readout of (-30)-250 PSI. Use a compound gauge when measuring a system that is pushing both positive and negative pressure on the gauge. BVV™ Compound Gauge - TDS
$36.73

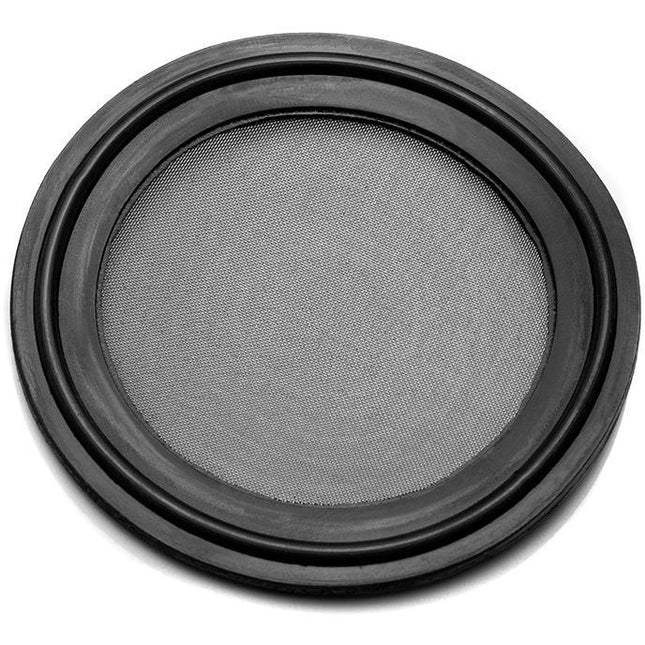

BUNA-N 100 Mesh (150 Micron)
BUNA-N 100 Mesh (150 Micron) Tri-Clamp Gasket MADE IN THE U.S.A Mesh / Micron Filter Chart Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals Why BUNA-N over Viton? Lower Temperature Range Lower Costs Better Compressibility and Springiness Excellent Resistance to Major/Popular Solvents(Butane/Propane) Better Tear Resistance Better Abrasion Resistance Specifications Materials: BUNA-N (Nitrile) 316 Stainless Steel Mesh Overmold Conformance FDA Compliant / Meets 3A Standards Thermal Properties: Low-Temperature Range: -70°F Minimum for Continuous Use(Static): -40°F Brittle Point: -70°F High-Temperature Range: +210°F to +250°F Maximum for Continous Use (Static): +250°F Gas Permeability: Excellent Durometer or Hardness Range: 20-95 Shore A Tensile Strength Range: 200-3,500 PSI Elongation Range(%): 350%-650% Abrasion Resistance: Excellent Resilience / Rebound: Good Chemical Compatibility Butane A - Excellent Propane A - Excellent Alcohols: Amyl B - Good Benzyl D-Severe Effect Butyl C-Fair Diacetone D-Severe Effect Ethyl C-Fair Hexyl A - Excellent Isobutyl B - Good Isopropyl B - Good Methyl A - Excellent Octyl B - Good Propyl A - Excellent
$24.01 - $172.33

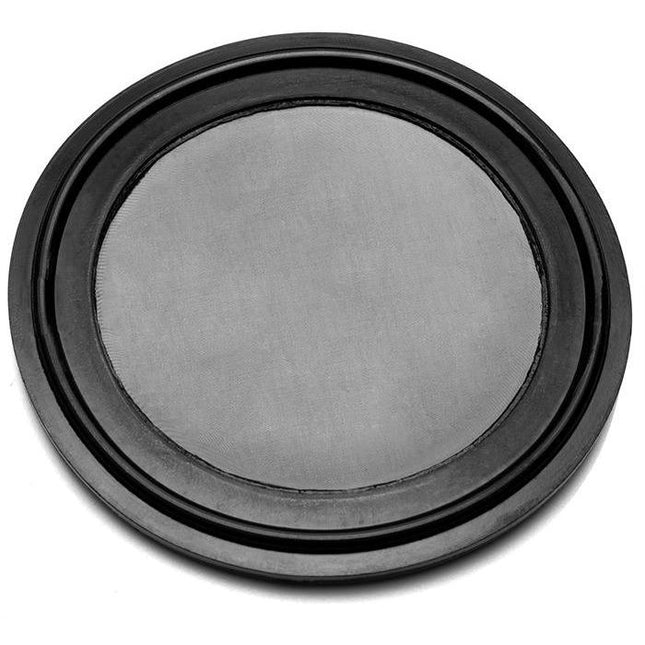

BUNA-N 2500 Mesh (5 Micron)
BUNA-N 2500 Mesh (5 Micron) Tri-Clamp/ Tri Clover Gasket MADE IN THE U.S.A Mesh / Micron Filter Chart Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals Why BUNA-N over Viton? Lower Temperature Range Lower Costs Better Compressibility and Springiness Excellent Resistance to Major/Popular Solvents(Butane/Propane) Better Tear Resistance Better Abrasion Resistance Specifications Materials: BUNA-N (Nitrile) 316 Stainless Steel Mesh Overmold Conformance FDA Compliant / Meets 3A Standards Thermal Properties: Low-Temperature Range: -70°F Minimum for Continuous Use(Static): -40°F Brittle Point: -70°F High-Temperature Range: +210°F to +250°F Maximum for Continous Use (Static): +250°F Gas Permeability: Excellent Durometer or Hardness Range: 20-95 Shore A Tensile Strength Range: 200-3,500 PSI Elongation Range(%): 350%-650% Abrasion Resistance: Excellent Resilience / Rebound: Good Chemical Compatibility Butane A - Excellent Propane A - Excellent Alcohols: Amyl B - Good Benzyl D-Severe Effect Butyl C-Fair Diacetone D-Severe Effect Ethyl C-Fair Hexyl A - Excellent Isobutyl B - Good Isopropyl B - Good Methyl A - Excellent Octyl B - Good Propyl A - Excellent
$45.20 - $218.94

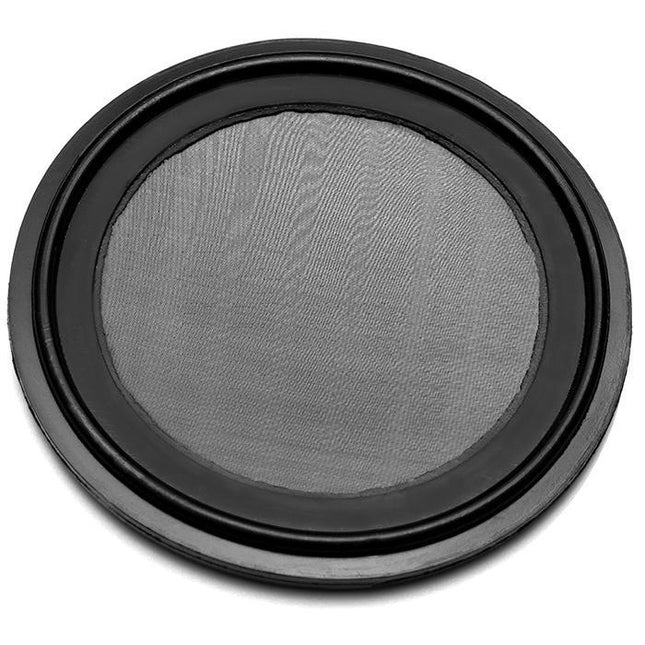

BUNA-N 550 Mesh (25 Micron)
BUNA-N 550 Mesh (25 Micron) Tri-Clamp/ Tri Clover Gasket MADE IN THE U.S.A Mesh / Micron Filter Chart Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals Why BUNA-N over Viton? Lower Temperature Range Lower Costs Better Compressibility and Springiness Excellent Resistance to Major/Popular Solvents(Butane/Propane) Better Tear Resistance Better Abrasion Resistance Specifications Materials: BUNA-N (Nitrile) 316 Stainless Steel Mesh Overmold Conformance FDA Compliant / Meets 3A Standards Thermal Properties: Low-Temperature Range: -70°F Minimum for Continuous Use(Static): -40°F Brittle Point: -70°F High-Temperature Range: +210°F to +250°F Maximum for Continous Use (Static): +250°F Gas Permeability: Excellent Durometer or Hardness Range: 20-95 Shore A Tensile Strength Range: 200-3,500 PSI Elongation Range(%): 350%-650% Abrasion Resistance: Excellent Resilience / Rebound: Good Chemical Compatibility Butane A - Excellent Propane A - Excellent Alcohols: Amyl B - Good Benzyl D-Severe Effect Butyl C-Fair Diacetone D-Severe Effect Ethyl C-Fair Hexyl A - Excellent Isobutyl B - Good Isopropyl B - Good Methyl A - Excellent Octyl B - Good Propyl A - Excellent
$33.90 - $203.41

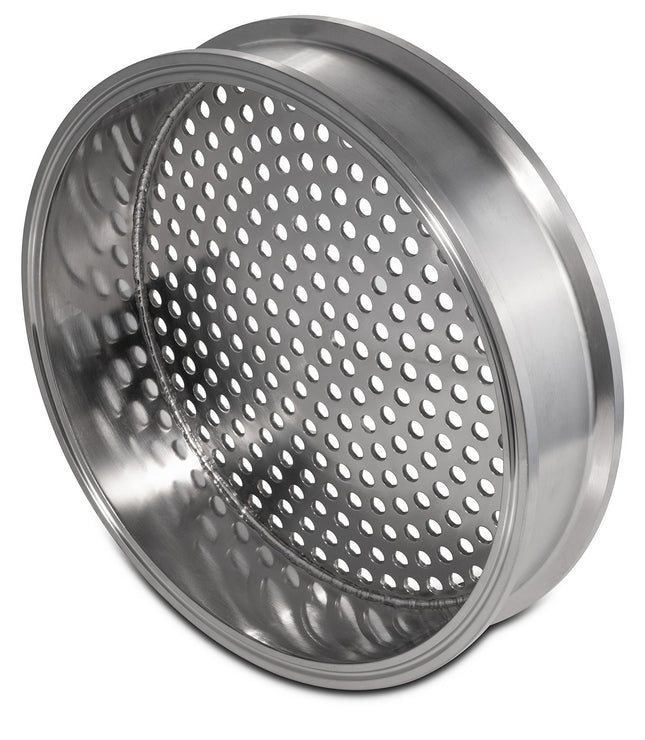

Tri-Clamp Filter Plate
Stainless Steel Tri-Clamp/ Tri Clover Filter Plate Stainless steel filter plates offer the user a great solid platform to help with filtration during the extraction process and they come standard with a 100 mesh (150 Micron) pre-cut stainless steel mesh filter media and a solid filter plate ring (unless otherwise specified). These filter plates can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface and filtration level to remove fats, lipids, waxes and any other unwanted material during the extraction process. For 6" sizes and above, a high pressure clamp is recommended for all filtering applications. *Note: Does not include Clamp or Gasket. **Note: 8" Sizes come with a compression ring instead of a solid filter plate ring. Sizes Available: 1.5" - Includes Solid Filter Plate Ring 2" - Includes Solid Filter Plate Ring 3" - Includes Solid Filter Plate Ring 4" - Includes Solid Filter Plate Ring 6" - Includes Solid Filter Plate Ring 8" - Includes Standard COMPRESSION Ring 10" - Includes Solid Filter Plate Ring 12" - Includes Solid Filter Plate Ring Specifications Material 304 Stainless Steel Standard 3A High Polish Connection Type(s) Tri-Clamp Hole Diameter 5.8mm Height 2" Mesh Specs 100 Mesh (150 Micron) - 304 Stainless Steel BVV™ Tri-Clamp Filter Plate - Drawing
$38.14 - $381.39

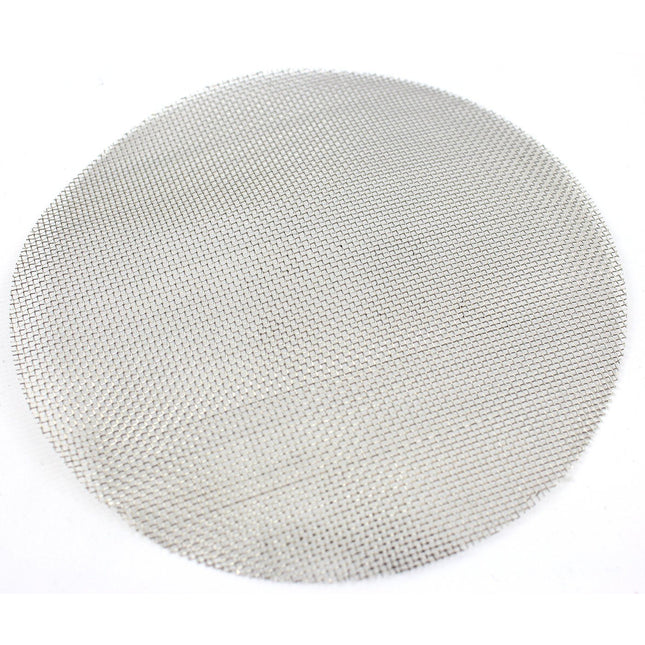

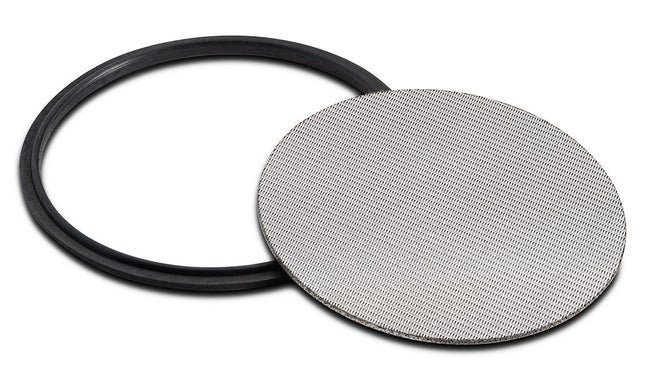

316L Stainless Dutch Weave Sintered Filter Disk 1 micron and up - BUNA-N
316L Dutch Weave Sintered Filter Disk **Note: This product comes with Filter Disk and Gasket ONLY. Filter Plate and Spool are NOT included. Recommended Filter plate click here. These 316L stainless steel dutch weave filter disks come with a custom made gasket to allow the user to insert filtration between clamping ends of any Tri-Clamp interface. The interface fits so snug, its inherent design prevents any blow-by. BVV™ 316L Dutch Weave Sintered Filter Disk - Data Sheet Pressure Ratings w/o any backing support; strait pipe connection: 1.5" 200PSI 2" 200PSI 3" 200PSI 4" 200PSI 6" 50PSI 8" 10PSI *Supporting Back Plate Required P# FP800-V3 10" 10PSI *Supporting Back Plate Required P# FP1000-V3 12" 10PSI *Supporting Back Plate Required P# FP1200-V3
$49.44 - $734.52

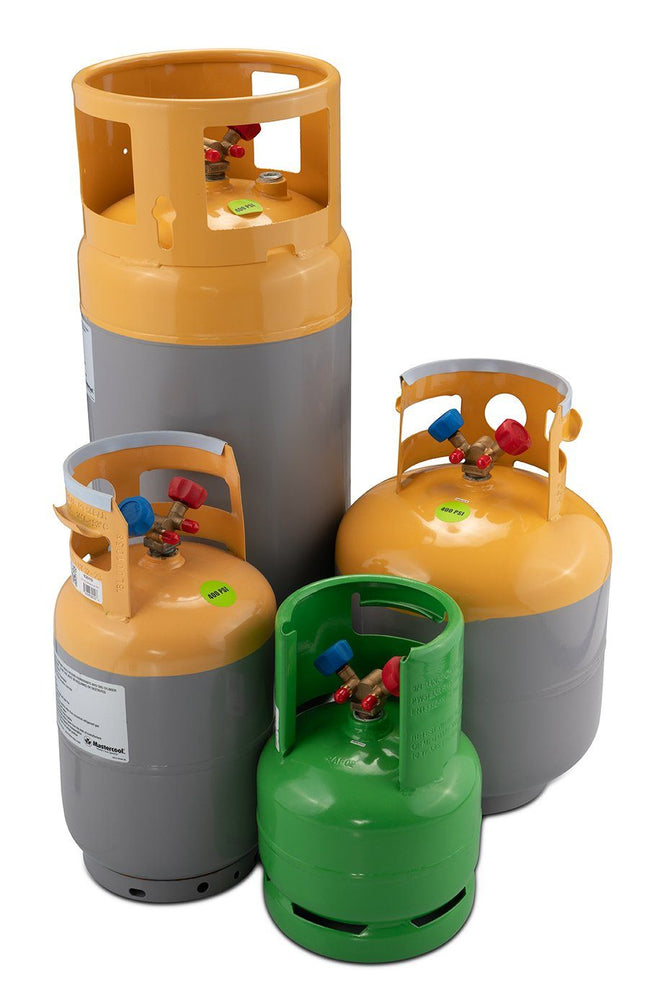

DOT-APPROVED RECOVERY CYLINDERS
LP Carbon Steel Refrigerant Tank Carbon Steel LP Tanks are the best choice when storing solvents for the long term because of their reliability and inherent safety mechanisms. These tanks are the standard in LP storage and transportation because of their conformance to strict DOT guidelines and UL listings. They come pre-charged with nitrogen gas to help create a dry interior to inhibit the formation of rust on the interior of the tank. Note: When storing these tanks empty the user must either backfill them with nitrogen or maintain and full vacuum to prevent moisture from creating rust on the interior. ***Note: Tank comes charged with nitrogen and does not include solvent and the 1/4" flared connections do not require Teflon tape. Key Features: Valve Type: HVAC Y-Valve 1/4" SAE(Valve Rated for 5 Years) Service Pressure: 400 PSI 1/4" and 3/4" NPT Ports for float switch and other add-ons. Reusable and conforms to DOT-4BA400 specifications and ARI guidelines. The tank is Pre-Charged with Nitrogen gas to provide a clean, dry interior. High gloss powder coated finish for durability. Tank Sizes Available: 6L Mastercool 61010-EUGRN - (NOT DOT RATED) 30# 50# 100# 61010-EUGRN: Y-valve for liquid/vapor TPED approved Single valve for vapor TPED approved Raised collar for ease of handling and protection Tanks Conform to PED and ADR regulations CE and TÜV approved Used for storage and transport of refrigerant gases Size (w x h): 185 mm x 338 mm Standard Specification: ADR/RID2009, EN13322-IN D TUV 1 Service Pressure: 32 bar Air Tightness Pressure: 32 bar Bursting Volumetric Expansion Rate: >20% Tare Weight: 5.18 kg Nominal Water Capacity: 6 l Tank Test Pressure: 48 bar Bursting Pressure: >108 bar Body Material: HP295 1/4″ FL-M (7/16-20) connection Color: green Butane Capacity Calculation: All solvent tanks sold by Best Value Vacs have their capacity determined by this calculation and are based on industry standard nomenclature of the water weight tank # system because the specific gravity of water is 1.000 and the DOT 80% fill guideline. Example: 100# Tank = ~100lbs of water weight, Halfton Tank = 1000lbs of water weight. Tank # Water Weight in Lbs Specific Gravity of Butane 0.601 80% Fill Guidline 0.800 (Tank #) * (Specific Gravity of Butane) * ( 80% Fill Guildine) Specifications Tank/Component Material Carbon Steel/Brass Specifications Met D.O.T. 4BA, D.O.T. 4BW Connection Type(s) 1/4" (7/16-20) SAE Flared Butane Capacity: 6L 6lbs 30# 14.424 50# 24.040 100# 48.080
$138.43 - $459.08

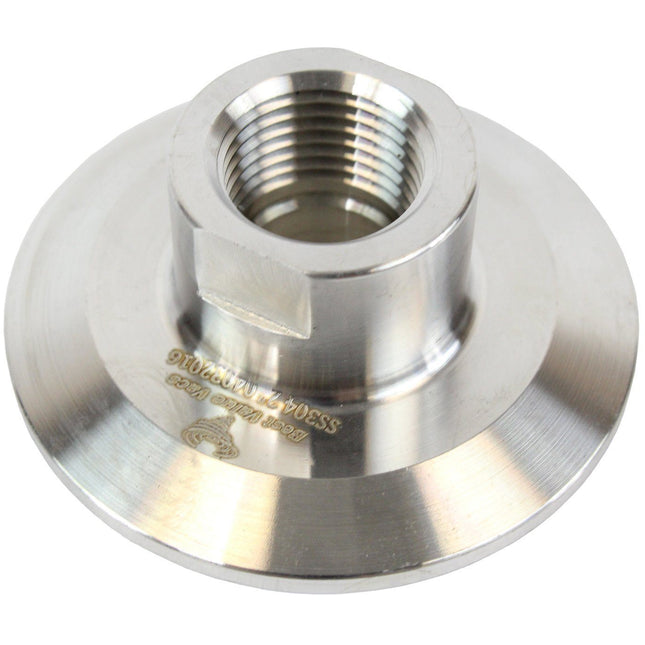

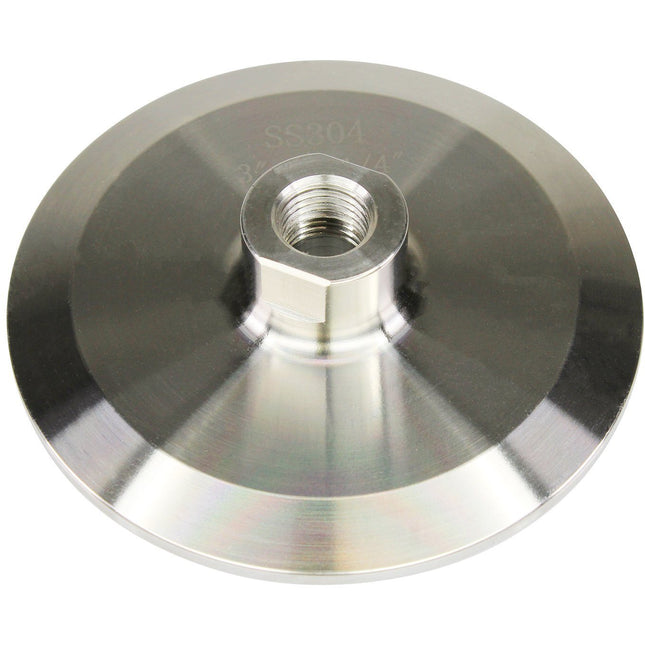

1/4" FNPT End Caps
1/4" FNPT End Caps These End Caps come with a 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp/ Tri Clover lid Specifications Material 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 1.5" 2" 3" 4" 6" BVV™ Solid 1/4" FNPT End Caps - Drawing BVV™ Solid 1/4" FNPT End Caps - End Cap Chart
$16.95 - $88.99

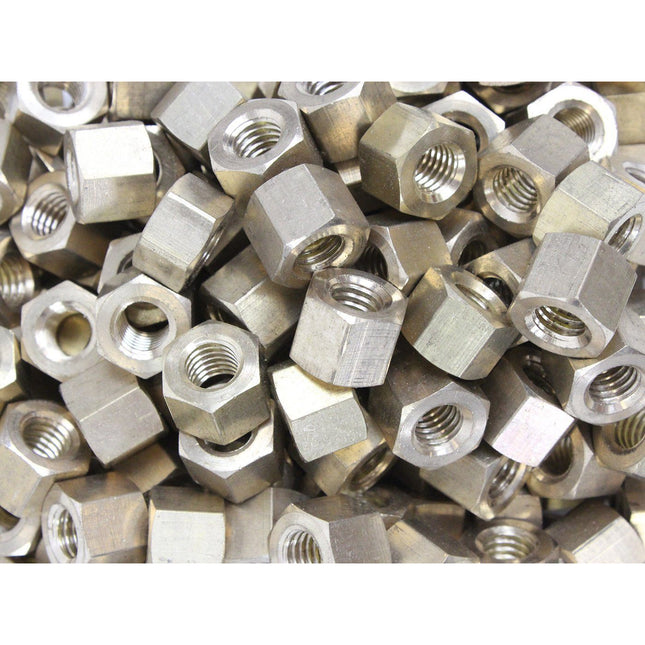

Brass Nuts For High Pressure Clamps
Brass Nuts for High Pressure clamps These are replacement nuts for High Pressure clamps and are made of brass and have a 5/8" Hex with a 3/8"-16 Threading. After repeated usage nuts on high pressure clamps will wear down and you will notice filings on the bolt when you notice this it is time to replace the bolts because they may fail unexpectedly.
$2.12

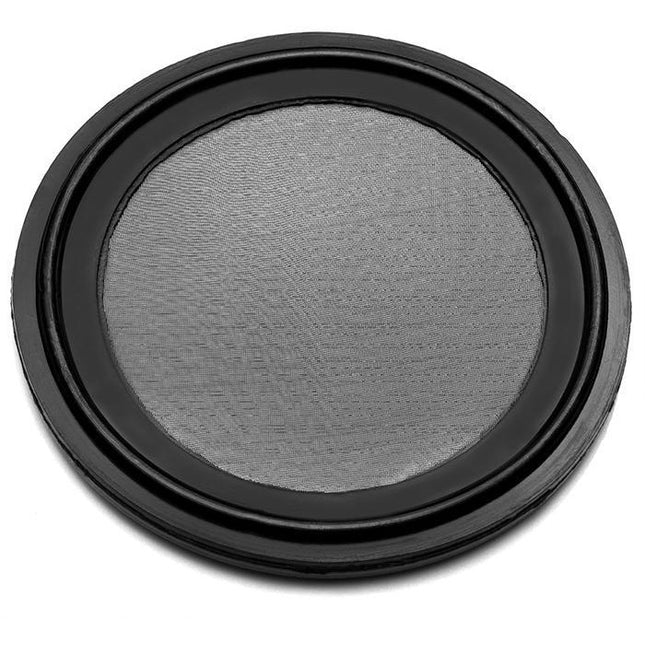

BUNA-N 300 Mesh (50 Micron)
BUNA-N 300 Mesh (50 Micron) Tri-Clamp/ Tri Clover Gasket MADE IN THE U.S.A Mesh / Micron Filter Chart Note: 'Cinnamon' Smelling Gaskets are Chinese made and are not standardized or regulated Disclaimer: BVV™ recommends no more than a -40F operating temperature and is not responsible for the user running their system with incompatible chemicals Why BUNA-N over Viton? Lower Temperature Range Lower Costs Better Compressibility and Springiness Excellent Resistance to Major/Popular Solvents(Butane/Propane) Better Tear Resistance Better Abrasion Resistance Specifications Materials: BUNA-N (Nitrile) 316 Stainless Steel Mesh Overmold Conformance FDA Compliant / Meets 3A Standards Thermal Properties: Low-Temperature Range: -70°F Minimum for Continuous Use(Static): -40°F Brittle Point: -70°F High-Temperature Range: +210°F to +250°F Maximum for Continous Use (Static): +250°F Gas Permeability: Excellent Durometer or Hardness Range: 20-95 Shore A Tensile Strength Range: 200-3,500 PSI Elongation Range(%): 350%-650% Abrasion Resistance: Excellent Resilience / Rebound: Good Chemical Compatibility Butane A - Excellent Propane A - Excellent Alcohols: Amyl B - Good Benzyl D-Severe Effect Butyl C-Fair Diacetone D-Severe Effect Ethyl C-Fair Hexyl A - Excellent Isobutyl B - Good Isopropyl B - Good Methyl A - Excellent Octyl B - Good Propyl A - Excellent
$28.25 - $203.41

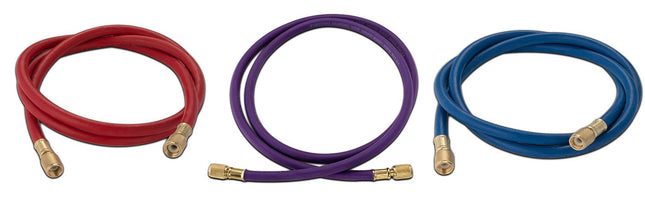

Best Value Vacs 5' HVAC Hose
HVAC Vacuum Pump Hose with Swivel Fittings This Best Value Vacs 5' HVAC Hose has 1/4" swivel fittings on each end. HVAC hoses are built for long life and dependability. A strong, six-sided crimp provides a reliable connection between the hose and barb. The maximum working pressure of these hoses is 500psi with an ultimate burst pressure at 2500psi.
$16.95 - $19.78

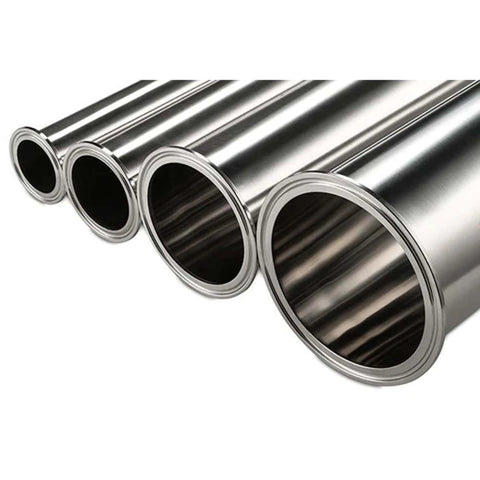

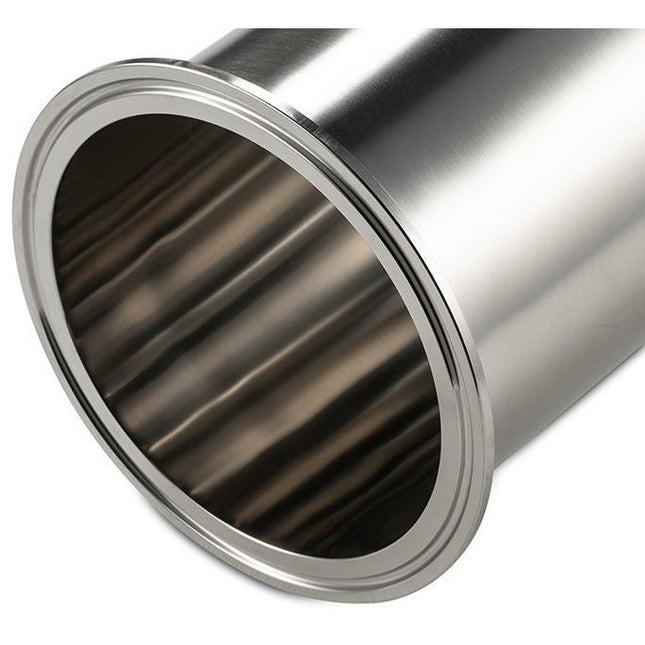

4" Tri-Clamp Spools
4" Tri-Clamp/ Tri Clover Spools Sizes Available: 4" x 2" Tri-Clamp Spool 4" x 4" Tri-Clamp Spool 4" x 8" Tri-Clamp Spool 4" x 12" Tri-Clamp Spool 4" x 18" Tri-Clamp Spool 4" x 24" Tri-Clamp Spool 4" x 36" Tri-Clamp Spool 4" x 48" Tri-Clamp Spool Specifications Tri-Clamp Size 4" Material 304 Stainless Steel Standard 3A High Polish Spool OD 4" Spool ID 3.834" Flange OD 4.682" Bead Center 4.344" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 4" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butae by Size Pounds of Butne mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$35.31 - $190.69

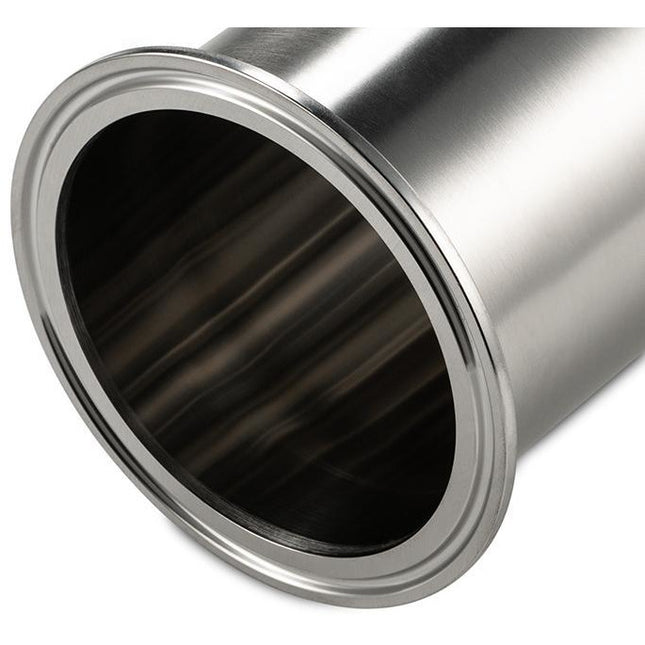

3" Tri-Clamp Spools
3" Tri-Clamp/ Tri Clover Spools Sizes Available: 3" x 2" Tri-Clamp Spool 3" x 6" Tri-Clamp Spool 3" x 9" Tri-Clamp Spool 3" x 12" Tri-Clamp Spool 3" x 18" Tri-Clamp Spool 3" x 24" Tri-Clamp Spool 3" x 36" Tri-Clamp Spool 3" x 48" Tri-Clamp Spool Specifications Tri-Clamp Size 3" Material 304 Stainless Steel Standard 3A High Polish Spool OD 3" Spool ID 2.87" Flange OD 3.579" Bead Center 3.281" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 3" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butae by Size Pounds of mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$29.66 - $176.57
1/2" FNPT End Caps
1/2" FNPT End Caps These End Caps come with a 1/2"-14 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/2" port on a Tri-Clamp/ Tri Clover lid. These 1/2" FNPT endcaps also provide the user with a larger diameter for gases or flow of liquid which can greatly increase run times for an extraction system. Specifications Material: 304 Stainless Steel Standard: 3A High Polish Connection Type(s): Tri-Clamp 1/2" - 14 FNPT Sizes Available: 1.5" 2" 3" 4" 6" BVV™ 1/2" FNPT End Caps - Drawing BVV™ 1/2" FNPT End Caps - End Cap Chart
$19.78 - $281.10

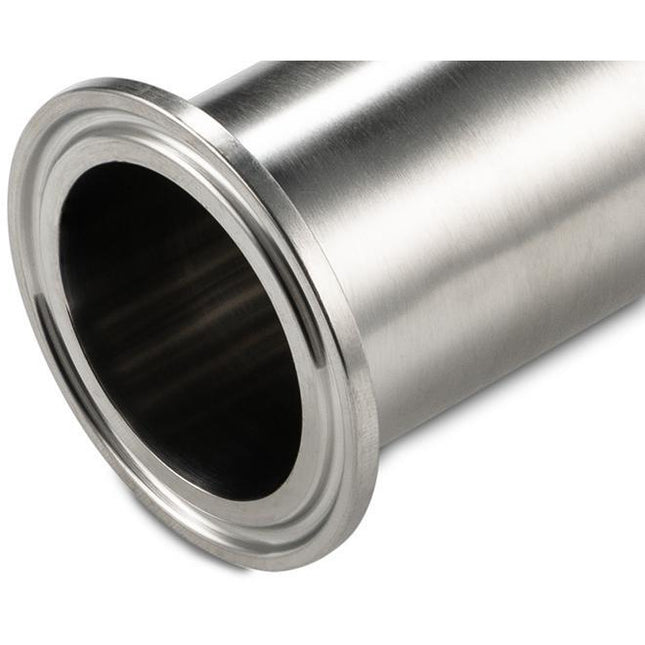

1.5" Tri-Clamp Spools
1.5" Tri-Clamp /Tri Clover Spools Sizes Available: 1.5" x 2" Tri-Clamp Spool 1.5" x 6" Tri-Clamp Spool 1.5" x 12" Tri-Clamp Spool 1.5" x 18" Tri-Clamp Spool 1.5" x 24" Tri-Clamp Spool 1.5" x 36" Tri-Clamp Spool Specifications: Tri-Clamp Size 1.5" Material 304 Stainless Steel Standard 3A High Polish Spool OD 1.5" Spool ID 1.37" Flange OD 1.984" Bead Center 1.718" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 1.5" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) f fffffffff Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$26.84 - $63.56

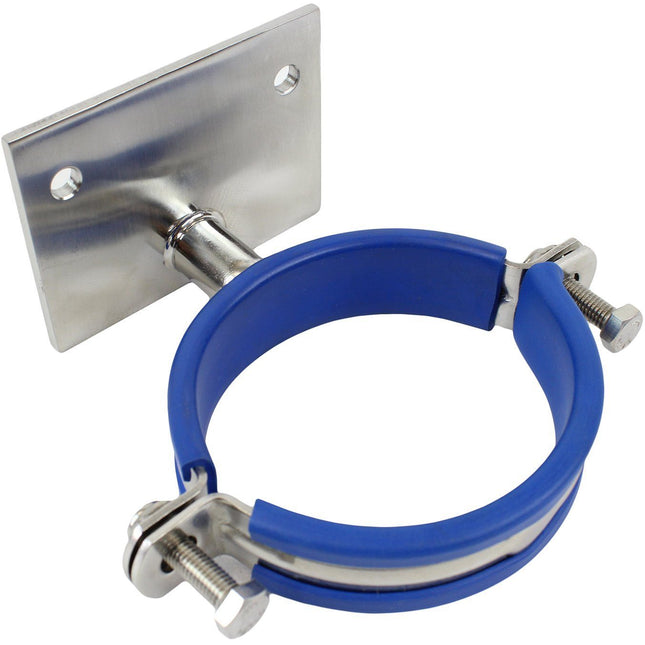

Pipe Hangers with Bracket Mount
Pipe Hangers Pipe Hangers Designed to fit on our racks. They range in sizes from 1.5" - 14" Diameter. Disclaimer: 4" and 6" Brackets have a new design incorporating the hang on bracket as one piece. ***NOTE: If you are planning to use a pipe hanger on a Dewaxing or Jacketed Column please choose a size that is 2" larger than the tri-clamp size.
$35.31 - $148.32
1/2" 37 Degree JIC Braided Stainless Steel Hose
1/2" 37° JIC Braided Stainless Steel Hose These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches. ***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used. Specifications: Connection Type(s): 1/2" 37° Female JIC Swivel (3/4-16) Liner Material PTFE (Teflon) Braid Material 304 Stainless Steel Swivel Material 304 Stainless Steel Temperature Rating -65° to 450°F Pressure Rating 1500 PSI Chemical Resistance Excellent Max Bend Radius 5-1/2"
$72.04 - $176.57

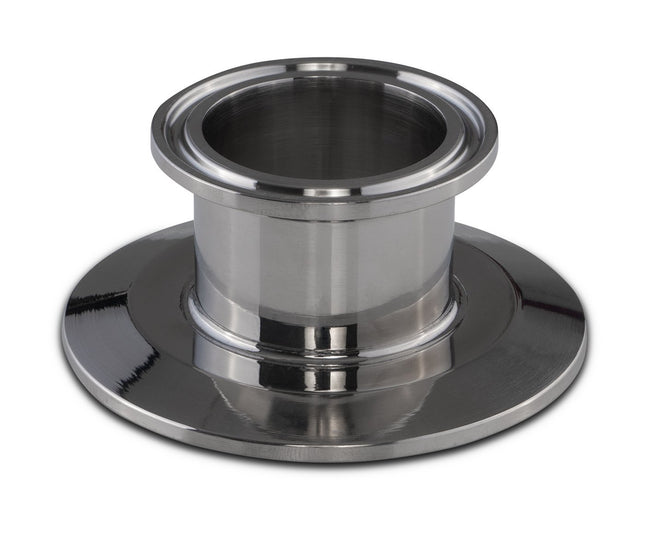

Flat Tri-Clamp Reducer
Flat Tri-Clamp/Tri-Clover Reducers Flat Tri-Clamp reducers allow the user to connect differently sized Tri-Clamp parts to each other without adding to the overall size of your extraction system. These reducers are offered in Tri-clamp x Tri-Clamp connections Sanitary Fittings end cap reducers are often used as an increaser flowing from smaller to a larger diameter which makes them suitable in horizontal flow applications, available in eleven sizes. Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Type : Tri-Clamp x Tri-Clamp
$28.25 - $176.57

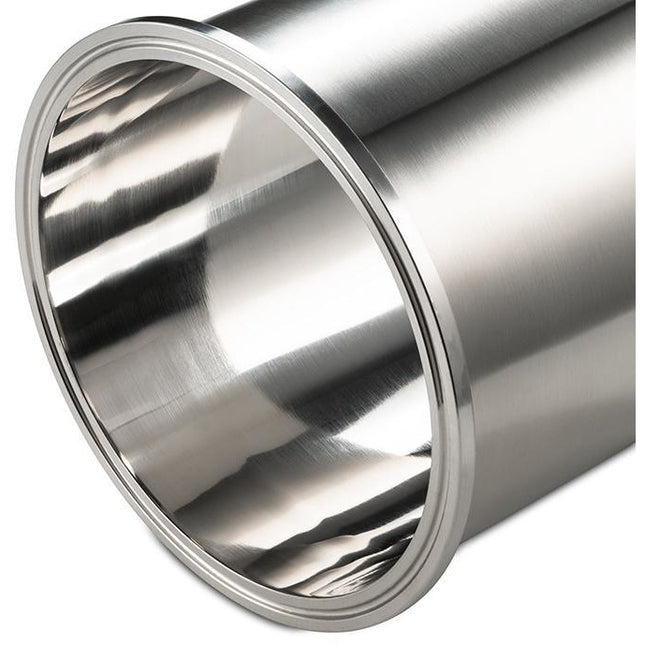

6" Tri-Clamp Spools
6" Tri-Clamp / Tri Clover Spools Sizes Available: 6" x 6" Tri-Clamp Spool 6" x 12" Tri-Clamp Spool 6" x 24" Tri-Clamp Spool 6" x 36" Tri-Clamp Spool 6" x 48" Tri-Clamp Spool Specifications: Tri-Clamp Size 6" Material 304 Stainless Steel Standard 3A High Polish Spool OD 6" Spool ID 5.78" Flange OD 6.57" Bead Center 6.156" OD = Outer Dimension ID = Inner Dimension Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested. BVV™ 6" Tri-Clamp Spools - Drawing Material Capacity Cylinder Volume Radius (in) 1.5" 2" 3" 4" 6" 8" 10" 12" Length (in) Volume (in3) Select Material Butane ISO-Butane Propane How Much Will Fit in Cylinder FormulaVolume x Weight of Water x Specific Gravity ConstantsWeight of Water = 0.0360 (lbs / in3)Specific Gravity of = Lbs. of : Recommended: Account for an 80% fill to avoid a hydraulic lock How Much Material Will Fit in the Cylinder Volume Packing Density (g) 2.5 3 3.5 4.3 Grams of Material Lbs. of Material Cans of Butane Cans of Butane by Size Pounds of Butane mL fl oz lbs # of Cans 420 14.2 300 10.1 200 6.7 150 5.07
$169.51 - $459.08
Vacuum Pump 1/4" Barb x 1/4" Flare Adapter
Vacuum Pump 1/4" Barb x 1/4" Flare Adapter A Vacuum Pump to Barbed Flare adapter is designed to convert any standard 1/4" Flared vacuum pump to a barbed fitting to be used with flexible 1/4" Tubing for Vacuum. The material is nickel plated brass. NOTE: This is a two piece item including the barb and nut to attach to 1/4" JIC JIC Union is not included and needs to be purchased separately
$8.48

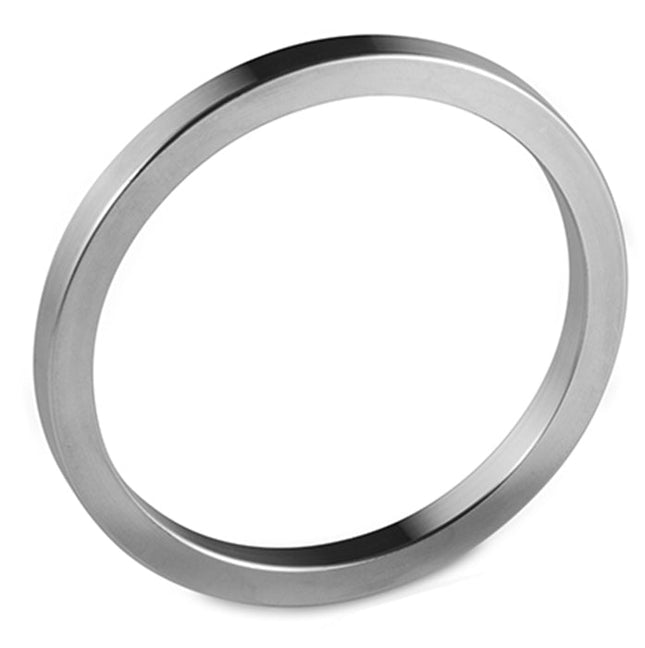

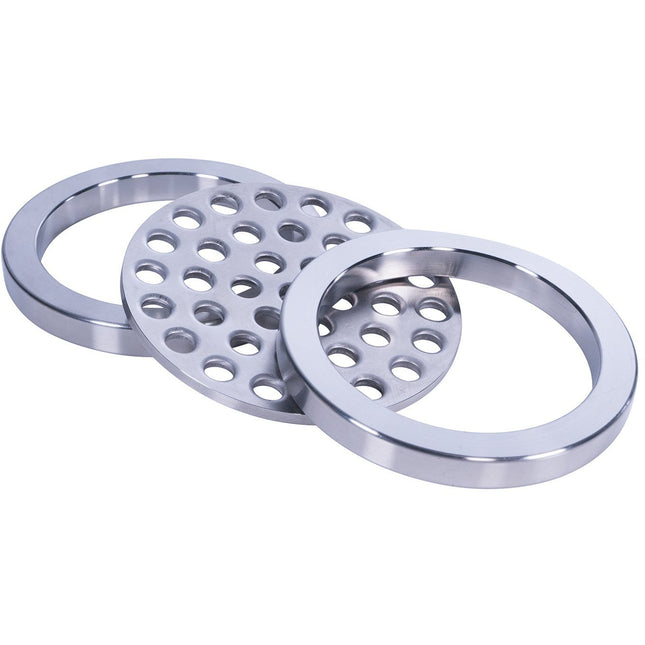

Filter Plate Ring
Filter Plate Ring *Note: Only 1 Ring Included per Order. Increase Quantity for more Rings. These filter plate rings allow the user to stack different levels of filtration inside their system. They are made out of 304 stainless steel and will easily drop inside of any Tri-Clamp/ Tri Clover column or filter plate.
$16.95 - $67.80

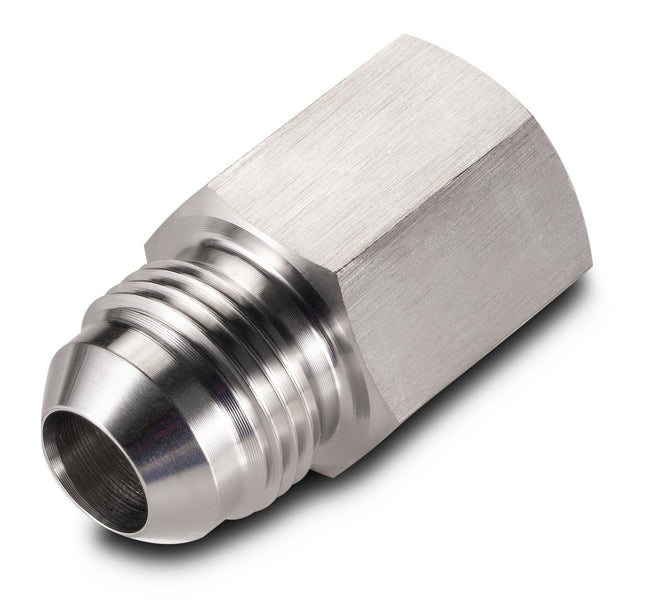

37 Degree MJIC X FNPT
BVV™ 37° MJIC X FNPT BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are 37° JIC threads and NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using Yellow Gas PTFE Tape because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service. The 37° JIC connection will create a seal by compressing the flared end against an opposite female/male flared connection. JIC connections do not require thread sealant because they seal off the flared surface of the fitting JIC Fittings are also not the same size as NPT fittings but do have the same size nomenclature. When connecting JIC fittings to one another it is recommended by BVV™ to use 2 wrenches - 1 to tighten the fitting and 1 to hold back against the force applied to create resistance and ensure a better seal. A MJIC X FNPT connector will convert and adapt Male NPT connection to a Male JIC connection or vise-versa. These MJIC x FNPT fittings are the industry standard for extraction systems and allow a multitude of configurations on any system. BVV™ MJIC x FNPT - Data Sheet
$7.06 - $21.19

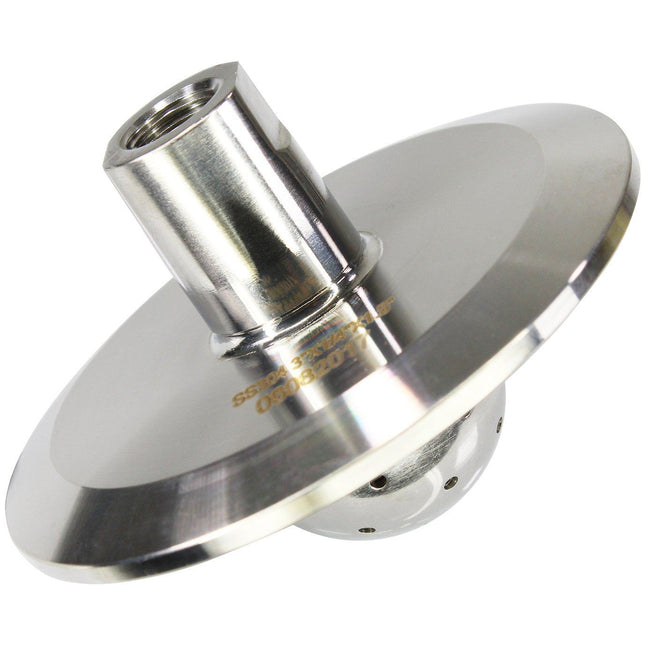

Female NPT Shower Head End Caps
Female NPT Shower Head End Caps Shower Head End Caps Tri Clamp/ Tri Clover help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT 3/8" -18 FNPT 1/2" - 14 FNPT Standard: 3A Sizes Available: 1.5" 2" 3" 4" 6"
$42.38 - $87.58
Silicone Tri-Clamp Gaskets
Silicone Tri-Clamp/ Tri Clover Gaskets Silicone Tri-Clamp Gaskets are intended to be used when using alcohol as an extraction solvent instead of butane or propane. Silicone has an excellent chemical resistance to alcohols and is the preferred gasket material when using Jacketed Reactors or Tri-Clamp Buchner funnels for post-processing winterization because they have very low extractable characteristics. Silicone gaskets also offer a very good temperature range and will retain their original shape even when compressed for a long duration. ***Note: Silicone is not recommended for use with butane or propane solvents. Key Features: Excellent resistance to Alcohols Excellent Temperature Range Excellent Rebound and Memory Very Low extractable characteristics Sizes Available: 1.5" 2" 3" 4" 6" 10" Easy On - Flanged 12" Easy On - Flanged Specifications: Material Silicone Color White Connection Type Tri-Clamp Conformance USP Class VI, FDA and 3A Compliance Thermal Properties: -Low Temperature Range -58°F -Minimum Continous Use (Static) -40°F -Brittle Point -58°F -High Temperature Range +446°F -Maximum for Continous Use (Static) +446°F Durometer or Hardness Range 65 Shore A Abrasion Resistance Excellent Tear Resistance Excellent Compression Resistance Excellent Chemical Compatibility: Butane D - Poor Propane (liquified) D - Poor Alcohols: -Amyl D - Poor -Benzyl N/A -Butyl B - Good -Diacetone D - Poor -Ethyl B - Good -Hexyl B - Good -Isobutyl A - Excellent -Isopropyl A - Excellent -Methyl A - Excellent -Octyl B - Good -Propyl A - Excellent Disclaimer: Best Value Vacs Recommends no more than a -40F Operating Temperature and is not responsible for the user running their system with incompatible chemicals.
$3.18 - $70.63

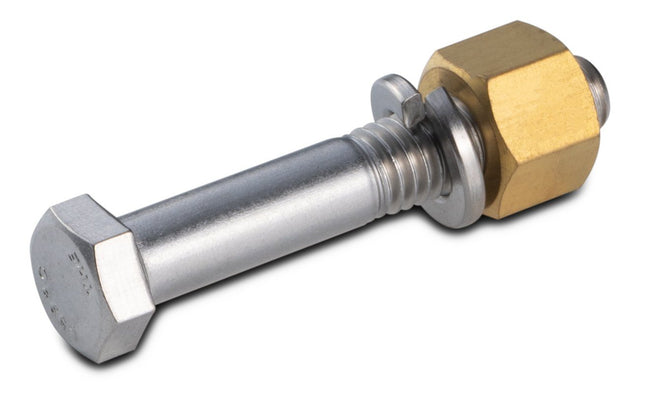

Bolt Kit For High Pressure Clamps
Bolt Kit For High-Pressure Clamps When high-pressure clamp bolts are used frequently the threads will wear down eventually causing the bolt to fail. User's need to replace their high-pressure bolts at the first sign of the threads wearing down or being marred. It is not recommended to tighten these bolts with an impact gun because it may cause the threads to be marred or jump threads causing the bolt to become stuck on the nut. This kit includes the following: Stainless Steel Bolt Stainless Steel Lock Washer Brass Nut ***Note: Size refers to size of Tri-Clamp not the actual length of the bolt. BVV™ only recommends tightening high-pressure clamps with wrenches and making sure the space on each side of the clamp is even. DO NOT tighten with an impact gun. Bolt Available for Clamp Sizes: 1.5" 2" 3" 4" 6"-12" Specifications: Material: Brass Nut, 18-8 Stainless Steel Bolt and Lock Washer. Threading: 3/8"-16
$4.94 - $7.77

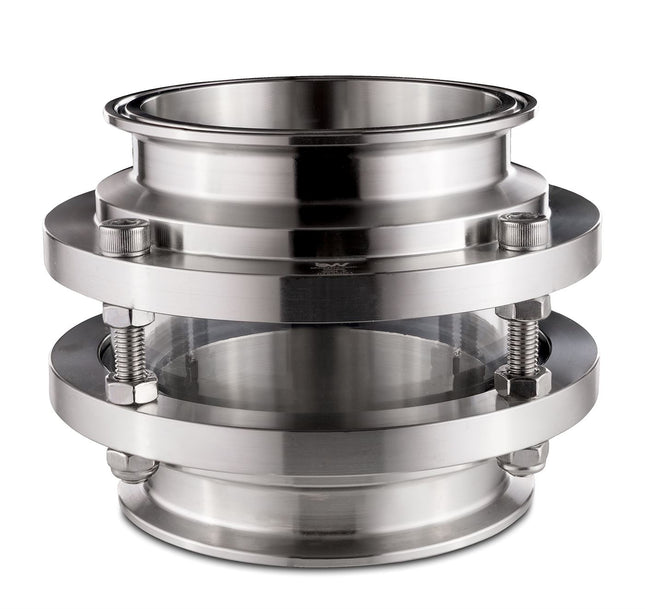

Short Sight Glass
Short Sight Glass These short sight glasses are a great additions closed-loop extraction system to view the liquefied solvent flowing through your system and see the color before the purging process is completed. The short sight glass also allows the user to add a viewing port to their system without adding a lot of additional height compared to a normal Tri-Clamp sight glass. Unlike many competitors, this sight glass is also nitrogen tested for leaks at 100 PSI before it is sent to the customer to ensure safe operation of their extraction system. ***Note: Does not include clamp or gasket. Sizes Available: 1.5" - 2" - 3" - 4" - 6" - 8" - 10"(with cage) - 12" (with cage) Specifications: Sight Glass Material: 304 Stainless Steel Glass Material: Borosilicate Gasket Material: Buna Connection Type: Tri-Clamp x Tri-Clamp BVV™ SSG - Data Sheet Specifications Diameter (Inches) Height (Inches) Weight (Lbs) 1.5" 3.25 3-3/4 1.81 2" 4 3-3/4 2.7 3" 5 4-3/8 4.13 4" 6-1/2 4-1/2 6.8 6" 8 4-1/8 8.09 8" 10.5 5-5/8 15.12 10" 13 8-1/8 38 12" 15.5 8-1/8 64
$105.94 - $1,059.41

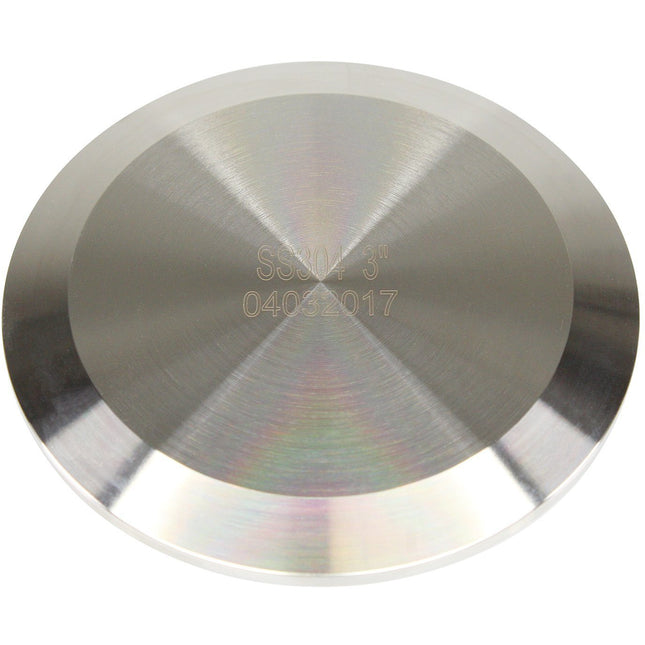

Solid Tri-Clamp End Caps
Solid Tri-Clamp/ Tri Clover End Caps Best Value Vacs Brand Solid Tri-Clamp End Caps provide the user with the option to cap off a spool or lid or for custom fabrication. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp Standard: 3A Sizes Available: 1.5" 2" 3" 4" 6" BVV™ Solid Tri-Clamp End Caps - Drawing BVV™ Solid Tri-Clamp End Caps - End Cap Chart
$9.89 - $50.85

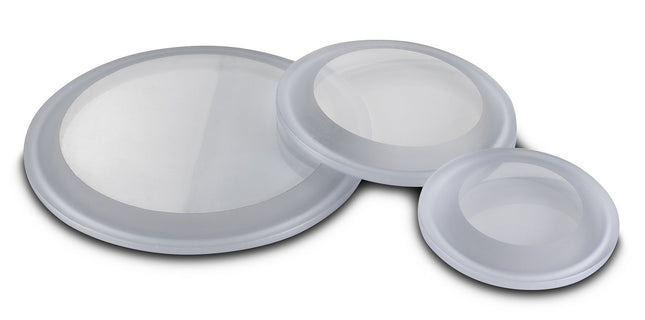

Polycarbonate Tri-Clamp Sight Glass - Made in USA
Polycarbonate Tri-Clamp/ Tri Clover Sight Glass Polycarbonate Tri-Clamp sight glasses are a great and cost effective way to add viewing ports to your system. These sight glasses are 1 piece CNC machined out of 0.25" thick sheets of polycarbonate and rated up to 250, 225, and 175 PSI for 1.5", 2", and 3" Tri-Clamp sizes. These sight glasses come with a protective film of plastic over the viewing area to protect it from being damaged during shipping and testing the customer will need to remove this upon usage. ***Note: Gasket and Clamp sold seperately. Specifications: Material Polycarbonate Window Diameter: 1.5" 1-1/4" 2" 1-3/4" 3" 2-3/4" Maximum PSI @70F: 1.5" 250 2" 225 3" 175
$35.31 - $53.68
5 Micron Stainless Steel Sintered Filter Plate with Viton O-ring
5 Micron Stainless Steel Sintered Filter Disk with Viton O-ring What is a 5 Micron Stainless Steel Sintered Filter Disk With Viton O-Ring? BVV™ has custom-designed a 5 Micron Stainless Steel Sintered Filter Disk With Viton O-Ring fit to provide you with extreme levels of filtration or refinement. The stainless steel material can stand up to high pressure without tearing or ripping like regular paper filtration media, but, we recommend you use it with a filter paper on top to prevent clogging and maintain its longevity. Offered as a la carte parts, each of these 5 Micron Stainless Steel Sintered Filter Disks has a Viton O-ring around their outer edges for a snug fit within our Tri-Clamp Spools. This allows you to pressurize the system and force a faster filtration rate than what it was previously capable of. The Benefits of 5 Micron Stainless Steel Sintered Filter Disk With Viton O-Ring You can’t go wrong with this filter disk model: it successfully combines precise permeability with a high dirt-holding capacity. This means its filtration rate will be accurate whether it’s running at a steady pace or a quicker one. It’s also highly resistant to elevated pressure, temperatures, acidity, and alkalinity, as well as corrosion and abrasion. The impressive rigidity and stability of the 5-micron stainless steel sintered filter disk with a Viton O-ring gives it a longer length of service than other mediums. Meanwhile, its surface makes it reusable through a simple wash, saving you a lot of time and money over the course of its life. Product Uses Stainless steel sintered filter disks are perfect for advanced screening and refinement processing in a wide variety of application methods. They have been used to desalinate seawater for drinking purposes and sterilize air filtration in breweries. You can find them mixing and purifying gas in chemical fiber as well as filtering pressurized gas for aviation and transportation industries and catalytic gas for the oil industry. Sintered metal filter discs can also remove dust, corrosive liquid, and gases; and perform precious metal catalyst recovery, steam processing, and gas-liquid sparging. See additional industrial sectors disks like these are used in below: Electronics Petroleum and Petrochemical Chemicals Plastics Automotive Environmental Protection Metallurgy Sewage Treatment Pharmaceutical Natural Remedies Food and Beverage Shop all filtration equipment on BVV
$134.19 - $324.89
Stacking Filter Plate Ring KIT
Stacking Filter Plate Ring KIT This Stacking Filter Plate and Ring Kit allows the user to stack multiple levels of filtration while having the rigidity of a solid filter plate. These components are made out of 304 polished stainless steel and will fit inside of the corresponding Tri-Clamp/ Tri Clover parts. The stainless steel rings are solid and measure 8mm in thickness and the filter plates measure about 3mm in thickness with 6mm holes. This Kit Includes: 1x Filter Plate 2x Drop-in Retaining Rings Sizes Available: 1.5" 2" 3" 4" 6" 8" 10" 12" Specifications Material 304 Stainless Steel Ring Thickness 8mm Plate Thickness 3mm Plate Hole Size 6mm
$38.14 - $204.82

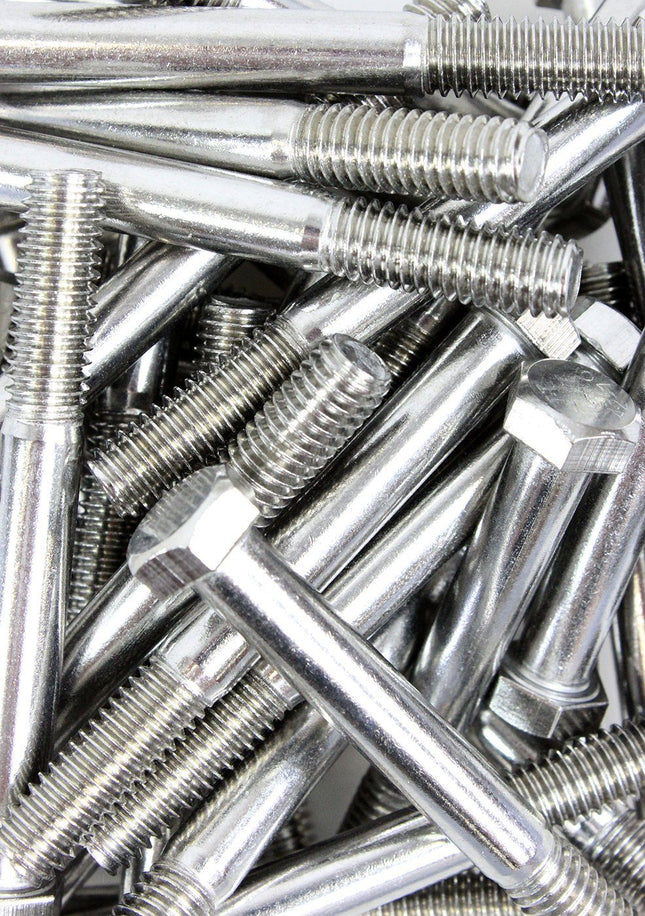

Bolts For High Pressure Clamps
Bolts For High Pressure Clamps When high pressure clamp bolts are used frequently the threads will wear down eventually causing the bolt to fail. User's need to replace their high pressure bolts at the first sign of the threads wearing down or being marred. It is not recommended to tighten these bolts with an impact gun because it may cause the threads to be marred or jump threads causing the bolt to become stuck on the nut. ***Note: Size refers to size of Tri-Clamp not the actual length of the bolt. BVV™ only recommends tightening high pressure clamps with wrenches and making sure the space on each side of the clamp is even. DO NOT tighten with an impact gun. Bolt Available for Clamp Sizes: 1.5" 2" 3" 4" 6"-12" - Fully Threaded Specifications: Material: 18-8 Stainless Steel Threading: 3/8"-16
$3.11 - $5.93

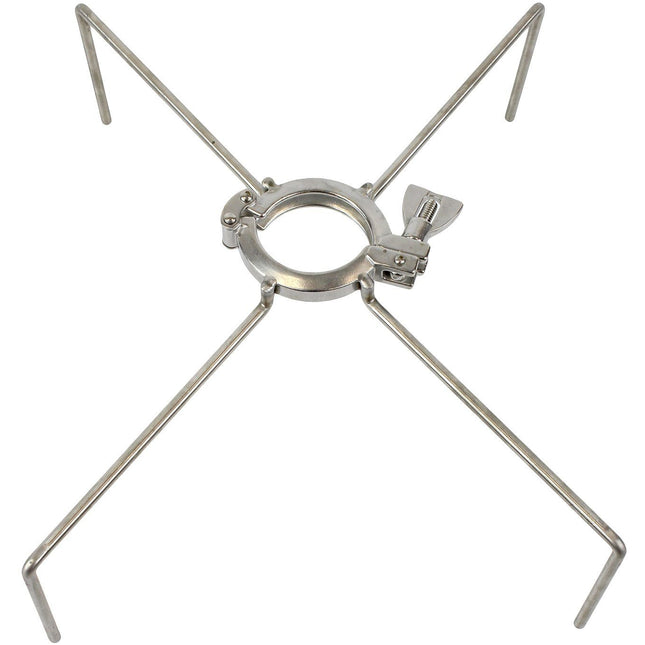

Tri-Clamp Quadpod
Tri-Clamp Quadpod Quadpods provide an excellent solution to holding any Tri-Clamp spool vertically. From closed columns to open blast extraction units, Quadpods are designed to fit over Pyrex dishes without getting in the way. This device has 4 legs, 4.5" in length, and extends 7" outward in each direction. Furthermore, each leg is welded to the clamp to provide a sturdy and durable platform. Sizes Available: 1.5" 2" 3" Specifications: Material 304 Stainless Steel Connection Type(s): Tri-Clamp
$36.73 - $49.44

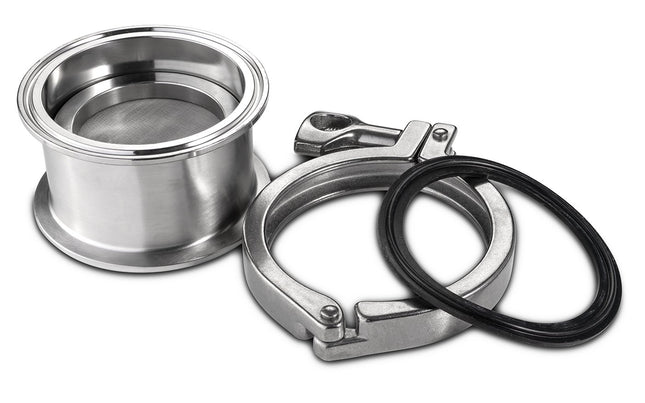

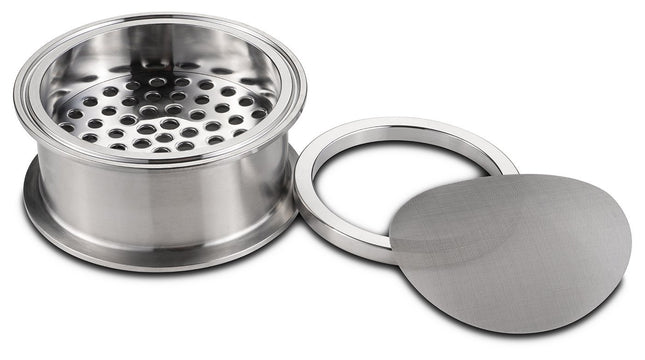

Filter Plate Kit
Stainless Steel Tri-Clamp / Tri Clover Filter Plate Kit Stainless steel filter plates kits offer the user a great solid platform to help with filtration during the extraction process and they come standard with a 100 mesh (150 Micron) pre-cut stainless steel mesh filter media, solid filter ring, and gasket. These filter plates can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface and filtration level to remove fats, lipids, waxes and any other unwanted material during the extraction process. Note: 2" and 8" Sizes come with a Compression ring instead of a solid ring. Sizes Available: 1.5" - Includes Solid Filter Plate Ring 2" - Includes Solid Filter Plate Ring 3" - Includes Solid Filter Plate Ring 4" - Includes Solid Filter Plate Ring 6" - Includes Solid Filter Plate Ring 8" - Includes High Pressure Clamp + Includes Standard COMPRESSION Ring ONLY 10" - Includes High Pressure Clamp + Solid Filter Plate Ring ONLY 12" - Includes High Pressure Clamp + Solid Filter Plate Ring ONLY Specifications: Material 304 Stainless Steel Standard 3A High Polish Connection Type(s) Tri-Clamp Hole Diameter 5.8mm Height 2" Mesh Specs 100 Mesh (150 Micron) - 304 Stainless Steel Gasket Material BUNA-N
$53.68 - $693.56

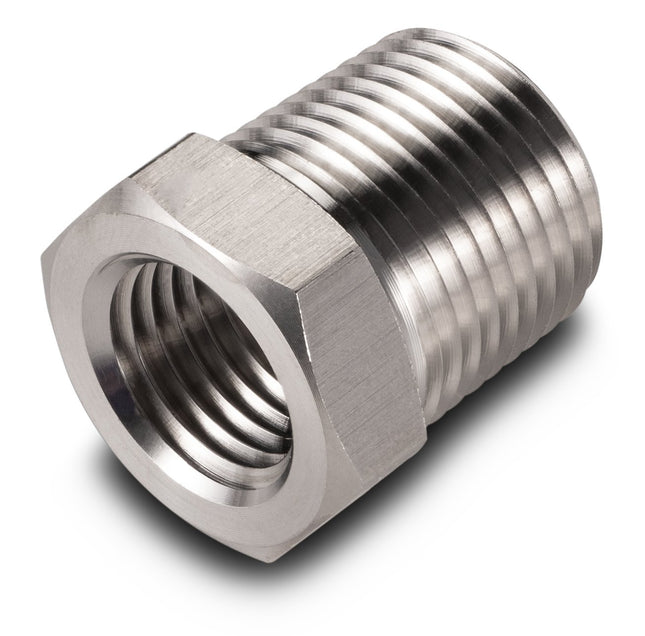

BVV Bushing
BVV™ Bushing BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using Yellow Gas PTFE Tape because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service. **NOTE: Pre-Taped option comes from BVV Pre-taped with Yellow UL Listed Gas PTFE Tape on the Male NPT threads ONLY for a +0.50c charge per male npt end. (JIC Threads DO NOT need to be taped.) Stainless Steel Reducing bushings will convert the sizes of an NPT threaded connection to an either bigger or smaller sized NPT connection. As an example this fitting allows the user to convert a 1/4" NPT threaded connection to a 1/2" NPT threaded connection. BVV™ Bushing - Data Sheet Specifications Material 304 Stainless Steel Connection Type(s): 1/4"-18 MNPT 3/8"-18 MNPT 1/2"-14 MNPT 1/4"-18 FNPT 3/8"-18 FNPT 1/2"-14 FNPT Sizes Available: 1/4" FNPT x 1/4" MNPT 1/4" FNPT x 3/8" MNPT 1/4" FNPT x 1/2" MNPT 3/8" FNPT x 1/4" MNPT 3/8" FNPT x 3/8" MNPT 3/8" FNPT x 1/2" MNPT 1/2" FNPT x 1/4" MNPT
$7.06 - $17.66

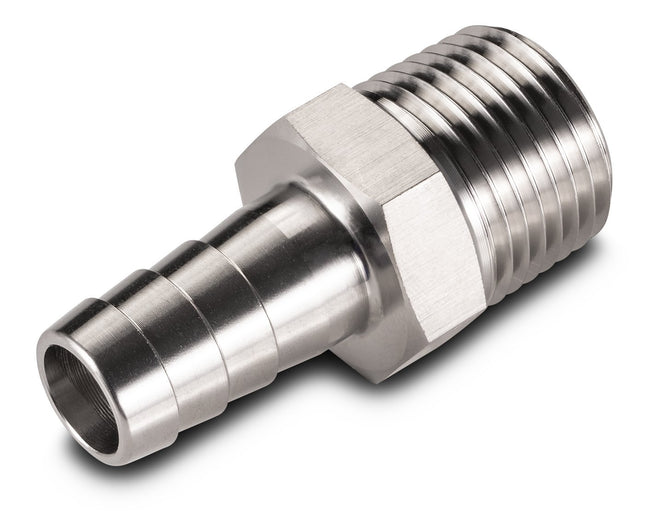

Hose Barb x MNPT
BVV™ Hose Barb x MNPT BVV™ brand stainless steel parts are made with precision 304 Grade Stainless Steel and are clean and free from burrs or debris. These fittings are Hose Barb x NPT threads (National Pipe Taper) and will compress against other Female/Male NPT threads creating a tighter and tighter connection. All NPT threads require thread sealant to create a watertight and gas-tight seal between the threads. We recommend using Yellow Gas PTFE Tape because it is rated for gases and is UL listed and it is NOT recommended to use white PTFE tape because it is not rated for gas service. **NOTE: Pre-Taped option comes from BVV Pre-taped with Yellow UL Listed Gas PTFE Tape on the Male NPT threads ONLY for a +0.50c charge per male npt end. (JIC Threads DO NOT need to be taped.) Hose Barb connections will allow the user to connect flexible tubing to the Hose Barb and allow the user a variety of additional options for their extraction system such as circulating fluid through a jacketed base with silicone tubing or pull a vacuum with gum rubber tubing. BVV™ Hose Barb x MNPT- Data Sheet Specifications Material 304 Stainless Steel Connection Type(s): 1/4"-18 MNPT 1/2"-14 MNPT 1/4" Hose Barb 3/8" Hose Barb 1/2" Hose Barb Sizes Available: 1/4" Hose Barb x 1/4" MNPT 3/8" Hose Barb x 1/4" MNPT 3/8" Hose Barb x 1/2" MNPT 1/2" Hose Barb x 1/4" MNPT 1/2" Hose Barb x 1/2" MNPT
$7.06 - $26.84
Bottom Weld Tri-Clamp Filter Plate
Bottom Weld Stainless Steel Tri-Clamp / Tri Clover Filter Plate Bottom Weld Stainless steel filter plates offer the user a great solid platform to help with filtration during the extraction process. These filter plates can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface and filtration level to remove fats, lipids, waxes and any other unwanted material during the extraction process. **Note: Does not include Clamp, Gasket or Ring Sizes Available: 1.5" 2" 3" 4" 6" 8" 10" 12" Specifications: Material 304 Stainless Steel Standard 3A High Polish Connection Type(s) Tri-Clamp Hole Diameter 5.8mm Height 2" BVV™ Bottom Weld Tri-Clamp Filter Plate - Drawing
$39.55 - $494.39

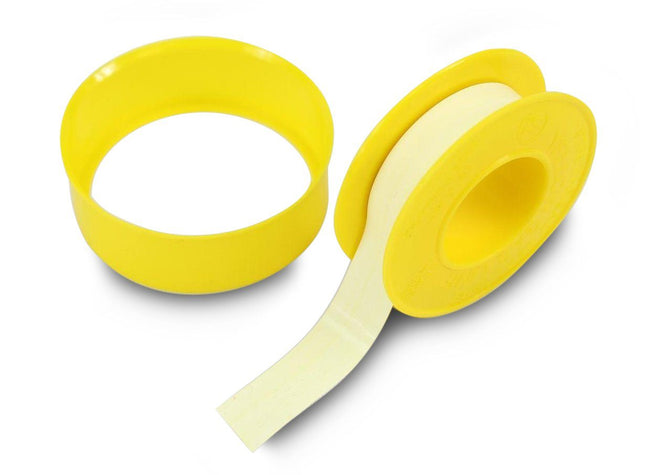

Gas PTFE Tape
Gas PTFE Tape Yellow gas line PTFE Tape is used for hydrocarbon extraction systems and mandatory for any system with solvents. The PTFE tape is a thick threaded sealant that can be used on different plastic and metal pipes. This easy to use tape can be used to help prevent cross threading and form a leak proof seal. Suitable for lines carrying water, oil, gas, and propane. Pressure rating 10,000 PSI.
$7.77 - $9.89

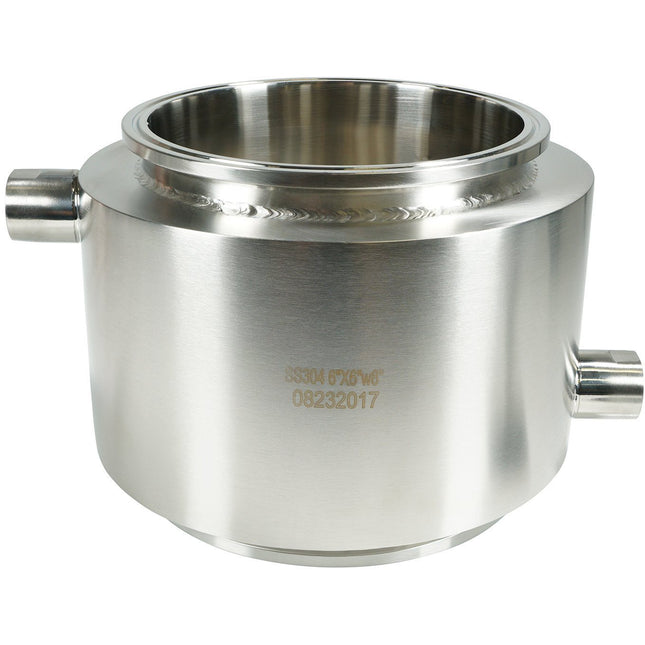

Fully Jacketed Spools
Fully Jacketed Spools 304 Stainless Steel Fully Jacketed Spools allow the user to circulate water through the base of an extractor or the material column to heat up or chill solvent vapor. Has 1/2" FNPT ports. And attached tri clamp fittings on each end for user convenience. BVV™ Fully Jacketed Spools - Drawings
$197.76 - $974.66
You have seen 48 out of 836 products
