Dosing Pumps

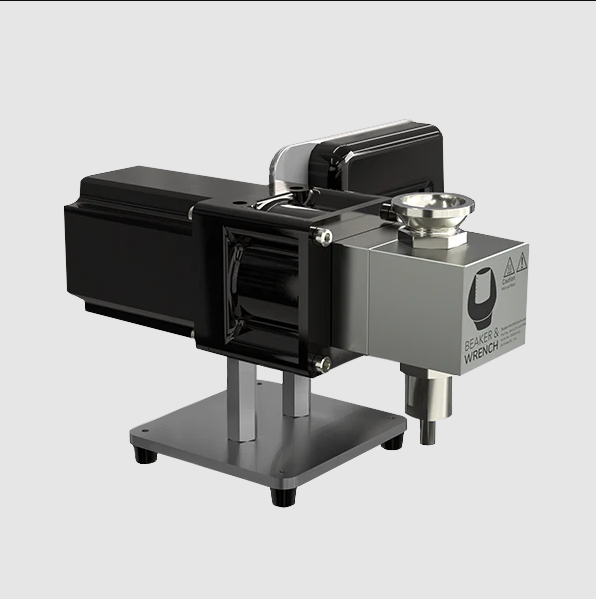

Beaker & Wrench Outlet Pump
Beaker & Wrench Outlet Pump Outlet pump comes with: – motor– heater/pump controller– mounting– adapter hose (heated)– pump (heated) – 24/40 adapters. If you need custom please purchase custom adapters separately. Pumps are sold EACH. If you need two, the total is $14,000.
$10,504.30

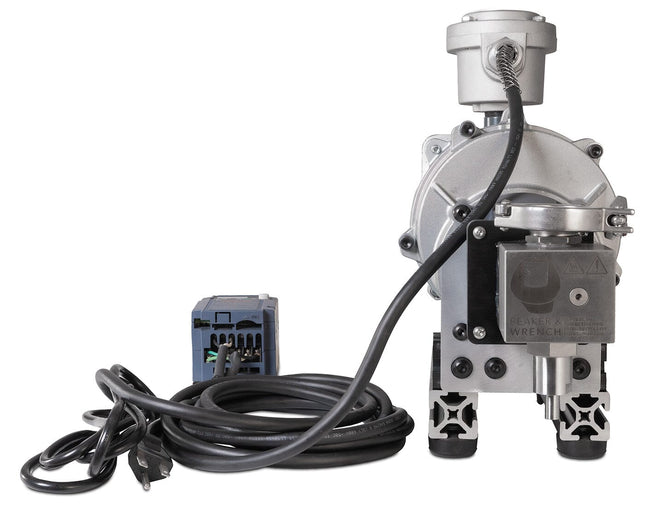

Beaker and Wrench Explosion Proof Oil Pump
Explosion Proof Oil Pump Optimized for Falling Film Evaporators C1D2 VFD (variable frequency drive, not C1D2 rated) cord is approximately 15′ Motor: 1/4 Horsepower Customizable mounting When ordering: Please indicate in the Note section what machine you will be attaching the Explosion Proof Oil Pump to. We need this information to assure the correct Inlet Adapter is provided and also the dimensions of the mounting configuration you will need. Hazardous Location Clas 1 C,D / 2 E,F,G Nominal Efficiency 85.5% Frame 56CZ Motor Application Hazardous Location Lead Length 6" RPM Range 1101-1200 Standards UL listed (E12044), CSA Certified (LR47504) Frame Material Rolled Steel Duty Continuous HP 1/4 Voltage Compatibility 115/208-230, 120/240 Length Less Shaft 11-7/8" Includes Conduit Box (Unmounted), Leads Through 1" NPT Nipple Motor Shaft Design Keyed Shaft Length 2-1/4" Item Harazardous Location Motor Motor Service Factor: 1.00 1.00 Motor Thermal Protection auto Motor Shaft Rotation CW/CCW Full Load Amps 6.8/3.1-3.4 Overall Length 14-5/16" Voltage 115/208-230 Motor Frame Material Rolled Steel Ins. Class B Motor Mounting Type Face Motor Design Capacitor- Start Shaft Dia 5/8" Hz 60 Motor Bearing Ball Temp. Code T3B Motor Enclosure Design Totally Enclosed Fan-Cooled Nameplate RPM 1140 Max. Ambient Temp 40 Degrees C Phase 1
$11,087.87
Beaker & Wrench 40L Complete Dosing System
Beaker & Wrench 40L Complete Dosing System Please note: This Product has 1 week lead time For Wiped Film Evaporators The 40L Complete Dosing System by Beaker & Wrench® is a continuous feed system that connects to any Wiped Film Evaporator effortlessly. Optimize your time and end results by dialing into your feed system. The Feed Gear Pump by Beaker & Wrench® gives the operator control over flow rate and freedom to load material into the flask without breaking deep vacuum. Once attuned with the flow rate, calculations become less of a guessing game and more of a formula. Distill as slow or as fast as needed! The contents of this system include: Heated 40L feed flask Crude Cozy™ Digitally operated, heated Feed Gear Pump 4″ tri-clamp port on feed lid Inlet adapter (for your still) 6′ Heated Transfer Line (not pictured) Wattage: 90/ft, 120 Volts Maximum Temp: 150°C UL Listed 3 Channel PID Temperature Controller UL: E510826 How does it work?Crude is loaded into a heated feed flask, which then flows through the heated Gear Pump. The Gear Pump moves fluid through the gears while maintaining vacuum. Oil is then pulled towards the still body, ready for distillation! Cleaning:Every Operator has their own preference in how they clean their Wiped Film Evaporator. Ethanol, Isopropyl alcohol or vegetable oil are viable options when looking to clean your Wiped Film. Step-by-step instructions are included in the manual! Installation: Are you interested in having a Beaker & Wrench® technician install your Complete Dosing System? Click here for a quote! The advantage with having a technician perform installation is you can ask any and all questions necessary on how to process with your Wiped Film Evaporator! What is the warranty?1 year manufacturer’s warranty on parts for exchange. Customer has 5 days from day of delivery to inspect equipment for breakages or damage. ** Please indicate the inlet size of your still in the Notes section of your purchase. This will help us adapt to your set-up.
$18,236.63
