Endcaps
Solid Tri-Clamp End Caps
Solid Tri-Clamp/ Tri Clover End Caps Best Value Vacs Brand Solid Tri-Clamp End Caps provide the user with the option to cap off a spool or lid or for custom fabrication. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp Standard: 3A Sizes Available: 1.5" 2" 3" 4" 6" BVV™ Solid Tri-Clamp End Caps - Drawing BVV™ Solid Tri-Clamp End Caps - End Cap Chart
$11.67 - $58.36

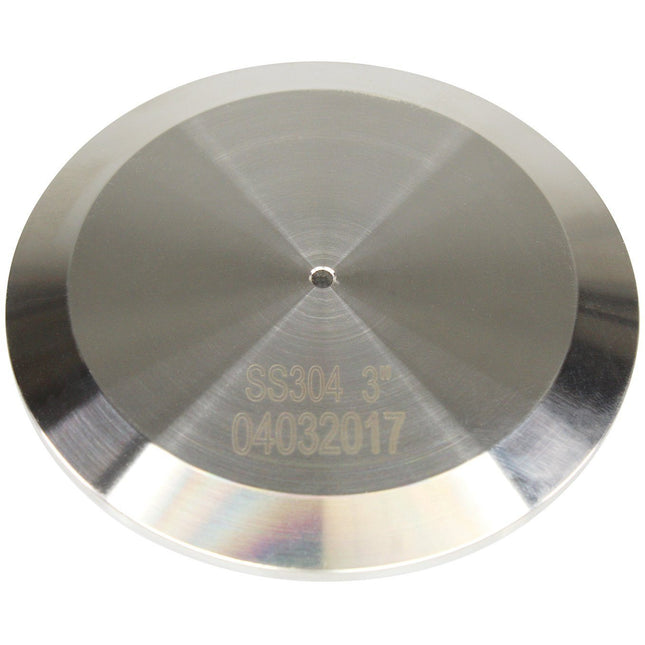

3mm Open Blast End Caps
3mm Open Blast End Caps These Tri-Clamp/ Tri Clover End Caps have a 3mm hole drilled in the center so most butane can tips to easily fit in the hole allowing the user to input solvent into a material column and open blast the material. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp 3mm Hole Standard: 3A Sizes Available: 1.5" 2" 3" 4"
$8.75 - $17.51

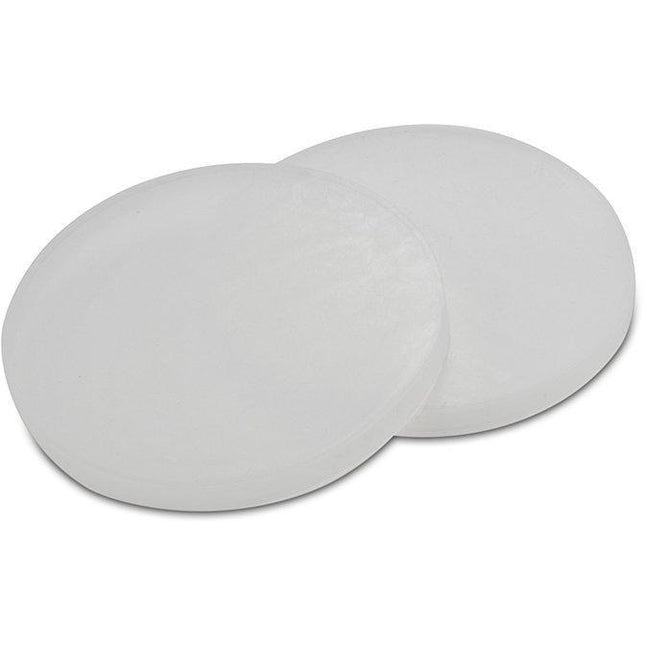

Plastic End Caps for Tri-Clamp Parts - 2 Pack
Plastic End Caps for Tri-Clamp/ Tri Clover Parts - 2 Pack These plastic end caps are for covering and protecting the ends of Tri-Clamp parts from damage or allowing the user to fill a column while capping off the other end and come in a pack of 2.
$2.92 - $3.65
1/4" FNPT End Caps
1/4" FNPT End Caps These End Caps come with a 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp/ Tri Clover lid Specifications Material 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 1.5" 2" 3" 4" 6" BVV™ Solid 1/4" FNPT End Caps - Drawing BVV™ Solid 1/4" FNPT End Caps - End Cap Chart
$17.51 - $91.91
1/2" FNPT End Caps
1/2" FNPT End Caps These End Caps come with a 1/2"-14 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/2" port on a Tri-Clamp/ Tri Clover lid. These 1/2" FNPT endcaps also provide the user with a larger diameter for gases or flow of liquid which can greatly increase run times for an extraction system. Specifications Material: 304 Stainless Steel Standard: 3A High Polish Connection Type(s): Tri-Clamp 1/2" - 14 FNPT Sizes Available: 1.5" 2" 3" 4" 6" BVV™ 1/2" FNPT End Caps - Drawing BVV™ 1/2" FNPT End Caps - End Cap Chart
$20.43 - $290.33

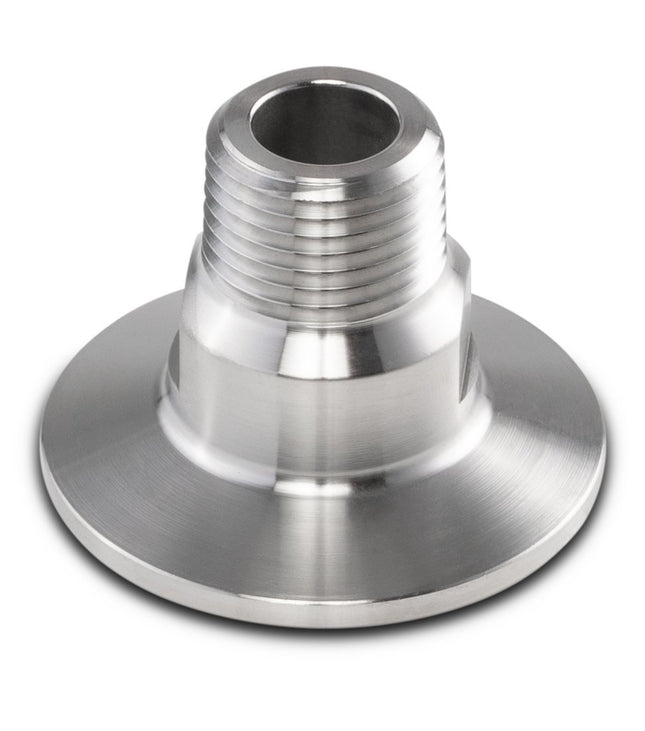

1/2" MNPT x Tri-Clamp End Caps
1/2" MNPT End Caps These End Caps come with a 1/2"-14 MNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/2" port on a Tri-Clamp/ Tri Clover lid. These 1/2" MNPT endcaps also provide the user with a larger diameter for gases or flow of liquid which can greatly increase run times for an extraction system. Specifications Material: 304 Stainless Steel Standard: 3A High Polish Connection Type(s): Tri-Clamp 1/2" - 14 MNPT Sizes Available: 1.5" 2" 3" 4" 6"
$21.88 - $97.75

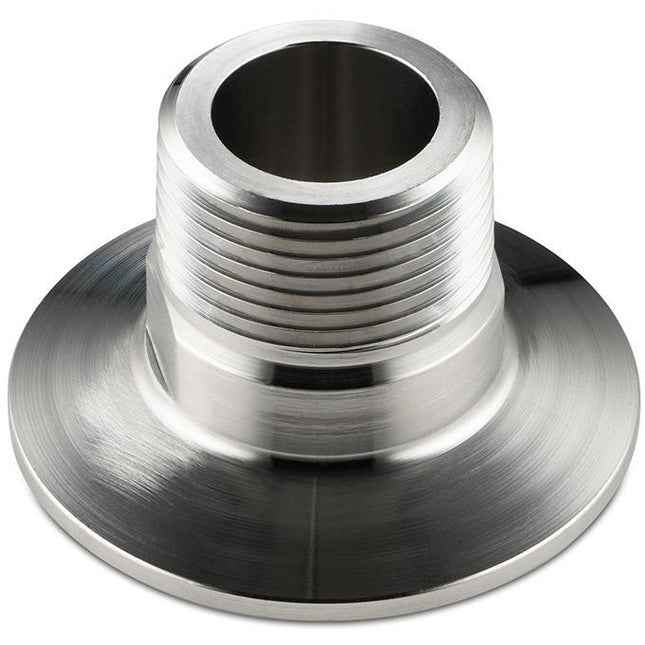

1" MNPT x Tri-Clamp End Caps
1" MNPT x Tri-Clamp / Tri Clover End Caps These tri-clamp end caps: Have a 1" Male NPT connection Come in either 1.5", 2", 3", 4", 6" tri-clamp sizes Are made of 304 stainless steel
$18.97 - $71.49

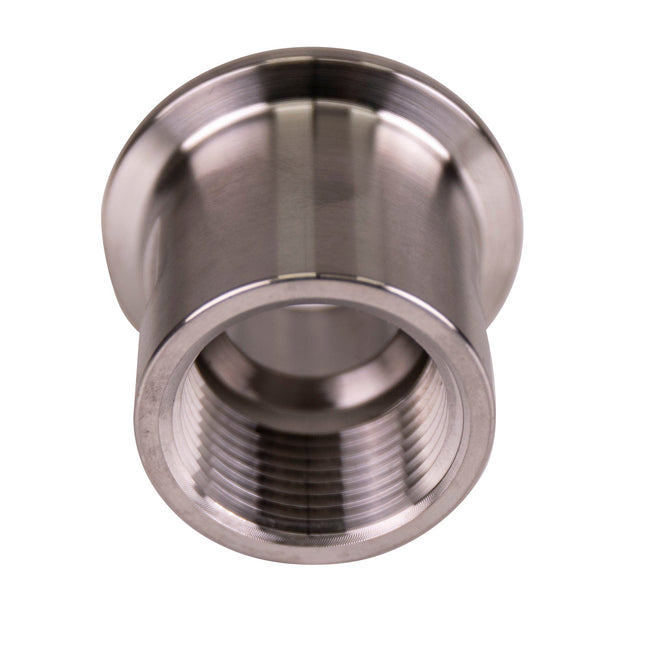

1" FNPT X 1.5" Tri-Clamp Top Cap
1" FNPT X 1.5" Tri-Clamp Top Cap These tri-clamp end caps: Have a 1" Female NPT connection Are made of 304 stainless steel
$29.18

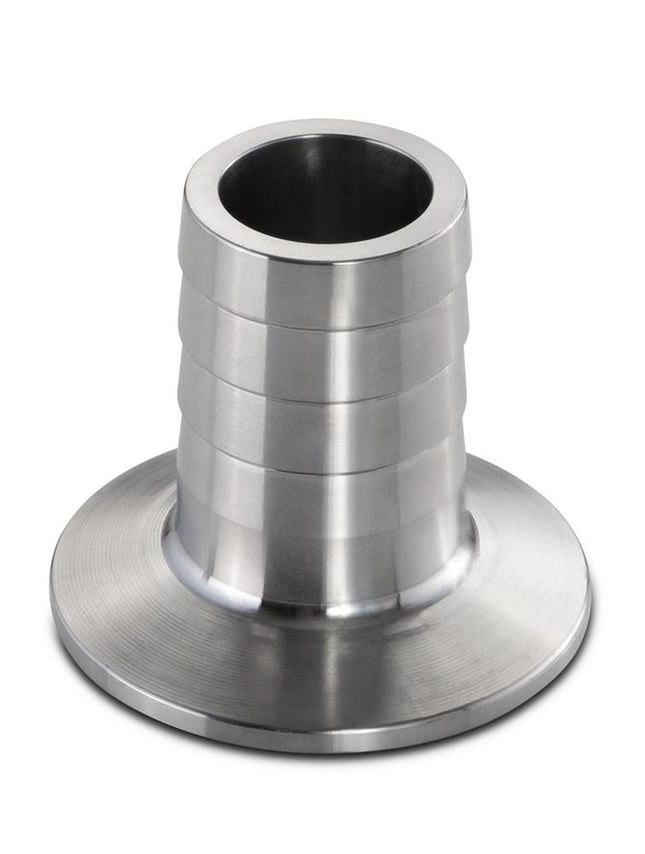

Tri-Clamp to 1" Barb
Tri-Clamp to 1" Barb / Tri Clover End Caps These tri-clamp end caps: Have a 1" Hose Barb connection Come in either 1.5", 2" tri-clamp sizes Are made of 304 stainless steel
$43.77

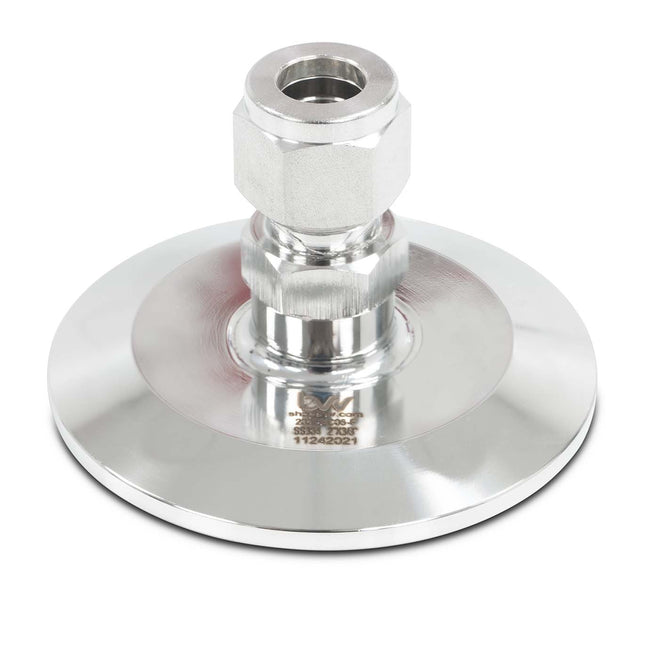

BVV Compression End Caps
3/8" BVV Compression End Caps These End Caps come with a 3/8" Female Compression connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a 3/8" male tube stub connection to the lid. Specifications Material 304 Stainless Steel Connection Type: Tri-Clamp 3/8" Female Compression Connection Standard: 3A Sizes Available: 1.5" 2" 3" 4" 6"
$58.36 - $204.25

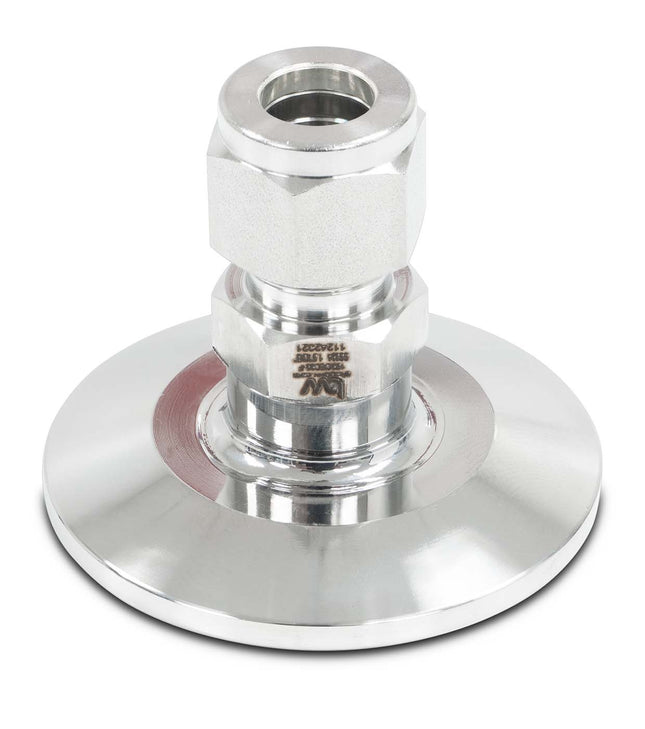

1/2" Compression End Cap 1.5" Triclamp
1/2" BVV Compression End Caps These End Caps come with a 1/2" Female Compression connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a 1/2" male tube stub connection to the lid. Specifications Material 304 Stainless Steel Connection Type: Tri-Clamp 1/2" Female Compression Connection Standard: 3A
$75.86
Female NPT Shower Head End Caps
Female NPT Shower Head End Caps Shower Head End Caps Tri Clamp/ Tri Clover help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT 3/8" -18 FNPT 1/2" - 14 FNPT Standard: 3A Sizes Available: 1.5" 2" 3" 4" 6"
$43.77 - $90.45
3mm Open Blast Shower Head End Caps
3mm Open Blast Shower Head End Caps These Tri-Clamp End Caps have a 3mm hole drilled in the center so most butane can tips to easily fit in the hole allowing the user to input solvent into a material column and open blast the material. Shower Head End Caps help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp 3mm Hole Standard: 3A Sizes Available: 1.5" 2" 3" 4"
$29.18 - $43.77

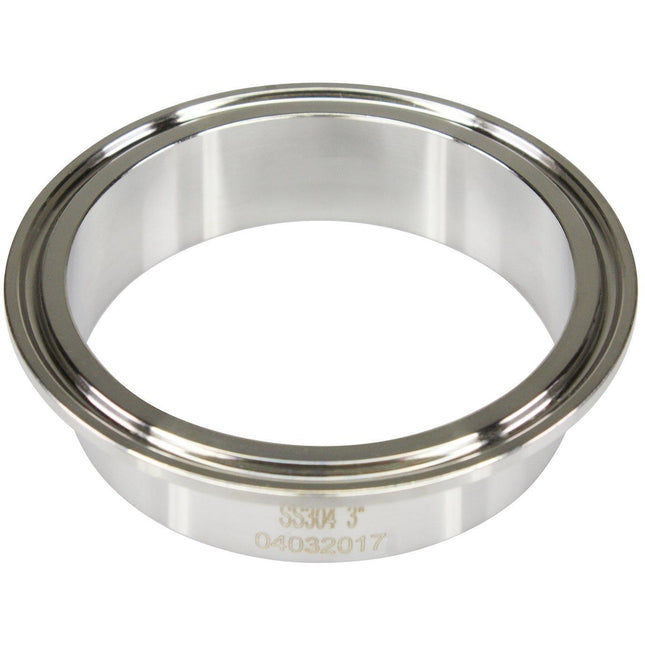

Tri-Clamp Ferrule
Tri-Clamp/ Tri Clover Ferrule Tri-clamp ferrules are the bottom of our open blast systems. These ferrules allow the user to use a screened gasket at the end of an open blast spool while providing an open end. Specifications: Material: 304 Stainless Steel Connection Type: Tri-Clamp Standard: 3A Sizes Available: 1.5" 2" 3"
$5.84 - $8.75

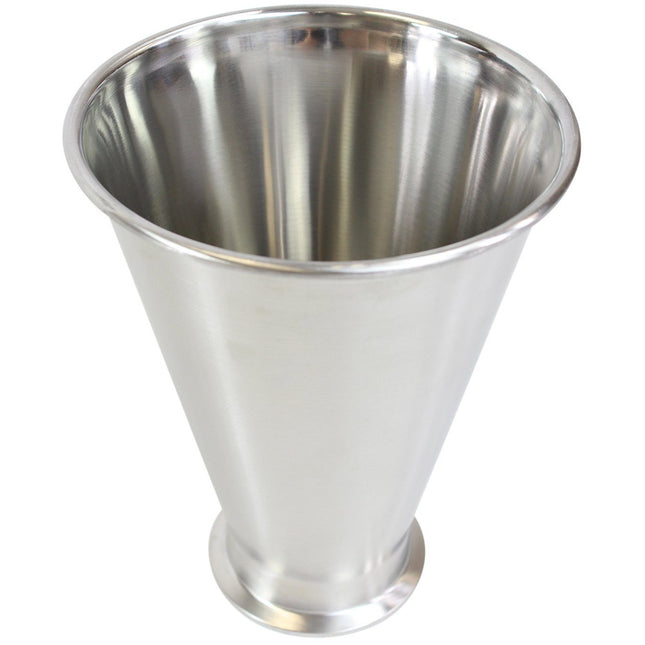

Stainless Steel Tri-Clamp Hopper
The Triclamp / Tri Clover hopper can be attached to a material column to assist in packing the column with material. The Hopper has no tri clamp ferrule on the larger end and is made out of sanitary 304 stainless steel.
$189.66 - $218.84

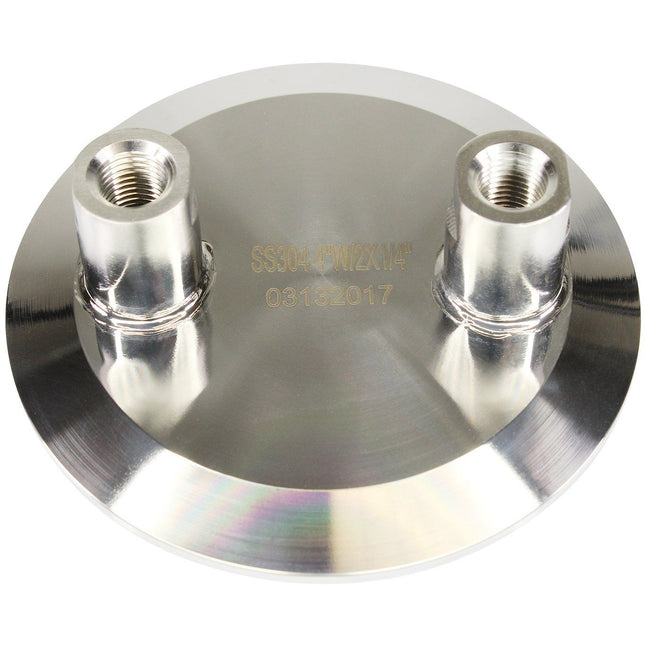

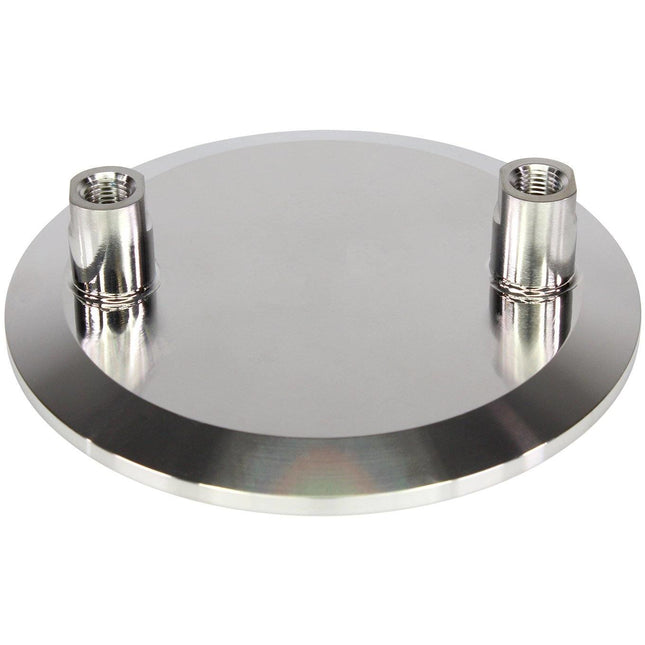

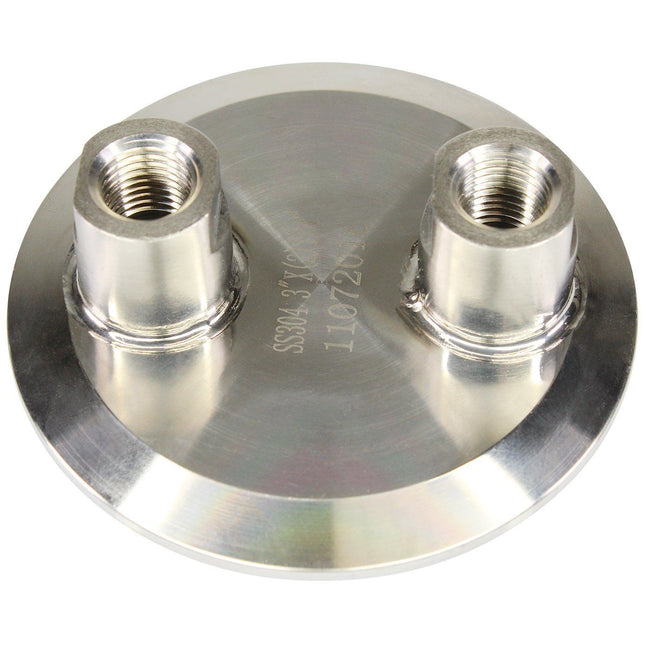

3" Tri-Clamp x (2) 1/4" FNPT
3" Tri-Clamp/ Tri Clover x (2) 1/4" FNPT These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specifications Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 3" BVV™ 3" Tri-Clamp x (2) 1/4" FNPT - Drawing BVV™ 3" Tri-Clamp x (2) 1/4" FNPT - End Cap Chart
$52.52

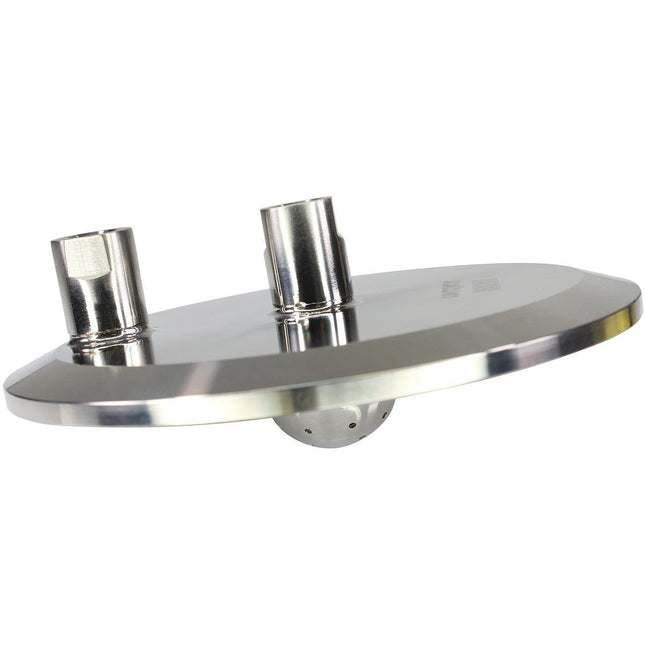

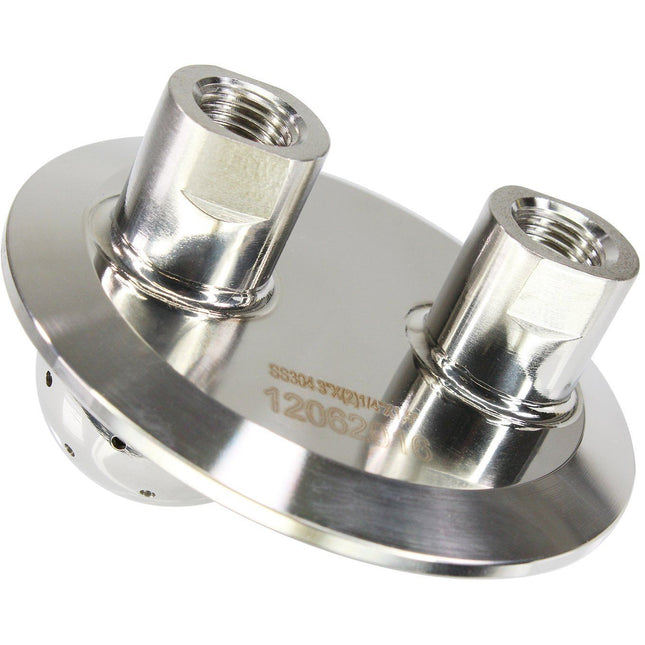

3" Tri-Clamp x (2) 1/4" FNPT Ports w/ Shower Head
3" Tri-Clamp/ Tri Clover x (2) 1/4" FNPT Ports w/ Shower Head These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Stainless steel tri-clamp fittings are the most popular style of process line equipment used within the industrial, food, beverage, and pharmaceutical industries. Shower Head End Caps help disperse solvent input into a system, which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Quickly create a leak-proof connection allowing easy assembly or disassembly for routine maintenance and inspection. Specifications Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 3"
$58.36
4" Tri-Clamp x (2) 1/4" FNPT
4" Tri-Clamp x (2) 1/4" FNPT These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specification Material: 304 Stainless Steel Connection Types: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 4" BVV™ 4" Tri-Clamp x (2) 1/4" FNPT - Drawing BVV™ 4" Tri-Clamp x (2) 1/4" FNPT - End Cap Chart
$61.28

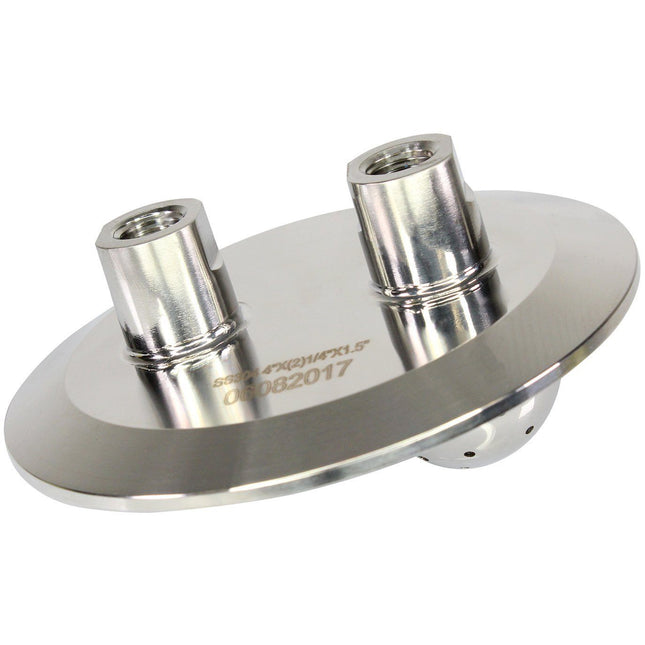

4" Tri-Clamp x (2) 1/4" FNPT w/ Showerhead
4" Tri-Clamp/ Tri Cover x (2) 1/4" FNPT w/ Showerhead These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Shower Head End Caps help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 4"
$86.08

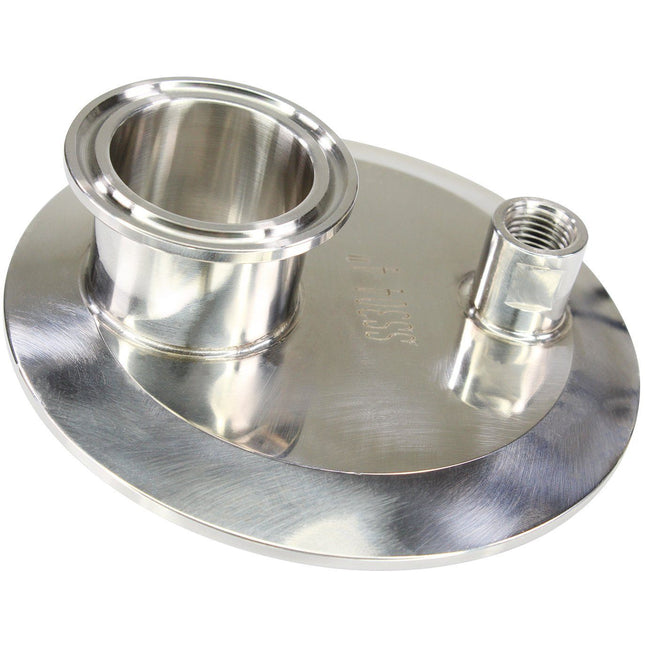

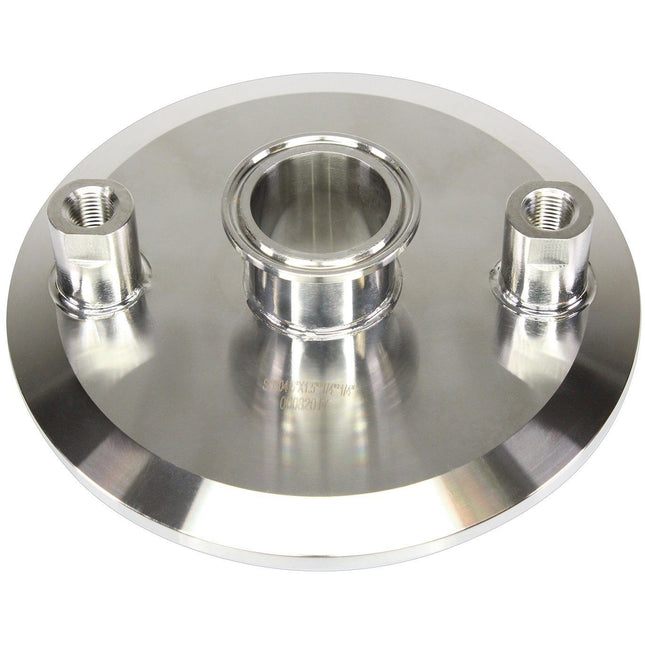

4" x 1.5" x1/4" FNPT Tri-Clamp Endcap
4" x 1.5" x1/4" FNPT Tri-Clamp Tri Clover Endcap This End Caps come with a 1/4"-18 FNPT Threaded connection and 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 2 connections are welded on a 4" Tri-Clamp End Cap. Specification Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 4" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 4" x 1.5" x1/4" FNPT Tri-Clamp Endcap - Drawing BVV™ 4" x 1.5" x1/4" FNPT Tri-Clamp Endcap - End Cap Chart
$138.60
6" Tri-Clamp Endcap X (2) 1/4" FNPT Ports
6" Tri-Clamp Tri Clamp Endcap X (2) 1/4" FNPT Ports This 6" Triclamp endcap has 2x 1/4" FNPT ports welded to the top of the endcap allowing for several variations of connections that can customize an extraction system to the user's needs. Specifications: Material - 304 Stainless Steel Connection Type(s) - 6" Tri-clamp and 1/4"-18 FNPT BVV™ 6" Tri-Clamp Endcap X (2) 1/4" FNPT Ports - Drawing BVV™ 6" Tri-Clamp Endcap X (2) 1/4" FNPT Ports - End Cap Chart
$124.01
6" Tri-Clamp x (2) 1/4" FNPT ports w/ Shower Head
6" Tri-Clamp Tri Clover x (2) 1/4" FNPT Ports w/ Shower Head These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Shower Head End Caps help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications Material: 304 Stainless Steel Connection Types: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 6"
$102.13

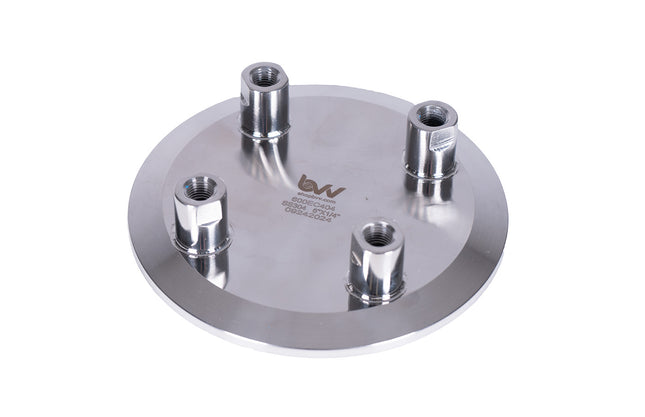

6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports
6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports These End Caps come with four 1/4"-18 FNPT Threaded connections welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specification Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 6" BVV™ 6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports - Drawing BVV™ 6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports - End Cap Chart
$160.48 - $182.37
6" x 1.5" x (2) 1/4" FNPT Tri-clamp Endcap Terpenator Style
This terpenator style endcap goes way back to 2012. With this lid you can use either passive heat and cold techniques for recovery, or a butane pump to reduce cycle time. This lid has tubes installed to direct the flow, and this lid is used for bottom fill extraction techniques. Connections: 1.5" Tri-Clamp (with 6" dip tube) 1/4" NPT (with 6" dip tube) 1/4" NPT
$124.01
6" x 1.5" x (2) 1/4" FNPT Tri-clamp Endcap BVV™
6" x 1.5" x (2) 1/4" FNPT Tri-clamp Tri Clover Endcap BVV™ This End Cap come with Two 1/4"-18 FNPT Threaded connection and 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 3 connections are welded on a 6" Tri-Clamp End Cap. Specification Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp - 0.5" Tube Extension Below Lid 6" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 6" x 1.5" x (2) 1/4" FNPT Tri-clamp Endcap - Drawing BVV™ 6" x 1.5" x (2) 1/4" FNPT Tri-clamp Endcap - End Cap Chart
$196.96

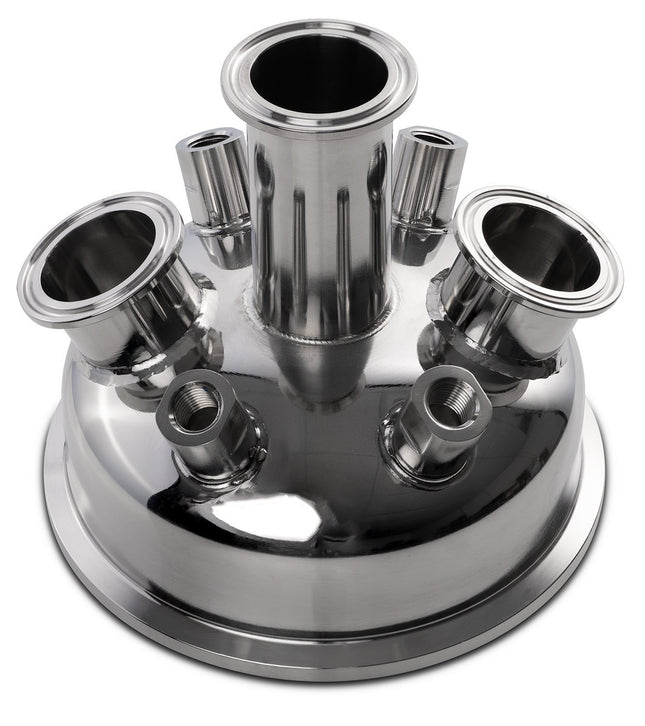

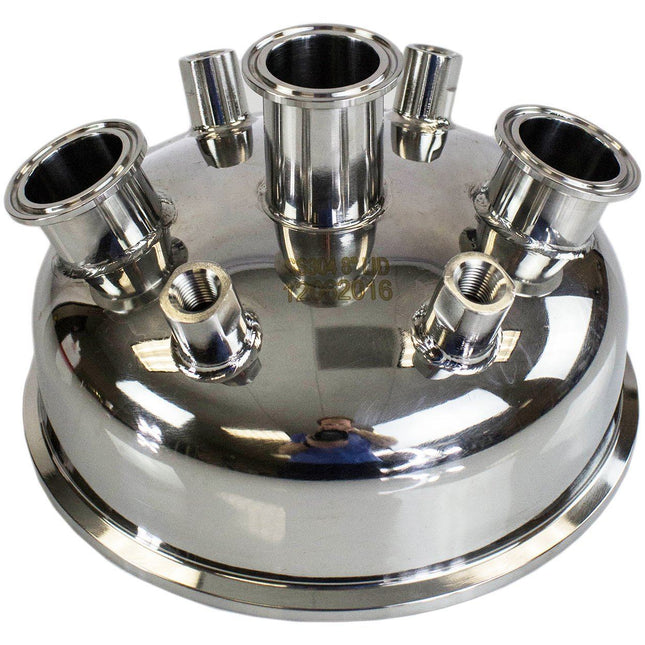

6" Tri-Clamp Hemispherical Extractor Lid
6" Tri-Clamp Tri Clover x (3) 1.5" TriClamp x (4) FNPT Hemispherical Lid This End Cap comes with Four FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 3" Tube Extension Below the middle port on the lid. These allow the user to adapt and connect a threaded connection to the NPT ports and three 1.5" Tri-Clamp Connections on a 6" Hemispherical Tri-Clamp lid. With this versatile Tri-Clamp Extractor Lid, users can quickly create a leak-proof connection allowing easy assembly or disassembly for routine maintenance and inspection. Specification SKU: 600HEL 600HEL-V2 Material: 304 Stainless Steel 304 Stainless Steel Connection Types: 6" Tri Clamp 3x 1.5" Tri Clamp (Tube Extension Below Center Port) 4x 1/4" FNPT 2x 1/4" FNPT - 2x 1/2" FNPT Standard: 3A BVV™ 6" Tri-Clamp x (3) 1.5" TriClamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 6" Tri-Clamp x (3) 1.5" TriClamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$233.43 - $255.31

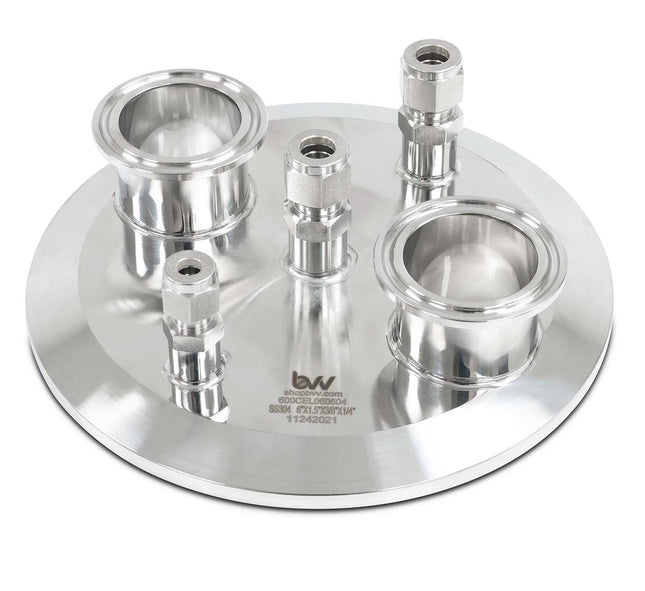

BVV Compression Extractor End Cap (2) 1.5" x (2) 3/8" Compression x 1/4" Compression
BVV Compression Extractor End Cap (2) 1.5" x (2) 3/8" Compression x 1/4" Compression This End Cap come with (2) 3/8" and (1) 1/4" Female Compression Connection and (2) 1.5" Tri-Clamp ferrule welded to the end cap. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 3 connections are welded on a 6" Tri-Clamp End Cap. Specification Material: 304 Stainless Steel Connection Types: (2) 1.5" Tri-Clamp 6" Tri-Clamp (2) 3/8" and (1) 1/4" Female Compression Connection Standard: 3A
$240.72

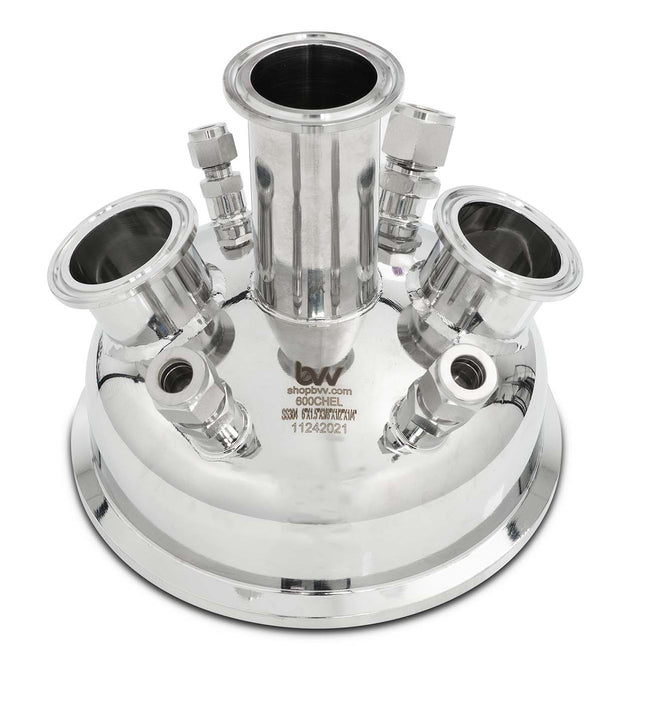

BVV Compression 6" Tri-Clamp x (3) 1.5" TriClamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid
BVV Compression 6" Tri-Clamp x (3) 1.5" TriClamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid This End Cap comes with (4) Compression connections and Three 1.5" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a tube stub connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 7 connections are welded on a 6" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp with 3" Tube Extension Below Lid on Center Tri-Clamp Port 6" Tri-Clamp 1/4" and 1/2" Female Compression Connections Standard: 3A
$284.49

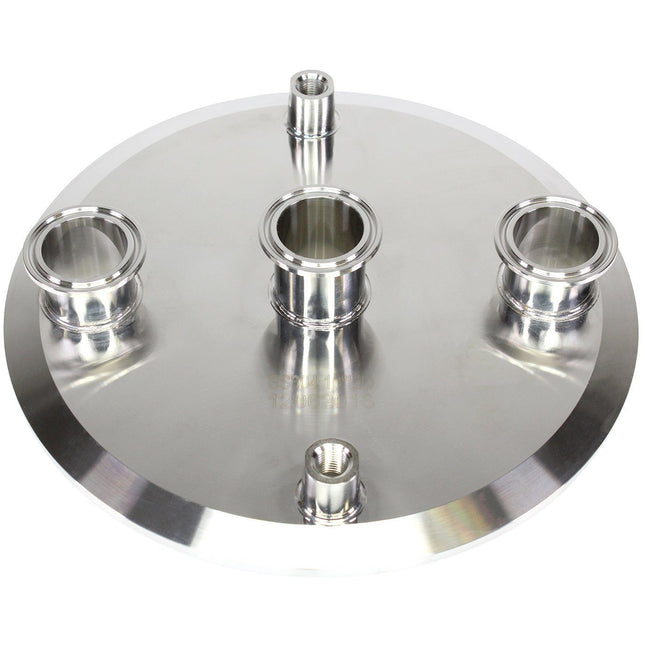

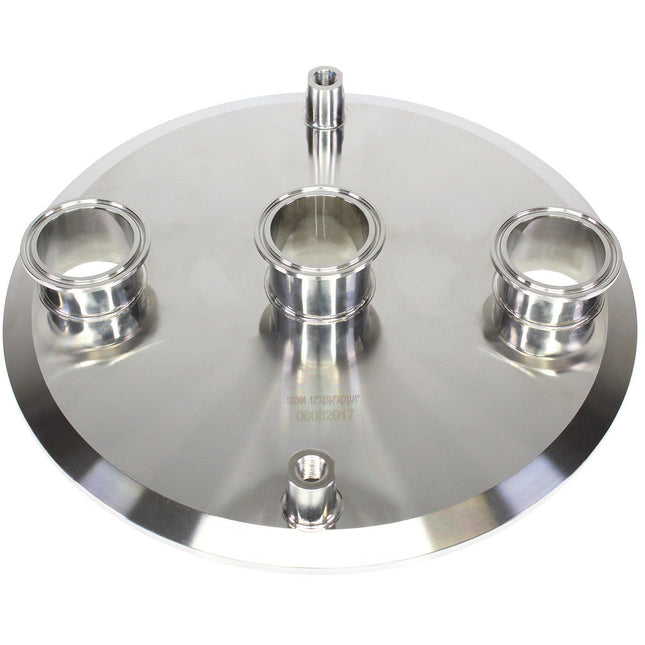

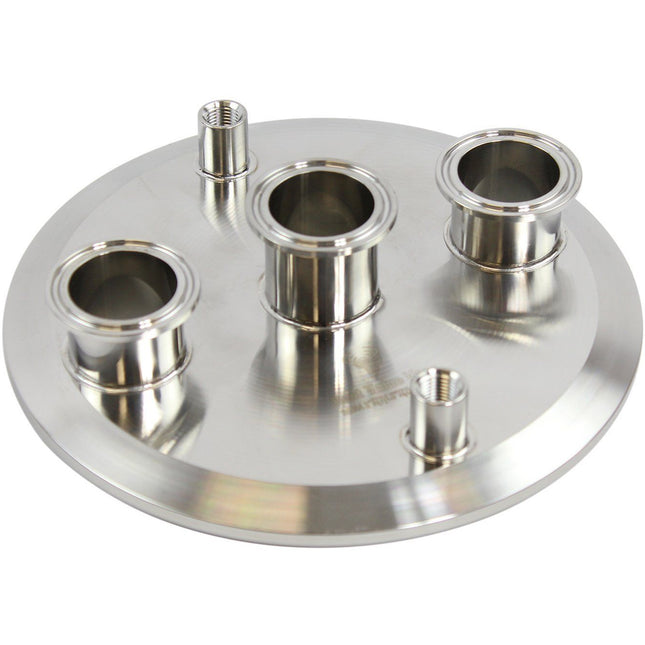

8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap
8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Tri Clover Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 0.5" Tube Extension on the center 1.5" ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 5 connections are welded on an 8" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Type: 1.5" Tri-Clamp - 0.5" Tube Extensionon center ferrule Below Lid 8" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap - Drawing BVV™ 8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap - End Cap Chart
$299.08
8" x (3) 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid
8" x (3) 1.5" Tri-Clamp Tri Clover x (4) 1/4" FNPT Hemispherical Lid Our Tri-Clamp Hemisperical Lid delivers superior rating performance and is commonly found in systems operating over 100 PSI. This End Cap comes with Four 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a 3" Tube Extension Below the Lid. The tube extension is designed to keep extracts from dripping on the inside of the lid, to minimize cleanup and maximize yield. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 7 connections are welded on a 8" Hemispherical Tri-Clamp End Cap. Specifications: Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 8" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 8" x (3) 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 8" x (3) 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$240.72
8" Hemispherical End Cap with Coil
8" Hemispherical End Cap with Coil This 8" Hemispherical End Cap with Coil comes standard with our 150L Conical Reactor. Complete with 2X 1/2" NPT accessory ports, 2X 1/4" NPT accessory ports, 2X 1/2" NPT ports for the coil, and a single 1.5" tri-clamp top port. This versatile part is perfect for those looking to add extra surface area to their heating or cooling application. From the 8" tri-clamp to the bottom of the coil measures 34".
$656.52$459.56
10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap
10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp/ Tri Clover Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension center ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 5 connections are welded on a 10" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Type: 1.5" Tri-Clamp - 0.5" Tube Extension on center ferrule Below Lid 10" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap - Drawing BVV™ 10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap - End Cap Chart
$320.96

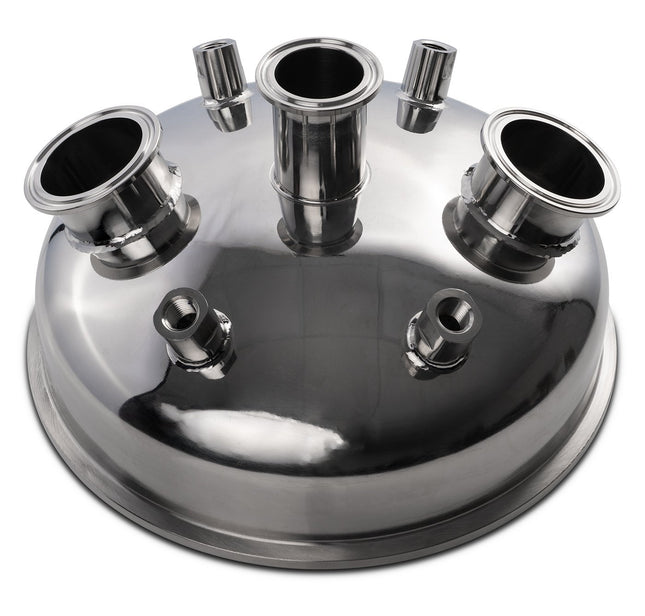

10" Tri-Clamp x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid
10" Tri-Clamp/ Tri Clover x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid This End Cap comes with Four 1/4"-18 FNPT Threaded connection and One 1.5" Tri-Clamp ferrule and Two 2" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 7 connections are welded on a 10" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Type: 1.5" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 2" Tri-Clamp 10" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 10" Tri-Clamp x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 10" Tri-Clamp x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$357.44

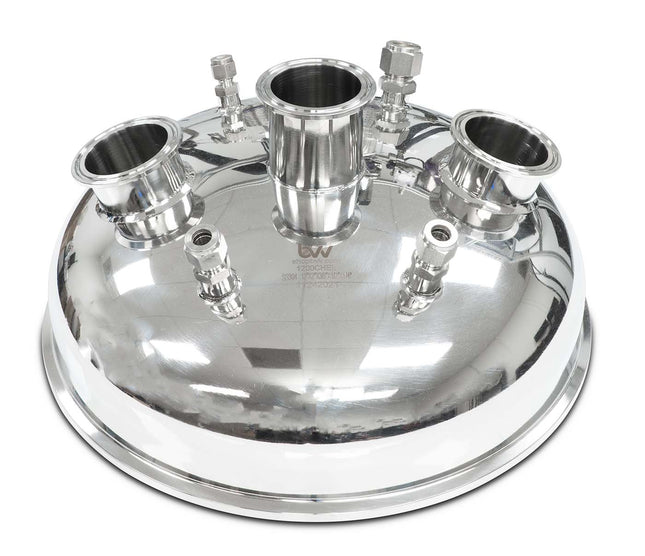

BVV Compression 10" Tri-Clamp x (2) 2" Tri-Clamp x (1) 1.5" TriClamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid
BVV Compression 10" Tri-Clamp x (2) 2" Tri-Clamp x (1) 1.5" TriClamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid This End Cap comes with (4) Compression connections and (2) 1.5" and (1) Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a tube stub connection to the (1) 1/4", (2) 3/8", and (1) 1/2" port on a Tri-Clamp lid and the Tri-Clamp Connections. These 7 connections are welded on a 10" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: (2) 2" and (1) 1.5" Tri-Clamp with 3" Tube Extension Below Lid on Center Tri-Clamp Port 10" Tri-Clamp (1)1/4", (2) 3/8" and (1)1/2" Female Compression Connections Standard: 3A
$517.92

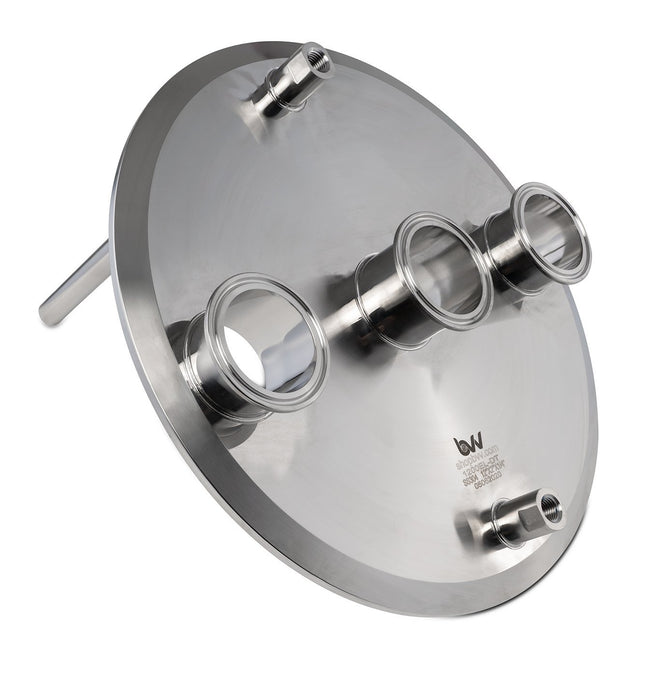

12" x (3) 2" x (2) 1/4 FNPT Endcap with Diptube
12" x (3) 2" x (2) 1/4 FNPT Endcap with diptube This End Cap come with a 11-5/16" long diptube, Two 1/4"-18 FNPT Threaded connection and Three 2" Tri-Clamp/ Tri Clover ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension on center ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 2" Tri-Clamp Connection. These 5 connections are welded on a 12" Tri-Clamp End Cap. Specification Material: 304 Stainless Steel Connection Type: 2" Tri-Clamp - 0.5" Tube Extension on center ferrule Below Lid 11-5/16" Diptube 12" Tri-Clamp 1/4" - 18 FNPT Standard: 3A
$357.44
12" x (3) 2" x (2) 1/4 FNPT Endcap
12" x (3) 2" x (2) 1/4 FNPT Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 2" Tri-Clamp/ Tri Clover ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension on center ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 2" Tri-Clamp Connection. These 5 connections are welded on a 12" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 2" Tri-Clamp - 0.5" Tube Extension on center ferrule Below Lid 12" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 12" x (3) 2" x (2) 1/4 FNPT Endcap - Drawing BVV™ 12" x (3) 2" x (2) 1/4 FNPT Endcap - End Cap Chart
$379.32

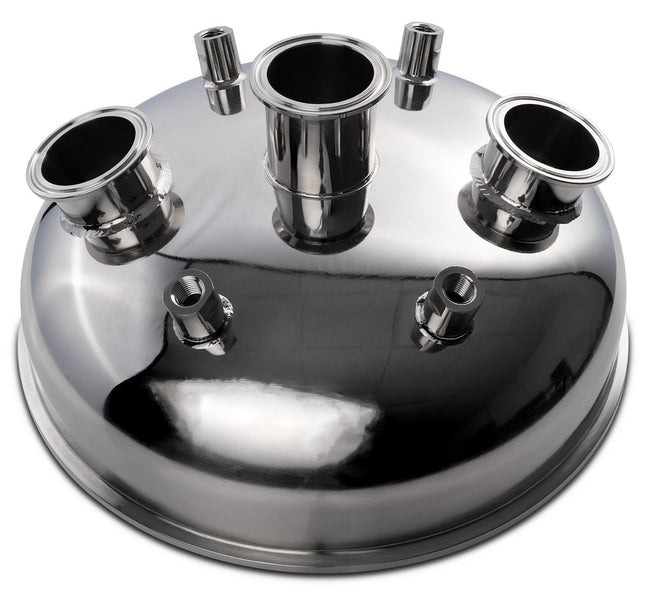

12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid
12" Tri-Clamp/ Tri Clover x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid This End Cap comes with Four 1/4"-18 FNPT Threaded connection and Three 2" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 2" Tri-Clamp Connection. These 7 connections are welded on a 12" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 2" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 12" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$496.04
BVV Compression 12" Tri-Clamp x (3) 2" Tri-Clamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid
BVV Compression 12" Tri-Clamp x (3) 2" Tri-Clamp x (2) 3/8" Compression x 1/4" Compression x 1/2" Compression Hemispherical Lid This End Cap comes with (4) Compression connections and (3) 2" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a tube stub connection to the (1) 1/4", (2) 3/8", and (1) 1/2" port on a Tri-Clamp lid and the Tri-Clamp Connections. These 7 connections are welded on a 12" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: (3) 2" Tri-Clamp with 3" Tube Extension Below Lid on Center Tri-Clamp Port 12" Tri-Clamp (1)1/4", (2) 3/8" and (1)1/2" Female Compression Connections Standard: 3A
$605.46

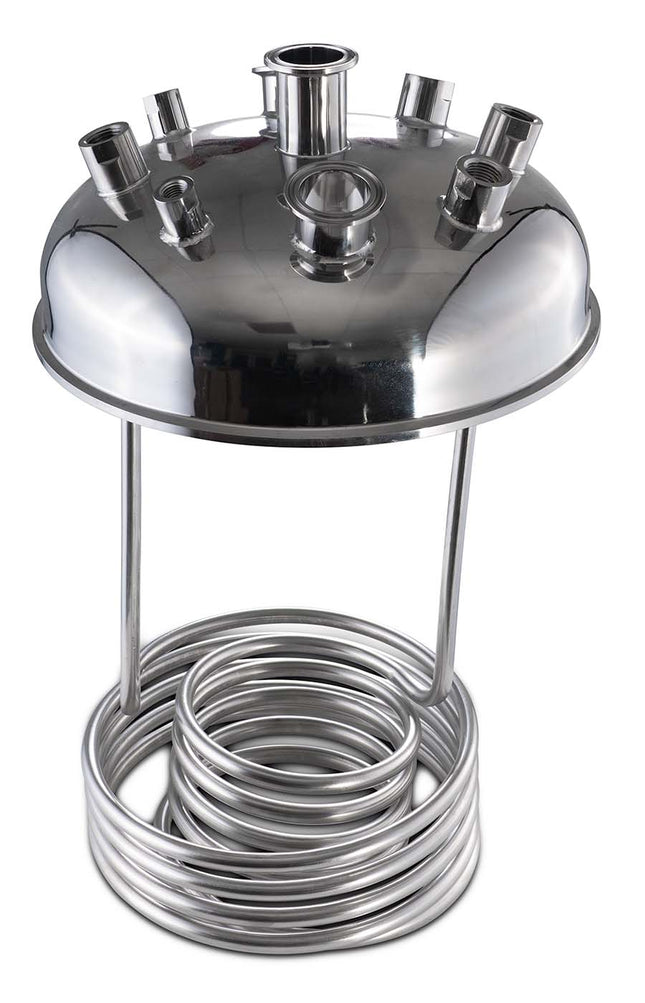

12" x 12" Hemi Lid with Coil V2
12" x 12" Hemi Lid with Coil V2 This 12" Hemi Lid has a built in coil that can be used with a heated circulator to assist with internal temperature control during the recovery process. This hemi lid must be used with our 1200X12S and 1200FJS for proper fitment. PDF DRAWING
$692.99

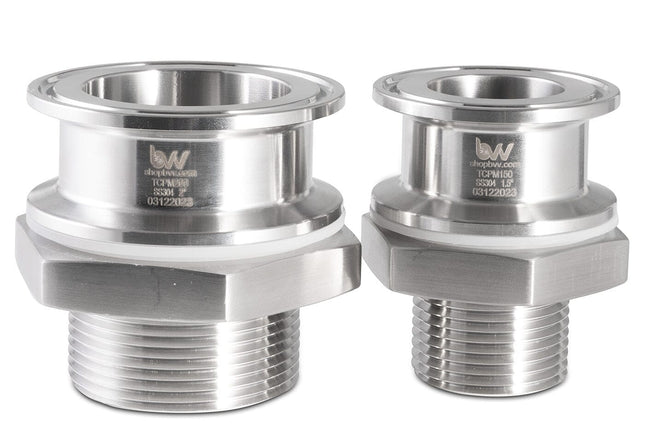

Panel Mount Tri-Clamp with Nut
Panel Mount Tri-Clamp with Nut This tri clamp panel mount can be mounted through a flat panel such as vacuum chamber or tank. It has a silicone or buna-n tri clamp gasket that is placed on the outside of the chamber. It will be able to hold vacuum, but not positive pressure. For best vacuum results, vacuum greases is recommended on the sealing surface of the panel/lid. Max wall thickness: .875" Hole Size: TCPM150- 1.3-1.4" TCPM200- 1.9-2.0" Thread Size: TCPM150- 1" NPS TCPM200- 1.5" NPS
$40.85 - $48.14
Stainless Steel 24/40 x 1.5" Tri-Clamp Adapter
Stainless Steel 24/40 x 1.5" Tri-Clamp/ Tri Clover Adapter This Custom Built 304 Stainless Steel Adapter allows the user to adapt to a 24/40 ground glass joint to a 1.5" Tri-Clamp fitting to allow the user to connect the glass joint to a Tri-Clamp system.
$80.24

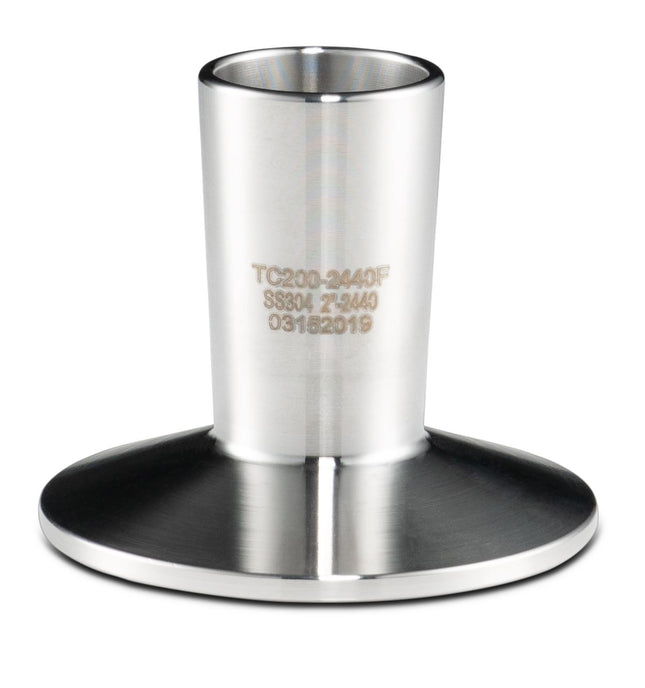

Stainless Steel Tri-Clamp x Female Joint Adapter
This unique adapter allows the user to adapt a Tri-Clamp fitting to a male ground joint glass fitting and it is made out of 304 stainless steel.
$43.77 - $51.06

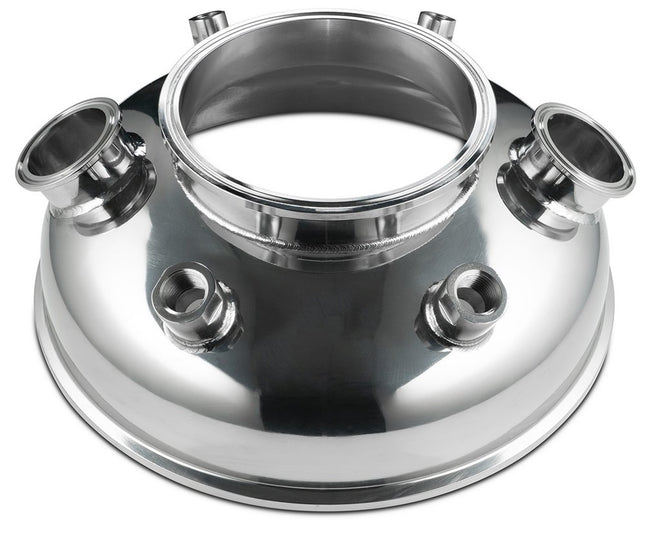

12" Hemispherical Extractor Lid with 6" Triclamp Center
12" Hemispherical Extractor Lid with 6" Triclamp Center This End Cap comes with Four FNPT Threaded connections, two 2" Tri-Clamp ferrules welded to the end cap, and a 6" Tri-Clamp center port. They allow the user to adapt and connect threaded connections to the NPT ports and Tri-Clamp lid connections to the others. These 7 connections are welded on a 12" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 2" Tri-Clamp (2x) 6" Center Tri-Clamp Port 12" Tri-Clamp 1/4" - 18 FNPT (x2) 1/2" - 14 FNPT (x2) Standard: 3A
$437.68
