Bends / Splitters
45° Tri-Clamp 316 Stainless Steel
45° Tri-Clamp / Tri Clover 316 Stainless Steel Specification Material 316 Stainless Steel Connection Type Tri-Clamp
$10.21 - $14.59

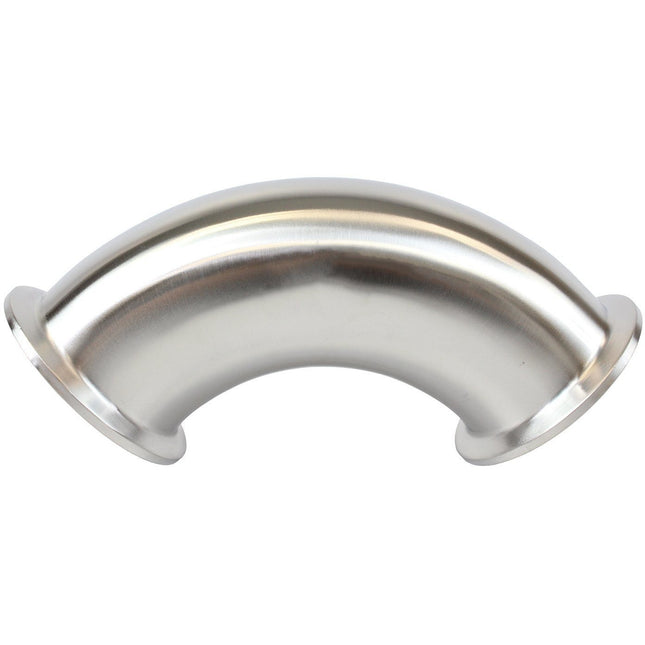

90° Degree Elbow Tri-Clamp Bend
90° Degree Elbow Tri-Clamp Bend Specifications: 304 Grade Stainless Steel w/ High Polish interior Fits 1.5", 2",4" or 6" Tri-clamp / Tri Clover Unique 90 Degree Bend Disclaimer:All Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractor DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.User assumes all responsibility and risks of the system
$36.47 - $299.08

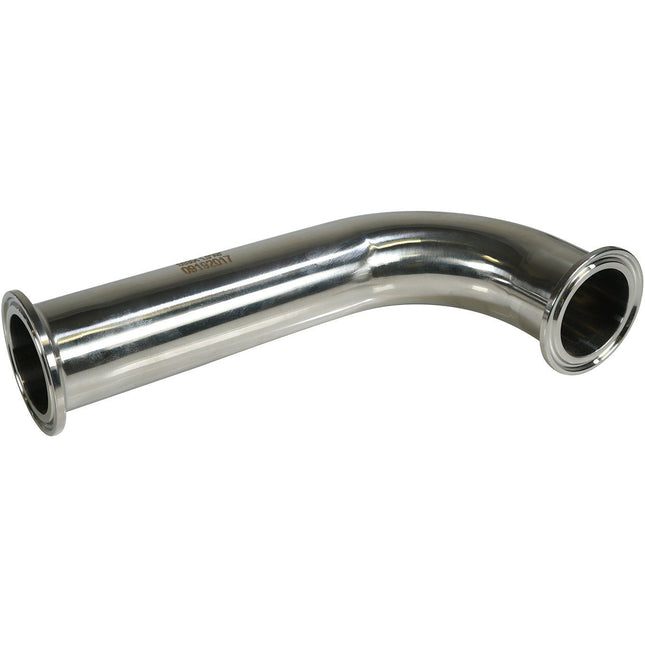

1.5" Tri-Clamp x 8" 90 Degree Bend
1.5" Tri-Clamp/ Tri Clover x 8" 90 Degree Bend This 1.5" Triclamp 90 Degree bend is extended out to 8" end to end to add extra length to the fitting. It is made out of 304 Stainless steel with a high polish interior and exterior. Specifications Material 304 Stainless Steel Connection Size 1.5" Tri-Clamp Length 8" Standard 3A High Polish
$94.83
1.5" Fully Jacketed Tri-Clamp x 8" 90 Degree Bend
1.5" Fully Jacketed Tri-Clamp/ Tri Clover x 8" 90 Degree Bend This 1.5" Fully Jacketed Triclamp/ Tri Clover 90 Degree bend is extended out to 8" end to end to add extra length to the fitting. It is made out of 304 Stainless steel with a high polish interior and exterior and has (2) 1/2" FNPT ports on the outer jacket and is made to circulate fluid through the outer jacket to either condense or heat up the internal vapors or liquids. Specifications Material 304 Stainless Steel Connection Size 1.5" Tri-Clamp 1/2" FNPT Length 8" Standard 3A High Polish
$342.85

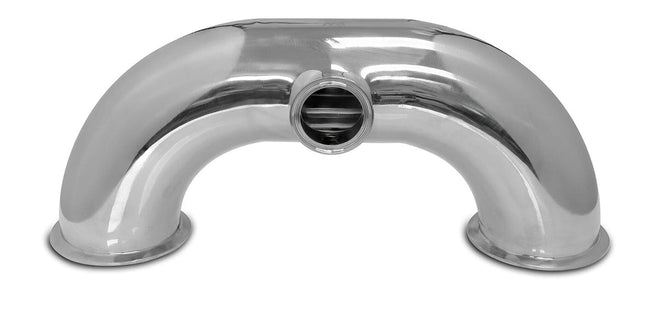

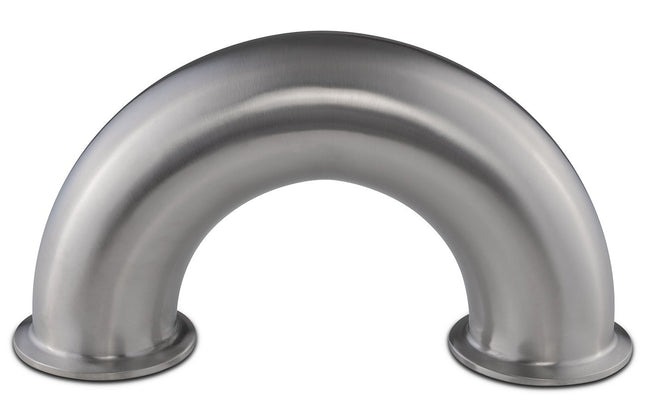

Tri Clamp / Tri Clover U-Bend
Tri Clamp / Tri Clover U-Bend Tri-Clamp / Tri Clover connection U-Bend made out of 304 sanitary stainless steel allows the user to make a 180 degree connection with their system and redirect flow as needed: Tri-Clamp / Tri-Clover Sizes Available: 1" (Fits 1.5" Tri-Clamp) 1.5" 2" 3" 4" 6"
$48.14 - $363.27

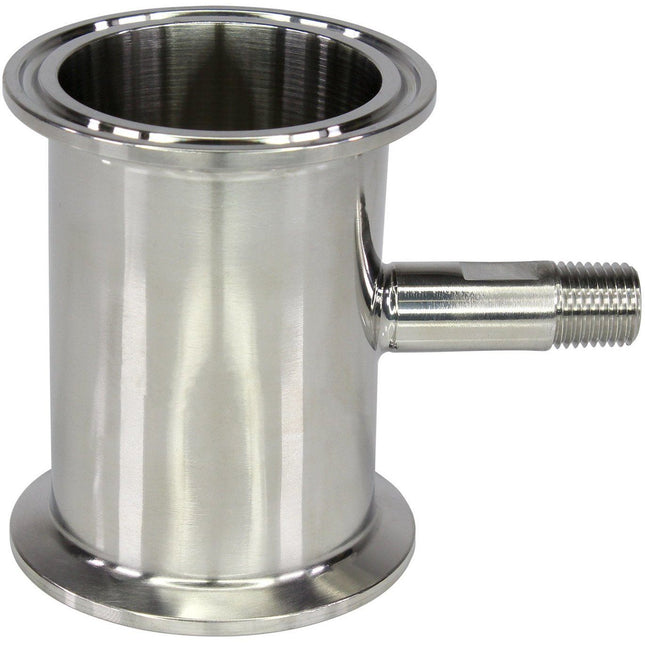

Tri-Clamp Spool x 3" Length x 1/4" MNPT
1.5" Tri-Clamp/ Tri Clover x 3" x 1/4" MNPT
$51.06
1.5" x 1" x 1/4" MNPT Terp Conical Reducer
1.5" x 1" x 1/4" MNPT Terp Conical Reducer This Terp conical reducer has a 1.5" Triclamp connection with a 1" Triclamp (fits 1.5" Triclamp) and a 1/4" MNPT port that allows the user to input a valve or a manifold to the reducer and inject solvent into the system.
$29.18

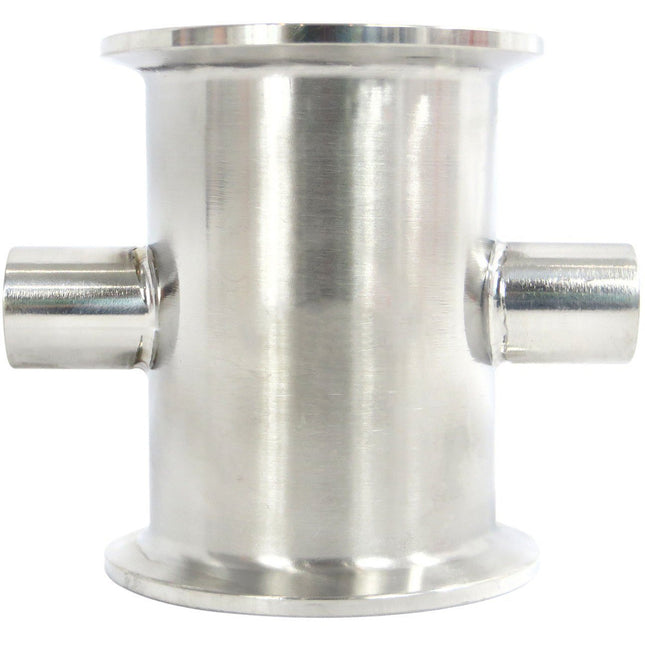

Triclamp Spool x 3" Length x (2)1/4" Female NPT
Specifications: 304 Grade Stainless Steel w/ High Polish interior Fits 1.5" or 2" Triclamp / Tri Clover (2)1/4" Female NPT Port 3" Tall Disclaimer: All Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractor DO NOT come with a standard 1-year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.User assumes all responsibility and risks of the system"
$51.06

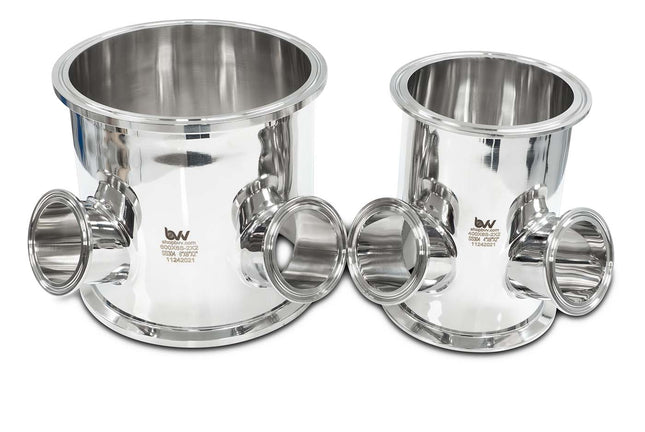

Tri-Clamp Spool with 2" Angled Ports
304 Stainless Steel Tri-Clamp Spools with 2" Angled Ports allow the user varying amounts of configuration and also the ability to put 2 sight glass end caps on the 2" Ports to allow the user to view the flow inside of a column or spool.Sizes Available: 4" Tri-Clamp x 6" Length x (2) 2" Angled Ports 6" Tri-Clamp x 6" Length x (2) 2" Angled Ports
$233.43 - $328.26

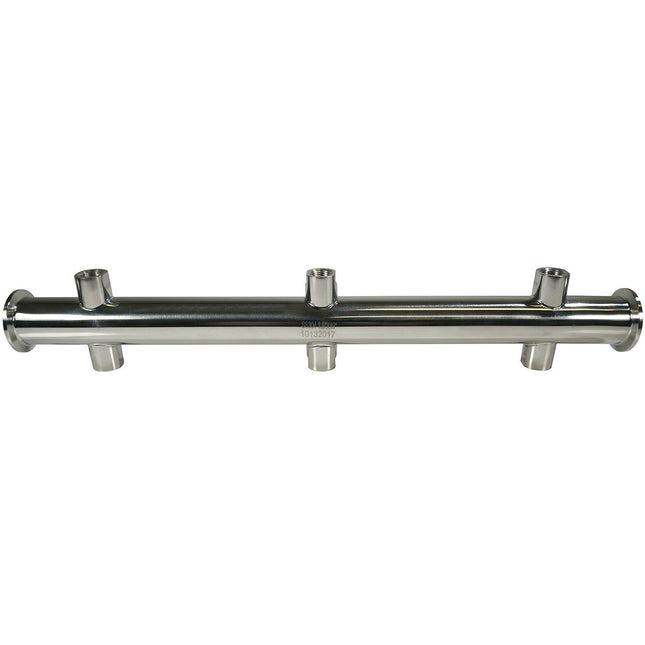

1.5" x 19" x 3/8" FNPT Tri-Clamp Manifold
1.5" x 19" x 3/8" FNPT Tri-Clamp Manifold This Tri-Clamp/ Tri Clover manifold is made out of 304 stainless steel and has 2 1.5" Triclamp connections at each end and (6) 3/8" FNPT threaded ports along the length of the manifold. This allows the customer to adapt this manifold to any extraction system allowing for maximum flow of vapor through the manifold. Specifications Material 304 Stainless Steel Connection Size 1.5" Tri-Clamp 3/8" FNPT Length 19" Standard 3A High Polish
$153.19

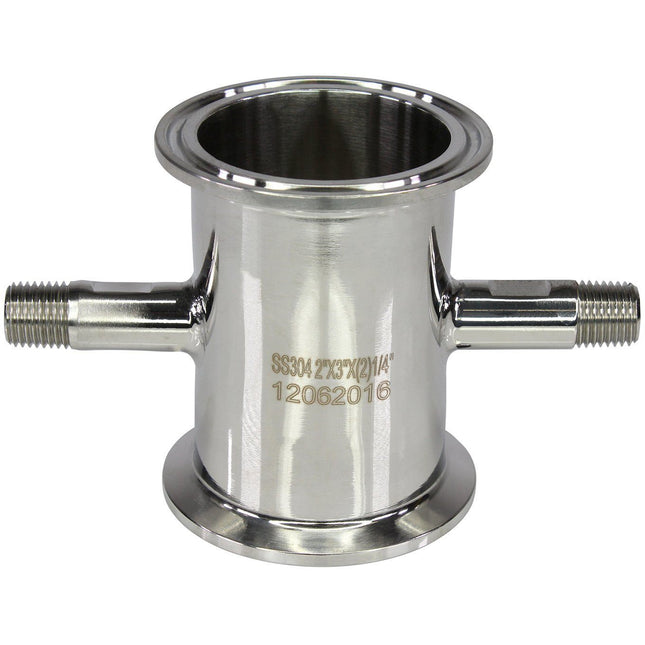

2" Tri-Clamp x 3" x (2) 1/4" MNPT
2" Tri-Clamp Tri Clover x 3" x (2) 1/4" MNPT This specialty spool with a 1/4" MNPT connection can be used for various reasons including a valve manifold to inject solvent into a column from the bottom allowing it to flow upwards spreading the solvent more evenly the top down method.
$36.47

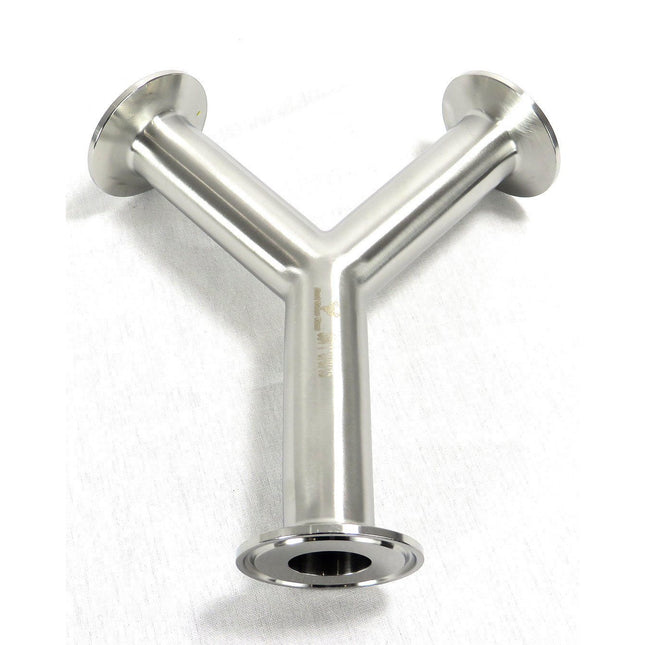

Triclamp / Tri Clover Y
Specifications: 304 Grade Stainless Steel w/ High Polish interior Fits 1" or 1.5" Triclamp Unique Y Connection Disclaimer: All Stainless Steel Parts bought seperately to piece together a Closed Loop, Closed Column, or Open Blast Extractor DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.User assumes all responsibility and risks of the system"
$33.56 - $46.69
Triclamp / Tri Clover T
Specifications: 304 Grade Stainless Steel w/ High Polish interior Unique T Style Connection Note: 1" and 1.5" use the same size Tri-Clamp connection Disclaimer: All Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractor DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.User assumes all responsibility and risks of the system"
$21.88 - $437.68

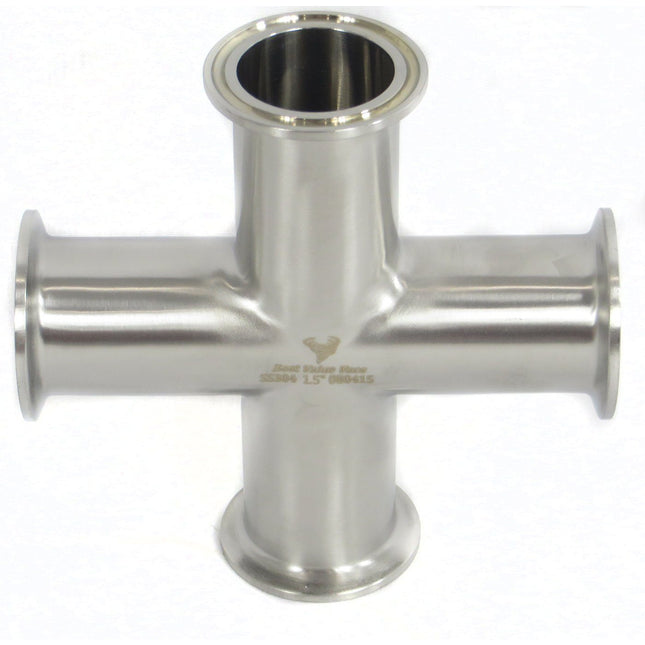

1.5" Tri-Clamp Cross
Specifications: 304 Grade Stainless Steel Fits 1.5" Tri-Clamp/ Tri Clover
$58.36

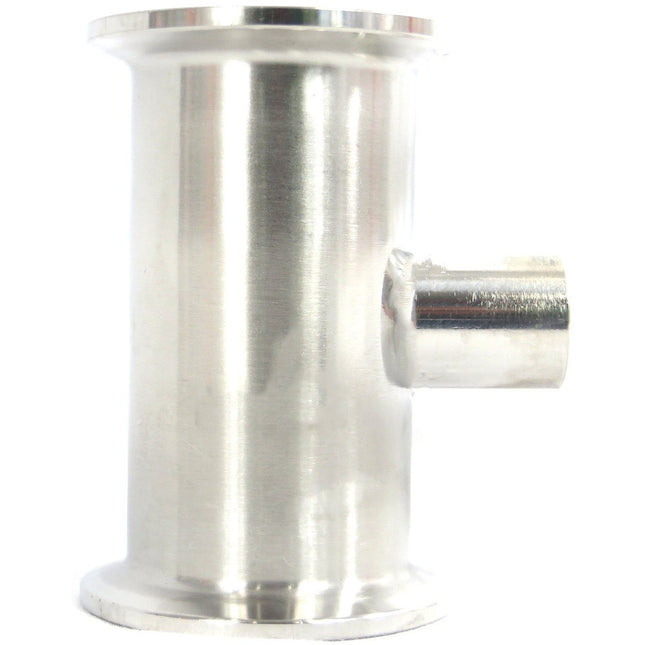

Triclamp Spool x 3" Length x 1/4" Female NPT
Specifications: 304 Grade Stainless Steel w/ High Polish interior Fits 1.5" or 2" Triclamp 1/4" Female NPT Port 3" Tall Disclaimer: All Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractor DO NOT come with a standard 1-year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.User assumes all responsibility and risks of the system" BVV™ Triclamp Spool x 3" Length x 1/4" Female NPT - Drawing
$51.06
