Vacuum Pump Oil

BVV™ Premium Vacuum Pump Oil For Maximum performance and pump efficiency, change the oil after every evacuation. After evacuation, oil contains contaminants which limit pump efficiency. Premium vacuum pump oil can be used in any vacuum pump to maintain and prolong the life of the pump. Drain immediately after evacuation while pump is warm. Slowly add oil to top of "oil level" line. If oil is to low, you will hear the exhaust baffle chatter. If oil level is too high, excess oil will be blown out of the exhaust. Non detergent-Extra Pure-Hydroprocessed-ISO 400   BVV™ Premium Vacuum Pump Oil Safety Data Sheet .PDF

Read more less

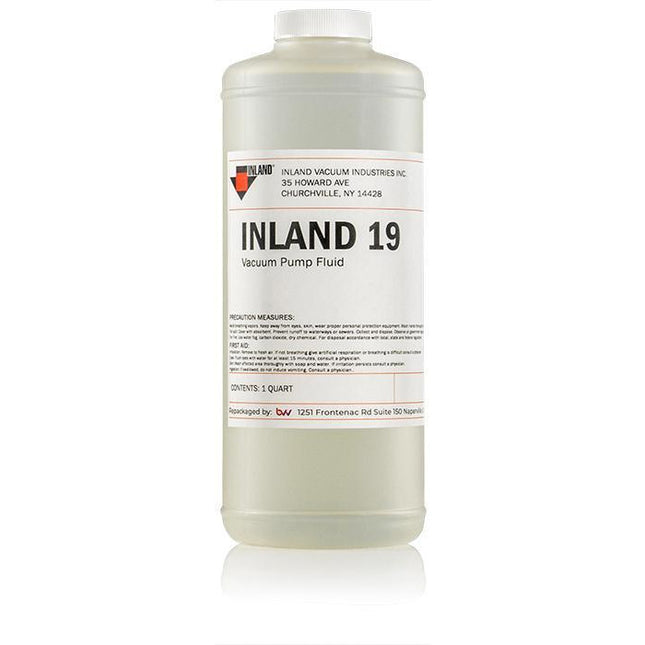

Inland 19 Vacuum Pump Oil Inland 19 is Inland Vacuum’s recommended general-purpose hydrocarbon fluid for mechanical vacuum pumps used in non-corrosive applications. The manufacturing process of Inland 19 includes molecular distillation, which removes light end fractions present in the fluid and gives it the desired properties: lower vapor pressures, reduced backstreaming, and longer fluid life. As a result, it can be used within the same applications as more expensive diffusion pump oils which would otherwise be contaminated by a vacuum oil of lower grade.A durable, long-lasting mechanical pump fluid, Inland 19 is cost-effective in vacuum applications such as mass spectrometers, electron microscopes, thin-film sputtering, UHV systems, and freeze dry systems. Proper use of this oil effects reduced maintenance costs, improved pumping cycles, and a cleaner vacuum system. Inland 19 MSDS Properties: Molecularly distilled Reduced backstreaming Increased fluid life Low vapor pressure Areas of Application: Mass spectrometry Electron microscopy Thin film sputtering UHV systems Freeze dry systems Other non-corrosive general applications Specifications Inland 19 Vapor Pressure at 25ºC (torr) 1x10-5 Boiling Point at .01 torr (ºC) 112 Viscosity at 40ºC (cSt) 55 Pour Point (ºC) -15 Flash Point (ºC) 213 Fire Point (ºC) 244 Density at 25ºC (g/ml) 0.87

Read more less

Inland 19 ULTRA® Semi-Synthetic Vacuum Pump Oil Disclaimer: Spigots/Faucets are only compatible with 5 Gallon Jugs and must be purchased separately Inland ULTRA® products are semi-synthetic hydrocarbon fluids designed to endure thermal and chemical stresses much better than standard vacuum pump fluids. The ultra-refined process eliminates nitrogen, sulfur, oxygen, and aromatic hydrocarbons, leaving a clear base stock virtually free of impurities. The additive package will not volatize under thermal stress; the antioxidant will stay in solution and bond up to four times as many radicals as other antioxidants, extending the life of the pump and the fluid. Inland 19 ULTRA® MSDS Properties: Good Thermal Stability Oxidation Resistant Hydrotreated Low Vapor Pressure Long Fluid Life Areas of Application: Mass Spectrometry Electron Microscopy thin Film Sputtering Vacuum Distillation and impregnation UHV Surface Analysis Vacuum Furnaces and Heat Treatment EB Welding Vacuum Tube Evacuation Vacuum Metalization Chemical Pumping   Specification Inland 19 ULTRA Vapor Pressure at 25ºC (torr) <1x10-6 Boiling Point at .01 torr (ºC) 166 Viscosity at 40ºC (cSt) 55 Pour Point (ºC) -10 Flash Point (ºC) 247 Fire Point (ºC) Density at 25ºC (g/ml) 0.86 Color clear

Read more less

BVV's Top Recommended Vacuum Pump Oil Ultra long Service Life! Mobil Vacuum™ Pump Oil is a special lubricant that is designed to be used for the lubrication of critical vacuum pumps.  It has a very low vapor pressure and can be used when extremely high vacuum is required. It provides excellent wear and corrosion protection for vacuum pump components and will give the following benefits in service: Long lubrication life No viscosity change in use No odor or vapor generated Wide use temperature range Pulls vacuum down to 1micron or less (*BVV internal testing) SAE Grade 20, ISO Viscosity Grade 68 Safety Data Sheet  Product Data Sheet BVV's Testimonial: "Mobil Vacuum Pump Oil has an insane service life and at BVV we have migrated over to Mobile for all of our laboratory pump applications.  We use Mobil oil for Edwards, Welch, and the BVV Pro Series pumps.  From vacuum purging and distillation we know we need good oil to get low vacuum and the fact that we can run continually for months on the same oil is amazing.  This oil has led to less pump rebuilds and extended service life of our in house pumps used in our labs.  Overall Mobil is the most reliable oil we have ever used at BVV." Water vapor is a common contaminant in vacuum systems and tends to condense inside the pumps.  Mobil Vacuum Pump Oil has good demulsibility (Ability to separate oil from water) Which aids water removal and prevents its return to metal surfaces to cause rust and corrosion.   This oil has a high degree of chemical stability enabling it to resist oxidation and the subsequent formation of sludge and deposits, an essential characteristic in all cases where continuous service is involved. This enables the oil to retain its original properties such as viscosity and demulsibility and so to prolong oil service life.

Read more less

Harvest Right Vacuum Pump Oil (2-Pack) What's Included: 2-pack of vacuum oil (1 quart each) Details: 2-pack Premium High Vacuum Pump Oil Pour-point depressant for easier cold weather starts and faster lubrication of critical wear surfaces.  Anti-wear additives - Anti-foam additives - Oxidation inhibitors - Corrosion protection 1 U.S. Quart (0.946L) Vacuum pump oil may cause skin or eye irritation. In case of skin contact, thoroughly wash affected areas with soap and water. Seek medical attention if redness or irritation occurs. If swallowed, do not induce vomiting. Call a physician immediately. In case of eye contact, rinse eyes with water for 15 minutes and seek medical attention. KEEP OUT OF REACH OF CHILDREN This oil has cleaning additives that keep the pump cleaner. As a result, there can be an odor to the oil.

Read more less

Welch DuoSeal Vacuum Pump Oil, Liter 1407K-11 ***Note: This item has a possible 1-2 week lead time depending on stock availability.*** Use this specially fractionated oil for DuoSeal belt-driven pumps to ensure the highest vacuum performance. DuoSeal Oil performs to rigid standards for vapor pressure, vacuum level stability, and viscosity - providing the lubrication that helps enable renowned DuoSeal pump durability.

Read more less

Inland FF-10 Flushing Fluid Inland FF-10 is a solvent free hydrocarbon flushing fluid designed to be used as part of a preventive maintenance program. Periodic use of FF-10 will enable the user to remove contaminants and particulates from within all areas of the pump without the worry of contaminating the pump with an expensive solvent Specifications FF-10 Vapor Pressure at 25ºC (torr) 2x10-4 Viscosity at 40ºC (cSt) 28 Viscosity at 100ºC (cSt) 4.5 Flash Point (ºC) 199 Fire Point (ºC) 221 Density at 25ºC (g/ml) 0.85   Inland FF-10 Flushing Fluid Safety Data Sheet SDS

Read more less

Welch Premium Oil - Direct Drive Vacuum Pumps, Liter  Description: Welch Premium Oil - Direct Drive Vacuum Pumps derived from hydrotreated base, made for high performance in vacuum pump operation at elevated temperatures. Welch Premium vacuum pump oil resists breakdown in the high RPM operation environment of direct drive pumps. Enables direct drive pumps to maintain the highest vacuum performance over time. Low vapor pressure Excellent resistance to heat Designed for direct drive vacuum pumps

Read more less

Inland 70 Ultra Vacuum Pump Oil This is oil is a direct replacement for Edwards Ultragrade 70 oil. Specifications Inland 70 Ultra Vapor Pressure @25°C 1x10^-7 torr Viscosity @ 40°C 72 cSt Pour Point: -10°C Flash Point: 249°C Density: 0.86 g/ml Color: Clear   Inland 70 Ultra Safety Data Sheet PDF

Read more less

Inland 15A Vacuum Pump Oil     Inland 15A Vacuum Pump Oil Safety Data Sheet SDS

Read more less

Inland 56 Vacuum Pump Oil The Inland 56 is an equivalent to the Leybold LVO 200 oil. This oil can be used in pumps specifically designed for pumps that use the Leybold LVO 200 oil. Inland 56 Vacuum Pump Oil Safety Data Sheet SDS

Read more less

Agilent Diffusion Pump Oil Agilent diffusion pump oil, recommended for Agilent AX-65 diffusion pump (do NOT fill more than 30mL oil at a time).

Read more less
