Specialty Fittings

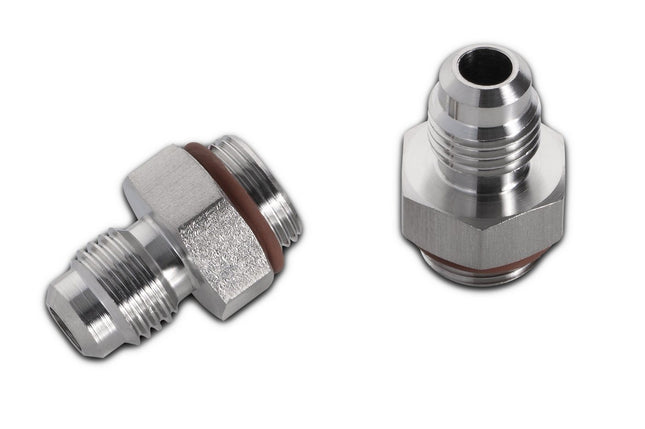

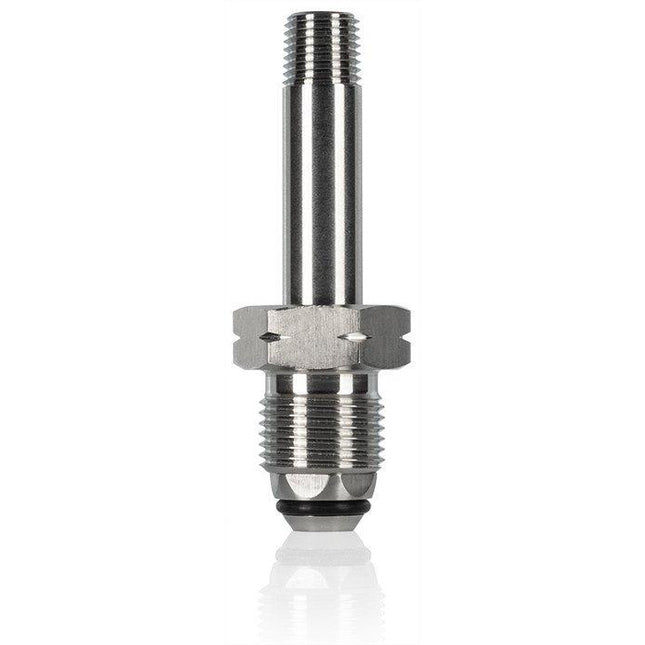

Stainless Steel Butane/Propane Tank Fitting CGA 510 Custom Stainless Steel CGA 510 Butane and Propane Tank Fitting with Viton O-Ring. Specifications: CGA 510 Thread with Viton O-ring seal and either 1/4" MNPT or 1/4", 3/8", 1/2" Flare Material: Stainless Steel

Read more less

Custom CGA 510 Butane and Propane Tank Fitting. Removes the need for taping and reduces leak points Specifications: CGA 510 x 1/4" 37° JIC Flared End Material: Brass

Read more less

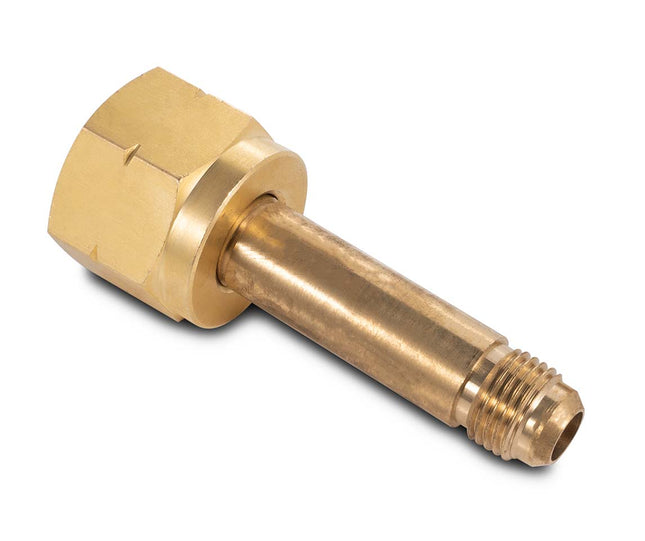

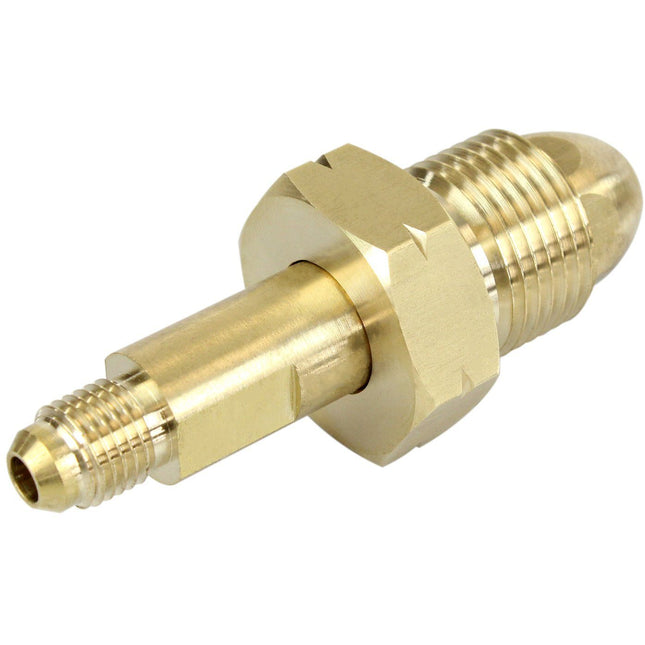

This brass CGA 555 fitting allows the user to adapter to a LPG cylinder with CGA 555 thread type and convert it to either 1/4" or 3/8" MJIC.  This item includes: Nut Nipple Cap

Read more less

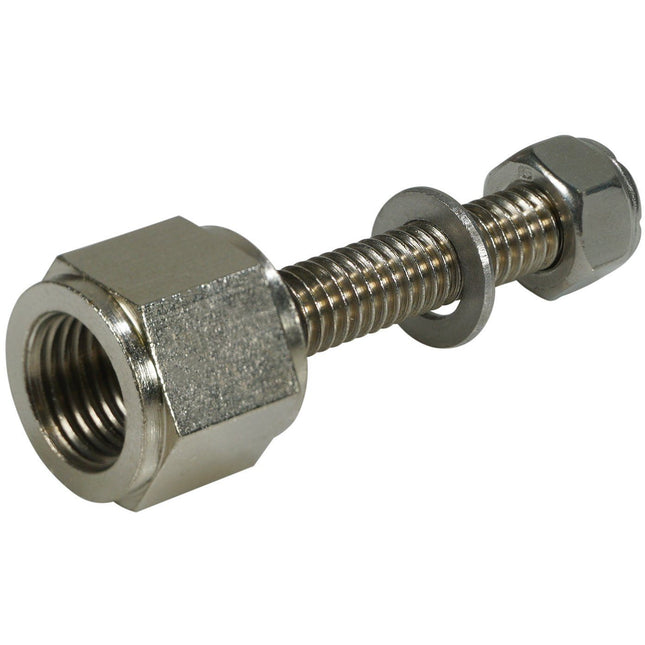

1/4" FNPT x 5/16-18 Bulkhead This bulkhead has a 1/4" FNPT threaded adapter and a 5/16-18 threaded screw adapter and is made out of nickel plated brass and comes with a buna-n O-ring, stainless steel washer, and nylon locknut.

Read more less

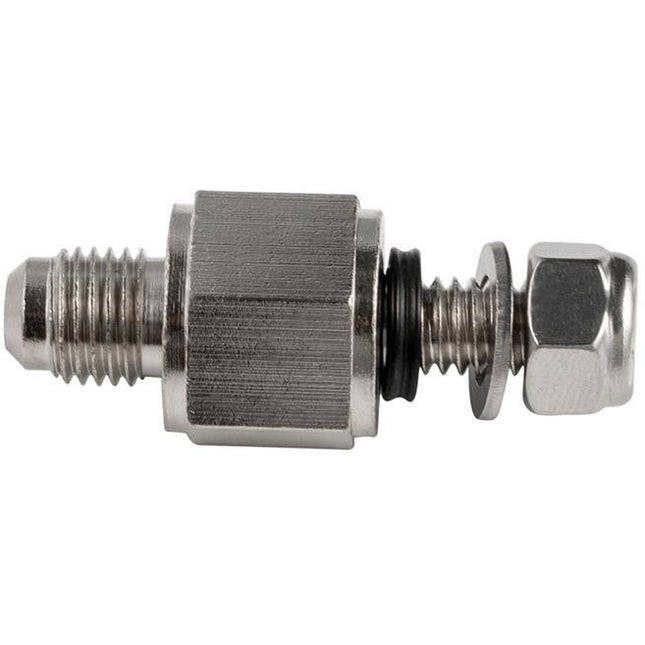

Cold Trap Flare with washer, O-ring and locknut This is a replacement Cold Trap Flare with stainless steel washer, Buna-N O-ring and nylon locknut. Connection sizes are 1/4" HVAC Flare with 5/16-18 threaded Stem.

Read more less

KPR Fitting Port Reducer   The KPR Fitting Port Reducer is made out of 316 stainless steel and reduces the port from 1/2"FJIC  to a 1/4" MJIC. The connection type is a 37° JIC with a 7/16-20 UNF rated thread.  BVV™ KPR Fitting Port Reducer - Data Sheet

Read more less

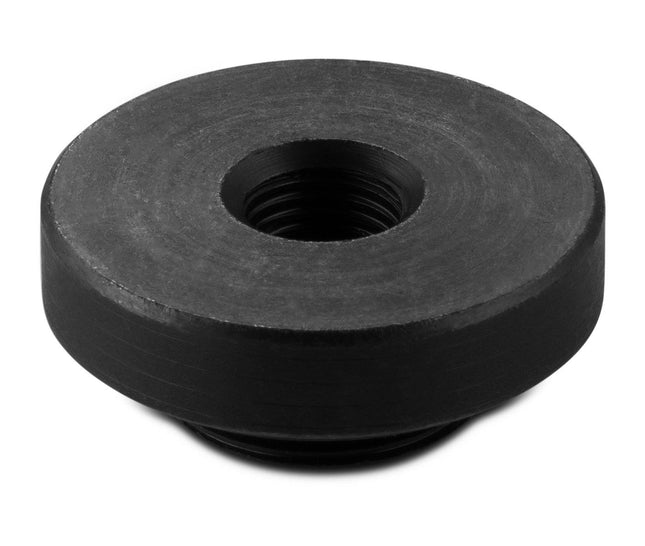

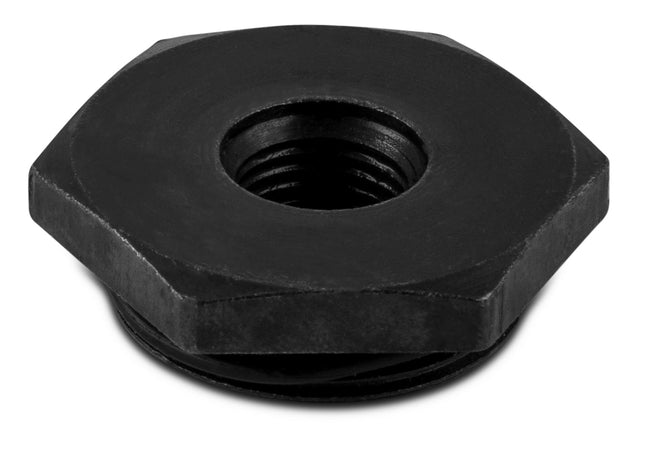

BVV/CPS 1/4" FNPT Vacuum Pump Exhaust Adapter   This fitting allows the user to connect a 1/4" NPT fitting to the exhaust for the desired application such as a carbon exhaust filter. It is made of steel and comes with a Viton O-ring.

Read more less

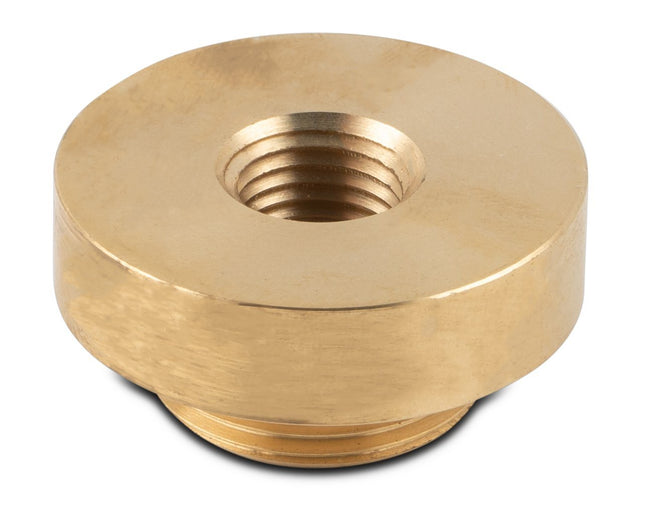

Mastercool 1/4" FNPT Vacuum Pump Exhaust Adapter This fitting allows the user to connect a 1/4" NPT fitting to the exhaust for the desired application such as a carbon exhaust filter. It is made of brass and comes with a Viton O-ring.

Read more less

Koby Adapter for BVV VE Pumps Series    This fitting allows the user to connect a 1/4" NPT fitting to the exhaust for the desired application such as a carbon exhaust filter. It is made of steel and comes with a Viton O-ring.

Read more less

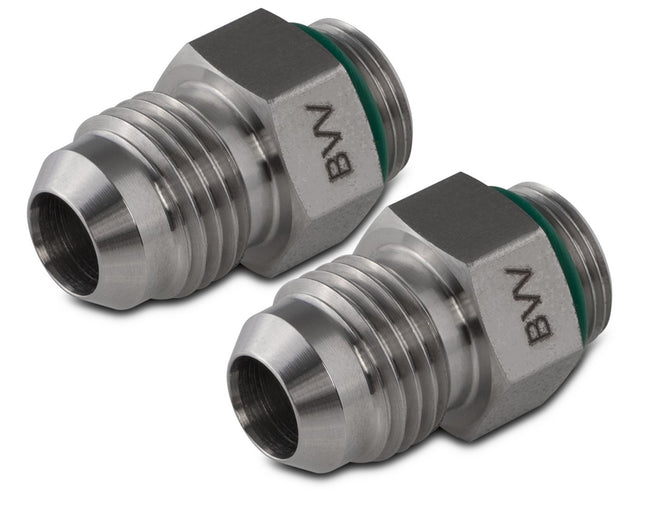

Includes a Pair of Custom 3/8" 37  degree JIC fittings that adapt on to any TRS21 pump. (Does not include Pump) ***Note: This Adapter SHOULD NOT BE OVERTIGHTENED. Hand Tight with 1/4 Wrench turn will complete the face seal of the O-ring. (PTFE Thread Tape is NOT Required for this connection) ***Note: Always use 2 Wrenches while tightening the hose to the flare to stop the gasket from being crushed.

Read more less

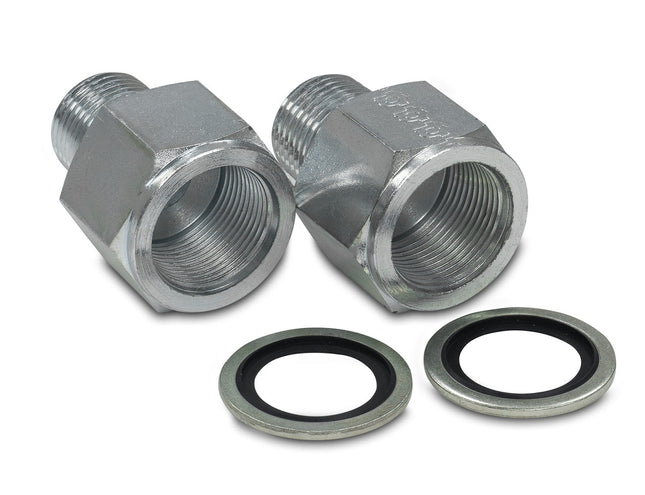

BVV M24 - 1/2" MNPT Huber Adapter This zinc plated adapter is meant to be used on Huber Unistats with male M24 threads to adapt to 1/2" MNPT. These fittings must be used in conjunction with M24 Bonded seal washers to create a complete seal.     Bonded Seal Specifications For Thread Type Metric For Gender Male For Thread Size M24 Washer Material Steel Gasket Material Buna-N Rubber Temperature Range -20° to 230° F Thickness 2mm RoHS RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel

Read more less

Huber adapter M16x1f-1/2"m Adapter M16x1 f - R1/2 m Adapter M16x1 f - R1/2 m M16x1 female thread to R1/2 male thread

Read more less

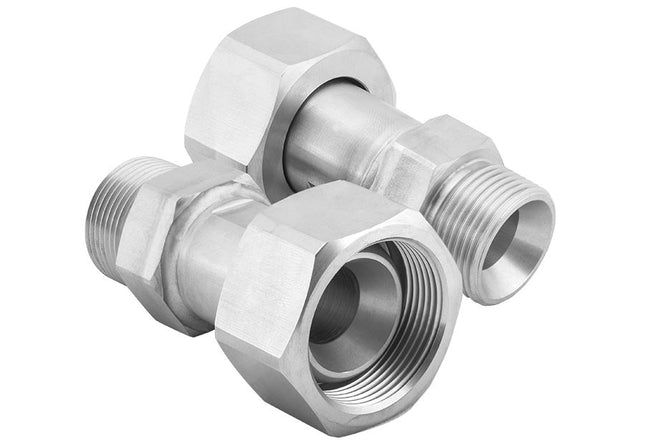

Adapter 8890069 M24x1.5 m to M30x1.5 f   2 Adapters M24x1.5 male to M30x1.5 female

Read more less

Adapter M30x1.5 male to male   Adapter M30x1.5 male to male

Read more less

Julabo Adapter 8891609 M16x1 f to NPT 1/2″ f 2 Adapters M16x1 f. to NPT 1/2″ f.

Read more less

Julabo Adapter M16x1 f to NPT 1/2″     2 Adapters M16x1 f. to NPT 1/2″ m.

Read more less

Adapters M24x1.5 female to NPT 1/2" male   2 Adapters M24x1.5 female to NPT 1/2″ male

Read more less

This unique adapter allows the user to adapt a 3525 Ball Joint fitting to a male ground joint glass fitting, NPT, or KF Fitting and it is made out of 304 stainless steel.

Read more less

Adapter Kit, For IBC Hose, Includes 3 (2" NPS Female, 2" Camlock, S60x6 Female Buttress), For 26BNZ1     26BNZ4 3 Piece Adapter Kit for IBC Hose 26BNZ1 (IBC Kit w/ 10" Hose & PP Nozzle w/ 1" Camlock Coupler). Kit includes: 1" Camlock adapter x 2" NPS female Easy-Seal 2" Camlock coupler X 1" Camlock adaptor male 1" Camlock adapter x S60X6 female buttress     Disclaimer:  This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility. ShopBVV does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer's selection and use of containers, container and label dimensions, and/or closures supplied by us.

Read more less

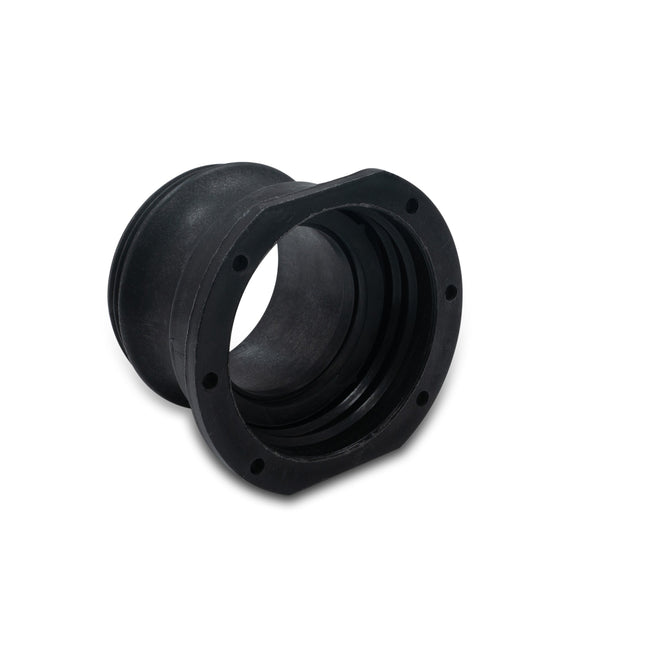

Part A 2" Stubby Metric Cam Lock Adaptor   This adapter converts 2" (50mm) male buttress pipe threads to a 2" male camlock. The adapter incorporates female buttress threads on one end and a male Camlock (also known as a quick-disconnect or QD) on the other for connecting pipes and valves with different ends. Made of tough polypropylene (PP), this adapter also incorporates an ethylene propylene diene monomer (EPDM) gasket for a leak-tight connection. Shallow profile ensures valve does not protrude past IBC tote cage. Key benefits: Converts 2" male buttress pipe thread to a 2" male quick-disconnect 2" long profile does not protrude past IBC cage during transport Combo camlock/NPT end allows use of a shallow NPT cap Made of PP EPDM gasket ensures a secure seal Suitable for use in a wide variety of liquid handling applications Proudly Made in the USA   Material: Polypropylene (PP) is a tough plastic that has good chemical resistance. PP is translucent in its natural state but can have a glossy finish when produced with color. Some examples of common products made with PP are dairy and medication containers. Polypropylene is suitable for hot fill applications of up to 165°F and is therefore great for autoclaving. It is not recommended for cold or sub-freezing temperatures. The Cary Company has an assortment of polypropylene plastics available for purchase, such as plastic caps and jars, which have a higher tolerance for chemical products.   Disclaimer:  This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.     Material PP Dimensions 2.4" Dia. x 1.02" H Weight 0.1 lbs. Case Pack 200 ea. Case Dimensions 15" L x 15" W x 16" H Case Weight 20 lbs. Pallet Pack 4,800 ea. (24 Cases) Pallet Dimensions 40" L x 48" W x 60" H Pallet Weight 480 lbs. Country of Manufacture United States Gasket EPDM Rubber Gasket

Read more less

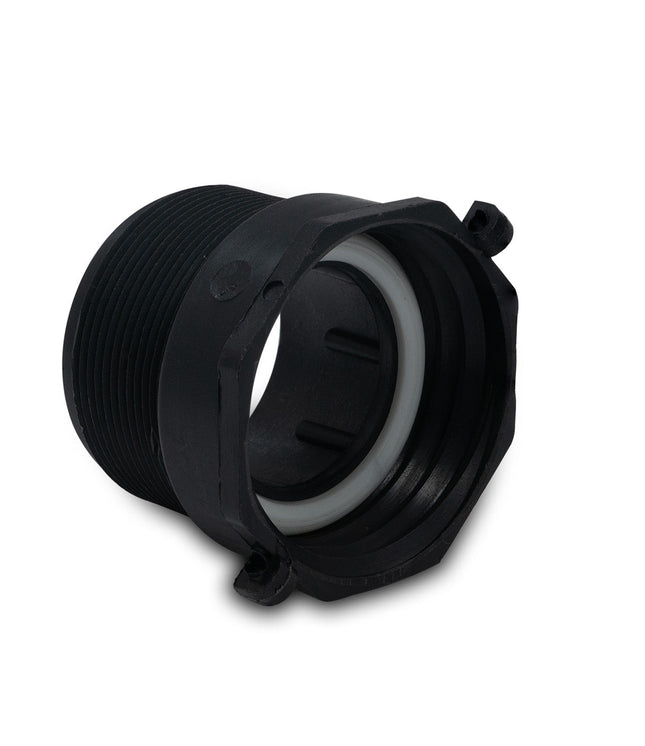

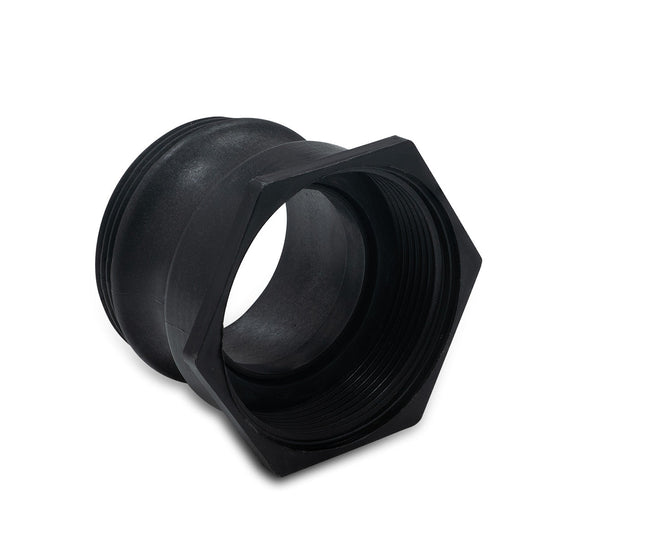

 2" Stubby Buttress to NPT Adaptor This adapter converts 2" (50mm) male buttress pipe threads to 2" male NPT pipe threads. The adapter incorporates female buttress threads on one end and male NPT threads on the other for connecting pipes and valves with different ends. Made of tough polypropylene (PP), this adapter also incorporates an ethylene propylene diene monomer (EPDM) gasket for a leak-tight connection. Shallow profile ensures valve does not protrude past IBC tote cage. Key benefits: Converts 2" male buttress pipe thread to a 2" male NPT pipe thread 2" long profile does not protrude past IBC cage during transport Made of PP EPDM gasket ensures a secure seal Suitable for use in a wide variety of liquid handling applications Proudly Made in the USA   Material: Polypropylene (PP) is a tough plastic that has good chemical resistance. PP is translucent in its natural state but can have a glossy finish when produced with color. Some examples of common products made with PP are dairy and medication containers. Polypropylene is suitable for hot fill applications of up to 165°F and is therefore great for autoclaving. It is not recommended for cold or sub-freezing temperatures. The Cary Company has an assortment of polypropylene plastics available for purchase, such as plastic caps and jars, which have a higher tolerance for chemical products.   Disclaimer:  This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.     Material PP Dimensions 2.4" Dia. x 1.02" H Weight 0.135 lbs. Case Pack 200 ea. Case Dimensions 15" L x 15" W x 16" H Case Weight 27 lbs. Pallet Pack 4,800 ea. (24 Cases) Pallet Dimensions 40" L x 48" W x 60" H Pallet Weight 648 lbs. Country of Manufacture United States Gasket EPDM Rubber Gasket Note: Color may vary.

Read more less

Part A 2" Stubby NPT to Cam Lock Adaptor     This adapter converts 2" (50mm) male NPT pipe threads to a 2" male camlock. The adapter incorporates female NPT threads on one end and male camlock (also known as a quick disconnect or QD) on the other for connecting pipes and valves with different ends. Made of tough polypropylene (PP), this adapter also incorporates an ethylene propylene diene monomer (EPDM) gasket for a leak-tight connection. Shallow profile ensures valve does not protrude past IBC tote cage. Key benefits: Converts 2" male NPT pipe thread to a 2" male camlock 2" long profile does not protrude past IBC cage during transport Made of PP EPDM gasket ensures a secure seal Suitable for use in a wide variety of liquid handling applications Proudly Made in the USA     Material: Polypropylene (PP) is a tough plastic that has good chemical resistance. PP is translucent in its natural state but can have a glossy finish when produced with color. Some examples of common products made with PP are dairy and medication containers. Polypropylene is suitable for hot fill applications of up to 165°F and is therefore great for autoclaving. It is not recommended for cold or sub-freezing temperatures. The Cary Company has an assortment of polypropylene plastics available for purchase, such as plastic caps and jars, which have a higher tolerance for chemical products.       Disclaimer:  This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility.   Material PP Dimensions 2.4" Dia. x 1.02" H Weight 0.1 lbs. Case Pack 200 ea. Case Dimensions 15" L x 15" W x 16" H Case Weight 20 lbs. Pallet Pack 6,000 ea. (30 Cases) Pallet Dimensions 40" L x 48" W x 60" H Pallet Weight 600 lbs. Country of Manufacture United States Gasket EPDM Rubber Gasket

Read more less

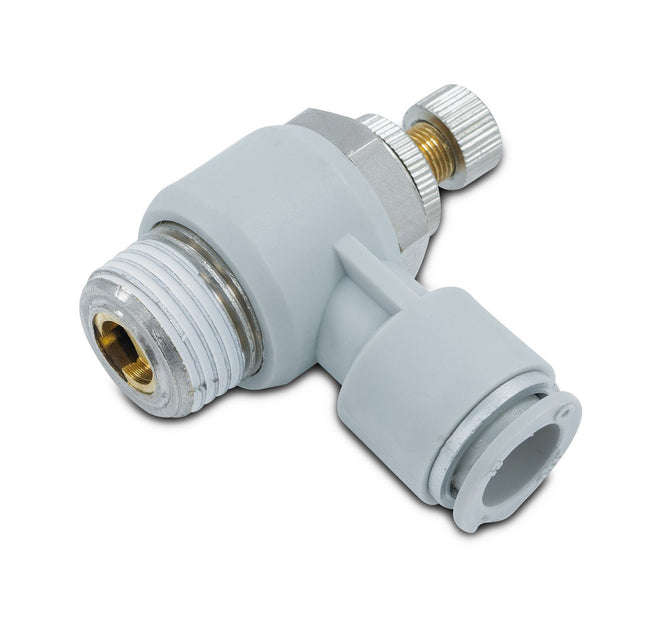

Throttle Valves for Pneumatic Presses Throttle Valve used to control the speed of your pneumatic press. Replace the fitting on the output side of your regulator. Thread Size: 1/2" NPT, Quick Connect Air Hose Size: 12mm

Read more less

10' PVC Hose Kit, PP Nozzle, 1" Female Camlock, for Drums or IBC Totes     The 26BNZ1 is an IBC Kit with a 10' PVC hose and Polypropylene (PP) 1" nozzle with 1" camlock couple that dispenses liquids from drums. The kit needs to be used with the 26BNZ4. The 1" OD nozzle has a Viton O-Ring. The dispensing nozzle is hand operated and both the hose and nozzle are resistant towards chemicals.   Disclaimer:  This information has been provided as a general guide. It is the customer's responsibility to select the proper container for product and application compatibility. The Cary Company does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer's selection and use of containers, container and label dimensions, and/or closures supplied by us.

Read more less

 Compressed Gas Regulators Thread Size M11x1.0 All Made in Italy or Japan Our regulators are threaded and designed to fit our compressed gas tanks.  Nitrogen, Argon, and Best Whip Nitrous Oxide cylinders.  These are very high quality regulators, these are typically sold aerospace companies.   You will be more than impressed with the quality and durability of these regulators.  You definitely get what you pay for with these!  *All regulators in this listing do not come with hoses, or cylinders.  What is being sold is the regulator only.  Regulators gauges read in BAR, not PSI Regulator Variant Product SKU Output Fitting Fits Regulates To Bare Regulator  M11x1-CR 1/8 BSPT Female N/A 80psi Argon Regulator ARGON-130G-R 1/4" Hose Barb Any 1/4" ID Tubing 80psi Argon Duster DUSTER-5/8-DK 3" Straw N/A 5psi Nitrogen Regulator NITROGEN-130G-R 1/4" JIC Any 1/4" JIC Hose 80psi

Read more less

Male Luer to 1/4 NPT Male, Fitting Material Brass- Nickle Plated.

Read more less

Panel Mount Tri-Clamp with Nut This tri clamp panel mount can be mounted through a flat panel such as vacuum chamber or tank. It has a silicone or buna-n tri clamp gasket that is placed on the outside of the chamber. It will be able to hold vacuum, but not positive pressure. For best vacuum results, vacuum greases is recommended on the sealing surface of the panel/lid. Max wall thickness: .875" Hole Size:  TCPM150- 1.3-1.4" TCPM200- 1.9-2.0" Thread Size:  TCPM150- 1" NPS TCPM200- 1.5" NPS

Read more less

1" Camlock adapter x S60X6 Female Buttress Tote Adapter.
