Chapter 6: Isolation Glossary

Biomass: Generic plant matter used in extraction. Composed of flowers, leaves, and other plant parts.
Boiling Point: The boiling point of a substance is the temperature at which the vapor pressure of the liquid equals or exceeds the pressure surrounding the liquid causing the liquid to vaporize, observed as boiling.
Botanical Extract: An extract created from botanical biomass material.

Buchner Funnel: Laboratory equipment used for filtration.
Butane: An organic compound with four-carbon atoms classified as an alkane that is used for extraction.

Centrifuge: A device that uses centrifugal force to separate various compounds within a fluid.
Closed Loop System: Extraction equipment that contains the solvent within a closed system without exposure to open-air.

Crystallization: The alignment or organization of atoms or molecules into a structure known as a crystal.
Decarboxylation: A reaction that removes a carboxyl group.
Distillate: The condensed vapor product of distillation.

Distillation: The action of purifying a liquid by a process of heating and cooling.
Evaporation: The process of turning a liquid into a vapor.
Extraction: The process of separating compounds via force or solvents.
Extractor: The person, machine, or piece of equipment used for extraction.

Filter: To pass a liquid through a device to remove unwanted material.
Fractional Distillation: Separation of a mixture into fractions differing in boiling points.
Freezer: A refrigerated compartment, cabinet, or room used for the preservation of goods in a cooled atmosphere.
Gas: An expanded substance or matter having no fixed shape or volume.

Glassware: A variety of scientific equipment made of glass.

GRAS: Generally Recognized as Safe a designation of a substance by the Food and Drug Administration.
Heptane: A nonpolar alkane hydrocarbon consisting of seven carbon atoms.
Hot Plate: A Flat heated surface used for conduction.
Hydrocarbon: A compound consisting of hydrogen and Carbon.
Insoluble: (of a substance) incapable of being dissolved.

Isolate: A person, group, or thing that has been isolated.
Micron (pore size): A measurement used to describe the sizes of very small objects (μm Micrometer).

Nonpolar: A molecule without positive or negative poles.
Phase Change: The physical process of transition between the basic states of matter.

Polar: having electrical or magnetic polarity.
Polarity: The separation of an electric charge which leads the molecule to have a positive and negative end.
Post-Processing: The process of further refining extracted resin or tinctures.
Propane: A three-carbon alkane used for extraction.
PTFE: A synthetic fluoropolymer used for adhesion of threaded pipes or joints.
Purge: The act or instance of eliminating contamination from a substance.
Reactor: A glass or metal device used to mix a solution in a contained atmosphere.
Rotary Evaporator: A device used for the separation of solvents from samples via evaporation through the rotation of the boiling flask.
Saturation: The degree or extent to which something is dissolved or absorbed compared with the maximum possible.
Saturation Limit: The maximum amount of a substance that can be dissolved within a solvent.
Selectivity (solvent): The preferential dissolving of one component of a liquid or solid from a mixture than of another.

Soluble: (of a substance) able to be dissolved.
Solubility: The ability of a given substance, the solute, to dissolve in a solvent.
Solute: The minor component in a solution, dissolved in the solvent.
Solution: A mixture in which the minor component is uniformly distributed into the major component to form a homogeneous mixture.
Solvent: A material able to dissolve other substances.
Solvent Recovery: The process of extracting useful materials from waste or by-product solvents generated during manufacturing.
SOP (Standard Operating Procedure): A documented process set in place to ensure services or products are delivered consistently.

Supersaturation: Containing an amount of a substance greater than that required for saturation.
Tri-Clamp: A quick-release mechanical joint for pipes, valves, or fittings in sanitary installations.

Vacuum: A space devoid of matter
Vacuum Oven: A heated low-pressure environment used for delicate drying processes.
Vapor: A substance in the gas phase.
Vapor Pressure: The pressure exerted by a vapor in thermodynamic equilibrium with its condensed phase at a given temperature in a closed system.
Viscosity: The thickness of a fluid.
Winterization: The process of removing the lipids from a botanical extract by cooling and filtering.

EVAPORATIVE  CRYSTALLIZATION

Jacketed Diamond Miner By BVV

Evaporative crystallization utilizes the evaporation of the crystallization solvent in order to supersaturate a solution and achieve crystallization of a target crystalline compound. Supersaturation occurs when the solute concentration is pushed beyond the solvent's solubility capacity at a given temperature. When a solution is supersaturated, it holds more dissolved solute than its maximum saturation capacity, which triggers the precipitation of a crystalline structure out of the solution. Saturation is defined as the maximum amount of a solute that will dissolve in a given amount of solvent at a specific temperature. A solution is considered saturated at a given temperature when no more solute can be dissolved within the solution.

Evaporative crystallization achieves supersaturation of a solution by the evaporation of solvent from the solution reducing the solution's overall amount of solvent. Supersaturation is achieved when enough solvent within a solution is evaporated, thus pushing the solution beyond its saturation capacity. Upon supersaturation, a solution contains more dissolved solute than solvent is capable of holding. This results in the clustering and alignment of a crystalline compound within the solution producing a crystalline structure precipitating out of the solution.

For teaching purposes, let us say 5lbs of butane can dissolve a maximum of 1lb of a target crystalline compound at 24C/75F inside a closed system. This would be its maximum saturation capacity; it is incapable of dissolving any more of that compound. If we were to evaporate off 1lbs of the butane, the remaining solution would become supersaturated, meaning that the solution contains more dissolved solute than it is capable of maintaining dissolved. Once supersaturation of the solution is achieved, it triggers the clustering and alignment of a crystalline compound within the solution, resulting in a crystalline structure precipitating out of the solution.

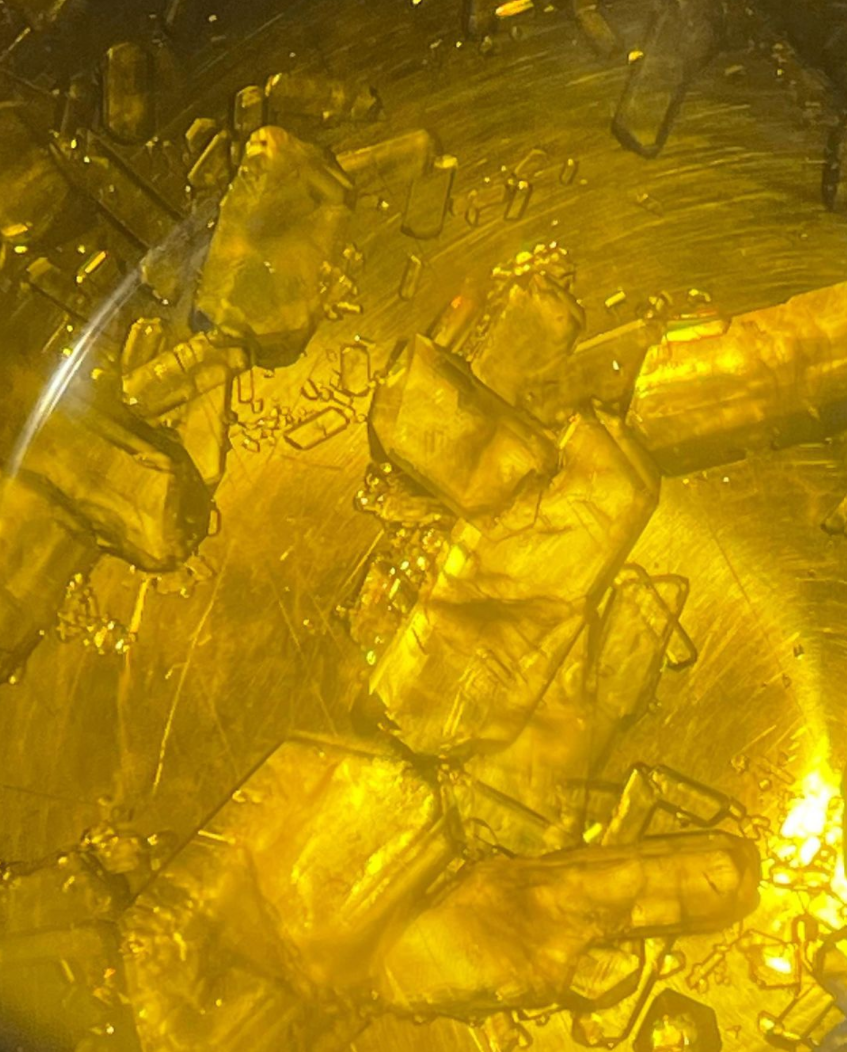

Crystals By Chemtek

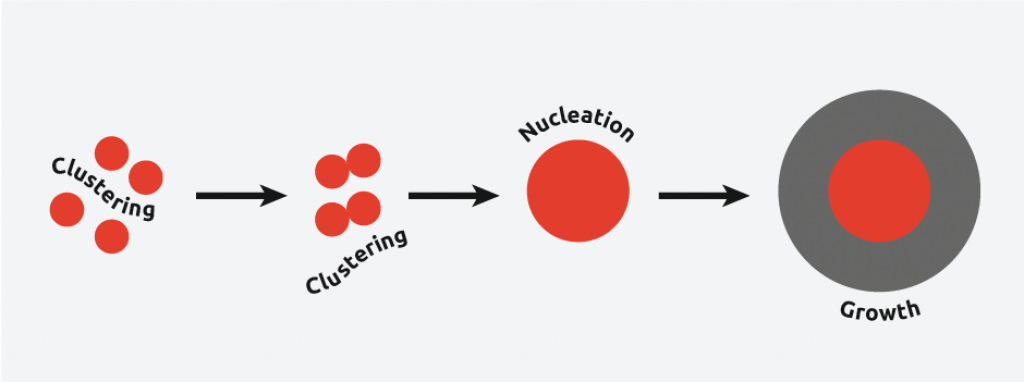

This process of precipitating a crystalline compound out of a solution is referred to as crystallization. Crystallization is the process by which a solid forms, due to the alignment of molecules into a structure known as a crystal. During evaporative crystallization, this process occurs in three major steps:

1. The supersaturation of the solution

2. The spontaneous precipitation of a crystalline structure within the solution referred to as nucleation

3. The increase in the size of the initial crystalline structure referred to as crystal growth achieved via further supersaturation

The attributes of the resulting crystal depend largely on factors of supersaturation achieved via fluid evaporation. Typically, slower fluid evaporation forms a larger crystalline structure, triggering more crystal growth than nucleation.  The supersaturation level of the solution drives the initiation of nucleation. As a solution becomes more supersaturated, molecules of the same crystalline compound cluster within a solution arranging themselves into a crystalline structure. Nucleation happens spontaneously over time when a solution is supersaturated. This process can take days or weeks, depending on the starting purity of the solution and its level of saturation.

Prior to nucleation, the solvent should be slowly evaporated from the solution until nucleation spontaneously occurs. Once nucleation of the initial crystalline structure is achieved, and crystal growth slows, further crystal growth can be attained through greater supersaturation. Crystal growth is a dynamic process occurring in equilibrium with a solution's saturation capacity. The target crystalline molecules precipitate out of the solution and dissolve back into the solution based on the solution's level of supersaturation.  Supersaturation is the main driving force behind crystal growth. Once crystal growth has slowed, solvent evaporation can be utilized to supersaturate the solution further and promote more crystal growth. Careful control of the supersaturation level of the solution is critical to ensure the desired crystal size distribution.

Evaporative Crystallization By Oleum Extracts

The process of nucleation can be skipped through the introduction of a seed crystal of the target compound, acting as a starting point for crystal growth to occur. Regardless of seeding once a crystal has been nucleated. Crystal growth is accelerated by further evaporating solvent from the solution slowly or incrementally. Commonly this process is performed by a quick off-gassing of the vessel to supersaturate the solution further. This is typically performed once crystal growth has halted to re-accelerate crystal growth. As the crystals grow, light agitation can also be utilized to negate the clumping of crystals.

Evaporative crystallization is most commonly performed with a highly volatile solvent like butane and propane. These light hydrocarbons' low boiling points are ideal for evaporative crystallization because the solvent can be evaporated from the solution easily to increase supersaturation without overheating the solution and redissolving the crystals. This section will utilize butane as both our crystallization solvent and our extraction solvent with evaporative crystallization in mind. When planning to perform evaporative crystallization after an initial butane extraction the initial extraction of the target crystalline compound should be performed to limit the pickup of impurities and maximize the concentration of the target crystalline compound. This is most commonly achieved by chilling the butane prior to extraction and refining the resulting solution through inline adsorbent filtration.

Typically, the greater the solution’s starting purity, the greater the isolation yield. Once the refined extraction solution has made its way to the collection vessel, the solvent recovery process will be initiated, recovering the bulk of the solvent, leaving enough butane remaining in the solution to achieve supersaturation. Evaporating the majority of the solvent from the solution increases the solute concentration past its solubility threshold, achieving supersaturation. Once near supersaturation is achieved, typically gauged by a slight increase of viscosity of the solution, the supersaturated solution is then transferred to a pressure vessel, and the slow evaporation of solvent further supersaturates the solution until nucleation is achieved. After the initial nucleation is achieved, small amounts of solvent can be evaporated from the solution once crystal growth slows, increasing supersaturation and re-initiating crystal growth.

Once satisfied with crystal precipitation, the remaining mother liquor solution can be separated via vacuum filtration or centrifugal separation before vacuum purging both products separately. Once both products have been sufficiently purged, a sample of both should be sent out for third-party analysis to confirm potency and status free of residual solvents.

EVAPORATIVE CRYSTALLIZATION STANDARD OPERATING PROCEDURE

1. Purpose

The purpose of this procedure is to provide detailed instructions for butane crystallization from an initial butane extraction.

2. Scope

This procedure applies to all lab technicians tasked with evaporative crystallization of a botanical extract.

3. Definitions/Acronyms

Personal Protection Equipment (PPE) Items worn to protect employees from exposure to hazardous materials and prevention of injury.

Safety Data Sheet (SDS) Provides useful information on chemicals, describing the hazards the chemical presents, and giving information on handling, storage, and emergency measures in case of an accident.

4. Safety

1. SDS Sheets: Butane SDS:

2. PPE: The following should be worn by all lab personnel while extracting and performing this crystallization procedure :

   1. Protective eyewear

   2. Lab coat

   3. Gloves

5. Hazard Identification

1. Preparation and Use:
   Target compounds will be extracted from biomass material with butane as the solvent. The recovery of the solvent from the solution will be done in a controlled manner to achieve supersaturation. The supersaturated solution will be stored under pressure for a period of time allowing for crystallization to occur.

   1. Concentration- Use a  High Purity 99.5% Butane (BVV)

   2. Quantity- 5lb of Butane per 1lb of biomass

   3. Frequency- An initial volume of solvent is used, no more is added.

   4. Location- Extraction occurs within a C1D1 environment, inside of a closed-loop hydrocarbon extractor (BVV). Crystallization occurs in a secondary pressure-rated vessel (BVV) inside an appropriately rated C1D1 explosion-proof environment.

2. Potential Hazards and Risks

   See Butane SDS for detailed risks.

6. Preparation

1. Load the material column with fresh biomass packing the material tightly and evenly.

2. Assemble the closed-loop extractor and pressure test the system at 100 PSI for at least an hour to ensure the system is assembled correctly with no leaks. If pressure drops, proceed to identify the leak with soapy water and disassemble and reassemble as necessary. If pressure is held, depressurize the system and proceed to the next step.

3. Attach a spark-free vacuum pump to the collection base of the closed-loop system and open all process flow valves from the collection vessel to the source solvent tank. This will ensure the solvent tank valve is fully closed before pulling the entire system under vacuum. Once the system has reached  -30mmHg, close all processing flow valves on the system isolating each vessel, and turn off the spark-free vacuum pump.

3. Proceed to chill the extraction solvent to (-30C or colder) through the use of dry ice or an appropriately sized chiller.

5. Once the extraction solvent has been sufficiently chilled, remove the solvent tank from the chilling bath, place it onto a refrigerant scale and record the starting weight.

7. Procedure

1. If possible, pressurize the solvent tank with nitrogen to 20 PSI. Open the liquid injection valve on the material column and pass the solvent through the material column at a 5:1 ratio (solvent: material).

2. After initial saturation of the material column, slowly open all processing flow valves from the material column, through the color remediation column, to the collection vessel and send the solution through an inline color remediation column directly into the collection vessel. Add additional nitrogen back pressure as necessary to collect the entirety of the extract solution.

3. Once the entirety of the solution has entered the collection vessel, close the collection vessel input valve and open recovery line valves from the collection base to the LP tank.

4. Turn on the heated recirculator, set the temperature to 50C/122F, and open all the recirculation valves to apply heat to the collection vessel.

5. Recover the majority of the starting solvent until supersaturation of the solution is achieved, indicated by a slight increase in viscosity, ensuring butane remains in the solution before closing recovery line valves.

6. Connect a pressure-rated crystallization vessel to the output of the collection base and send the supersaturated solution to the pressure-rated crystallization vessel.

7. Offgas the vessel in a C1D1 rated extraction booth for 1-2 hours until the solution stabilizes before sealing the vessel.

8. Ensure the vessel is completely sealed and store it for 1-2 weeks at  27-30C/80-86F, If crystallization doesn't occur off-gas the vessel to supersaturate the solution further and wait until crystals spontaneously nucleate.

9. Once nucleation has been achieved and crystal growth has diminished off-gas the vessel incrementally evaporates off small amounts of solvent to increase supersaturation and reinitiate crystal growth.

10. As the crystals grow, lightly agitate the solution to reduce crystal clumping as necessary.

11. Once desired crystal growth has been achieved, pour off the mother liquor into a pyrex dish and vacuum purge the extracts separately at 80-100F under full vacuum for 24-72 hours as necessary until no residual solvent remains.

12. Store crystals in a cool dark place to limit degradation.

13. Send out a sample for lab testing to confirm purity and ensure all residual solvent has been removed.

COOLING CRYSTALLIZATION

5L Asahi Glass Benchtop Filter Reactor System By Cascade Sciences

Cooling crystallization is a purification technique utilized across many industries to isolate target crystalline compounds. In botanical extract refinement, this is typically performed by dissolving a highly refined distillate above 80% purity of the target crystalline compound into a crystallization solvent by applying heat and cooling the solution to achieve supersaturation of the solution resulting in the precipitation of the target crystalline compound.

In order to perform an efficient cooling crystallization, the starting solution must be relatively pure, with the higher the starting purity, the better. Typically a highly refined distillate with greater than 80% purity of the target crystalline compound will be used as input to perform a cooling crystallization. The process of cooling crystallization starts by first dissolving the high purity concentrate of the desired crystalline compound into the crystallization solvent through the application of heat and incrementally cooling the solution to achieve supersaturation resulting in the target compound precipitating out of the solution.

Cooling crystallization is typically performed utilizing a jacketed vessel with stirring capability where the crystallization is performed. A high-powered refrigerated heated circulator controls the temperature of the vessel to dissolve the solute into the crystallization solvent and trigger the crystallization process via cooling. A vacuum filtration apparatus is used to separate the resulting crystals from the mother liquor solution. A vacuum oven is utilized to purge the resulting crystals and mother liquor solution of residual crystallization solvent.

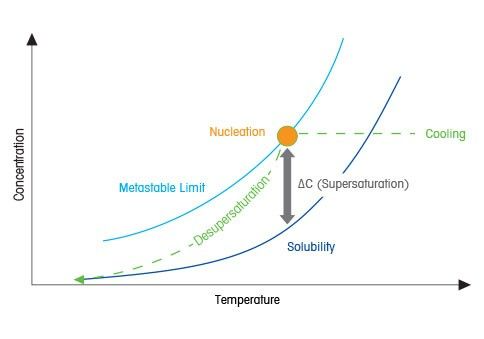

Solubility Curve By Mettler Toledo

In order to perform a cooling crystallization, the target crystalline compound we are looking to isolate needs to be dissolved into a solvent that the target compound is soluble in when heated but is insoluble in the same solvent at chilled temperatures.  The more insoluble at lower temperatures, the better, as this improves the theoretical yields over a practical temperature change by driving more of the target crystalline compound out of solution.

The ideal cooling crystallization solvent allows for the target compound to be fully dissolved within the solvent, forming a solution through the application of heat while triggering the precipitation of the same compound by reducing its solubility via cooling. The hydrocarbon solvents pentane and heptane are commonly utilized to perform cooling crystallization of nonpolar crystalline botanical compounds.

In most cases, these solvents are effective because they allow for the solubility of a compound to be increased through heat and decreased through cooling. This solubility difference between temperature ranges is the basis of cooling crystallization. This allows a crystalline compound to be dissolved with heat and precipitated from the solution when cooled.

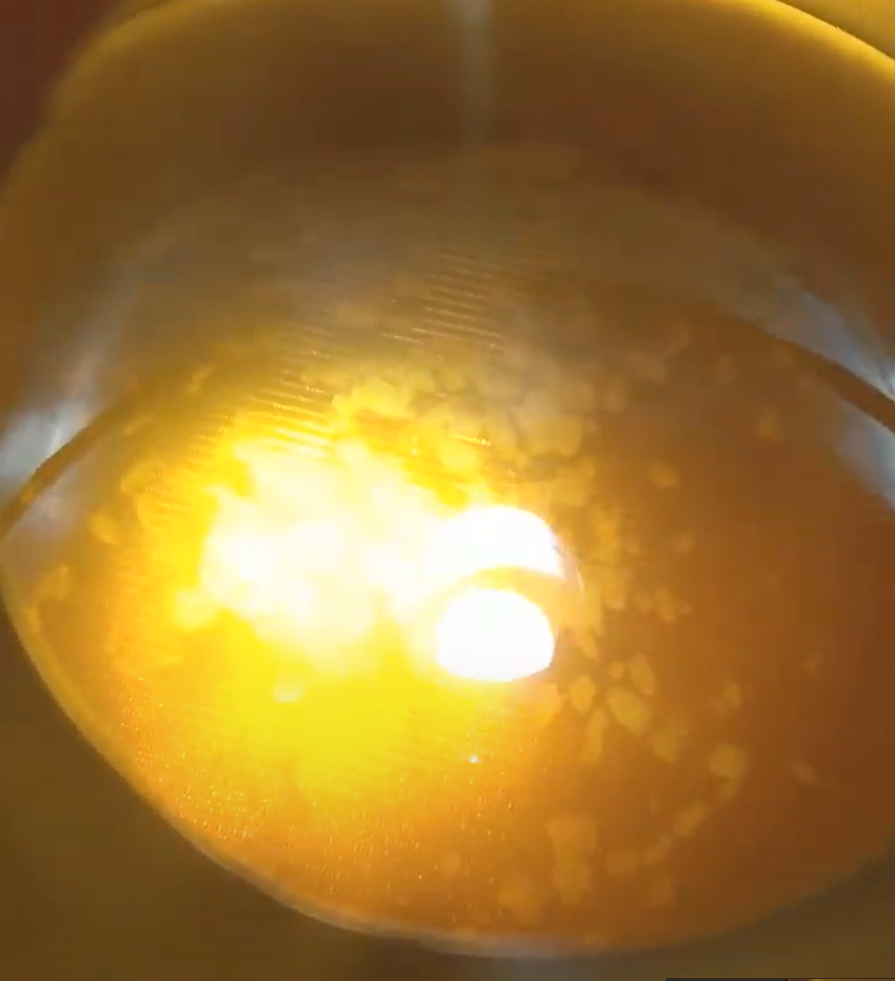

Nucleation Occurring

As the solution is cooled, its solubility is reduced until it becomes supersaturated. It reaches the point where the solution can no longer maintain the target crystalline compound dissolved within the solution. This process initiates the clustering and alignment of a crystalline compound within the solution resulting in a crystalline structure referred to as nucleation.

During a cooling crystallization, the resulting crystal size and structure are governed by the relative rates of nucleation and crystal growth. These, in turn, are driven thermodynamically by the level of supersaturation. Nucleation tends to dominate at high supersaturation levels, giving rise to a preponderance of smaller crystals. At low supersaturation levels, crystal growth tends to dominate, resulting in fewer but larger crystals. Typically a cooling crystallization will be initiated by cooling at a constant predetermined rate over a predetermined temperature range. While this is quite straightforward from a process control perspective, it often means that supersaturation levels and the relative rates of nucleation and growth can vary during cooling.

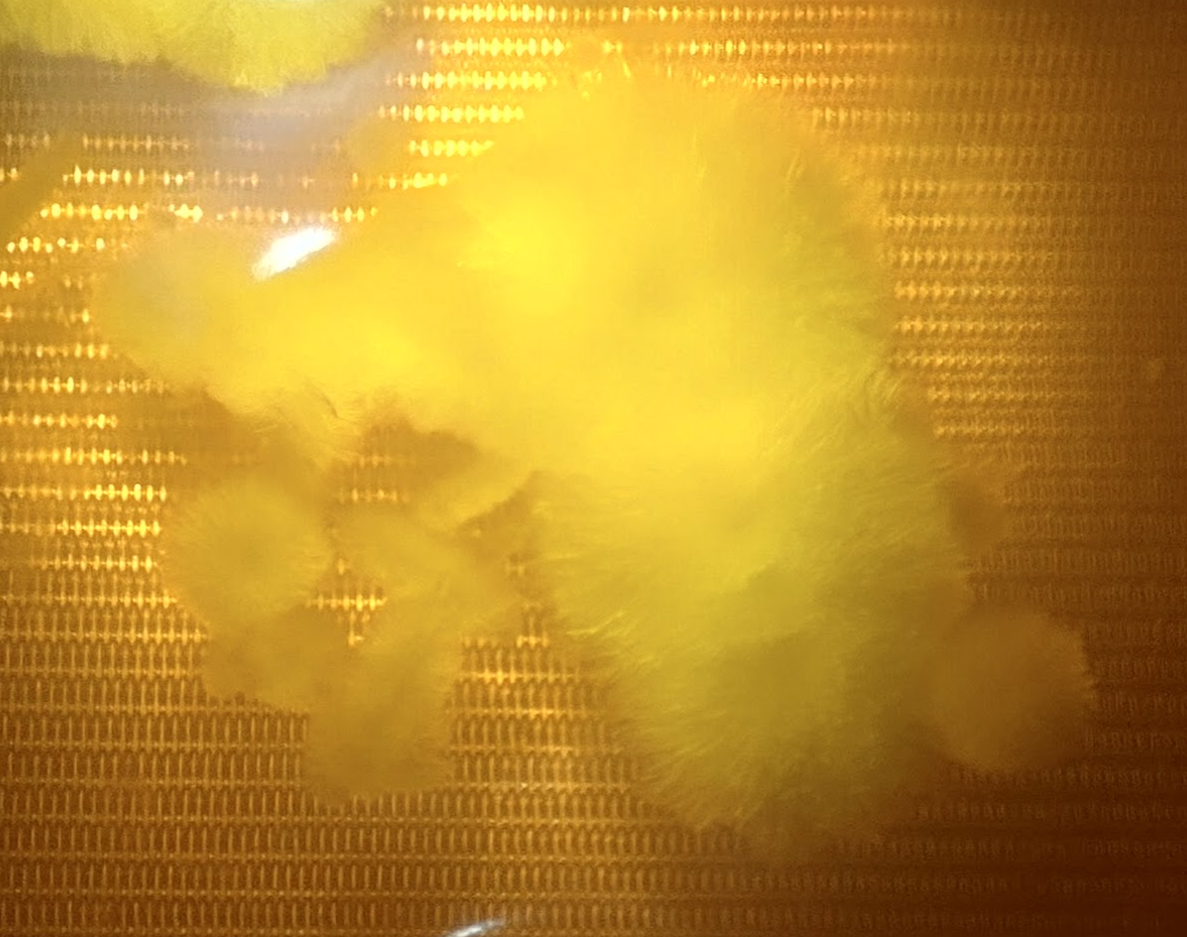

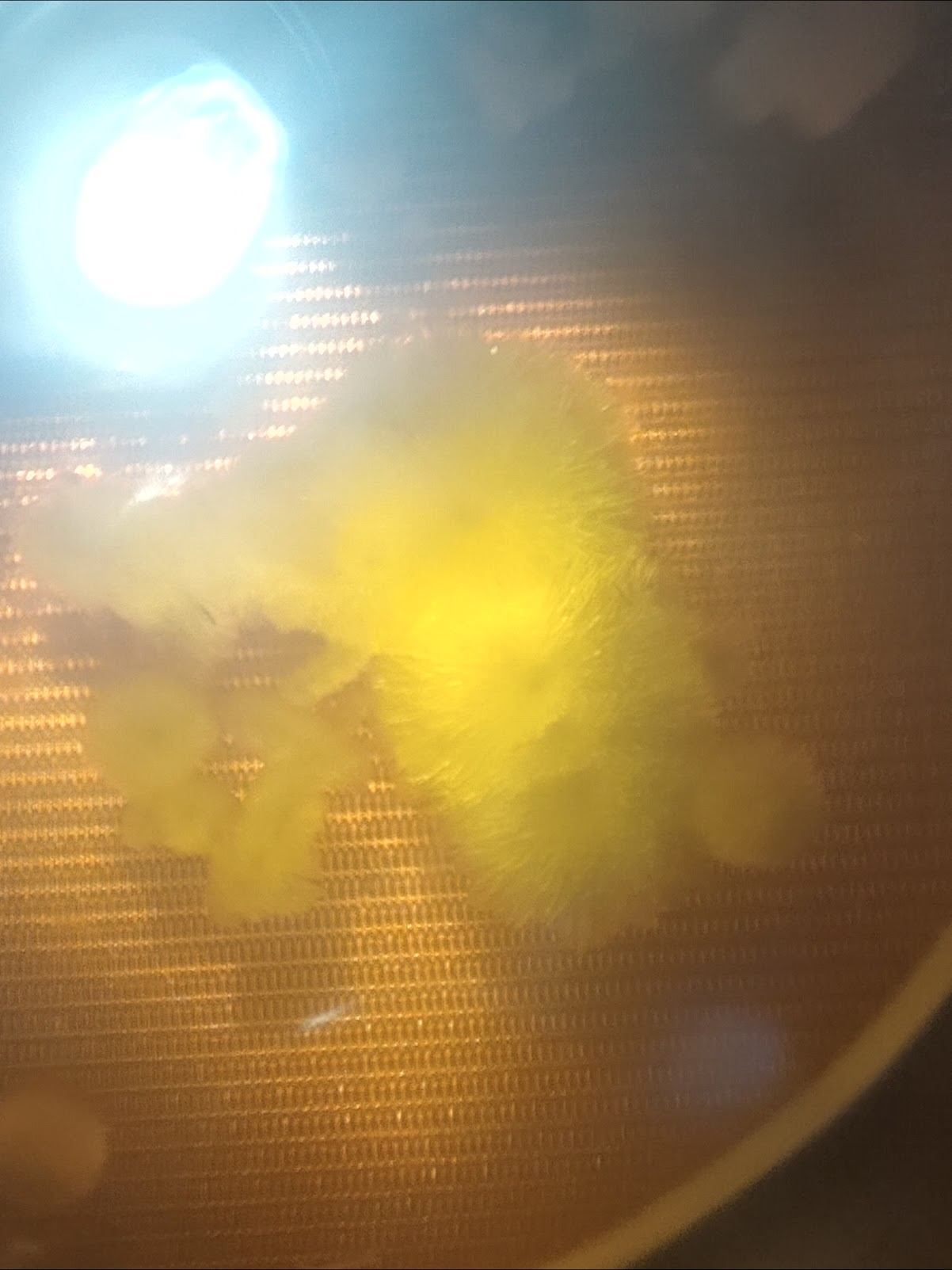

Crystal Growth Occurring

After the cooling process is complete and the desired crystal precipitation is achieved, the crystal solution is then vacuum filtered to separate the remaining mother liquor solution from the crystals. Once separation of the crystals and mother liquor solution is achieved, the freshly harvested crystals are then rinsed with chilled crystallization solvent. This will remove impurities outside the crystals before vacuum purging the crystals under full vacuum at or near the boiling point of the crystallization solvent to remove any traces of residual solvent.

After the vacuum purging process is complete, a sample of the crystals can be prepared for independent third-party testing to ensure the crystals are of the highest purity and free of residual solvent. If the desired potency is not obtained, the crystals can be redissolved in crystallization solvent and recrystallized to achieve an isolate of the highest purity.

The remaining mother liquor solution often contains a small amount of the target crystalline compounds and other valuable botanical constituents found within the starting solute. Mother liquor can be collected over time and further purified, or it can be purged of solvent and utilized for its other constituents.

COOLING CRYSTALLIZATION STANDARD OPERATING PROCEDURE

1. Purpose

The purpose of this procedure is to provide detailed instructions for cooling crystallization utilizing heptane as the crystallization solvent.

2. Scope

This procedure applies to all lab technicians tasked with cooling crystalization.

3. Definitions/Acronyms

Personal Protection Equipment (PPE) Items worn to protect employees from exposure to hazardous materials and prevention of injury.

Safety Data Sheet (SDS) Provides useful information on chemicals, describing the hazards the chemical presents, and giving information on handling, storage, and emergency measures in case of an accident.

Mother Liquor The liquid mixture remaining after crystal filtration.

Distilled Oil In this application distilled oil will mean winterized, decarboxylated, and distilled botanical extract containing 80% or more of the target crystalline compound by weight.

4. Safety

   SDS Sheets: Heptane

1. PPE: The following should be worn by all lab personnel while performing cooling crystallization:

   1. Protective eyewear

   2. Lab coat

   3. Nitrile Gloves

   4. Respirator

   5. Shoe Covers

   6. Hairnet

5. Hazard Identification

1. Preparation and Use:

   1. Distilled oil will be mixed with heptane at a 3:1 ratio Heptane-to-distillate ratio. The solution will be heated then chilled.

      1. Concentration- Use lab grade Heptane (BVV)

      2. Quantity- 3 parts Heptane:  1 part distillate

      3. Frequency- An initial volume of Heptane is used, no more is added until rinsing crystals.

      4. Location- Mixing of distilled oil and Heptane is performed in a stainless steel reactor inside a C1D2 environment.

2. Potential Hazards and Risks

   1. See Heptane SDS for detailed risks.

6. Preparation

1. Heat distillate to 120F/48.88C using a convection oven until the distillate is vicious enough to be poured and transferred to the crystallization reactor.

2. Ensure there is adequate chilled heptane in a C1D2 freezer available for washing the reactor near the end of the process (1-5 Liters)

3. Ensure the crystallization reactor and all auxiliary support equipment are clean, operational, and grounded.

6. Procedure

1. Crystallization

   1. Once the distillate has reached the appropriate temperature, slowly transfer the distillate into the crystallization reactor.
   2. Bond the n-heptane container to the reactor and transfer the n-heptane in a 3:1 ratio of heptane to the total amount of weight of distillate added, ensuring the crystallization reactor does not exceed 50% of its maximum volume.
   3. Once the distillate and heptane have been loaded into the reactor, seal the system by closing all valves or ports.
   4. If applicable, turn on the reactor motor and slowly ramp the speed, setting to 50% of its total speed.
   5. Set the jacket temperature to 60C/140F.
   6. Once the jacket has reached 60C/140F,  note the start time and wait 15 minutes to ensure the solution is completely homogenous.
   7. Once the solution appears to be completely homogenous, set the circulator temperature to 5c with a ramp of 0.5 degrees Celsius per minute.
   8. When the temperature of the mixture has reached 5C/41F, it is to be held at 5C/41F for 1 hour until full nucleation has occurred.
   9. Once satisfied with nucleation, increase stir speed to 80% and set the chiller to -20C/-4F with a ramp of 0.5 degrees Celcius per minute.
   10. Once the reactor has reached -20C/-4F, maintain this temperature for 1 hour and then stop the stirrer and raise it above the crystals if possible.
   11. Set the circulator temperature back to 5C/41F.
   12. Attach a vacuum line to the outlet of the reactor to a receiving vessel connected to a vacuum pump.
   13. Turn on the vacuum pump attached to the filter bottle and open the reactor drain port to separate the mother liquor from the crystals.
   14. Once all the filtrate has been removed, close the reactor outlet valve and wash the crystals with Heptane chilled to -40C/-40F. Wash crystals until desired purity is achieved.
   15. Dry for 30 minutes under vacuum ensuring yellowing of the material does not occur.
   16. Once the drying time has elapsed, turn off the vacuum and the circulator and remove the crystals slowly from the reactor.
   17. Recover the heptane from the mother liquor in a rotary evaporator at 90C/194F.

2. Crystal Processing

   1. Carefully transfer the isolate to a clean processing room.

   2. Weigh and record the total isolate weight.

   3. Prepare clean drying pans using clean gloves and tools. Place the isolate onto a parchment paper or a chemical resistant PTFE sheet, and distribute the isolate powder evenly onto vacuum oven trays with under half an inch of thickness per tray.

   4. Ensure the ovens are clean and the vacuum system and cold trap are set up properly on the system.

   5. Place the vacuum oven trays into the vacuum oven carefully and close the vacuum oven door sealing the system.

   6. Set the vacuum oven to 60C/140F and pull the system under full vacuum, allowing the isolate to sit in the vacuum ovens for at least 12 hours.

   7. Take a sample from the material and send it off for third-party analysis to confirm its potency and status free of residual solvent.
