Wiped Film Distillation

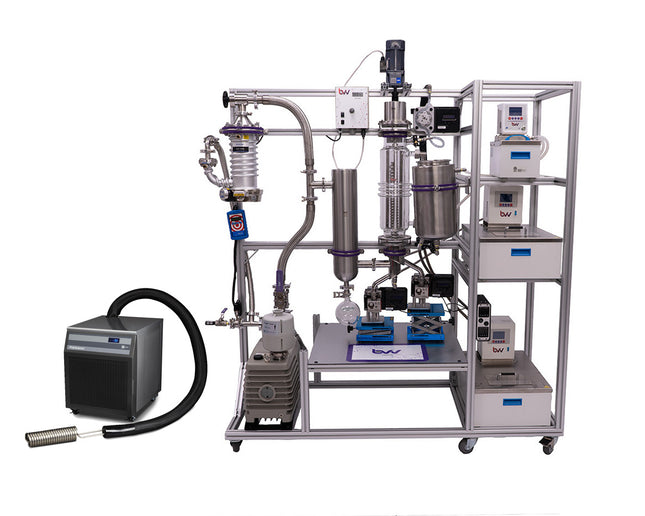

4" BVV Wiped Film Evaporator This system has a 1-2 week lead time. The BVV™ 4" Wiped Film Evaporator (WFE) is a full turnkey distillation kit that will will allow anyone to run a molecular distillation. With the magnetically driven wiper and high vacuum seals this system is able to achieve vacuum levels below 10 mtorr. The system has multiple temperature control apparatuses that allow the user to dial in specific settings that works best for their application. The maximum operating temperature of the outer jacket is 200°C with the standard circulators shown below. The maximum feed rate is up to 7LPH. On average, you can expect to flow 500-1000ml per hour. All heated circulators can be tailored to your specific needs, just ask our team of experienced account representatives!   The temperature controlled circulators will need thermal fluid that corresponds with the temperatures needed. Click here to browse fluids. For a full list of ancillary equipment included in the kits please see the table below:   KIT Part of System Component Electrical Requirements (V / Ph / A) WFE04-TK-01 Standard Model Wiper Assembly BVV™ Stirring motor 120V / 1Φ Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump* DigiVac Bullseye Precision Vacuum Gauge 220V / 3Φ AA Batteries (4x) Temperature Controlled Circulators Polyscience 7L Polyscience 15L (2x) 120V / 1Φ / 10A 220V / 1Φ / 10A Injection Beaker and Wrench 7LPH Peristaltic Heated Hose 120V / 1Φ 120V / 1Φ WFE04-TK-02 Upgraded Vacuum System Upgraded Cold Trap Wiper Assembly BVV™ Stirring motor 120V / 1Φ Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump* Summit Research Diffusion Pump (SR-DP04A)** DigiVac Bullseye Precision Vacuum Gauge 220V / 3Φ 180/264V / 1Φ / 10.5A AA Batteries (4x) Temperature Controlled Circulators Polyscience 7L Polyscience 15L (2x) 120V / 1Φ / 10A 220V / 1Φ / 10A Injection Beaker and Wrench 7LPH Peristaltic Heated Hose 120V / 1Φ 120V / 1Φ Cold Trap Polyscience IP100 120V / 1Φ / 11.5A WFE04-TK-03 Upgraded Vacuum System Upgraded Cold Trap Outlet Pumps Wiper Assembly BVV™ Stirring motor 120V / 1Φ Vacuum System BVV™ Pro Series 35.3CFM Rotary Vane Vacuum Pump* Summit Research Diffusion Pump (SR-DP04A)** DigiVac Bullseye Precision Vacuum Gauge 220V / 3Φ 180/264V / 1Φ / 10.5A AA Batteries (4x) Temperature Controlled Circulators Polyscience 7L Polyscience 15L (2x) 120V / 1Φ / 10A 220V / 1Φ / 10A Injection Beaker and Wrench 7LPH Peristaltic Heated Hose 120V / 1Φ 120V / 1Φ Cold Trap Polyscience IP100 120V / 1Φ / 11.5A Outlet Pumps Beaker and Wrench Gear Pump (2x) Beaker and Wrench Heat Pad PID Controller 120V / 1Φ 120V / 1Φ   Notes: *The Rotary vane vacuum pump paired with this kit uses 3Φ power, a smaller single phase pump can be substituted if needed. Substitution will have an impact the performance versus the standard unit.   **The Summit Research diffusion pump must be water cooled, if facility water cooling is not an option an additional chiller may be needed, a Polyscience 1HP Durachill is recommended. An air cooled diffusion pump can be provided as a substitute. Substitution will have an impact the performance versus the standard unit.

Read more less

TOPTION Wipe Film This wiped film is a complete distillation unit. It will need heaters and a vacuum system to be a full turn key setup. The heater hookups for injection and attached armatures are all 12mm hose barbs. For the main wiper body there are 20mm tube stubs. The built in cold trap uses dry ice which can be input through the funnel. We have included a digital vacuum gauge along with an extra injection chamber and an extra 5L flask.

Read more less

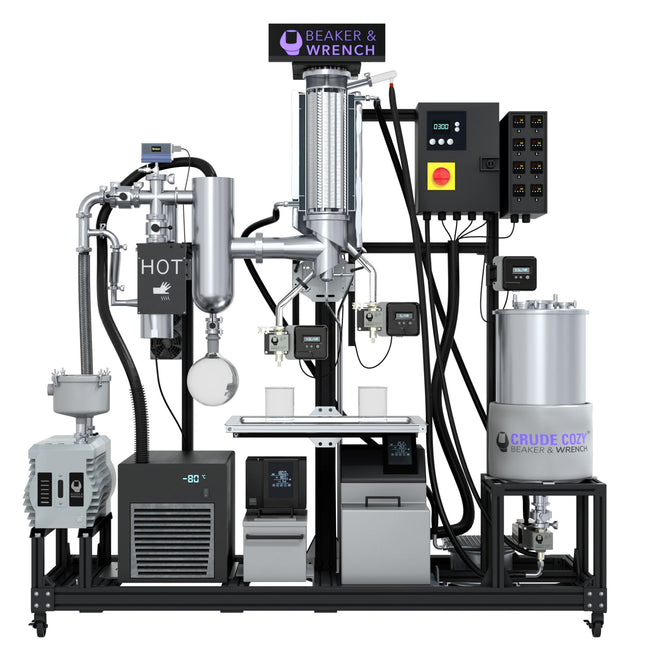

Beaker & Wrench Turn-key System Please Note: Lead time 0-4 weeks Get greater consistency, purity, and confidence in every Flower oil distillation when you use our system to monitor and optimize flow rate, temperature, pressure, and wiper speed (RPM) in real time.  Fully continuous flow leaves behind less advanced methods with a dependable output of 3-5 liters per hour; maximizing efficiency and minimizing complications. Be assured of the quality of your system. Each system is 6 inch and constructed with fully compliant USA NRTL-certified components, including a display unit and two sensors to track the contents of both streams of fluid as it continuously travels through the glassware.  Your system arrives ready to use immediately with all components primed for use. Just roll it off the lift gate and let it get to work. Meet demand and feel confident in the quality of your output with this turn-key system.   6” Stainless Steel Wiped-Film Evaporator Delivers greater consistency, purity, and confidence in every Flower oil distillation. Continuous flow leaves behind less advanced and efficient methods with a dependable input up to 7 liters per hour. Throughput capability Up to 7.0 L/hr Average 3.0-5.0 L/hr   True Continuous Feed Peristaltic Inlet pump allows addition of oil while machine is still under vacuum Outlet pumps allow dispensing of products directly into vessel of choice Feed rates adjustable from 10mL to 10L/hr   Jacketed body Thermal fluid circulating through jacketed body for consistent temperature   Precise temperature control PID temperature controllers on body and all heated lines for creation of precise SOPs   Expert On-Site Training and Installation Validation with YOUR oil on the day of install Consultation on how to generate the best SOP for your lab Sample SOP provided for internal use   Potency up to 99.8% total Flower content    Feed 20L stainless steel feed flask with vacuum inlet line Peristaltic dosing pump for precise, vacuum-held dosing Feed line to evaporator is jacketed and PID controlled   Short-Path Evaporator Max evaporator temperature: 200 °C 316 Stainless Steel 316 Stainless Steel Internal condenser (cold finger) 6 rollers Easy to adjust drive system speed   Distillate & Residue Discharge Pumps (2 pumps) Gear pump in PID controlled heated design (design temperature 100°C), digitally displayed pump speed. Calibration and secret menu options for optimal SOP development Check valves used as a pressure lock against the atmosphere   Vacuum System 21 to 36 CFM Rotary Vane Vacuum pump equipped with vacuum pump oil Diffusion vacuum pump for achieving stable vacuum conditions at low pressures (oil included) Flanged cold trap & collection vessel for cold trap   Heating & Cooling by Beaker & Wrench/ Polyscience 1 independent heating unit for the evaporator (oil circulator) 1 independent heating unit (silicone pad) for the residue & distillate line 1 independent heating unit for the feed tank (silicone pad) 1 independent cooling unit for the cold trap (immersion probe) 1 independent chilling unit for the internal condenser (water circulator)     Rack/Frame Frame constructed of 80/20 aluminium extrusion and equipped with 4 wheels Power supply & power distribution system 1. Voltage: 120V or 220V Frequency: 60 Hz 3. Number of Phases: 1 (two hot wires) • Power distribution panel Control panel for pumps. Included spare parts. 1 set of rollers 1 set of static gaskets 1 set of shaft sealing for rotary transmission • 1 set of bearings for rotary transmission 1 set of O-rings   Documentation Operating instructions     Component Certifications See Below Heaters & Chillers CE/ISO9001 Vacuum Pumps Gear Pumps Wiper Drive Power Box Frequency Box Pressure Gauge

Read more less

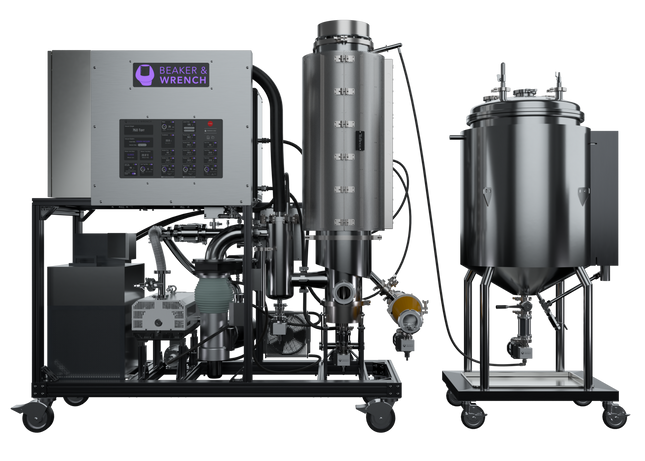

 Beaker & Wrench 12" Wiped-Film   Beaker & Wrench continues to be an industry leader, bringing together scientific expertise and real-world industry experience. Take the guess-work out of large scale distillation with their Wiped-Film Evaporation Turn-Key System. It arrives fully functional, meaning you can take advantage of the latest technology immediately and without additional installation or training costs. Other control processes can be subjective and vulnerable to user error, but their automated Wiped-Film Evaporation Turn-Key System will help maximize your product outcomes with greater productivity and maximum purity. 12” Wiped Film Measurements:76”[1.9m] x 30”[0.762m] x 85”[2.16m] Integrated 23″ Touch-Screen Control 200LFeed Tank ACS 100 60 CFMDry Screw Vacuum Pump Dual Stage Cold Trap-50/-100C Inlet and Outlet Gear Pumps(continuous flow) Single-Plug 240V Three-Phase to power the entire machine Six Zone Evaporator Body(1.1m² evaporative area) Consistency is Key Get greater consistency, purity, and confidence in every cannabis oil distillation when you use our system to monitor and optimize flow rate, temperature, pressure, and wiper speed (RPM) in real time. Then… NRTL Certified Each system is 6“ or 12” and constructed with fully compliant USA NRTL-certified components, including a display unit and two sensors to track the contents of both streams of fluid as it continuously travels through the glassware. Get started rapidly with… Set it and Forget it Fully continuous flow leaves behind less advanced methods with a dependable output of 15-30 liters per hour; maximizing efficiency and minimizing complications. Be assured of the quality of your system because we’re… Easy Installation Your system arrives ready to use immediately with all components primed for use. Just roll it off the lift gate and let it get to work. Meet demand and feel confident in the quality of your output with this turn-key system. Don’t make it complicated. Get it right. Lead time: 8-12 weeks from date of payment of 50% deposit, 50% due prior to shipping Specifications Skid Frame: + Dimensions (LxWxH): 76”[1.9m] x 30”[0.762m] x 85”[2.16m] + Weight:1,000 lbs [450Kg] + Material: Extruded Aluminum + 6” castors w/ brakes Shipping Information: + Dimensions (LxWxH): 82.5”[2.01m] x 36.5”[0.93m] x 87.5”[2.22m] + Total Weight: 1200 lbs [545Kg] Electrical Power Distribution Box: + Plug: SCAME SCM563P6W + Input Voltage: 240VAC 3 Phase with Neutral 60 Hz + External Circuit breaker: 60 amp + Nominal current: 24 amps Control Interface + Custom 27” high definition touch screen interface + automated controls + recipe folder +automated sensors and safeties +Error reporting +Software controlled Emergency shutdown Feed Tank: + Volume: 200 Liter + Material: 316 Stainless Steel + double jacketed + Max Temp: [95°C] + Heater: water jacket with 2500kW heater Feed Hose: + Length: 7’-0” [2.13m] + Voltage: 120VAC + Amps: 4.5 Amps + Max Temp: 450°F[220°C] + K-type sensor Rotor: + Wipers: PTFE (Polytetrafluoroethylene) + Mesh Baffles: 316 Stainless Steel + Motor Voltage: 240VAC + Motor Amps: 4(Max) + Motor Watts: 1kw (Continuous) + Speed: 0-400RPM + Dust and Splash Resistant Still Body / Wiped Film Evaporator: + Evaporation Surface Area: 1.1m² + Materials: 316 Stainless Steel + Heat Source: multi-zone Heat Band with independent thermocouples and control + Maximum Power: 12kWatts + Feed Inlet: KF25 + Top and Bottom Connections: 12” sanitary flange + Insulation jacket included Internal condenser: + multi-finger hairpin condenser + Materials: 316 Stainless Steel + Vacuum port: NW80 + Distillate port: KF25 + Residue port: 1.50” Tri-clamp + 2,500w heater + Cooling capacity 8,000w @80c Residue heater: 120VAC, 0.78 amp, 150°C Max Temp, K-type sensor 90W, UR Recognized Heat Pad Residue Outlet Conical shaped Mesh cleanable filter Dual heat pads Clog SensorLiquid level sensor Led lights Condenser Circulator: + Model: BWC-A120 + Bath Volume: ~12L + Bath Fluid: Beaker Kool + multi-fan & Radiator cooling system + Temperature range: 25 to 90°C + Temperature stability: ±1 °C + Heating capacity: 2.5 kW +Cooling capacity: 8kw @80c Gear Pumps: + Voltage: 48VDC + Amperage: 5A + Max Rate: 50.0 L/Hr + Heater: 120v, 0.5amp, 120°C Max Temp, K-type sensor + 45w, UL Recognized Heat Pad + Check Valve Included Dual Stage Cold Trap: + 2 stage cold trap optimized for maximum vacuum protection + Model: Huber TC100 & -100C + CC 508 -50C (1.5kw cooling @ 0c) + Temperature Range: -100 to 100°C Vacuum Gauge: + Model: KJ Lesker

Read more less

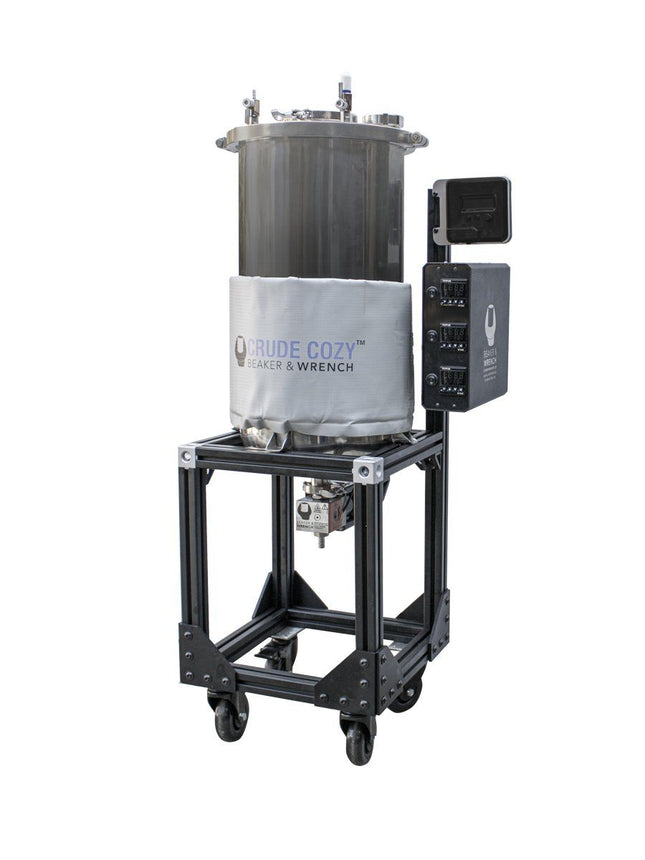

Beaker & Wrench 40L Complete Dosing System  Please note: This Product has 1 week lead time    For Wiped Film Evaporators  The 40L Complete Dosing System by Beaker & Wrench® is a continuous feed system that connects to any Wiped Film Evaporator effortlessly. Optimize your time and end results by dialing into your feed system. The Feed Gear Pump by Beaker & Wrench® gives the operator control over flow rate and freedom to load material into the flask without breaking deep vacuum. Once attuned with the flow rate, calculations become less of a guessing game and more of a formula. Distill as slow or as fast as needed!   The contents of this system include: Heated 40L feed flask Crude Cozy™ Digitally operated, heated Feed Gear Pump 4″ tri-clamp port on feed lid Inlet adapter (for your still) 6′ Heated Transfer Line (not pictured) Wattage: 90/ft, 120 Volts Maximum Temp: 150°C UL Listed 3 Channel PID Temperature Controller UL: E510826   How does it work?Crude is loaded into a heated feed flask, which then flows through the heated Gear Pump. The Gear Pump moves fluid through the gears while maintaining vacuum. Oil is then pulled towards the still body, ready for distillation!   Cleaning:Every Operator has their own preference in how they clean their Wiped Film Evaporator. Ethanol, Isopropyl alcohol or vegetable oil are viable options when looking to clean your Wiped Film. Step-by-step instructions are included in the manual!     Installation: Are you interested in having a Beaker & Wrench® technician install your Complete Dosing System? Click here for a quote! The advantage with having a technician perform installation is you can ask any and all questions necessary on how to process with your Wiped Film Evaporator!   What is the warranty?1 year manufacturer’s warranty on parts for exchange. Customer has 5 days from day of delivery to inspect equipment for breakages or damage.     ** Please indicate the inlet size of your still in the Notes section of your purchase. This will help us adapt to your set-up.
