Beaker and Wrench Explosion Proof Oil Pump

Description

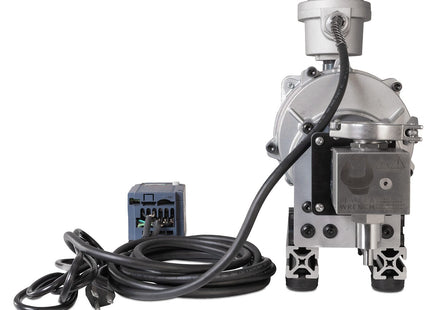

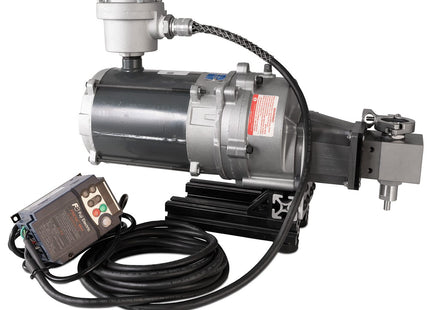

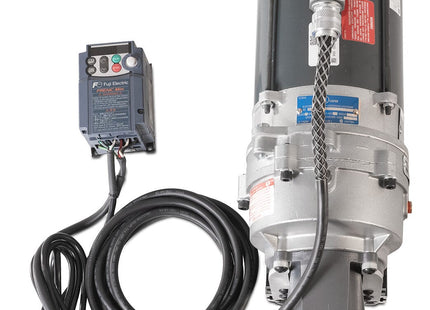

Explosion Proof Oil Pump





  • Optimized for Falling Film Evaporators
  • C1D2
  • VFD (variable frequency drive, not C1D2 rated) cord is approximately 15′
  • Motor: 1/4 Horsepower
  • Customizable mounting




When ordering: Please indicate in the Note section what machine you will be attaching the Explosion Proof Oil Pump to. We need this information to assure the correct Inlet Adapter is provided and also the dimensions of the mounting configuration you will need.





Hazardous Location Clas 1 C,D / 2 E,F,G
Nominal Efficiency 85.5%
Frame 56CZ
Motor Application Hazardous Location
Lead Length 6"
RPM Range 1101-1200
Standards UL listed (E12044), CSA Certified (LR47504)
Frame Material Rolled Steel
Duty Continuous
HP 1/4
Voltage Compatibility 115/208-230, 120/240
Length Less Shaft 11-7/8"
Includes Conduit Box (Unmounted), Leads Through 1" NPT Nipple
Motor Shaft Design Keyed
Shaft Length 2-1/4"
Item Harazardous Location Motor
Motor Service Factor: 1.00 1.00
Motor Thermal Protection auto
Motor Shaft Rotation CW/CCW
Full Load Amps 6.8/3.1-3.4
Overall Length 14-5/16"
Voltage 115/208-230
Motor Frame Material Rolled Steel
Ins. Class B
Motor Mounting Type Face
Motor Design Capacitor- Start
Shaft Dia 5/8"
Hz 60
Motor Bearing Ball
Temp. Code T3B
Motor Enclosure Design Totally Enclosed Fan-Cooled
Nameplate RPM 1140
Max. Ambient Temp 40 Degrees C
Phase 1
