1.5" Tri-Clamp Spools
Description

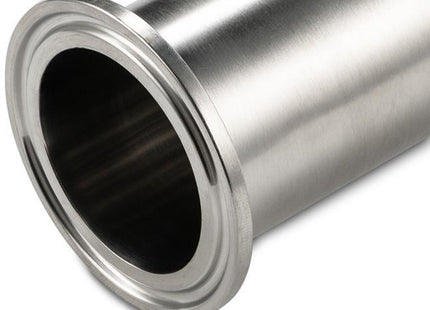

1.5" Tri-Clamp /Tri Clover Spools
Sizes Available:
- 1.5" x 2" Tri-Clamp Spool
- 1.5" x 6" Tri-Clamp Spool
- 1.5" x 12" Tri-Clamp Spool
- 1.5" x 18" Tri-Clamp Spool
- 1.5" x 24" Tri-Clamp Spool
- 1.5" x 36" Tri-Clamp Spool
Specifications:
| Tri-Clamp Size | 1.5" |
| Material | 304 Stainless Steel |
| Standard | 3A High Polish |
| Spool OD | 1.5" |
| Spool ID | 1.37" |
| Flange OD | 1.984" |
| Bead Center | 1.718" |
OD = Outer Dimension
ID = Inner Dimension
Disclaimer to Customer:
User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
Cylinder Volume
f
fffffffff
Select Material
How Much Will Fit in Cylinder
Formula
Volume x Weight of Water x Specific Gravity
Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =
Account for an 80% fill to avoid a hydraulic lock
How Much Material Will Fit in the Cylinder
| Packing Density (g) | 2.5 | 3 | 3.5 | 4.3 |
| Grams of Material | ||||
| Lbs. of Material |
| mL | fl oz | lbs | # of Cans |
|---|---|---|---|
| 420 | 14.2 | ||
| 300 | 10.1 | ||
| 200 | 6.7 | ||
| 150 | 5.07 |
1.5" Tri-Clamp Spools
SKU: 150X2S
$26.92
You will earn 26.92 points for this purchase.✔ 1 Year Limited Warranty
- Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
- Join Loyalty+ and save 10-15% *Select items
