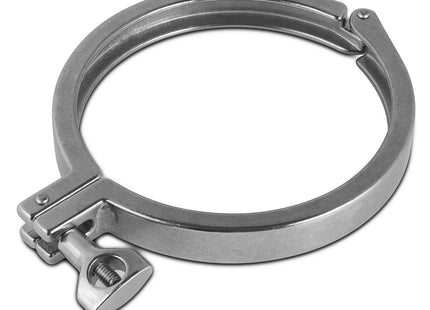

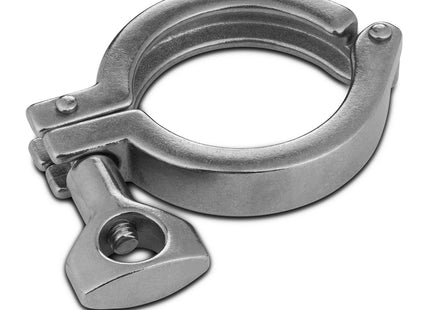

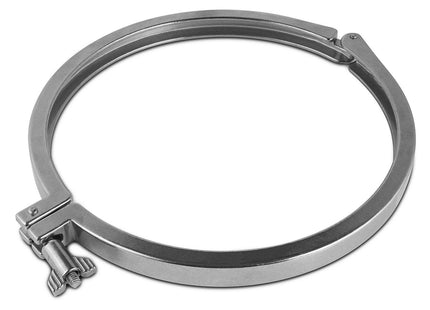

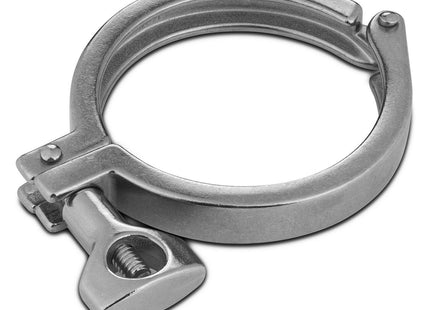

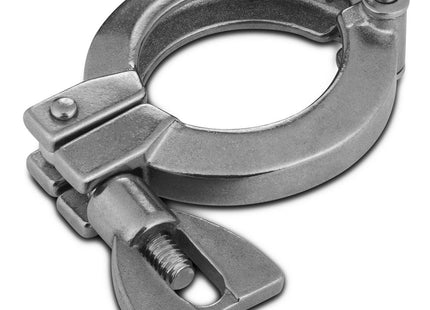

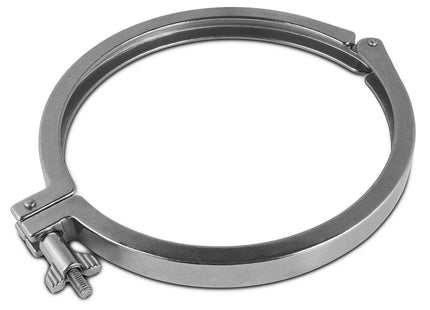

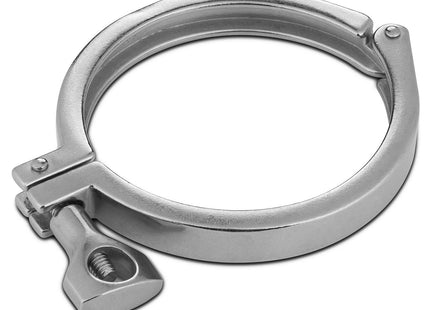

Tri-Clamp Single Hinge Clamp

Description

Tri-clamp/ Tri Clover Single Hinge Clamp

BVV™ recommends tightening all Standard Pressure Clamps (Non-High Pressure) to finger tight and then use either a screwdriver or wrench to tighten them approximately 2 full turns to achieve the torque specified on the data sheet. All tightening should be accordance with the data sheet.  It is not recommended to overtighten the clamp and bottom it out as this will cause the gasket to be over-compressed and put too much tension on the clamp threads, which could cause it to fail.  Overtightening can also cause stretching on the clamp reducing its operational effectiveness.

Torque Specification Data Sheet

Specifications:

  • Mounting Type: Hinged (The 1.5" Clamp is Double Hinged)

  • Material: 304 Stainless Steel

  • Bolt Material: 304 Stainless Steel (3/8"-16 Bolt)

  • Nut Material: Brass (5/8 Wrench Size w/ 3/8"-16 Thread Size)

  • Connection Type: Tri-Clamp

Tri-Clamp Single Hinge Clamp

Product form

SKU: C150

$12.51

    • Guaranteed secure & safe checkout.

      shop pay
    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time.

    Description

    Tri-clamp/ Tri Clover Single Hinge Clamp

    BVV™ recommends tightening all Standard Pressure Clamps (Non-High Pressure) to finger tight and then use either a screwdriver or wrench to tighten them approximately 2 full turns to achieve the torque specified on the data sheet. All tightening should be accordance with the data sheet.  It is not recommended to overtighten the clamp and bottom it out as this will cause the gasket to be over-compressed and put too much tension on the clamp threads, which could cause it to fail.  Overtightening can also cause stretching on the clamp reducing its operational effectiveness.

    Torque Specification Data Sheet

    Specifications:

    • Mounting Type: Hinged (The 1.5" Clamp is Double Hinged)

    • Material: 304 Stainless Steel

    • Bolt Material: 304 Stainless Steel (3/8"-16 Bolt)

    • Nut Material: Brass (5/8 Wrench Size w/ 3/8"-16 Thread Size)

    • Connection Type: Tri-Clamp
