Description

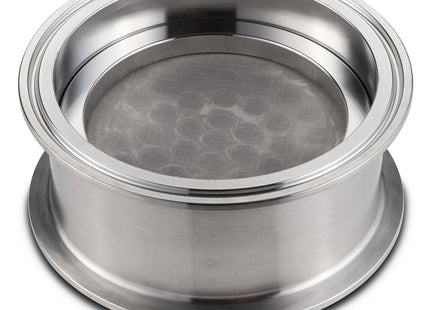

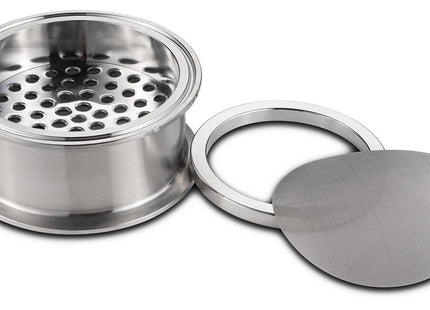

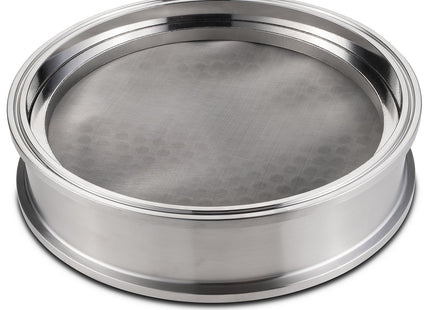

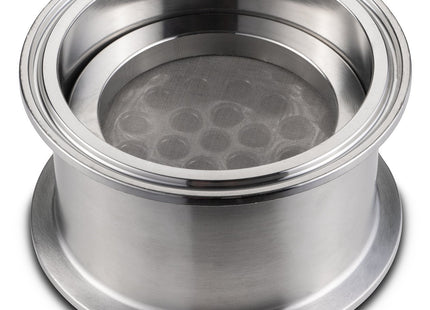

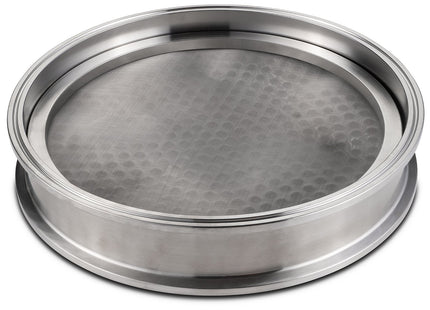

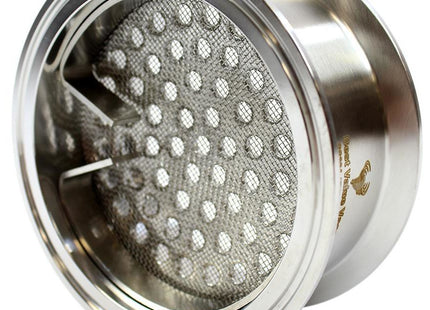

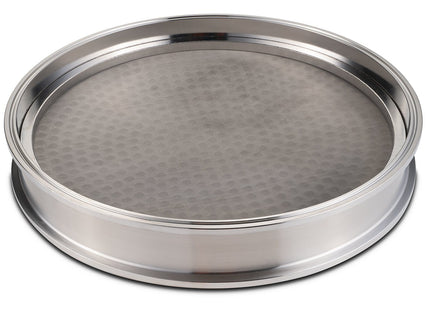

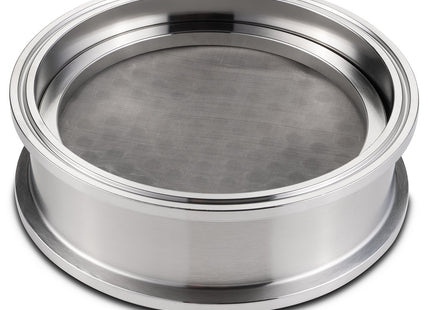

Stainless Steel Tri-Clamp/ Tri Clover Filter Plate
Stainless steel filter plates offer the user a great solid platform to help with filtration during the extraction process and they come standard with a 100 mesh (150 Micron) pre-cut stainless steel mesh filter media and a solid filter plate ring (unless otherwise specified). These filter plates can be used simultaneously with ashless filter papers or any other filtration media like stainless steel ball bearings or steel wool to increase surface and filtration level to remove fats, lipids, waxes and any other unwanted material during the extraction process.
For 6" sizes and above, a high pressure clamp is recommended for all filtering applications.
*Note: Does not include Clamp or Gasket.
**Note: 8" Sizes come with a compression ring instead of a solid filter plate ring.
Sizes Available:
-
1.5" - Includes Solid Filter Plate Ring
-
2" - Includes Solid Filter Plate Ring
-
3" - Includes Solid Filter Plate Ring
-
4" - Includes Solid Filter Plate Ring
-
6" - Includes Solid Filter Plate Ring
-
8" - Includes Standard COMPRESSION Ring
-
10" - Includes Solid Filter Plate Ring
-
12" - Includes Solid Filter Plate Ring
| Specifications |
| Material |
304 Stainless Steel |
| Standard |
3A High Polish |
| Connection Type(s) |
Tri-Clamp |
| Hole Diameter |
5.8mm |
| Height |
2" |
| Mesh Specs |
100 Mesh (150 Micron) - 304 Stainless Steel |
BVV™ Tri-Clamp Filter Plate - Drawing
