Triclamp Parts
Silicone 2500 Mesh (5 Micron)
Silicone 2500 Mesh (5 Micron) These white silicone mesh gaskets are meant for filtration with alcohol systems because of their great resistance to many of the common forms of alcohol. They are NOT recommended for use with Butane or Propane. Mesh / Micron Filter Chart For Further Chemical Resistance specifications please refer to this chart: Chemical Compatibility Database Specifications Maximum Pressure Not Rated Temperature Range -40 to 450F Color White - Clear Material Silicone Screen Material 316 Stainless Steel Standards Met 3A and FDA Chemical Resistance Alcohols: Amyl D - Poor Benzyl N / A Butyl B - Good Diacetone D- Poor Ethyl B - Good Hexyl B - Good Isobutyl A - Excellent Isopropyl A - Excellent Methyl A - Excellent Octyl B - Good Propyl A - Excellent Butane D - Poor Propane D - Poor
$42.51 - $184.21
High Pressure Clamps
High Pressure Clamps BVV recommends tightening all High Pressure to their specified Inch-LBS of torque. We do not recommend tightening high-pressure bolts with an impact gun because this may cause threads to jump or be marred which can cause failure of the bolt or seal. For Torque Specification use the link to the data sheet below. Torque Specification Data Sheet Specifications: Mounting Type: Bolted Material: 304 Stainless Steel Bolt Material: 304 Stainless Steel (3/8"-16 Bolt) Nut Material: Brass (5/8 Wrench Size w/ 3/8"-16 Thread Size) Connection Type: Tri-Clamp
$15.59 - $127.53
Pro Series High Pressure Clamps
Pro Series High Pressure Clamps These are the Pro Series High Pressure Clamps for Heavy Duty Applications. These clamps are completely re-designed to be stronger and more industrial to last longer and stand up to higher pressure applications. The Internal flange of the clamp is much more precise offering better dispersion of pressure on the sealing face of the gasket which allows to the system to seal without having to overtighten the clamps. Sizes Available: 1.5" High Pressure Clamp 2" High Pressure Clamp 3" High Pressure Clamp 4" High Pressure Clamp 6" High Pressure Clamp 8" High Pressure Clamp 10" High Pressure Clamp 12" High Pressure Clamp Specifications: Hinge Type: Bolted Material: 304 Stainless Steel Connection Type: Tri-Clamp Nut Size: 5/8" for All Clamp Sizes Sizes Max Torque (Nm / Ft Lbf / In Lbf) Maximum Pressure @70F Maximum Pressure @250F 1.5" 12-14 / 8.85-10 / 106-124 2500 1500 2" 12-14 / 8.85-10 / 106-124 2500 1200 3" 12-14 / 8.85-10 / 106-124 2500 1200 4" 12-14 / 8.85-10 / 106-124 1800 1000 6" 12-14 / 8.85-10 / 106-124 800 400 8" 12-14 / 8.85-10 / 106-124 500 250 10" 12-14 / 8.85-10 / 106-124 300 175 12" 12-14 / 8.85-10 / 106-124 250 125
$48.18 - $425.11
L.J. Star SSH Series High Pressure Clamps
L.J. Star SSH Series High Pressure Clamps These high pressure clamps are part of a complete line of stainless sanitary clamps made specifically for the pharmaceutical and biotech industries, the Series SSH hygienic clamp incorporates a unique profile and two bolts for greater clamping force. Suitable for high pressure applications. The SSH high-pressure clamp is part of a complete line of hygienic clamps made specifically for the pharmaceutical and biotech industries where joint cleanliness and efficiency are of paramount importance. These stainless steel clamps are made from investment castings to produce a high quality, precision fit assembly. They are designed to provide quick access to the joint for cleaning and inspection without sacrificing safety. Replacement Bolts for L.J. Star SSH Series High Pressure Clamps. These clamps come in five sizes: 1.5, 2, 3, 4, and 6 inches. Nut Sizes for these clamps: 1.5, ,2, 3, & 4 (5/8" Nut) *6" Clamp uses 3/4" Nut. Datasheet - Series SSH (High Pressure) Sanitary Clamp
$89.27 - $242.31
6" ASME VIII Sanitary 316SS Clamp for High Pressure Connections
6" ASME VIII Sanitary 316SS Clamp for High Pressure Connections These heavy duty hygienic ASME VIII clamps are designed for pressure vessels, filter housings and other demanding/pressure intensive applications while operating under sterile conditiions. These clampos meet the requirements of ASME SEction VII Appendinx 24 of the pressure vessel code . All of these sanitary clamps are made from fully traceable 316 stainless steel. The ASME Code Sanitary Clamp is made specifically for the Pharmaceutical and Biotech Industries where joint cleanliness and efficiency are of paramount importance. These stainless steel sanitary fittings and clamps are made from investment castings to produce a high quality, precision fit assembly. The clamps are designed to provide quick access to the joint for cleaning and inspection without sacrificing safety. All sanitary clamps are CE compliant per the Pressure Equipment Directive 97/23/EC and the Machinery Directive 98/37/EC. DATASHEET - ASME Sanitary Clamp Fittings ASME Clamp Instructions
$1,126.54
Gold High Pressure Clamps
Gold High-Pressure Clamps These are the Best Value Vacs faux Gold Plated high-pressure clamps that provide the user with visual wear indicators for the bolts and clamps allowing the user to notice when the clamp is needed to be replaced. It also adds an awesome amount of bling to your system. Fits Tri-clamp Flange fittings. Best Value Vacs recommends tightening all High Pressure to their specified LBS of torque. We do not recommend tightening high-pressure bolts with an impact gun because this may cause threads to jump or be marred which can cause failure of the bolt or seal. Sizes Available: 1.5" High Pressure Clamp 2" High Pressure Clamp 3" High Pressure Clamp 4" High Pressure Clamp 6" High Pressure Clamp 8" High Pressure Clamp 10" High Pressure Clamp 12" High Pressure Clamp Specifications: Hinge Type: Bolted Material: 304 Stainless Steel with faux gold coating Connection Type: Tri-Clamp Sizes Max Torque (Nm / Ft Lbf / In Lbf) Maximum Pressure @70F Maximum Pressure @250F 1.5" 12-14 / 8.85-10 / 106-124 1500 1200 2" 12-14 / 8.85-10 / 106-124 1000 800 3" 12-14 / 8.85-10 / 106-124 1000 800 4" 12-14 / 8.85-10 / 106-124 600 800 6" 12-14 / 8.85-10 / 106-124 300 200 8" 12-14 / 8.85-10 / 106-124 250 150 10" 12-14 / 8.85-10 / 106-124 200 125 12" 12-14 / 8.85-10 / 106-124 150 100
$17.00 - $49.60
Tri-Clamp Quadpod
Tri-Clamp Quadpod Quadpods provide an excellent solution to holding any Tri-Clamp spool vertically. From closed columns to open blast extraction units, Quadpods are designed to fit over Pyrex dishes without getting in the way. This device has 4 legs, 4.5" in length, and extends 7" outward in each direction. Furthermore, each leg is welded to the clamp to provide a sturdy and durable platform. Sizes Available: 1.5" 2" 3" Specifications: Material 304 Stainless Steel Connection Type(s): Tri-Clamp
$36.84 - $49.60
Tri-Clamp Single Hinge Clamp
Tri-clamp/ Tri Clover Single Hinge Clamp BVV™ recommends tightening all Standard Pressure Clamps (Non-High Pressure) to finger tight and then use either a screwdriver or wrench to tighten them approximately 2 full turns to achieve the torque specified on the data sheet. All tightening should be accordance with the data sheet. It is not recommended to overtighten the clamp and bottom it out as this will cause the gasket to be over-compressed and put too much tension on the clamp threads, which could cause it to fail. Overtightening can also cause stretching on the clamp reducing its operational effectiveness. Torque Specification Data Sheet Specifications: Mounting Type: Hinged (The 1.5" Clamp is Double Hinged) Material: 304 Stainless Steel Bolt Material: 304 Stainless Steel (3/8"-16 Bolt) Nut Material: Brass (5/8 Wrench Size w/ 3/8"-16 Thread Size) Connection Type: Tri-Clamp
$11.34 - $110.53
3 Piece Heavy Duty 8" Tri-Clamp 304SS
3 Piece Heavy Duty Tri-Clamp/Tri Clover 304SS This 3 Piece Heavy Duty Tri-Clamp is made out of 304 stainless steel and has a 3 segment locking function allowing even pressure around the connection point gasket so it does not bulge out in a certain direction creating a better overall seal on the system. This clamp will fit a standard 8" tri-clamp connection
$198.38$92.11
Bolts For High Pressure Clamps
Bolts For High Pressure Clamps When high pressure clamp bolts are used frequently the threads will wear down eventually causing the bolt to fail. User's need to replace their high pressure bolts at the first sign of the threads wearing down or being marred. It is not recommended to tighten these bolts with an impact gun because it may cause the threads to be marred or jump threads causing the bolt to become stuck on the nut. ***Note: Size refers to size of Tri-Clamp not the actual length of the bolt. BVV™ only recommends tightening high pressure clamps with wrenches and making sure the space on each side of the clamp is even. DO NOT tighten with an impact gun. Bolt Available for Clamp Sizes: 1.5" 2" 3" 4" 6"-12" - Fully Threaded Specifications: Material: 18-8 Stainless Steel Threading: 3/8"-16
$3.12 - $5.95
Brass Nuts For High Pressure Clamps
Brass Nuts for High Pressure clamps These are replacement nuts for High Pressure clamps and are made of brass and have a 5/8" Hex with a 3/8"-16 Threading. After repeated usage nuts on high pressure clamps will wear down and you will notice filings on the bolt when you notice this it is time to replace the bolts because they may fail unexpectedly.
$2.13
Washers For High Pressure Clamps
Washers For High-Pressure Clamps These stainless steel flat washers provides a larger circular bearing surface, which helps prevent a nut or bolt head from pulling through the material.
$0.43
Bolt Kit For High Pressure Clamps
Bolt Kit For High-Pressure Clamps When high-pressure clamp bolts are used frequently the threads will wear down eventually causing the bolt to fail. User's need to replace their high-pressure bolts at the first sign of the threads wearing down or being marred. It is not recommended to tighten these bolts with an impact gun because it may cause the threads to be marred or jump threads causing the bolt to become stuck on the nut. This kit includes the following: Stainless Steel Bolt Stainless Steel Lock Washer Brass Nut ***Note: Size refers to size of Tri-Clamp not the actual length of the bolt. BVV™ only recommends tightening high-pressure clamps with wrenches and making sure the space on each side of the clamp is even. DO NOT tighten with an impact gun. Bolt Available for Clamp Sizes: 1.5" 2" 3" 4" 6"-12" Specifications: Material: Brass Nut, 18-8 Stainless Steel Bolt and Lock Washer. Threading: 3/8"-16
$4.96 - $7.79
L.J Star SSH Clamp Hardware
L.J Star SSH Series Clamp Hardware These are replacement bolts for L.J. Star SSH series High Pressure Clamps. It includes 1x Bolt, Brass Nut, and Lock Washer.
$38.26 - $69.43
5/16 USS Flat Washer
5/16 USS Flat Washer 5/16 replacement washer for vacuum chamber bulkheads made out of metal.
$0.71
Hemispherical Tri-Clamp Reducers
Hemispherical Tri-Clamp Tri Clover Reducers Hemispherical Tri-Clamp reducers allow the user to connect differently sized Tri-Clamp parts to each other without adding to the overall size of your extraction system. These reducers are offered in Tri-clamp x Tri-Clamp and Tri-Clamp x Female NPT Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Types : Tri-Clamp x Tri-Clamp and Tri-Clamp x FNPT
$46.76 - $262.15
Flat Tri-Clamp Reducer
Flat Tri-Clamp/Tri-Clover Reducers Flat Tri-Clamp reducers allow the user to connect differently sized Tri-Clamp parts to each other without adding to the overall size of your extraction system. These reducers are offered in Tri-clamp x Tri-Clamp connections Sanitary Fittings end cap reducers are often used as an increaser flowing from smaller to a larger diameter which makes them suitable in horizontal flow applications, available in eleven sizes. Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Type : Tri-Clamp x Tri-Clamp
$28.34 - $177.13
Conical Tri-Clamp Reducer
Conical Tri-Clamp/ Tri Clover Reducers Conical Tri-Clamp reducers allow the user to connect differently sized Tri-Clamp parts to each other while adding smoother flow to your extraction system. These reducers are offered in Tri-clamp x Tri-Clamp connections Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Type : Tri-Clamp x Tri-Clamp
$39.68 - $247.98
1.5" x 1" x 1/4" MNPT Terp Conical Reducer
1.5" x 1" x 1/4" MNPT Terp Conical Reducer This Terp conical reducer has a 1.5" Triclamp connection with a 1" Triclamp (fits 1.5" Triclamp) and a 1/4" MNPT port that allows the user to input a valve or a manifold to the reducer and inject solvent into the system.
$28.34

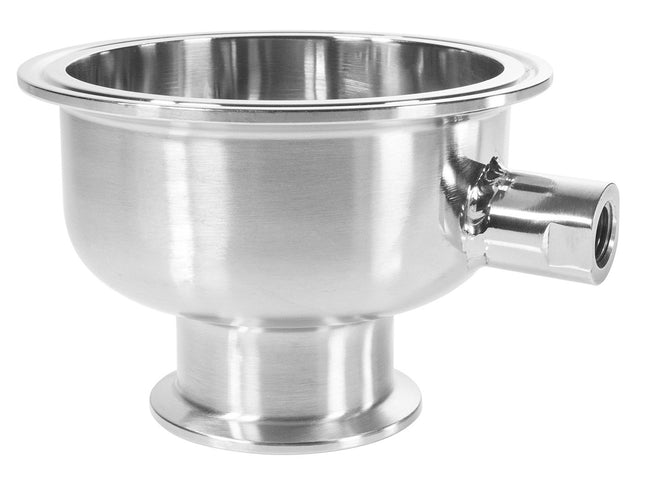

Hemispherical Tri-Clamp Reducer with 1/4" FNPT Side Port
Hemispherical Tri-Clamp/ Tri Clover Reducer with 1/4" FNPT Side Port This unique version of the hemispherical reducer has a 1/4" FNPT port welded straight on to the hemispherical reducer with Tri-Clamp ends on both sides. It allows the user to adapt to a port on their extraction system without having to adapt multiple pieces together and reduce the number of leak points. A hemispherical reducer also shortens the height of a system because it is shorter than a conical reducer. Tri Clamp reducers are the perfect alternative to concentric reducers when space is at a premium in confined areas. In addition, this device is also leak proof and adequate for easy application. Specifications Material 304 Stainless Steel Sizes Available: 3" x 1.5" Tri-Clamp x 1/4" FNPT 4" x 1.5" Tri-Clamp x 1/4" FNPT 4" x 2" Tri-Clamp x 1/4" FNPT 6" x 1.5" Tri-Clamp x 1/4" FNPT 6" x 2" Tri-Clamp x 1/4" FNPT 8" x 2" Tri-Clamp x 1/4" FNPT 10" x 2" Tri-Clamp x 1/4" FNPT 12" x 2" Tri-Clamp x 1/4" FNPT
$56.68 - $262.15

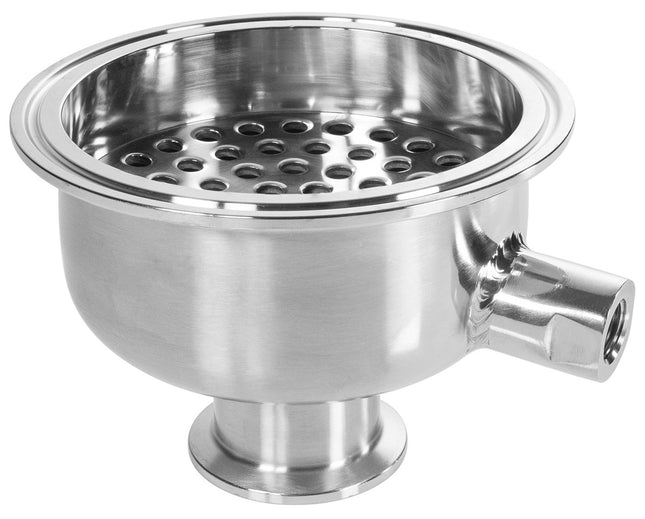

Hemispherical Filter Plate Reducer with 1/4" FNPT Side Port
Hemispherical Filter Plate Reducer with 1/4" FNPT Side Port This hemispherical reducer has a built-in filter plate with a 1/4" FNPT Side Port. This unique design allows the user to save even more space by combining a filter plate, hemispherical reducer, and a side port. Made out of 304 stainless steel the filter plate is welded into the hemispherical reducer and has Tri-Clamp connections on both ends of the reducer along with the 1/4" FNPT side port. Specifications Material 304 Stainless Steel Sizes Available: 3" x 1.5" x 1/4" FNPT 4" x 1.5" x 1/4" FNPT 4" x 2" x 1/4" FNPT 6" x 2" x 1/4" FNPT
$55.26 - $102.03

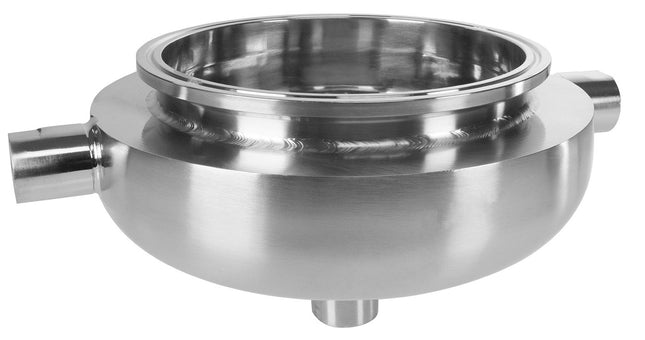

Jacketed Hemispherical Reducers with 1/2" FNPT Drain Port
Jacketed Hemispherical Reducers Jacketed Hemispherical Reducers allow the user to circulate water around the bowl and keep extracted material liquefied for easier flow through the bottom port. These jacketed reducers have 1/2" FNPT ports on either side and a 1/2" FNPT port through the bottom of the dish. These reducers are made out of 304 stainless steel with a high polish interior. Specifications Material 304 Stainless Steel Connection Type(s): Tri-Clamp 1/2" FNPT Sizes Available: 6" 10" 12"
$340.09 - $481.79
Hemispherical Endcap with 1.5" Side Port
Hemispherical Endcap with 1.5" Side Port This Hemispherical Endcap has a unique drain port welded on to the side of it to easily clear out any material without having to have multiple extra clamps, gaskets, and bends. This end cap is made out of 304 stainless steel and has a 1.5" Tri-Clamp/ Tri Clover side port with a high polish interior. Specifications Material 304 Stainless Steel Sizes Available 6" 8" 10" 12"
$212.55 - $338.67

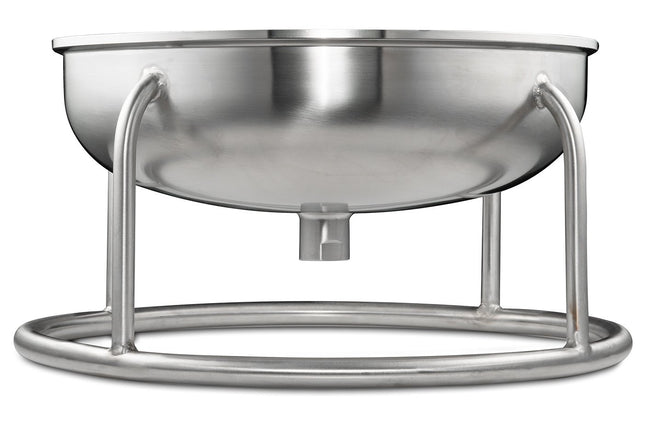

Hemispherical Tri-Clamp Reducer with Welded Ring Stand
Hemispherical Tri-Clamp Reducer with Welded Ring Stand Hemispherical Tri-Clamp Reducer with Welded Ring Stand allows the user to create a larger drain/filtering system allowing more weight to be supported with the ring stand. These reducers have 2 connection points with Tri-Clamp on the top and FNPT drain port on the bottom. Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Types: 4" Tri-Clamp x 1/4" FNPT 6" Tri-Clamp x 1/2" FNPT 8" Tri-Clamp x 1/2" FNPT 10" Tri-Clamp x 1/2" FNPT 12" Tri-Clamp x 1/2" FNPT
$318.83 - $609.32
Jacketed Hemispherical Reducers with 2" Tri-Clamp Drain Port
Jacketed Hemispherical Reducers with 2" Tri-Clamp Drain Port Jacketed Hemispherical Reducers allow the user to circulate water around the bowl and keep extracted material liquefied for easier flow through the bottom port. These jacketed reducers have 1/2" FNPT ports on either side for circulation and a 2" Tri-Clamp port through the bottom of the dish. These reducers are made out of 304 stainless steel with a high polish interior. Specifications Material 304 Stainless Steel Connection Type(s): 12" Tri-Clamp 2" Tri-Clamp (2) 1/2" FNPT
$481.79

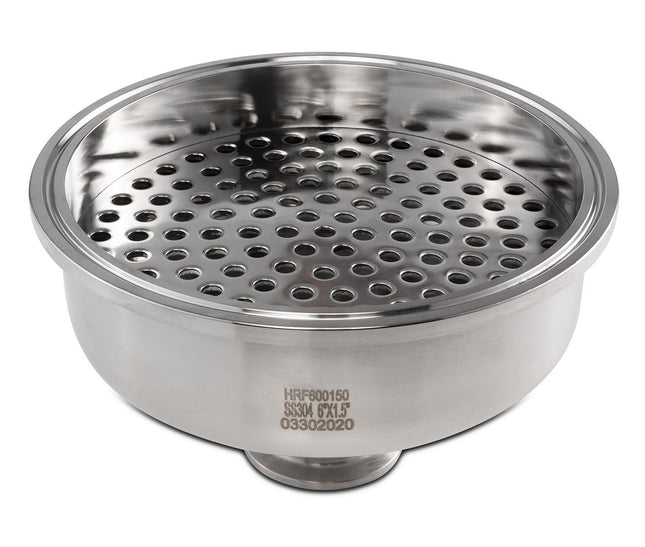

Hemispherical Reducer with Filter Plate
Hemispherical Filter Plate Reducer This hemispherical reducer has a built-in filter plate. This unique design allows the user to save even more space by combining a filter plate ANDhemispherical reducer. Made out of 304 stainless steel the filter plate is welded into the hemispherical reducer and has Tri-Clamp connections on both ends.
$46.76 - $102.03

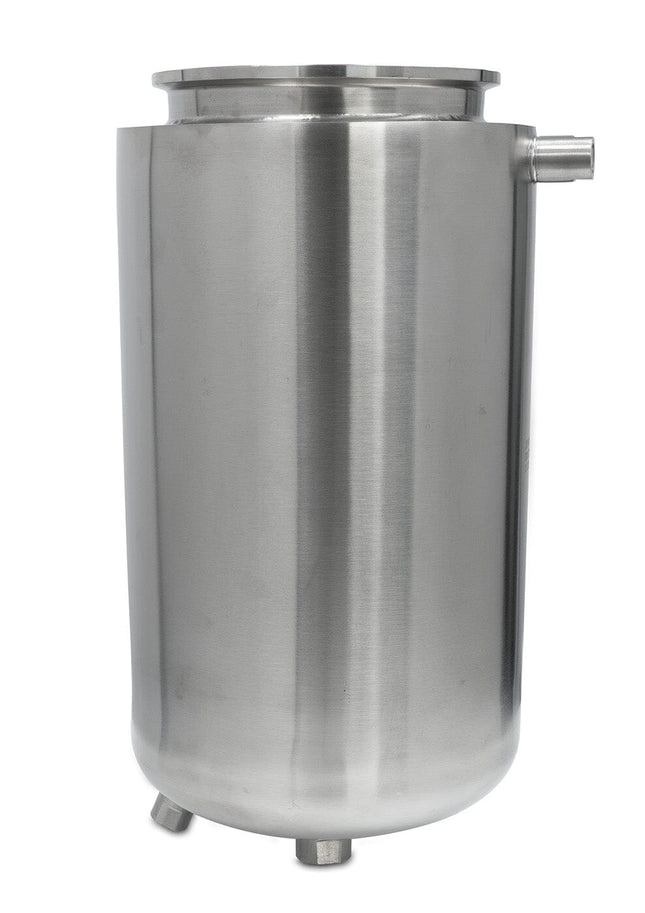

Jacketed Sucker Pot
Jacketed Sucker Pot This jacketed sucker pot works perfectly as a collection base for extracted oil and easy discharge or as a storage vessel for distillate dispensing. Both of these applications are made easier with the use of a heater running through the jacket. This pot can be mounted to an extraction rack with the use of 8" pipe hangers. Connections: Top: 6" Tri-Clamp Bottom: 1/4" FNPT Jacket: 1/4" FNPT (2x ports)
$495.96

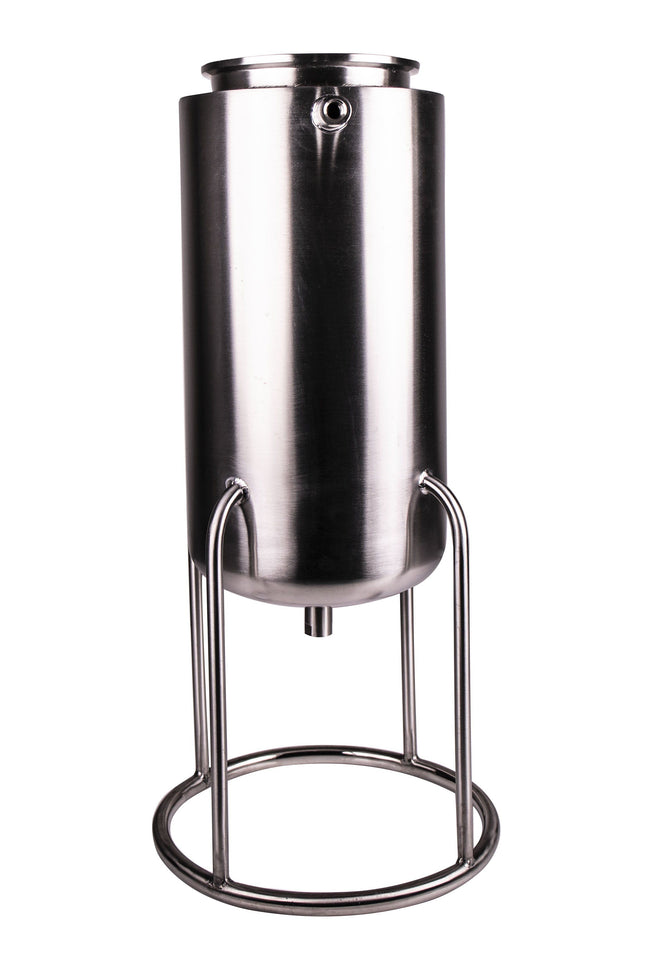

Jacketed Sucker Pot with Ring Stand
Jacketed Sucker Pot with Ring Stand This jacketed sucker pot works perfectly as a collection base for extracted oil and easy discharge or as a storage vessel for distillate dispensing. Both of these applications are made easier with the use of a heater running through the jacket. Connections: -Top: 6" Tri-Clamp -Bottom: 1/4" FNPT -Jacket: 1/4" FNPT (2x ports)
$850.22
Jacketed Hemispherical Reducer Stand
Jacketed Hemispherical Tri-Clamp Reducer with Welded Ring Stand Jacketed Hemispherical Tri-Clamp Reducer with Welded Ring Stand allows the user to create a larger drain/filtering system allowing more weight to be supported with the ring stand. These reducers have (2) 1/2" FNPT connection jacket ports with Tri-Clamp connection on the top and a 1/4" FNPT drain port on the bottom. The outer jacket allows the user to recover faster or keep materials at a specific temperature for more accurate processes. Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Types: Tri-Clamp x (2) 1/2" FNPT x 1/4" FNPT
$425.11 - $644.75
BVV Compression Connection Hemispherical Reducers
BVV Compression Connection Hemispherical Reducers BVV Compression Connection Hemispherical Reducers allow the user to connect differently sized Tri-Clamp parts with compression connection fittings to each other without adding to the overall size of your extraction system. These reducers are offered in Tri-clamp x Female or Male 3/8" Compression Connections. Specifications: Material: 304 Stainless Steel High Polish Interior Standard: 3A Connection Types: Tri-Clamp x Female or Male 3/8" Compression Connections
$70.85 - $134.62

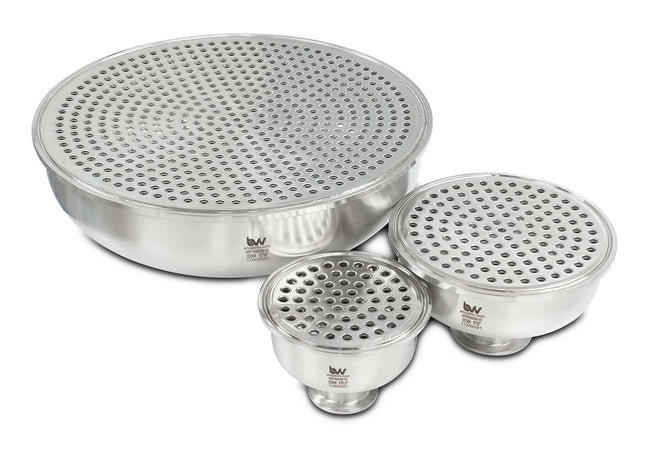

Hemispherical Reducer with Filter Plate V3
Hemispherical Reducer with Filter Plate V3 This hemispherical reducer has a built-in filter plate that is welded flush with the top of the reducer. This unique design allows the user to save even more space by combining a filter plate and hemispherical reducer. Made out of 304 stainless steel the filter plate is welded into the hemispherical reducer and has Tri-Clamp connections on both ends.
$99.19 - $510.13

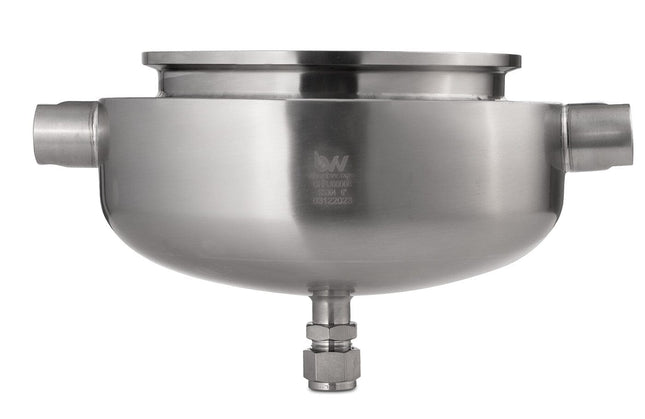

6" Jacketed Hemispherical Reducer Compression
6" Jacketed Hemispherical Reducer Compression This hemispherical reducer will go from a 6" tri clamp to a 1/2" Compression fitting. The compression fitting is the preferred choice for sanitary connections to eliminate possible contamination from particles getting stuck within threads. The jacket around the outside of the reducer has 2x 1/2" NPT ports to connect to a temperature controlled circulator.
$460.54
4" x 1.5" x1/4" FNPT Tri-Clamp Endcap
4" x 1.5" x1/4" FNPT Tri-Clamp Tri Clover Endcap This End Caps come with a 1/4"-18 FNPT Threaded connection and 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 2 connections are welded on a 4" Tri-Clamp End Cap. Specification Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 4" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 4" x 1.5" x1/4" FNPT Tri-Clamp Endcap - Drawing BVV™ 4" x 1.5" x1/4" FNPT Tri-Clamp Endcap - End Cap Chart
$102.03
10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap
10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp/ Tri Clover Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension center ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 5 connections are welded on a 10" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Type: 1.5" Tri-Clamp - 0.5" Tube Extension on center ferrule Below Lid 10" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap - Drawing BVV™ 10" x (3) 1.5" x (2)1/4" FNPT Tri-clamp Endcap - End Cap Chart
$276.32
12" x (3) 2" x (2) 1/4 FNPT Endcap
12" x (3) 2" x (2) 1/4 FNPT Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 2" Tri-Clamp/ Tri Clover ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension on center ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 2" Tri-Clamp Connection. These 5 connections are welded on a 12" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 2" Tri-Clamp - 0.5" Tube Extension on center ferrule Below Lid 12" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 12" x (3) 2" x (2) 1/4 FNPT Endcap - Drawing BVV™ 12" x (3) 2" x (2) 1/4 FNPT Endcap - End Cap Chart
$318.83
6" x 1.5" x (2) 1/4" FNPT Tri-clamp Endcap BVV™
6" x 1.5" x (2) 1/4" FNPT Tri-clamp Tri Clover Endcap BVV™ This End Cap come with Two 1/4"-18 FNPT Threaded connection and 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 0.5" Tube Extension Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 3 connections are welded on a 6" Tri-Clamp End Cap. Specification Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp - 0.5" Tube Extension Below Lid 6" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 6" x 1.5" x (2) 1/4" FNPT Tri-clamp Endcap - Drawing BVV™ 6" x 1.5" x (2) 1/4" FNPT Tri-clamp Endcap - End Cap Chart
$140.29
6" Tri-Clamp Hemispherical Extractor Lid
6" Tri-Clamp Tri Clover x (3) 1.5" TriClamp x (4) FNPT Hemispherical Lid This End Cap comes with Four FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a sanitary weld with a 3" Tube Extension Below the middle port on the lid. These allow the user to adapt and connect a threaded connection to the NPT ports and three 1.5" Tri-Clamp Connections on a 6" Hemispherical Tri-Clamp lid. With this versatile Tri-Clamp Extractor Lid, users can quickly create a leak-proof connection allowing easy assembly or disassembly for routine maintenance and inspection. Specification SKU: 600HEL 600HEL-V2 Material: 304 Stainless Steel 304 Stainless Steel Connection Types: 6" Tri Clamp 3x 1.5" Tri Clamp (Tube Extension Below Center Port) 4x 1/4" FNPT 2x 1/4" FNPT - 2x 1/2" FNPT Standard: 3A BVV™ 6" Tri-Clamp x (3) 1.5" TriClamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 6" Tri-Clamp x (3) 1.5" TriClamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$226.73 - $247.98
8" x (3) 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid
8" x (3) 1.5" Tri-Clamp Tri Clover x (4) 1/4" FNPT Hemispherical Lid Our Tri-Clamp Hemisperical Lid delivers superior rating performance and is commonly found in systems operating over 100 PSI. This End Cap comes with Four 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrule welded to the end cap with a 3" Tube Extension Below the Lid. The tube extension is designed to keep extracts from dripping on the inside of the lid, to minimize cleanup and maximize yield. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 7 connections are welded on a 8" Hemispherical Tri-Clamp End Cap. Specifications: Material: 304 Stainless Steel Connection Types: 1.5" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 8" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 8" x (3) 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 8" x (3) 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$233.81
10" Tri-Clamp x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid
10" Tri-Clamp/ Tri Clover x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid This End Cap comes with Four 1/4"-18 FNPT Threaded connection and One 1.5" Tri-Clamp ferrule and Two 2" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 7 connections are welded on a 10" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Type: 1.5" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 2" Tri-Clamp 10" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 10" Tri-Clamp x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 10" Tri-Clamp x (2) 2" Tri-Clamp x 1.5" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$347.17
12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid
12" Tri-Clamp/ Tri Clover x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid This End Cap comes with Four 1/4"-18 FNPT Threaded connection and Three 2" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 3" Tube Extension Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 2" Tri-Clamp Connection. These 7 connections are welded on a 12" Hemispherical Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Types: 2" Tri-Clamp - 3" Tube Extension Below Lid on Center Tri-Clamp Port 12" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - Drawing BVV™ 12" Tri-Clamp x (3) 2" Tri-Clamp x (4) 1/4" FNPT Hemispherical Lid - End Cap Chart
$481.79
3" Tri-Clamp x (2) 1/4" FNPT
3" Tri-Clamp/ Tri Clover x (2) 1/4" FNPT These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specifications Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 3" BVV™ 3" Tri-Clamp x (2) 1/4" FNPT - Drawing BVV™ 3" Tri-Clamp x (2) 1/4" FNPT - End Cap Chart
$51.01
4" Tri-Clamp x (2) 1/4" FNPT
4" Tri-Clamp x (2) 1/4" FNPT These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specification Material: 304 Stainless Steel Connection Types: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 4" BVV™ 4" Tri-Clamp x (2) 1/4" FNPT - Drawing BVV™ 4" Tri-Clamp x (2) 1/4" FNPT - End Cap Chart
$59.52
6" Tri-Clamp x (2) 1/4" FNPT ports w/ Shower Head
6" Tri-Clamp Tri Clover x (2) 1/4" FNPT Ports w/ Shower Head These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Shower Head End Caps help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications Material: 304 Stainless Steel Connection Types: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 6"
$99.19
4" Tri-Clamp x (2) 1/4" FNPT w/ Showerhead
4" Tri-Clamp/ Tri Cover x (2) 1/4" FNPT w/ Showerhead These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Shower Head End Caps help disperse solvent input into a system which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Specifications Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 4"
$83.60
3" Tri-Clamp x (2) 1/4" FNPT Ports w/ Shower Head
3" Tri-Clamp/ Tri Clover x (2) 1/4" FNPT Ports w/ Shower Head These End Caps come with Two 1/4"-18 FNPT Threaded connection welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Stainless steel tri-clamp fittings are the most popular style of process line equipment used within the industrial, food, beverage, and pharmaceutical industries. Shower Head End Caps help disperse solvent input into a system, which creates better material saturation when flooding a material column. This helps to prevent channeling, ensuring all the material is saturated. Quickly create a leak-proof connection allowing easy assembly or disassembly for routine maintenance and inspection. Specifications Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 3"
$56.68
6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports
6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports These End Caps come with four 1/4"-18 FNPT Threaded connections welded to the end cap with a sanitary weld. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid. Specification Material: 304 Stainless Steel Connection Type: Tri-Clamp 1/4" - 18 FNPT Standard: 3A Sizes Available: 6" BVV™ 6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports - Drawing BVV™ 6" Tri-Clamp Endcap w/ (4) 1/4" FNPT Ports - End Cap Chart
$155.87 - $177.13
8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap
8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Tri Clover Endcap This End Cap come with Two 1/4"-18 FNPT Threaded connection and Three 1.5" Tri-Clamp ferrules welded to the end cap with a sanitary weld with a 0.5" Tube Extension on the center 1.5" ferrule Below the Lid. They allow the user to adapt and connect a threaded connection to the 1/4" port on a Tri-Clamp lid and the 1.5" Tri-Clamp Connection. These 5 connections are welded on an 8" Tri-Clamp End Cap. Specifications Material: 304 Stainless Steel Connection Type: 1.5" Tri-Clamp - 0.5" Tube Extensionon center ferrule Below Lid 8" Tri-Clamp 1/4" - 18 FNPT Standard: 3A BVV™ 8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap - Drawing BVV™ 8" X (3) 1.5" X (2) 1/4" FNPT Tri-Clamp Endcap - End Cap Chart
$290.49
Stainless Steel Tri-Clamp Hopper
The Triclamp / Tri Clover hopper can be attached to a material column to assist in packing the column with material. The Hopper has no tri clamp ferrule on the larger end and is made out of sanitary 304 stainless steel.
$184.21 - $212.55
You have seen 96 out of 155 products
