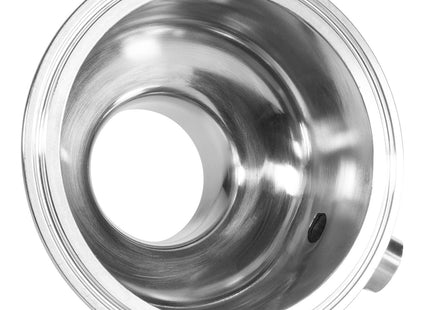

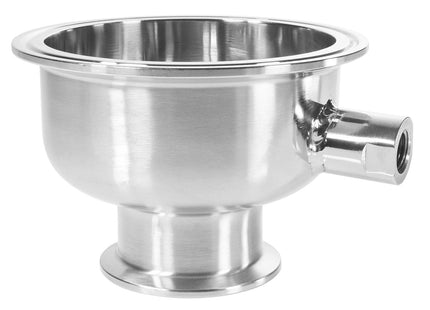

Hemispherical Tri-Clamp Reducer with 1/4" FNPT Side Port

Description

Hemispherical Tri-Clamp/ Tri Clover Reducer with 1/4" FNPT Side Port

This unique version of the hemispherical reducer has a 1/4" FNPT port welded straight on to the hemispherical reducer with Tri-Clamp ends on both sides. It allows the user to adapt to a port on their extraction system without having to adapt multiple pieces together and reduce the number of leak points. A hemispherical reducer also shortens the height of a system because it is shorter than a conical reducer. Tri Clamp reducers are the perfect alternative to concentric reducers when space is at a premium in confined areas. In addition, this device is also leak proof and adequate for easy application.

Specifications
Material 304 Stainless Steel
Sizes Available: 3" x 1.5" Tri-Clamp x 1/4" FNPT
4" x 1.5" Tri-Clamp x 1/4" FNPT
4" x 2" Tri-Clamp x 1/4" FNPT
6" x 1.5" Tri-Clamp x 1/4" FNPT
6" x 2" Tri-Clamp x 1/4" FNPT
8" x 2" Tri-Clamp x 1/4" FNPT
10" x 2" Tri-Clamp x 1/4" FNPT
12" x 2" Tri-Clamp x 1/4" FNPT

Hemispherical Tri-Clamp Reducer with 1/4" FNPT Side Port

Product form

SKU: HR300150-04

$65.03

    View 2D Technical Drawing (2-D)
    • Want it cheaper? Call us for a wholesale or processor discount. 331-281-0154
    Financing Available

    Use one of partners to pay over time. Click here for our financing options beyond Shopify payments.

    Description

    Hemispherical Tri-Clamp/ Tri Clover Reducer with 1/4" FNPT Side Port

    This unique version of the hemispherical reducer has a 1/4" FNPT port welded straight on to the hemispherical reducer with Tri-Clamp ends on both sides. It allows the user to adapt to a port on their extraction system without having to adapt multiple pieces together and reduce the number of leak points. A hemispherical reducer also shortens the height of a system because it is shorter than a conical reducer. Tri Clamp reducers are the perfect alternative to concentric reducers when space is at a premium in confined areas. In addition, this device is also leak proof and adequate for easy application.

    Specifications
    Material 304 Stainless Steel
    Sizes Available: 3" x 1.5" Tri-Clamp x 1/4" FNPT
    4" x 1.5" Tri-Clamp x 1/4" FNPT
    4" x 2" Tri-Clamp x 1/4" FNPT
    6" x 1.5" Tri-Clamp x 1/4" FNPT
    6" x 2" Tri-Clamp x 1/4" FNPT
    8" x 2" Tri-Clamp x 1/4" FNPT
    10" x 2" Tri-Clamp x 1/4" FNPT
    12" x 2" Tri-Clamp x 1/4" FNPT
