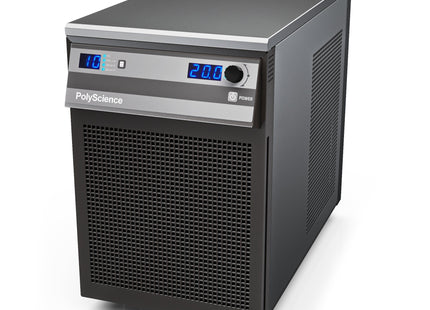

Polyscience 6100 Series 1 HP Chiller, Turbine Pump
- VendorPolyscience
Description
Polyscience 6100 Series 1 HP Chiller, Turbine Pump
Key Specifications:
- 6100 Series 1 HP Chiller with Turbine Pump, 100psi; 13.2l/min
- Display: LED
- Working Temperature Range C: -10 to 40
- Temperature Stability: +/-0.1
- Temperature Calibration Capability: 1-point
- Pump Type: Turbine
Key Features:
- Large, dual displays present temperature and pressure or flow rate simultaneously
- Compact, portable design takes up less floor space
- Cooling at ambient temperatures as high as 35C
- Powerful Turbine Pump
- User-adjusable temperature, pressure, and flow rate alarms
- Cool Command, WhisperCool
Common Specifications:
- Working Temperature Range F: 14 to 104
- Working Temperature Range C: -10 to 40
- Reservoir Capacity (gallons): 1.11
- Reservoir Capcity (liters): 4.2
- Reservoir Cover: Screw-on cap
- Cleanable Air Filter: Yes
- Cleanable Fluid Filter: Yes
- Temperature Stability F: +/-0.2
- Temperature Stability C: +/-0.1
- Display: LED
- Dispplay Resolution (Read): 0.1
- Pump Type: Turbine
- Process Connections: 1/2" FNPT
- Over-Temperature Protection / Failsafe Heater Control: Yes
- Reservoir Liquid Level Indicator: Yes
- Reservoir Drain: Yes
- Cool Command Refrigeration Technology: Yes
- WhisperCool Environmental Control Techonology: Yes
- Maximum Ambient Temperature F: 95
- Maximum Ambient Tmeperature C: 35
- Overall Dimensions (LxWxH inches): 27.6 x 14.5 x 22.6
- Overall Dimensions (LxWxH cm): 70 x 36.8 x 57.5
- Compressor Size (HP): 1
- Refrigerant: R134a
- Shipping Weight (pounds): 199
- Shipping Weight (kilograms): 90
60 Hz Only
- Part Number: 6160T21A130D
- Maximum Pressure (psi): 100
- Maximum Pressure (bar): 6.90
- Maximum Pressure Flow Rate (gpm): 3.50
- Maximum Pressure Flow Rate (l/min): 13.2
- Cooling Capacity @ +10C(W): 1925
- Cooling Capacity @ +20C(W): 2900
- Cooling Capacity @ +30C(W): 3103
- Electrical Requirements (VAC/Hz/Ph/A): 230/60/1/12.2
Certifications
- Regulatory Approvals: TUV
