Cascade CVO-2 Vacuum Oven
- VendorCascade Sciences
Description

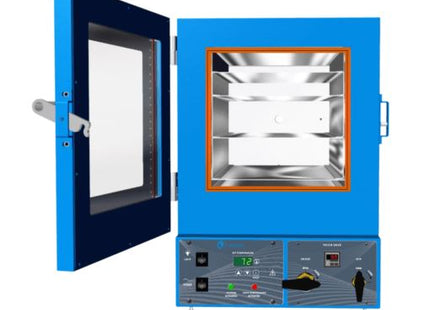

Cascade CVO-2 Vacuum Oven
(Oven Only)
This item carries up to a 1-2 week lead time.
Model CVO-2 offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven liberates solvents, water, and other unwanted compounds in small batch, R&D and lab environments. NRTL Certified.
CVO-2 Vacuum Oven Features
- NRTL Certified by TUV
- 5 shelves (11.5″W x 19″D) in a flexible configuration. Shelves are stackable and removable
- Stable temperature control. Digital temperature readout with temp sensor INSIDE the oven
- Solvent resistant BUNA door gasket
- Bright LED lights in window for visibility of sensitive material
- Digital vacuum gauge reads in inches of mercury
- Simple, set-point control
- Smooth, quarter-turn vacuum and vent valves
- Rear KF-25 port allows for rapid MAXEVAP purging or running feedthroughs inside oven for monitoring
- 120V (220V available)
- Quality Tempered Rated Glass NGI-US to ANSI Z97.1.2007 156CFR/201 11 SGCC -2577 ½ UA
- Adjustable leveling feet ensure oven sits solid and level in the workspace

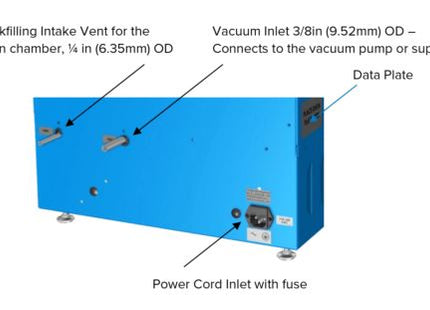

CVO-2 Connections
- 3/8″ Barb for Vacuum Pump
- 1/4″ Barb for Venting (N2 Connection OK)
- KF-25 Port for feedthroughs or MAXEVAP Connection Kit

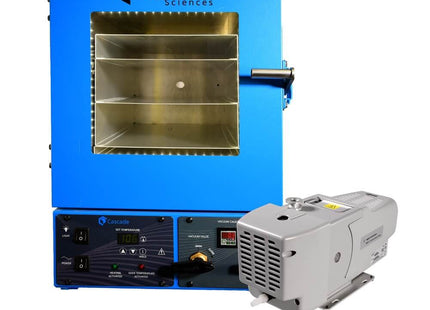

Need A Complete CVO-2 Vacuum Package?
Cascade has taken the guess work out of pairing the right vacuum oven with the proper pump. We offer two complete CVO-2 vacuum oven packages with everything you need for vacuum drying. Both packages feature clean, quiet, Agilent oil-free scroll pumps.
The CVO-2 STANDARD Package is an ideal package for vacuum drying or purging requiring a steady, gentle, non-turbulent purge.
The CVO-2 PRO Package is ideal for higher thru-put, faster purge times pulling deeper vacuum.
CVO-2 Comes In Low & High Temp Models
| Low & High Temp Specifications | ||
|---|---|---|
| CVO-2 (Low Temp) | Temperature Processing Range | -3ºC to 121°C (26°F to 250°F) |
| Temperature Uniformity | +/- 1ºC at 40.5°C (+/- 1.5°F at 105°F) | |
| Temperature Stability | +/- 0.5°C at 40.5°C (+/- 0.4 at 105°F) | |
| CVO-2-HT (High Temp) | Temperature Processing Range | Up to 220°C (428°F) |
| Temperature Uniformity | +/- 6.5% of setpoint | |
The Cascade Difference
Vacuum ovens have been around for decades. Basic vacuum ovens are mass-produced and sold by many large scale laboratory equipment distributors. But there are key differences between Cascade and other inexpensive, often imported vacuum ovens.

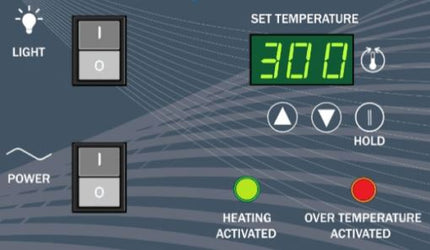

Exceptional Temperature Control & Stability
The Cascade CVO-2 uses a unique control logic not found in most lab grade vacuum ovens. The temperature probe is INSIDE the oven, which minimizes temperature overshoot and delivers best-in-class temperature stability and uniformity particularly in the low temperature ranges. Accurate, stable temps throughout the CVO-2 eliminate hot and cold spots, making accurate use of every inch of shelf space.
Independent Over-temp Failsafe Protection
The Cascade Sciences CVO-2 is equipped with a heating cutoff system that will automatically stop power to the heaters when the oven shelf temps exceed 200°C or 392°F. This protection system will provide peace of mind for overnight processing or unattended vacuum bake outs.
NRTL Certification #U8 170464972 077. No Extra cost.
The CVO-2 Vacuum Oven comes certified by the Nationally Recognized Test Lab, TUV. This certification is a requirement by many municipalities.
- CAN/CSA-C22.2 No. 61010-1:2012
- +UPD No. 1:2015-07 + UPD No. 2:2016-04
- CAN/CSA-C22.2 No. 61010-2-010:2015
- UL 61010-1:2012/R:2016-04
- UL 61010-2-010:2015
- EN 61010-1:2010
- EN 61010-2-010:2014
Rigorous Quality Assurance in an ISO Certified, USA Manufacturing Facility
Cascade Sciences manufactures our ovens in Oregon, USA. We are proud of our ISO 9001 Certification/Accreditation. Each oven completes a series of quality assurance procedures before shipment:
- Chambers are vacuum tested after welding for vacuum integrity
- Electrical & mechanical safety is thoroughly tested in compliance with TUV requirements
- Functional testing verifies user settable items consistent with most lab protocols/usage models
- Temperature verification includes calibration & temp chamber uniformity following ASTM standards
- Units are cleaned and packed in ISTA tested, certified packaging materials

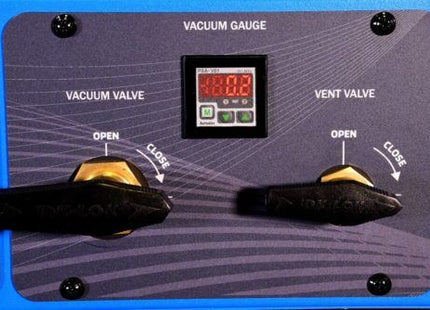

Digital Vacuum Gauge
The digital vacuum gauge installed on the CVO-2 is factory default set to read in inches of mercury (“Hg) with a scale of 0 – 29.9”Hg. Change the unit of vacuum measurement to read in a wide variety of units from mmHg, bar psi, kPa, cm2, mmH20. Zero out the vacuum gauge to calibrate for just above sea level adjustments.
Equipped for Inert Gas Backfill. Built-In Safety Relief
Introduce inert gasses such as nitrogen, argon, helium, etc. as part of your process via the 1/4″ rear vent barb. The maximum backfill pressure is 15PSI. In an overpressure situation, a simple, built-in safety relief allows gasses to escape via a spring loaded tempered window.

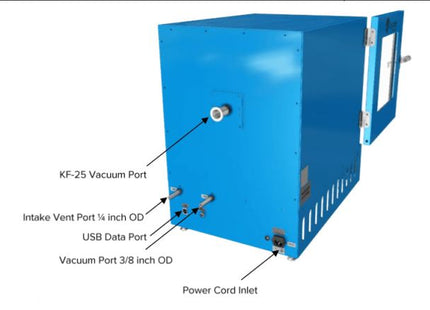

Flexible Pumping / Feedthru Connection Ports
The CVO-2 ovens offer two different vacuum oven connection points. The standard connection is a 3/8″ dia barb located at the rear of the oven. It is connected to the vacuum valve level on the front control panel. For even faster evaporation, purging or drying consider upgrading to the MAXEVAP connection kit. The MAXEVAP connection kit secures to the oven’s rear 1″ dia KF-25 port located on the back center of the chamber. The MAXEVAP connection never reduces flow by continuing with 1” diameter vacuum rated clear lines, a 1” dia KF-25 side mounted vacuum valve and KF-25 fittings and hardware. This KF-25 port can also be used to run temperature feedthroughs, or monitoring sensors inside the vacuum chamber during processing.
Stackable Shelf Design For Maximum Temperature Conduction
Under vacuum, there is no air inside a vacuum oven. Temperatures are achieved by a process of conduction and radiation to move temperatures into the product inside the oven. Cascade’s stackable shelf design makes the most of this opportunity by making the chamber longer and narrower, rather than square and supplies stackable shelves in multiple height configurations to allow for the fastest, most uniform transfer of heat.
Ergonomically Designed, Easy Quarter-Turn Valves
For anyone that has struggled with consistently turning the small, round, low-quality vacuum/vent valves, relief is in sight. You will love our large, quarter-turn vacuum/vent valves. Your wrists will thank you!
ANSI Rated Tempered Glass + USA Made Steel
Cascade ovens are made in Oregon, USA with high quality materials. Our glass is NGI-USA Tempered and certified to ANSI Z97.1.2007 16CFR / 201 11. Our door handles are rugged brushed steel, not plastic. Our vacuum vessels are constructed with American made steel. We’ve tried lower cost, imported steel, but over time, vacuum chambers made of lesser quality/lower tolerance material cannot withstand the flex and pressure changes of vacuum pumping/venting/purging. This can deteriorate vacuum integrity and the oven will lose its ability to hold vacuum.
Door Gasket Options – Ideal For Your Process
Cascade’s vacuum ovens come standard with a solvent resistant BUNA door gasket. For higher temp applications, we offer a cured Silicone gasket as well. Ask us about the variety of door gaskets we can supply based on your application: Silicone, BUNA, Viton, Fluorosilicone. Gaskets will eventually wear out. It’s ideal to keep a few spares on hand.
Model CVO-2 Vacuum Oven Specifications:
| Capacity | |
|---|---|
| Volume | 1.67 Cu Ft (47.2 L) |
| Interior | 12″W x 20″D x 12″H (305mm x 508mm x 305mm) |
| Exterior | 18.8″W x 24.5″D x 24.5″H (478mm x 622mm x 622mm) |
| Product Weight | 148 lbs (67.1 kgs) |
| Temperature | |
|---|---|
| Temperature Range | -3ºC to 121°C (26°F to 250°F) |
| Temperature Uniformity | +/- 1ºC at 40.5°C (+/- 1.5°F at 105°F) |
| Temperature Stability | +/- 0.5 at 40.5°C (+/- 0.4°F at 105°F) |
| Vacuum | |
|---|---|
| Vacuum Valve | 1/4 Turn Lever |
| Vent Valve | 1/4 Turn Lever |
| Vacuum Gauge | Digital. 0 to 29.9″Hg |
| Temperature Controller |
|---|
| Digital Set Point |
| Accurate Within .5ºC (1°F) |
| Independent Overtemp Failsafe |
| Ports (Rear) | |
|---|---|
| Vacuum | 3/8″ Barb |
| Vent | 1/4″ Barb |
| Auxiliary | KF-25 Port |
| Inert Gas Introduction |
|---|
| Use 1/4″ Vent Barb |
| 15 psi max inlet pressure |
| Power Options |
|---|
| 110V – 120V / 1ph / 6A 50/60Hz (Cord Included) |
| NEMA 5 – 15 Power Outlet |
| Full Power 2456 BTU/hr |
*(220V Optional)
| Shelving | |
|---|---|
| Includes 5 shelves in a flexible configuration Shelves are stackable and removable 1″ High = 1 each 2″ High = 2 each 3″ high = 2 each |
|
| Surface Area | 11.5″W x 19″D |
| Weight Capacity | 50 lbs (22.7 kgs) |
| Door | |
|---|---|
| Interior Lighting |
LED Strips (Rated to 150°C) |
| Glass Window | Tempered NGI-US to ANSI Z97.1.2007 |
| Gasket Type | 12″ x 12″ Solvent Resistant BUNA Standard |
| Gasket Rated to | 105°C (221°F) |
Gasket Options:
High Temp Silicone Option rated to 30°C (446°F)
Viton Option rated to 205°C (401°F)
| Shipping & Weights | |
|---|---|
| Unit Weight | 179 lb (81.2 kg) |
| Shipping Weight | 218 lbs (99 kg) |
| Shipping Dimensions | 33″L x 33″W x 47″D (Class 85) |
Product Certifications:
NRTL TUV #U8 170464972 077
CAN/CSA-C22.2 No. 61010-1:2012
+ UPD No. 1:2015-07 + UPD No. 2:2016-04
CAN/CSA-C22.2 No. 61010-2-010:2015
UL 61010-1:2012/R:2016-04
UL 61010-2-010:2015
EN 61010-1:2010
EN 61010-2-010:2014
Warranty:
1 Year (Gaskets not included)
*Temperature performance specifications are preformed in empty ovens. Performance can vary in ovens containing product.
